• voltage: 5V to 30V DC
  • Motor Driver
  • Industrial Projects
  • Controller For Robotics
  • PWM Motor Driver
1 5

Cytron

Cytron 30Amp 5V-30V DC Motor Driver High Power Motor Controller For Robotics & Industrial Projects

Cytron 30Amp 5V-30V DC Motor Driver High Power Motor Controller For Robotics & Industrial Projects

In stock

Rs. 2,922.00
Rs. 2,922.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

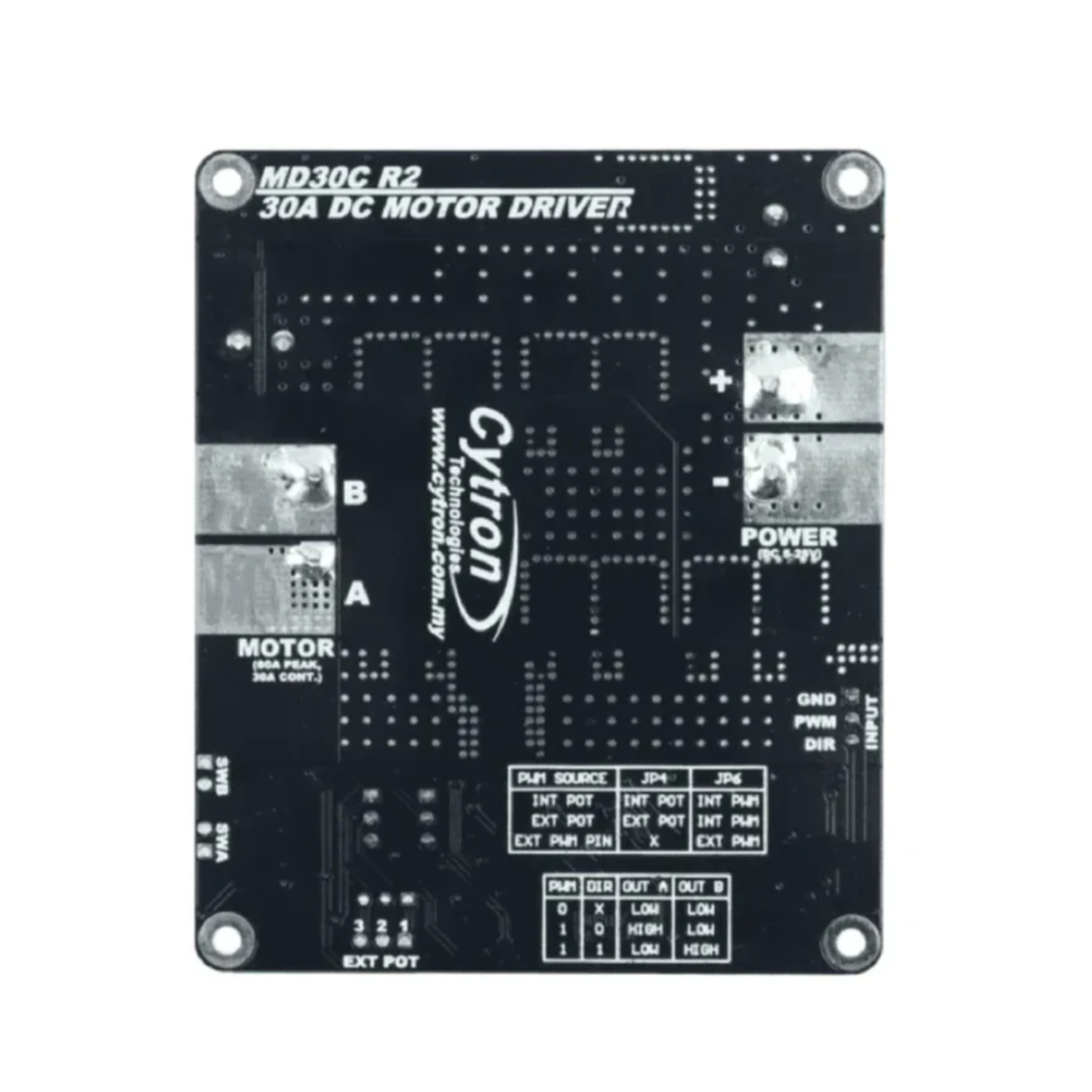

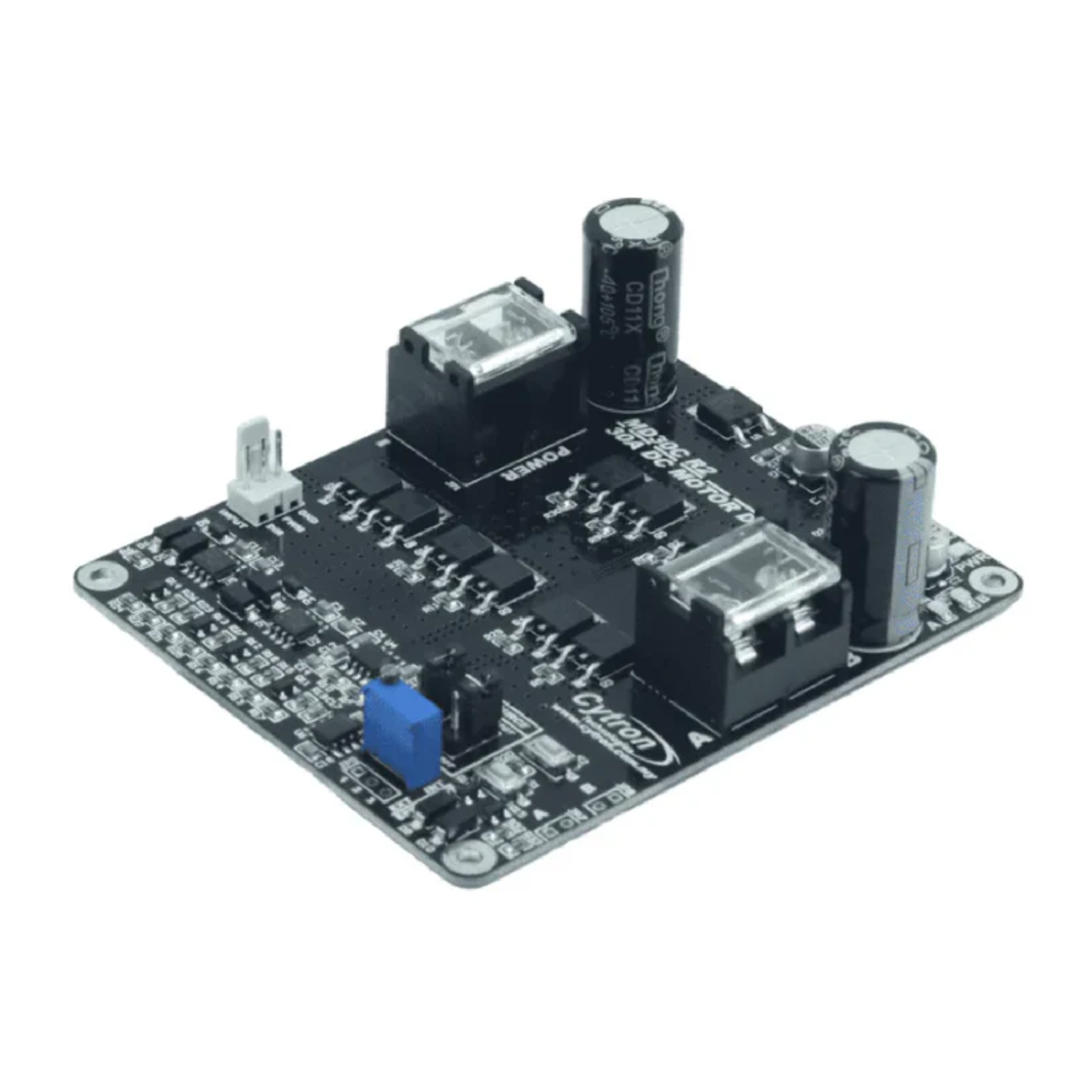

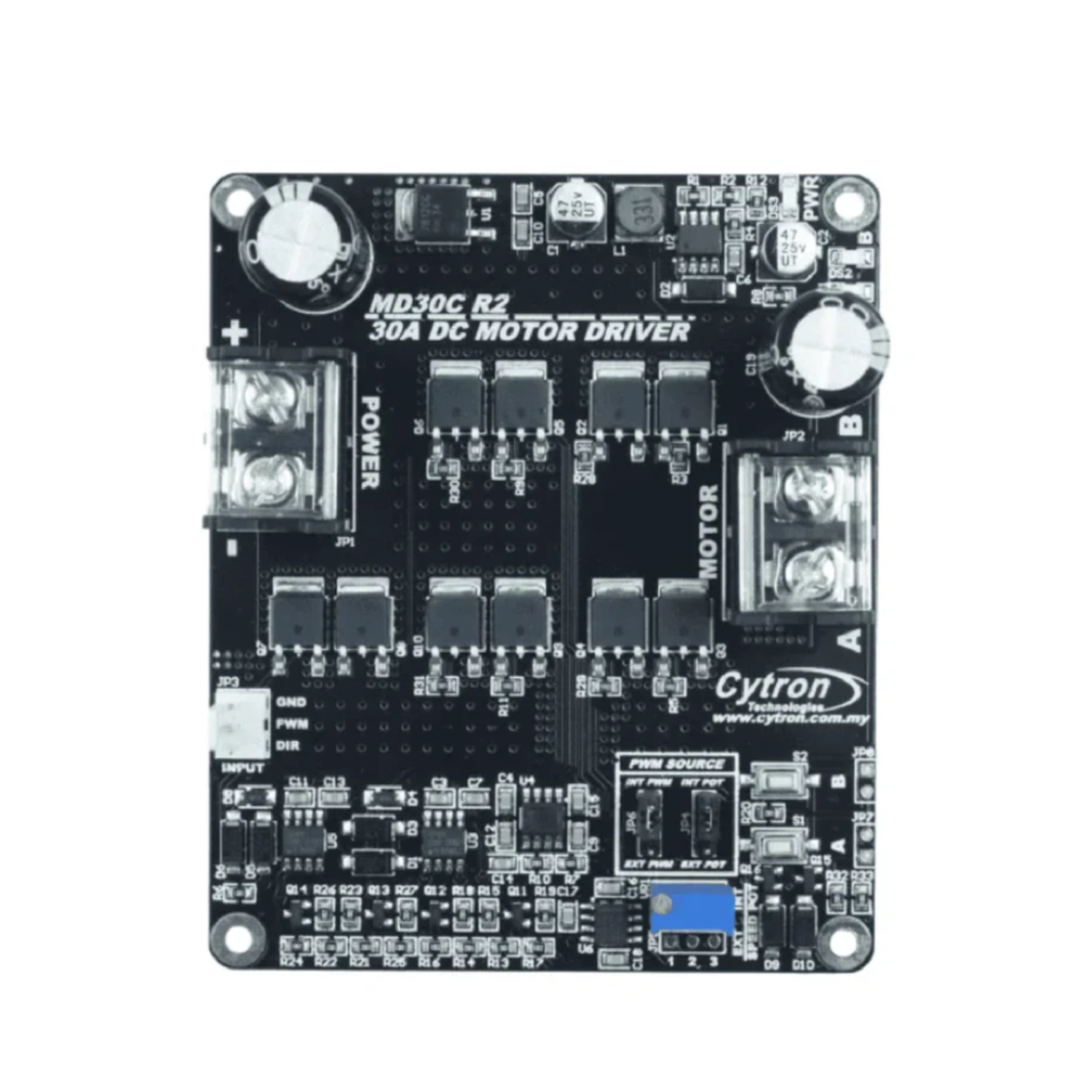

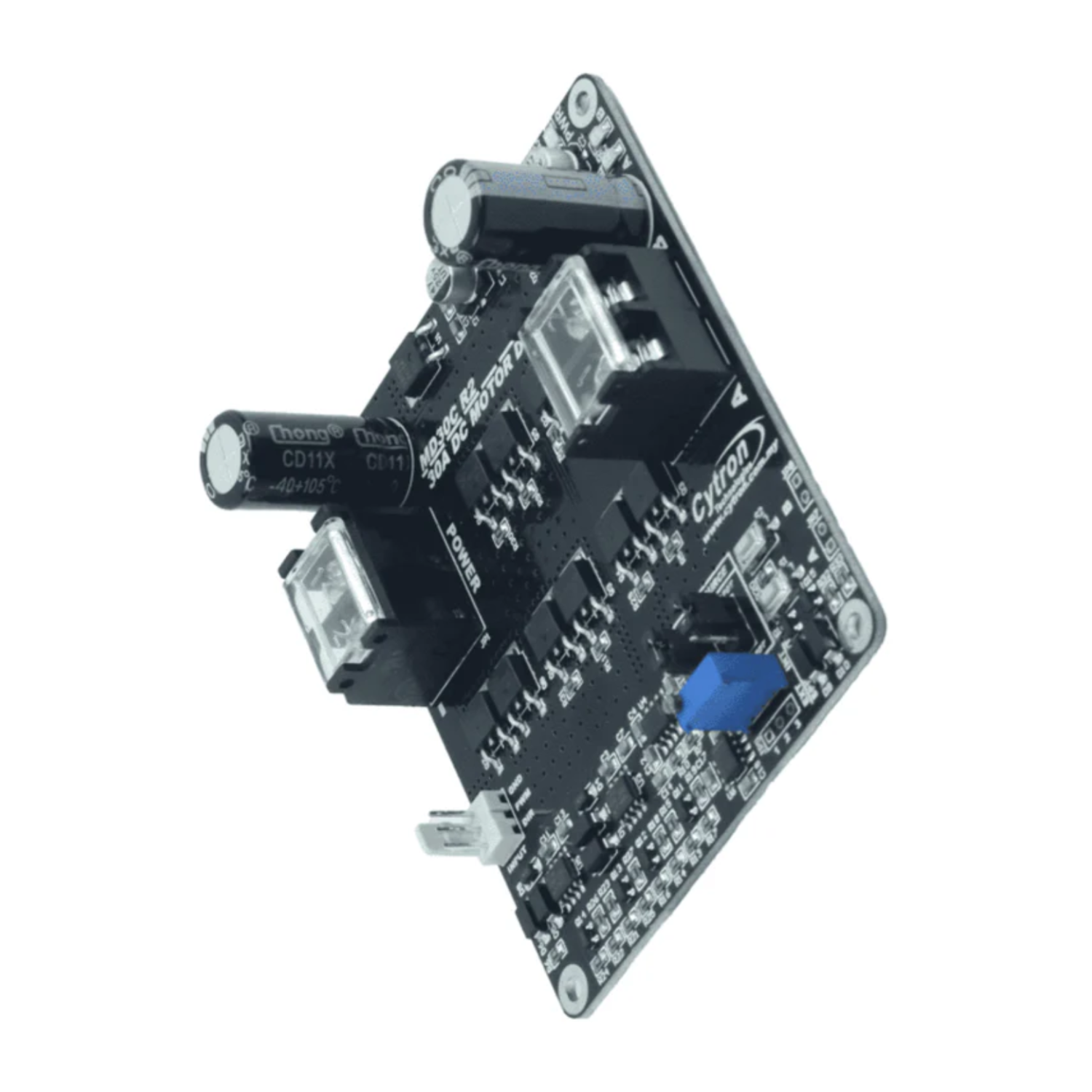

The Cytron MD30C 30A DC Motor Driver (Peak 80A) is the upgraded version of the MD30B, built to drive medium- to high-power brushed DC motors. It delivers up to 30A continuous and 80A peak current with a fully NMOS design, ensuring faster switching, higher efficiency, and operation without a heatsink or fan.

The MD30C also offers user-friendly features, including reverse polarity protection and an onboard PWM generator, allowing the motor to run without a host controller. Control can be achieved via the onboard switches and speed potentiometer or through external switches and potentiometers for flexible operation.

Specifications:

  • Item Type: Motor Driver
  • Model Series: MD Series
  • Voltage Rating: 5 to 30V
  • Current Rating: 30 to 80A
  • Operating Voltage: ~5 ~30
  • Continuous Current: 30A
  • Peak Current: 80A
  • Operating Mode: PWM (Lock-Antiphase and Sign-Magnitude): Yes; UART: No; Analog: No; RC Servo Signal: No
  • No. of Channels: 1
  • Cooling Fan: No
  • LED Indicator: Yes
  • Arduino Shield: can be used with Wire connection, No

Features:

  • Built-in reverse polarity protection for safe operation.
  • Compatible with 3.3V and 5V logic-level inputs.
  • Fully NMOS H-Bridge design for high efficiency; no heatsink required.
  • PWM speed control up to 20 kHz; output frequency matches input when using external PWM.
  • Onboard a PWM generator with switches and a potentiometer for standalone control.
  • Supports locked-antiphase and sign-magnitude modes for external PWM operation.

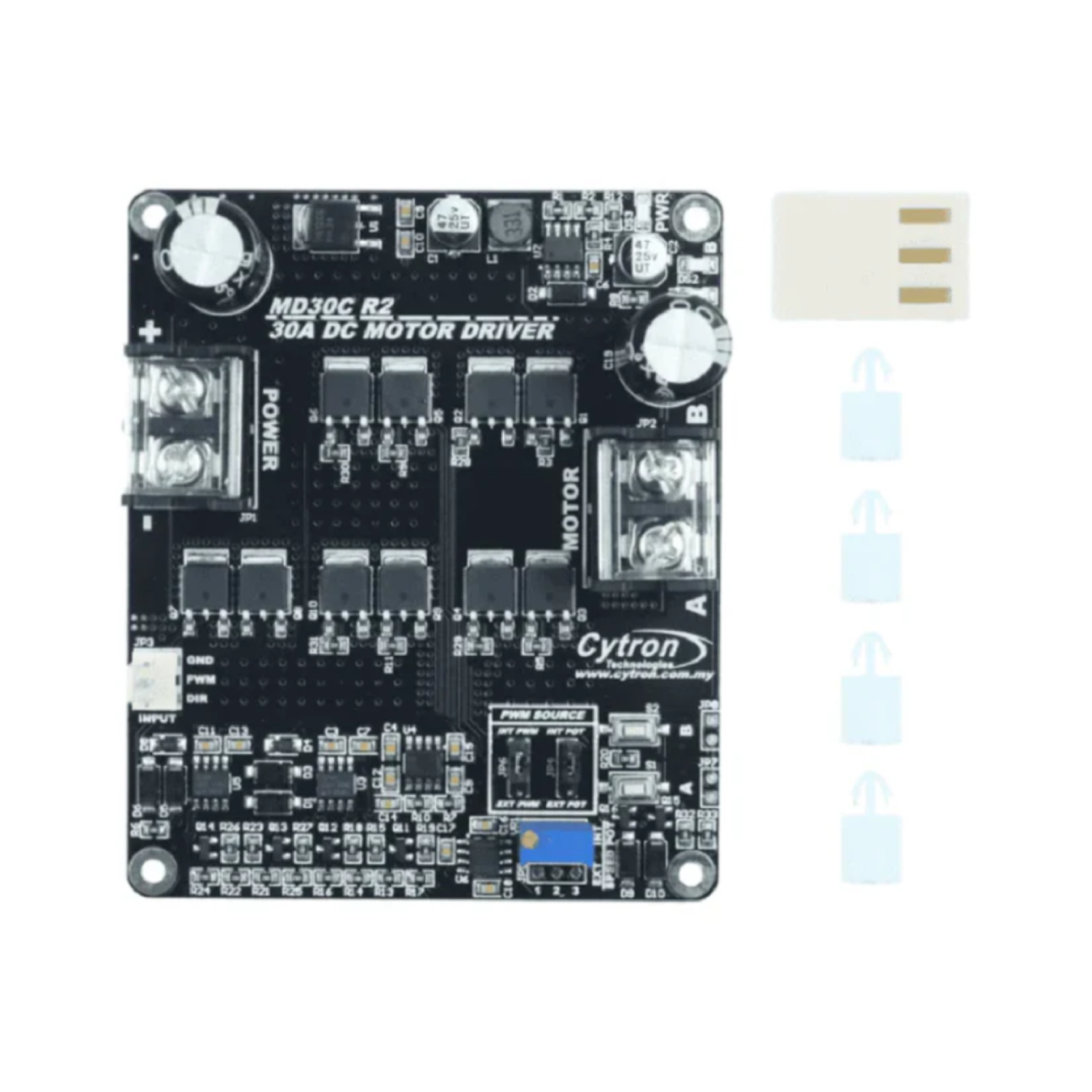

Package Included:

  • 1 x Cytron 30 amp DC Motor Driver
  • 1 x Fitting Accessories set
