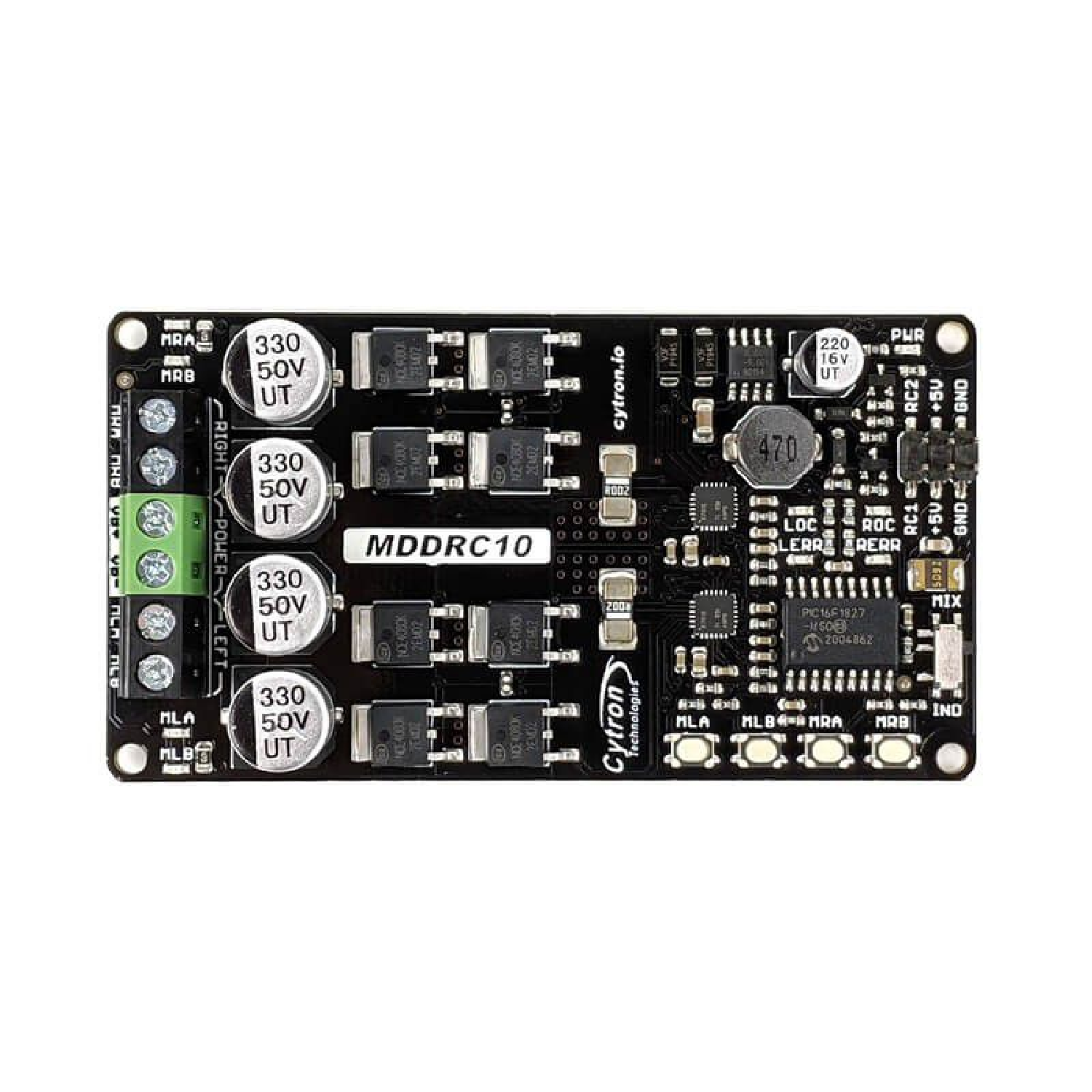

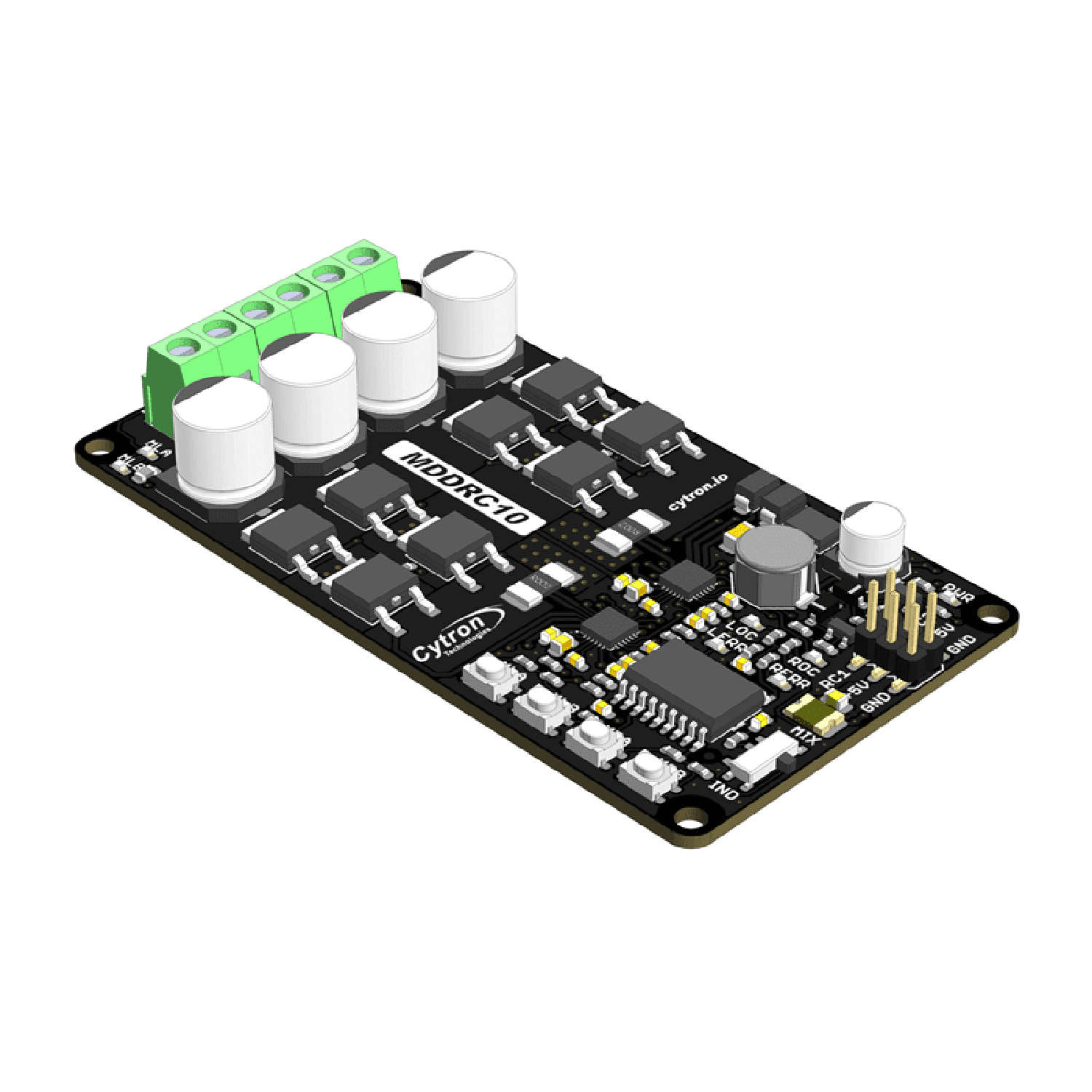

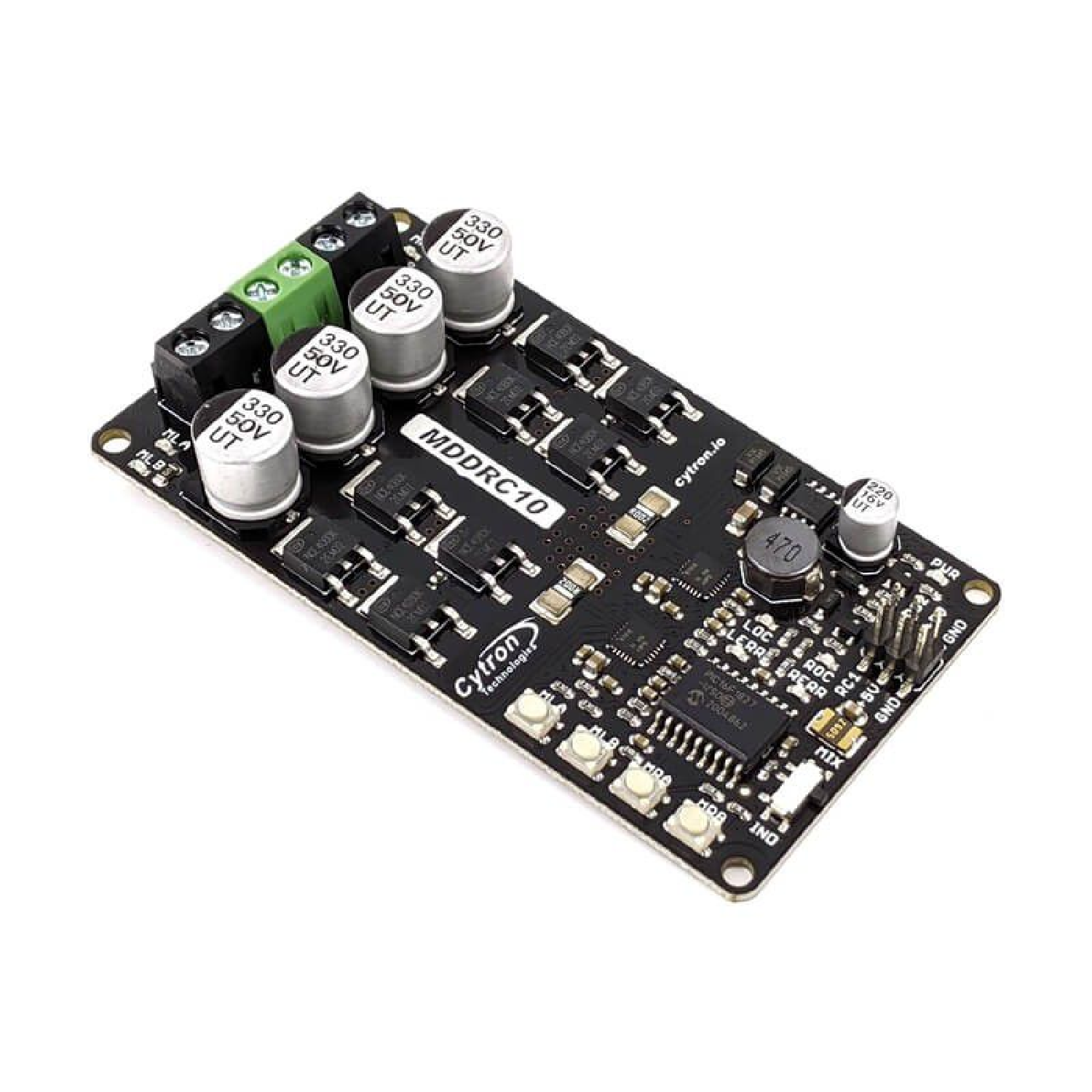

Cytron MDDRC10 10A DC Motor Driver 7V–30V 2-Channel Module For RC & Robotics

Cytron MDDRC10 10A DC Motor Driver 7V–30V 2-Channel Module For RC & Robotics

In stock

Rs. 2,970.00
Rs. 2,970.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Descriptions:

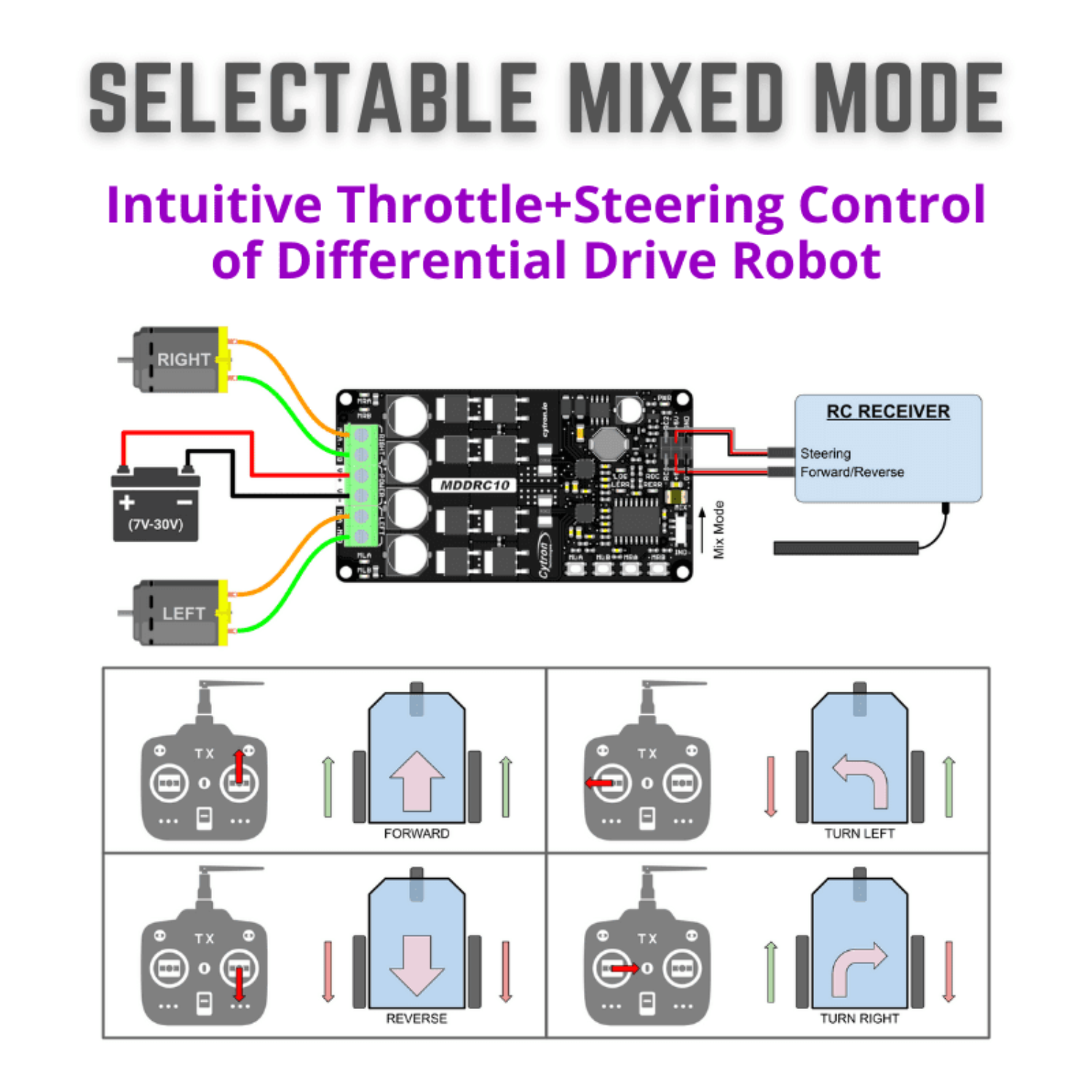

The Cytron 10 Amp 7 V-30 V Dual Channel DC Motor Driver for R/C (MDDRC10) is a high-performance motor driver designed for R/C vehicles and mobile robots, offering a plug-and-play solution with no microcontroller needed. It connects directly to an RC receiver, simplifying setup without any coding required. Featuring a selectable mixed mode for differential motor control, it allows easy throttle and steering input for remote-controlled driving.

The driver includes a built-in 5V switching regulator, powering the RC receiver without the need for an external BEC. Utilizing discrete NMOS H-bridge circuitry, it provides up to 10 amps of continuous current per channel without extra cooling. With onboard test buttons, LEDs for diagnostics, and built-in overcurrent and thermal protection, it ensures safe operation under load. Ideal for custom RC cars or advanced robotics, this dual-channel driver is a reliable and efficient choice for your projects."

Specifications:

  • Type: Motor Driver
  • Operating Voltage: DC 7 V to 30 V
  • Motor Output PWM Frequency: 20 KHz
  • Maximum Motor Current: 10 A continuous, 30 A peak
  • PWM Frequency: 20 KHz
  • 5 V Output Maximum Current: 0-500 mA

Features:

  • Plug-and-Play: Direct control via RC with no programming required.
  • Automatic Calibration: System auto-calibrates upon power-up.
  • Selectable Input Modes: Choose between mixed and independent input modes.
  • Bidirectional Motor Control: Control two brushed DC motors forward and reverse.
  • 5V Switching Regulator: Powers the RC receiver (up to 500 mA).

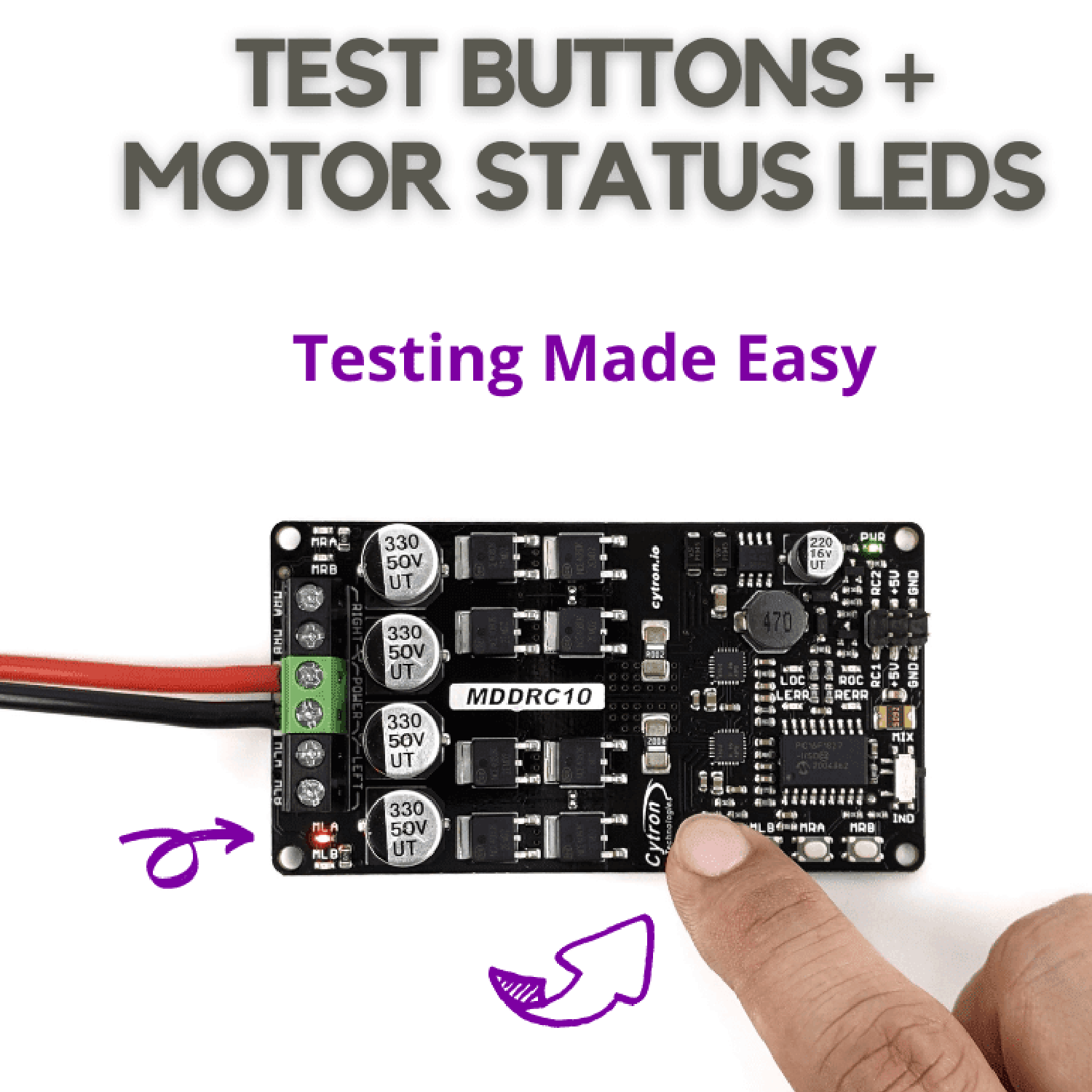

  • Quick Testing: Buttons for easy diagnostics and testing.
  • LED Indicators: Display motor output state for quick feedback.
  • PWM Frequency: Motor output operates at a stable 20 kHz PWM frequency.

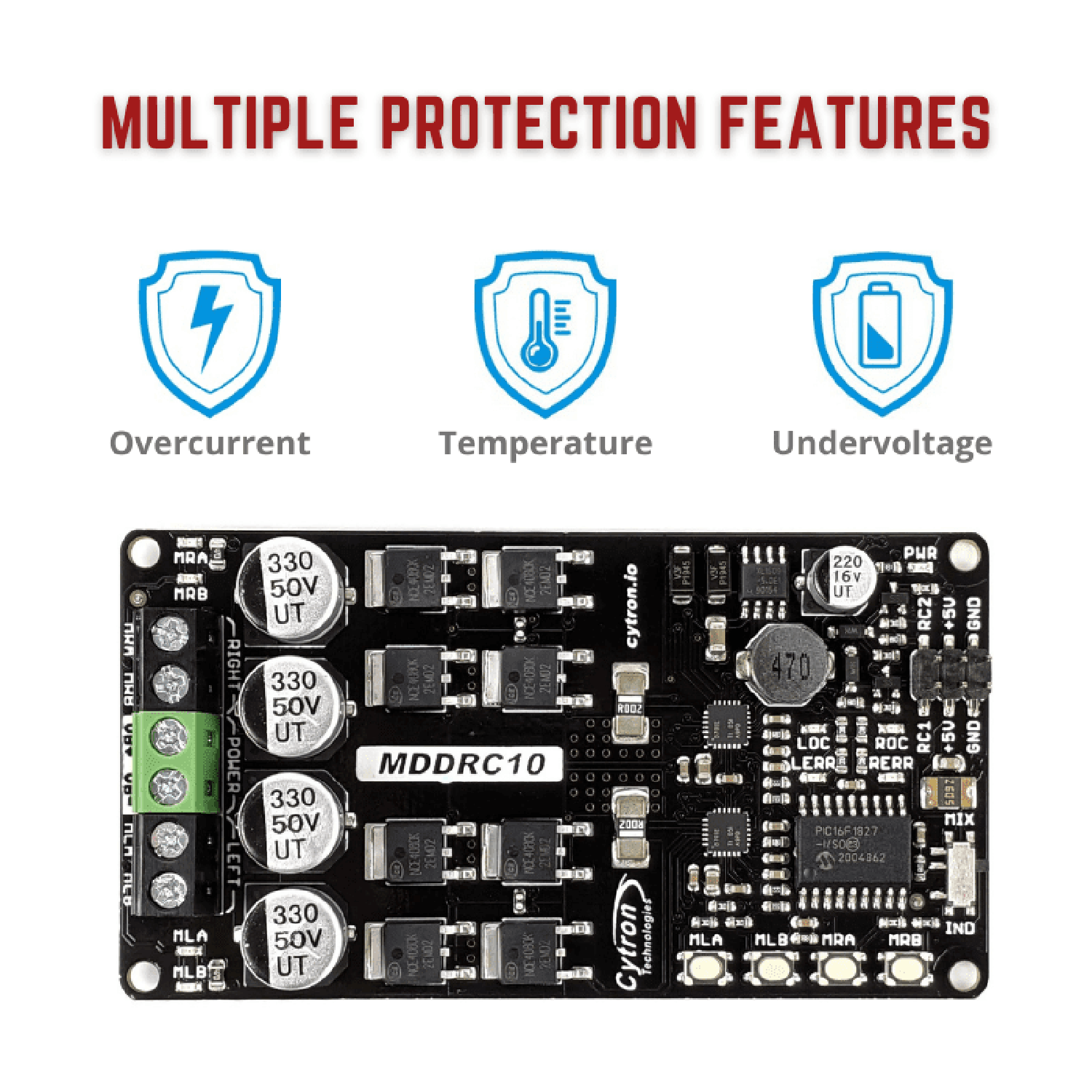

  • Overcurrent Protection: Active current limiting for safe operation.
  • Temperature Protection: Built-in thermal shutdown for safety.

Applications:

  • RC Lawn Mower Systems
  • Combat Robots
  • Sumo Robots
  • RC Toy Cars & Vehicles
  • Robotics & Automation Projects
  • DIY High-Power Motor Control Systems

Package Included:

  • 1 x 10Amp 7V-30V DC Motor Driver for R/C (2 Channels)
  • 2 x 2561 3-way connector extension wire
  • 4 x PCB Spacer
