Descriptions:

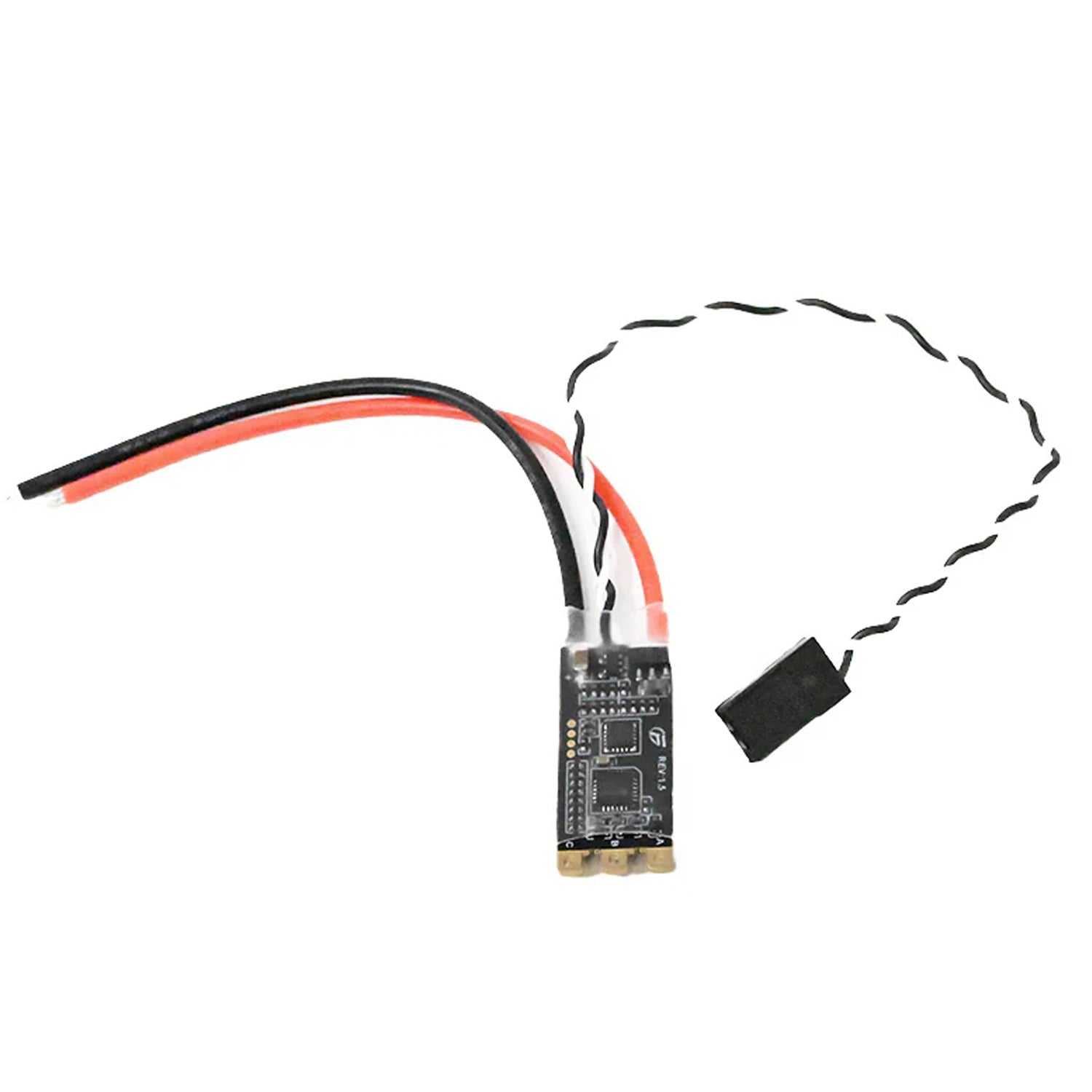

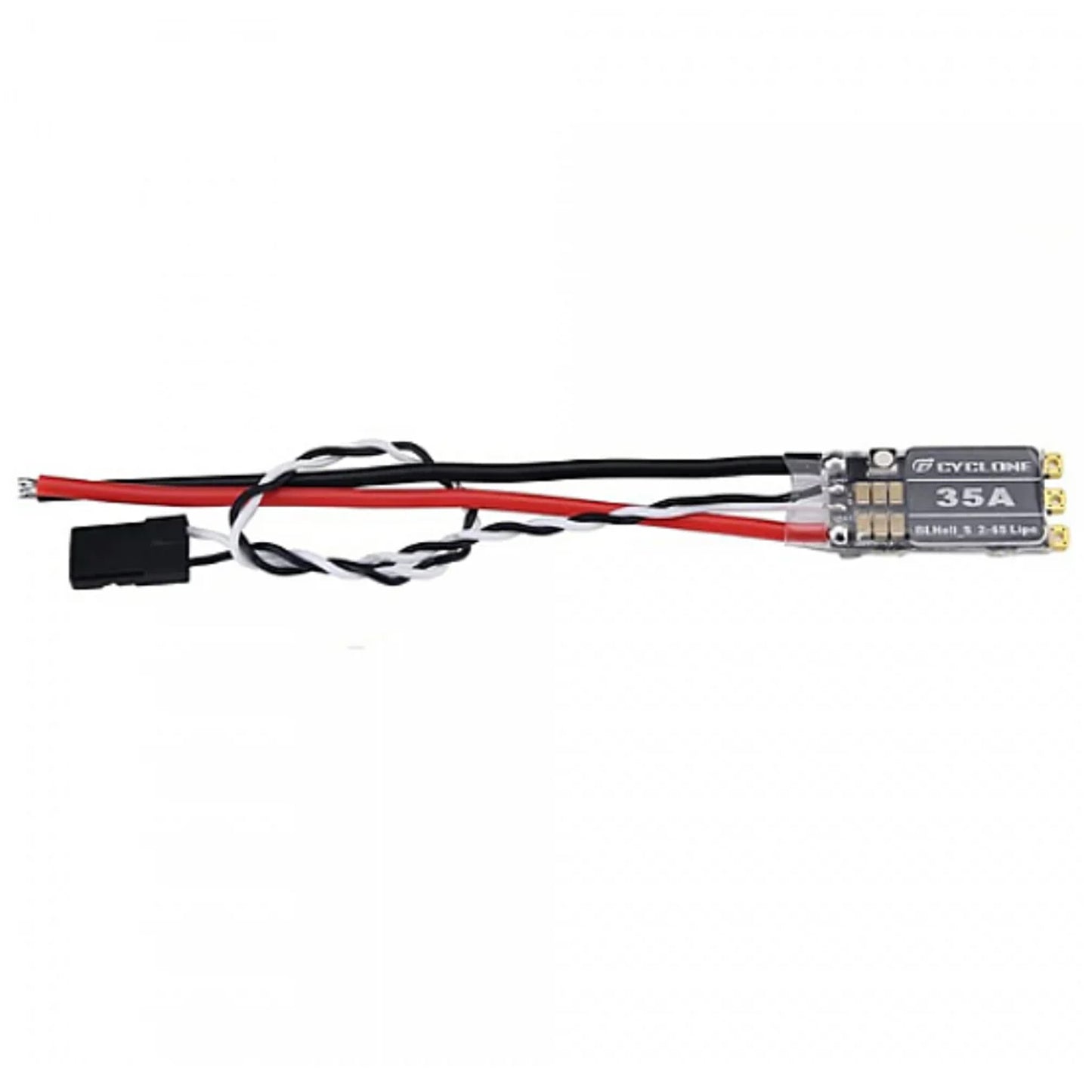

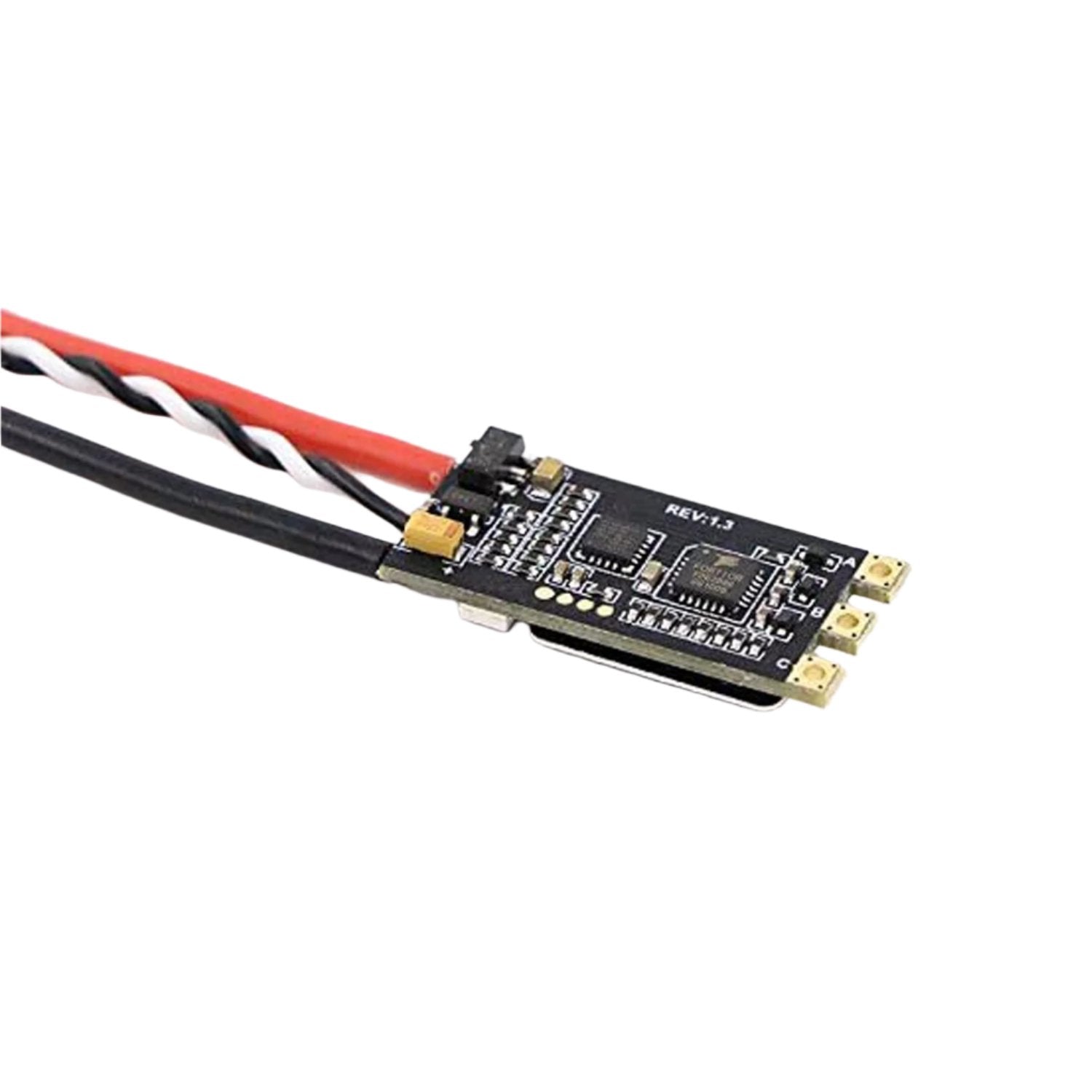

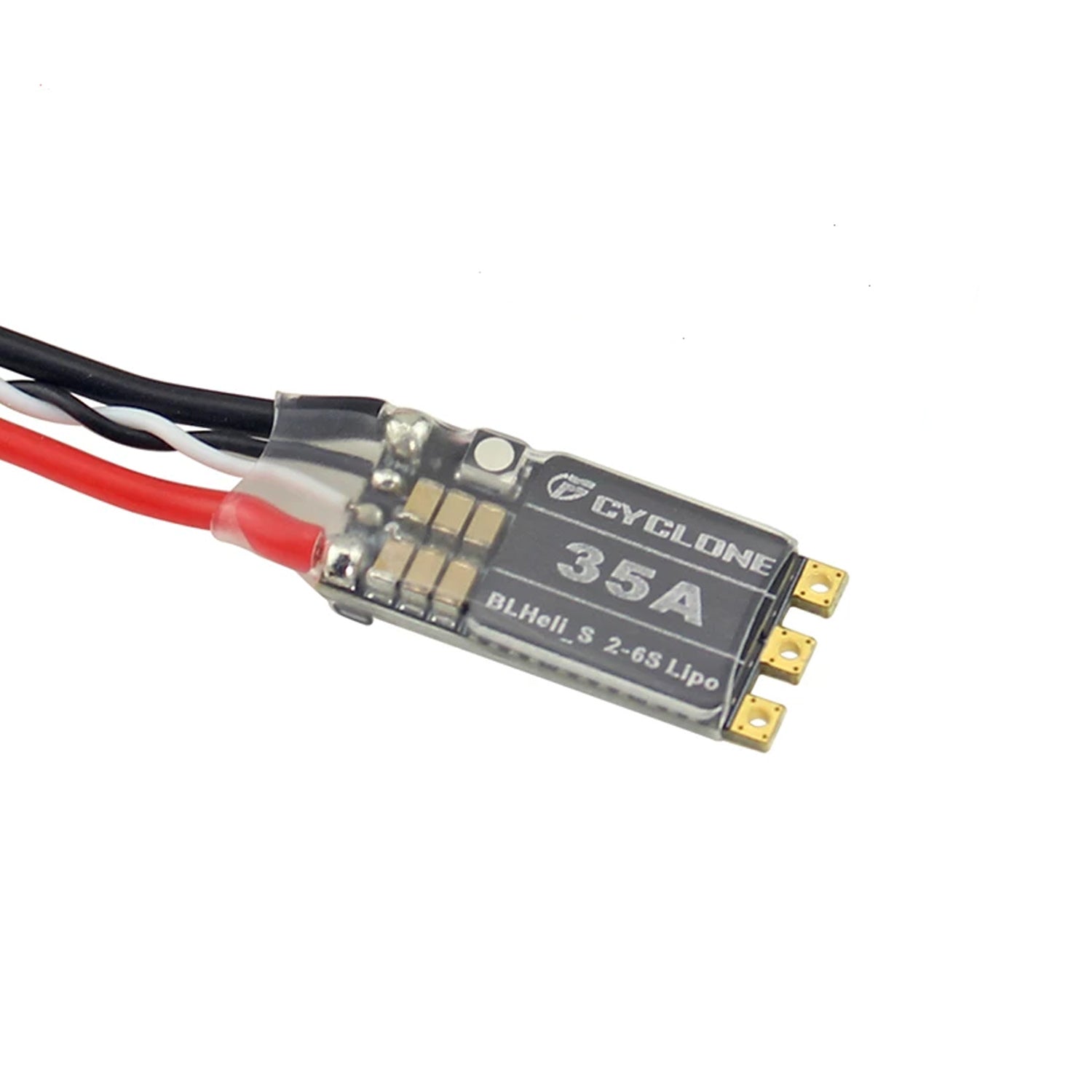

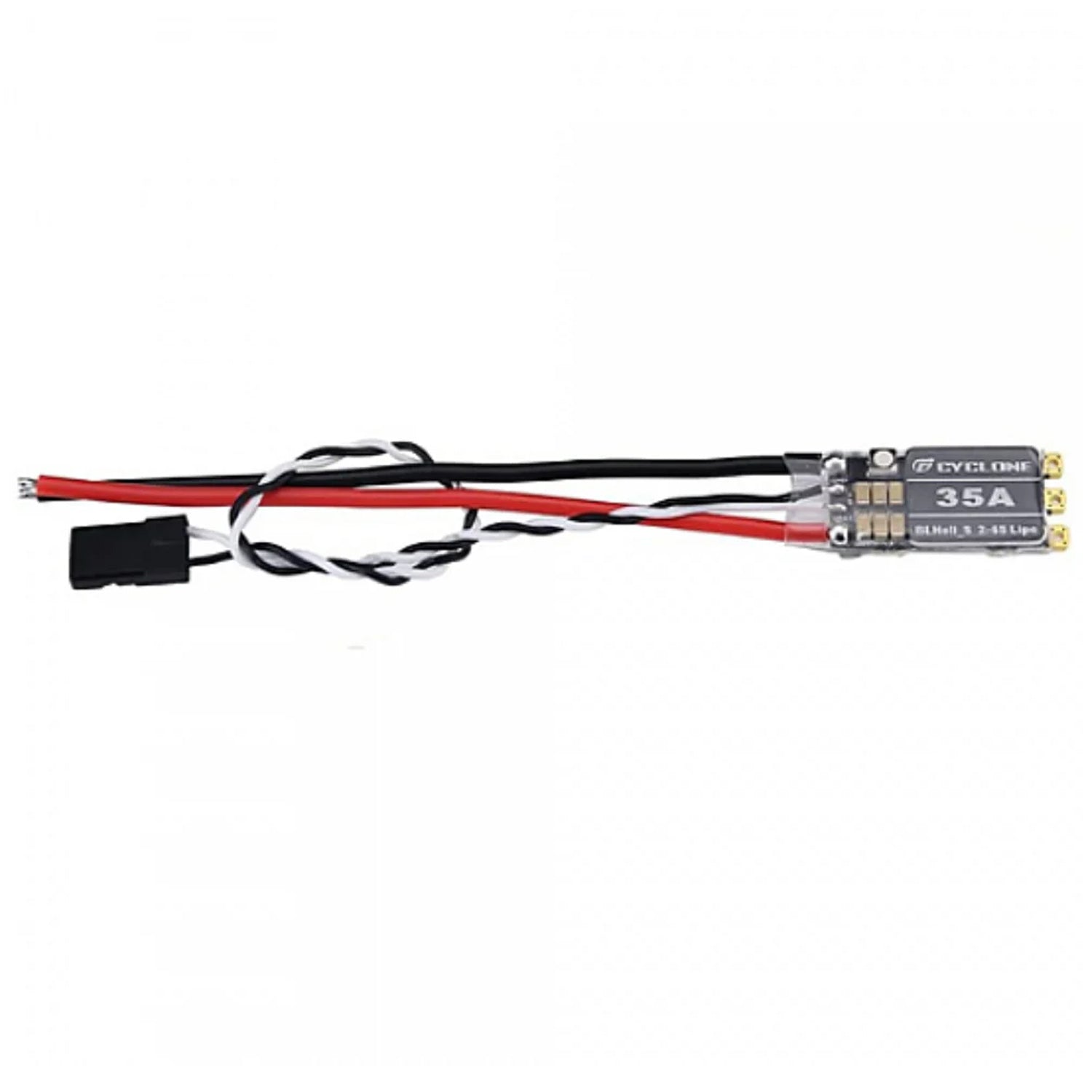

This 35A 2-5S Brushless Speed Controller with LED adopts a 32-bit stm 32f051 main control chip, which has faster response speed and processing capability. The operating frequency of up to 48KHZ and high-performance three-in-one drive make the throttle signal receiving delay lower, and the response and control of the motor change.
The circuit with 12 ESR capacitors can effectively reduce the interference to the picture transmission equipment.
Specifications:
- Item Type: Brushless ESC
- Power Supply(V): 2-4S (7.4-16.8V)
- Continuous Current (A): 25
- Burst Current (A): 30
- PCB+ power cord length(cm): 12

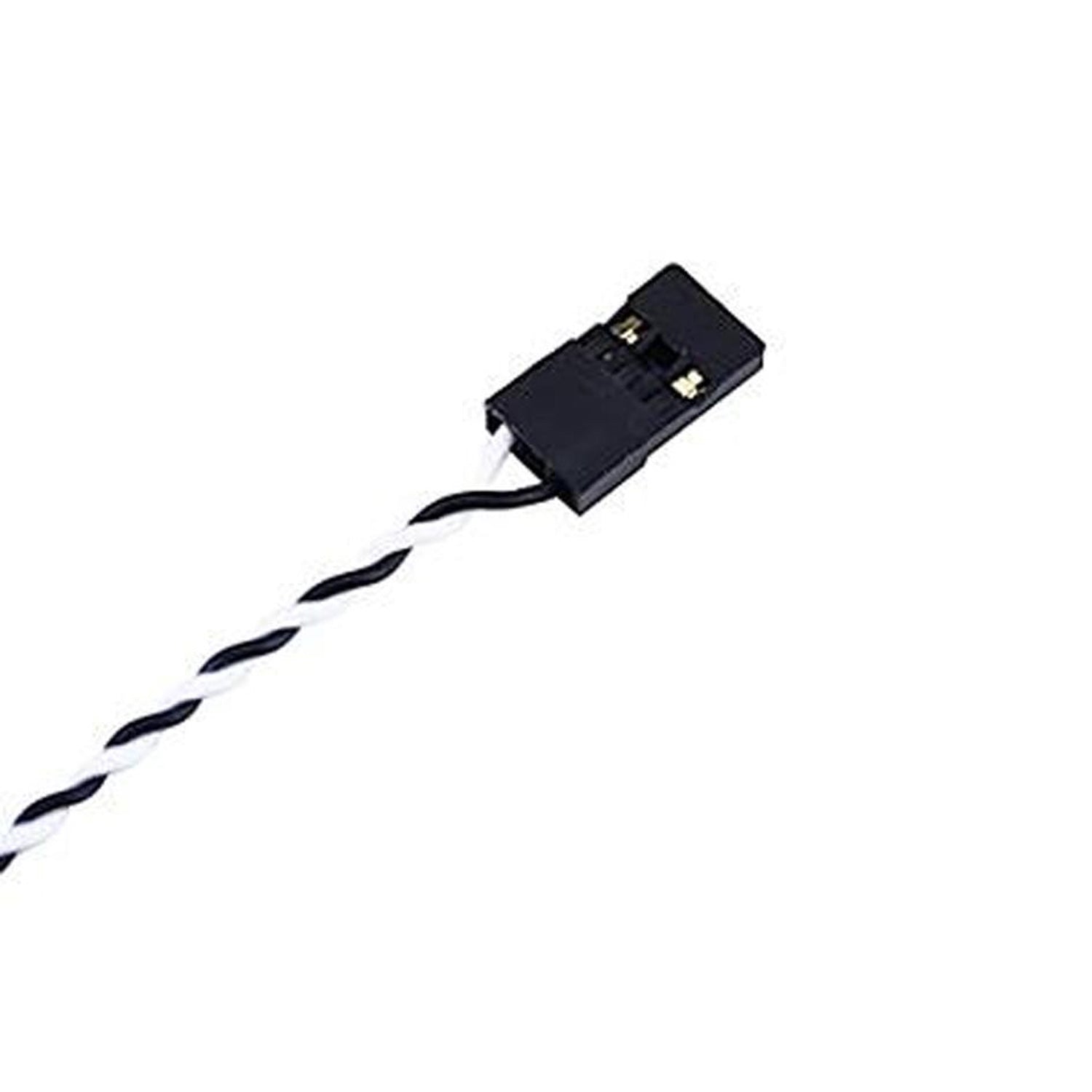

- PCB+ signal line length(cm): 16
Features:
- Programmable PWM frequency of up to 48KHz
- Burst current: 35A (5S)
- Auto-timing for higher efficiency and reliability
Package Included:
1 x Cyclone 35A ESC 2-6S Blheli_S DSHOT600 ESC Racing OPTO Brushless ESC For RC Drone FPV Racing 2-6S Power Supply For RC FPV Quadcopter Airplanes Drone
