Current Detection Module 5A 12V Overcurrent Protection AC Current Detection Sensor Module - RS3629

Current Detection Module 5A 12V Overcurrent Protection AC Current Detection Sensor Module - RS3629

RS3629

30 in stock

Rs. 209.00
Rs. 209.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

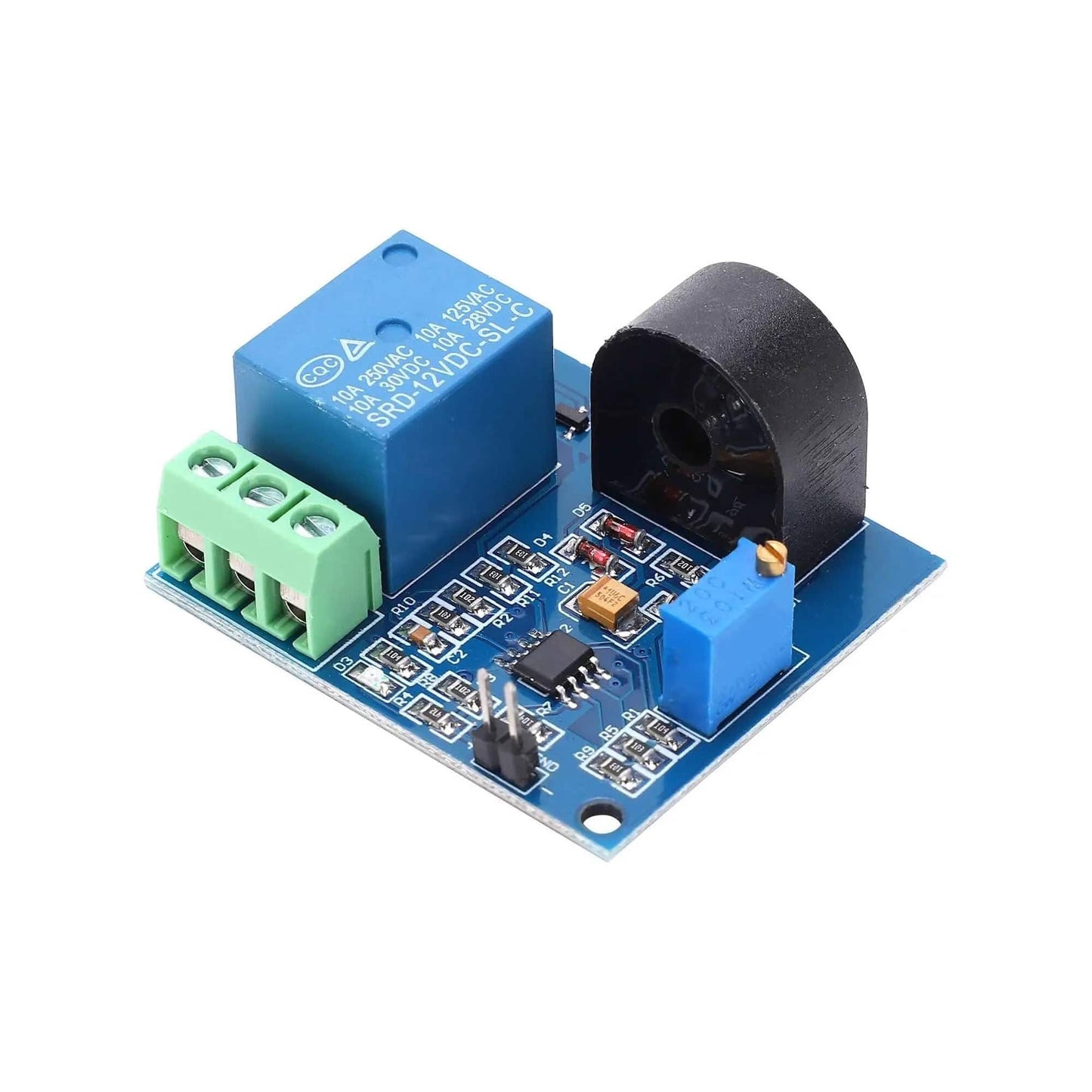

This 5V 12A Current Detection Module uses a current transformer to collect the AC signal to achieve the relay over-current signal output within 0-5A. Relay pull while over-current, relay released while not over-current. Users can use the relay COM; NC, and NO three ports to control the external circuit on and off, to achieve over-current protection.

Specifications:

  • Operating voltage: DC12V
  • Operating current: <20MA
  • Operating frequency range: 20Hz ~ 400Hz
  • Output mode: Switch signal output
  • Maximum detection wire diameter: 5.2mm
  • Mounting hole: hole diameter is 3mm, hole distance: 52.5mm
  • Operating environment: -40 ~ +85
  • The current detection range: AC0.3A-5A

Function:

  • Current detection resolution can change the parameter of resistance parameters
  • The Current Detection Module has output over-current switching signal output
  • The over-current signal setting critical point adjustable

Using Instructions:

By setting the potentiometer to set the overcurrent protection point, the clockwise adjustment reduces the detection current.
As bellows:

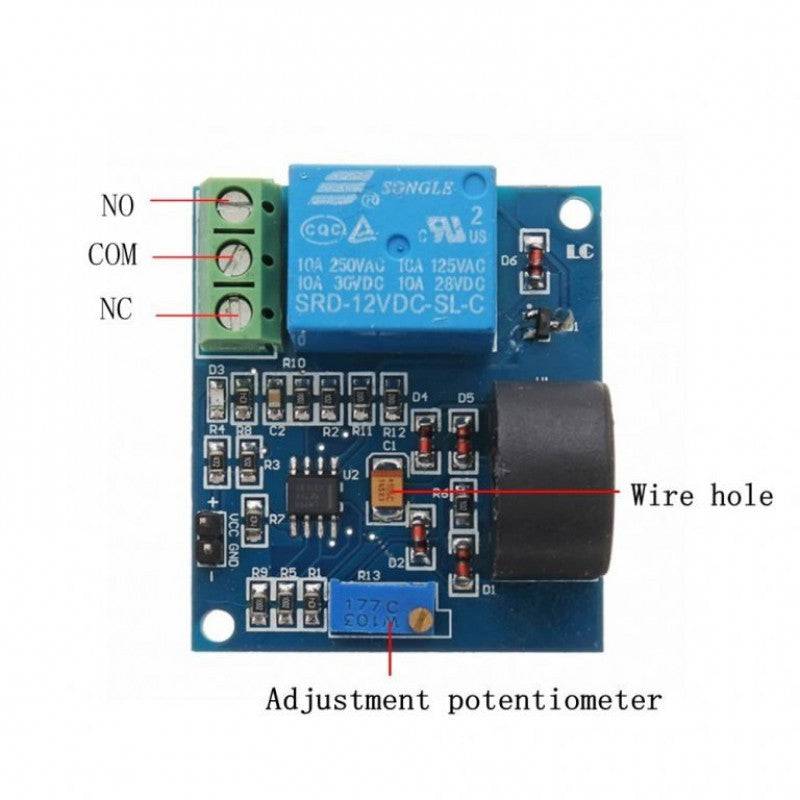

  • Measured the wire through the current transformer, and connected VCC and GND to the DC12V power supply;
  • Adjust the potentiometer, when you hear the sound of the relay pull (can be measured with a multimeter COM and NO whether was turned on; is connected to the relay means activated), then reduce or cut off the current flowing through the tested wire; if the relay release at this time that over-current protection point has been identified (available to multimeter COM and NC measurement whether is connected; is connected to the relay means it release);
  • When reducing or cutting off the current flowing through the wire; the relay is not released, and will still need to continue to adjust the potentiometer to find the over-current protection point.

Package Included:

1 x Current Detection Module 5A 12V Overcurrent Protection AC Current Detection Sensor Module
