Description:

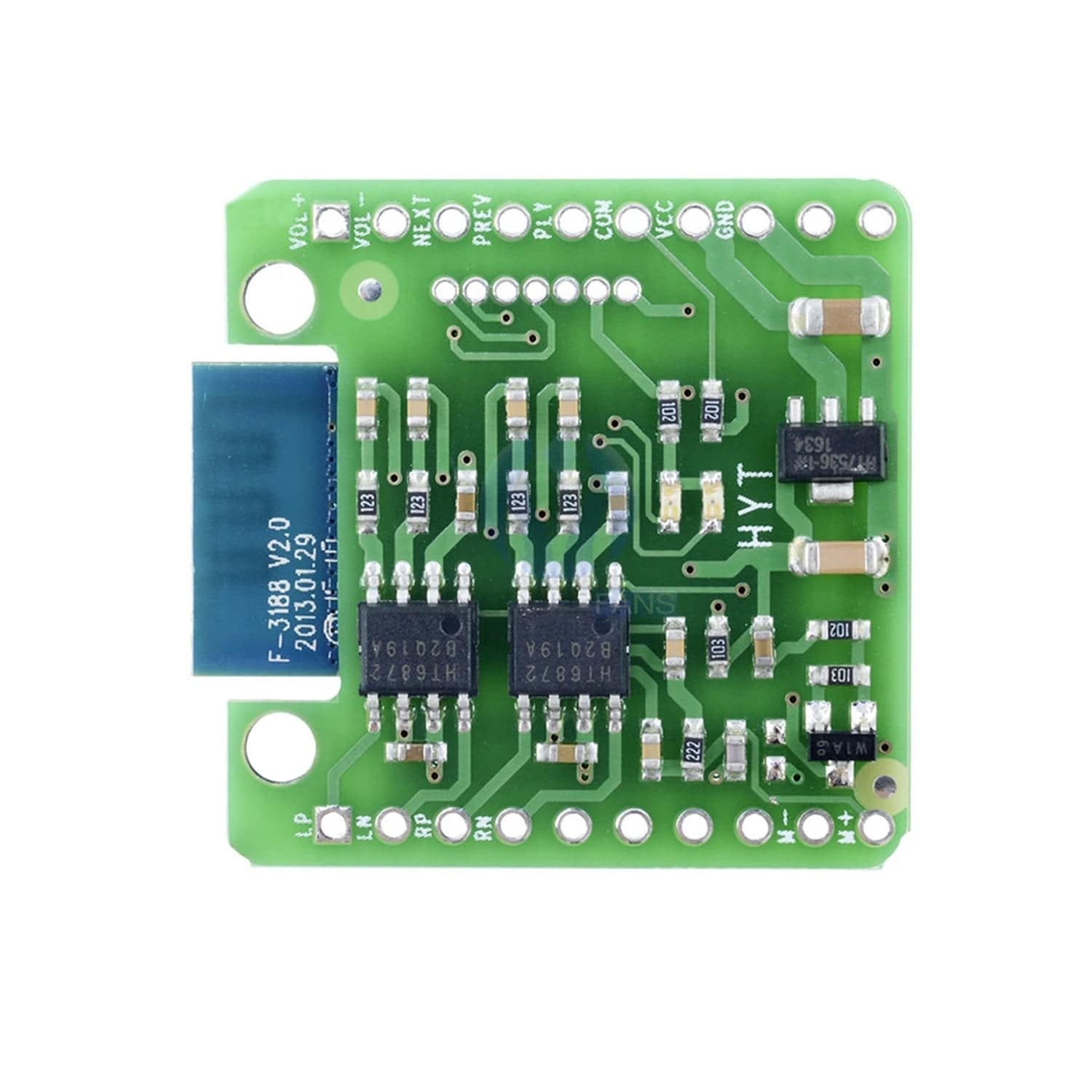

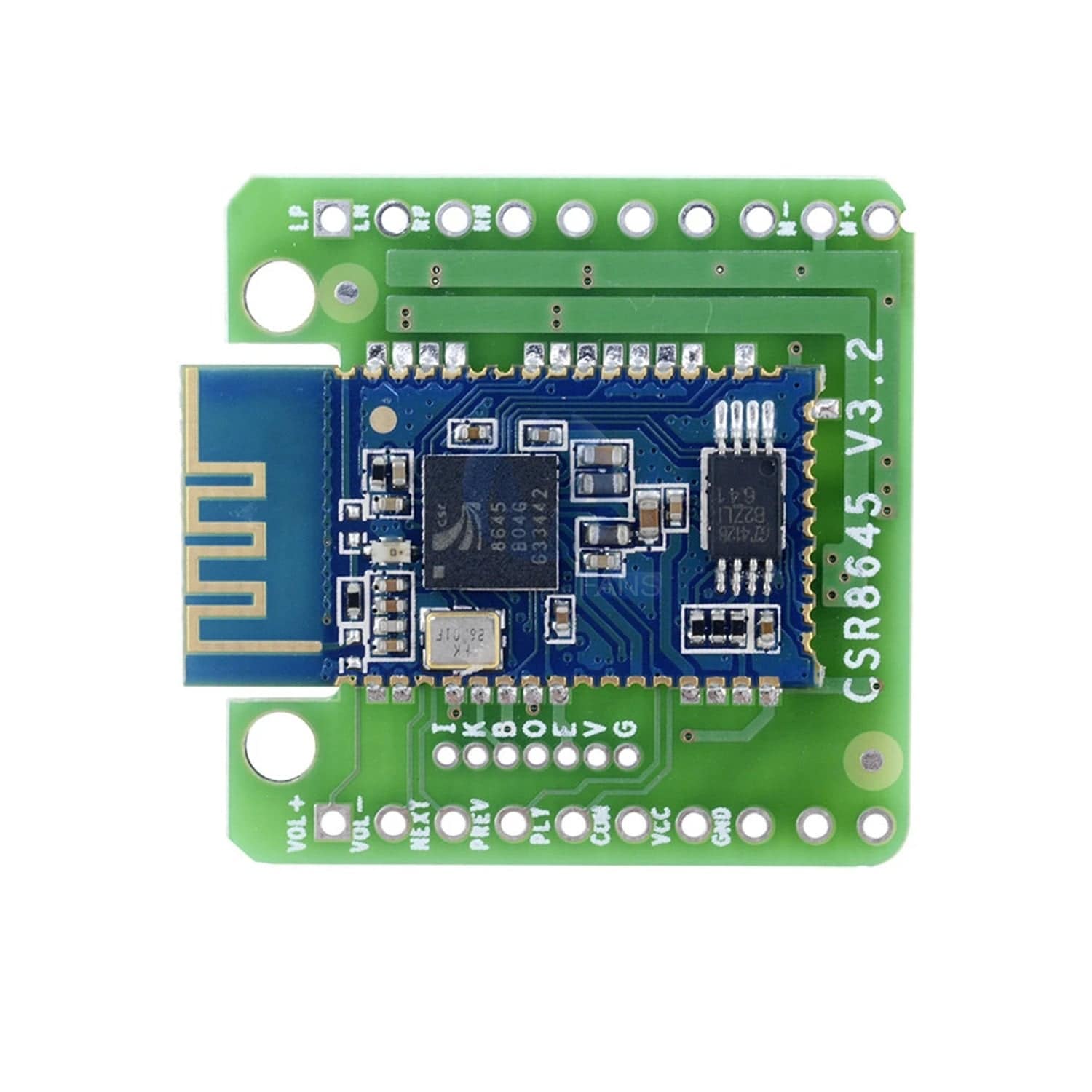

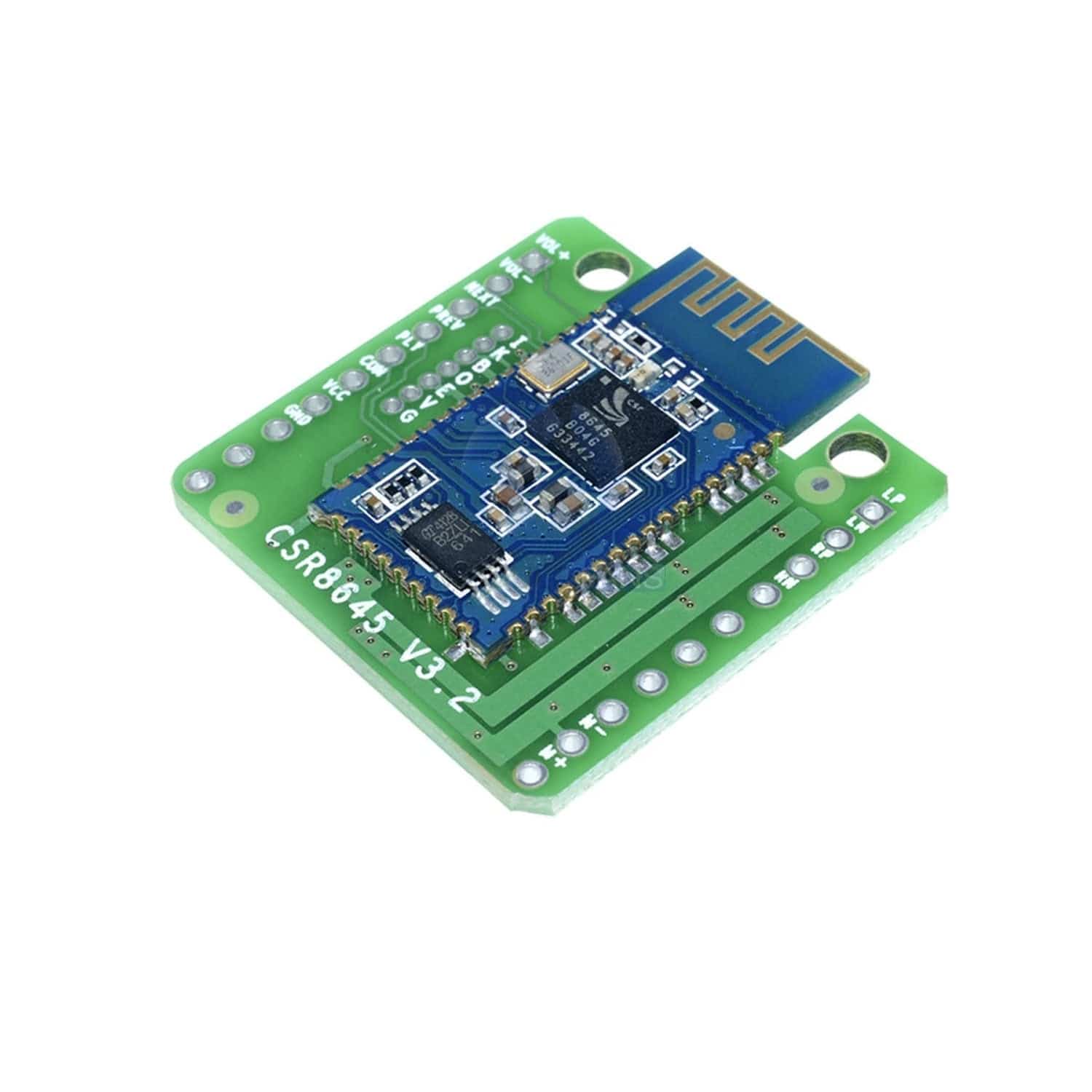

The CSR8645 Bluetooth Power Amplifier Module can be connected to two mobile phones or Bluetooth transmitters. The first phone pairing is automatic. CSR8645 Bluetooth Power Amplifier Module supports call feature. CSR8645 Bluetooth Power Amplifier Module has lower power consumption when the power is turned on. It has no DC-isolated power for the battery. COM is the common point of the key, the other end of the key is then VOL +, VOL-, PREV, NEXT, PLY. M + and M- are positive and negative of the microphone. They are mainly used in Bluetooth headsets.
Specifications:
- Channels: 2
- Maximum Power Per Channel: 5W
Features:
- The board can be connected to two mobile phones.
- It comes with the call function, and the default volume is the largest.
- CSR8645 Amplifier Board can be used for many applications, like Bluetooth Headsets.
Package Included:
1 x CSR8645 Bluetooth Power Amplifier Module
