CS20 3D TOF Solid-State LiDAR Sensor Dual-Resolution 3D Time-of-Flight Sensor 5V, 5m Range For Robotics & Automation - RS9318

CS20 3D TOF Solid-State LiDAR Sensor Dual-Resolution 3D Time-of-Flight Sensor 5V, 5m Range For Robotics & Automation - RS9318

RS9318

In stock

Rs. 16,261.00
Rs. 16,261.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description

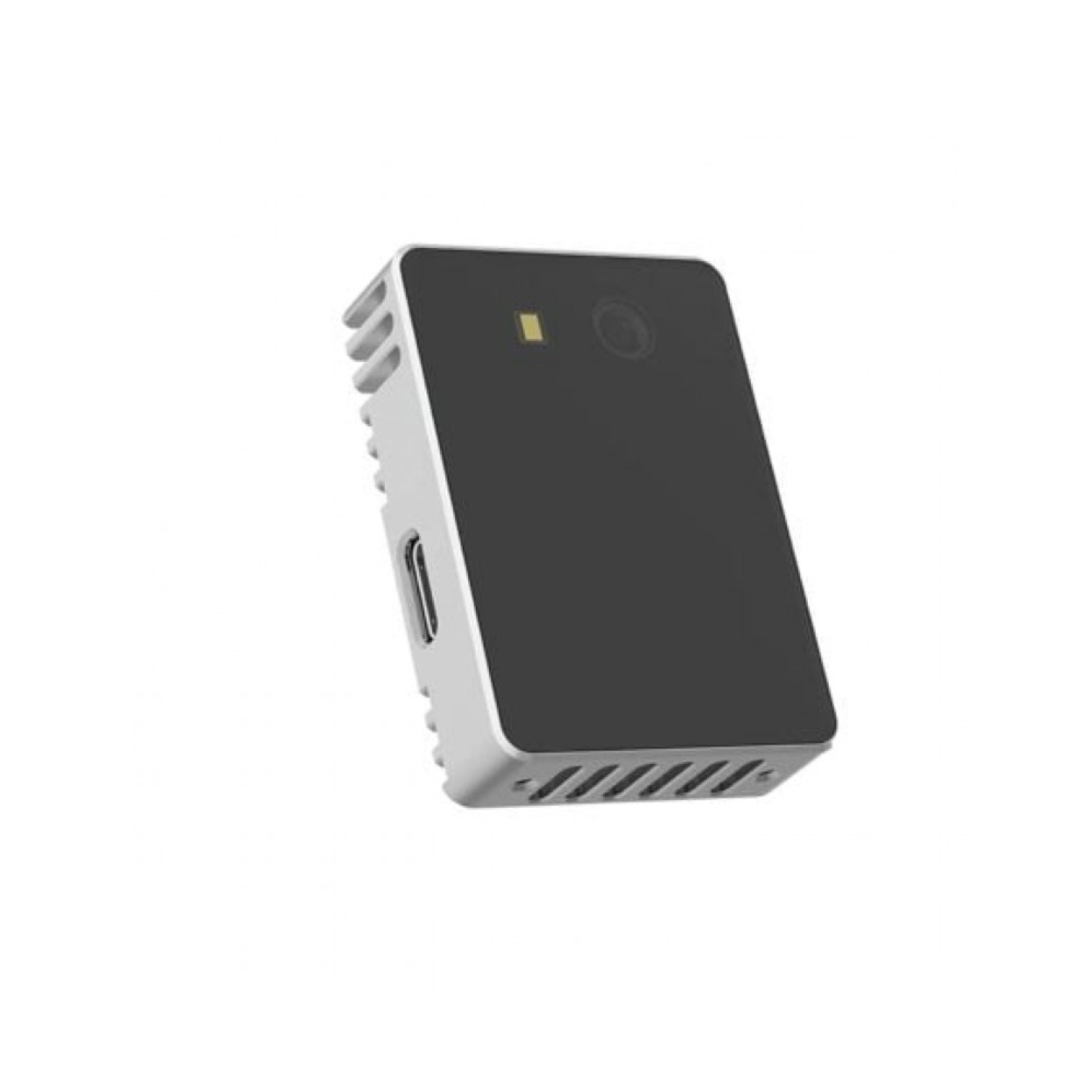

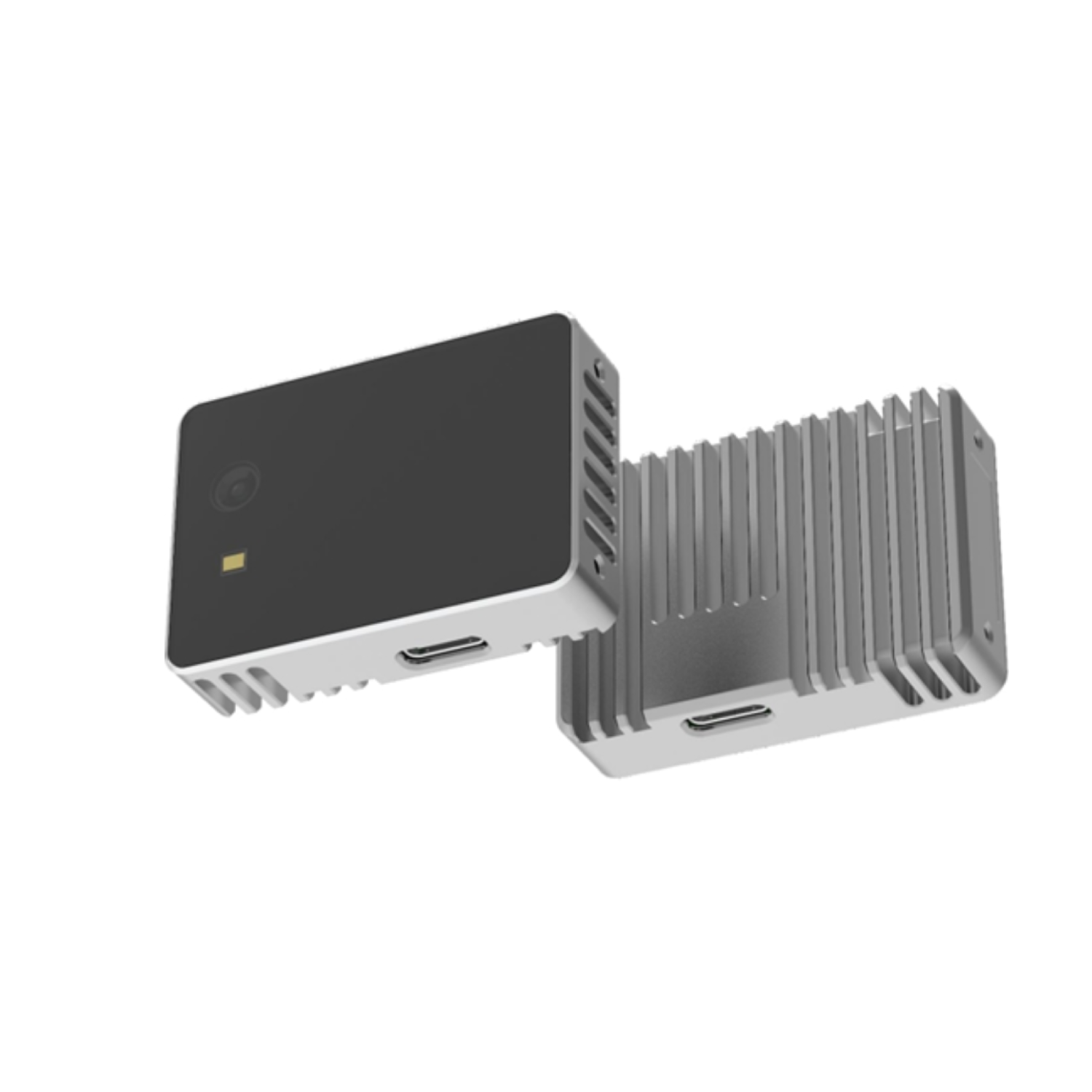

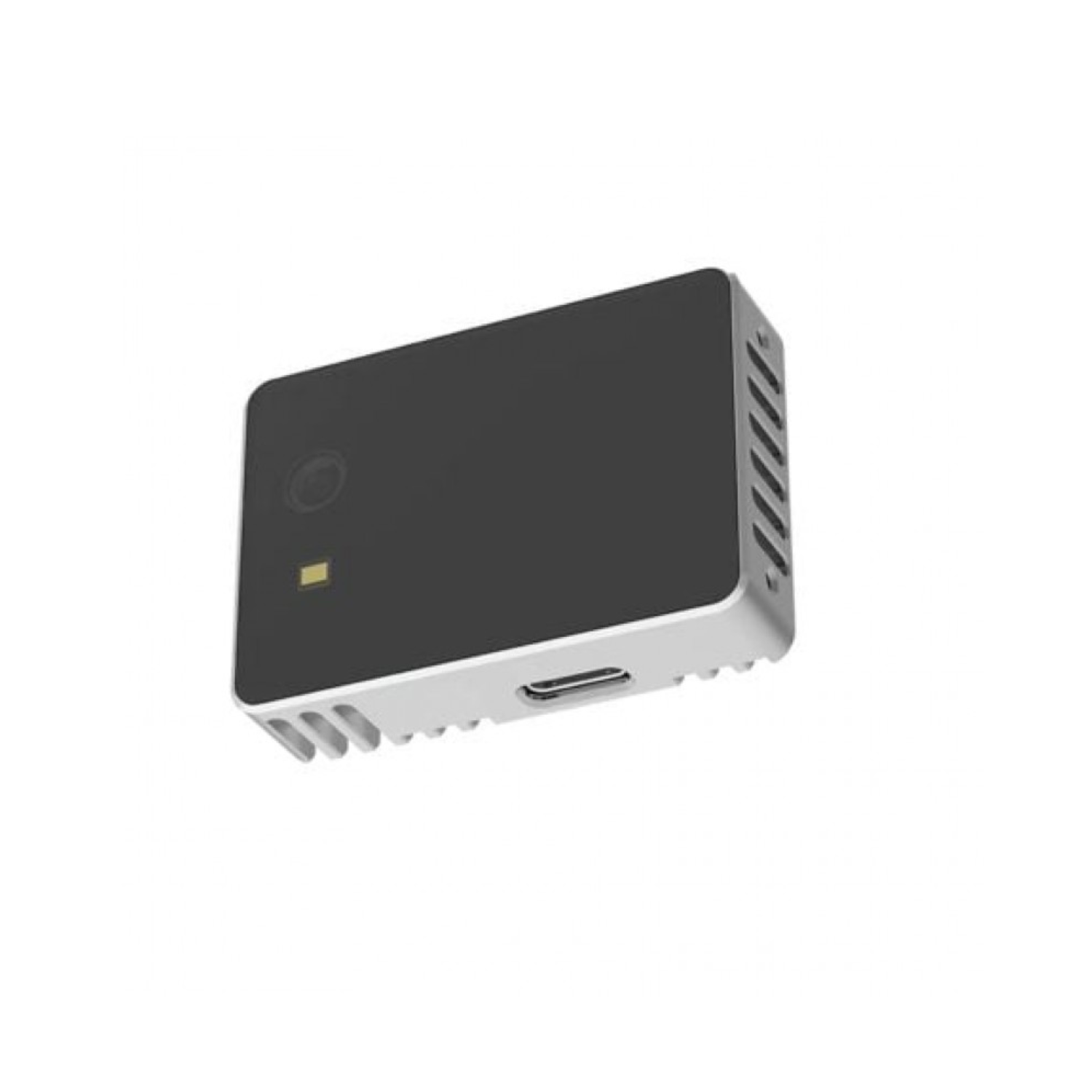

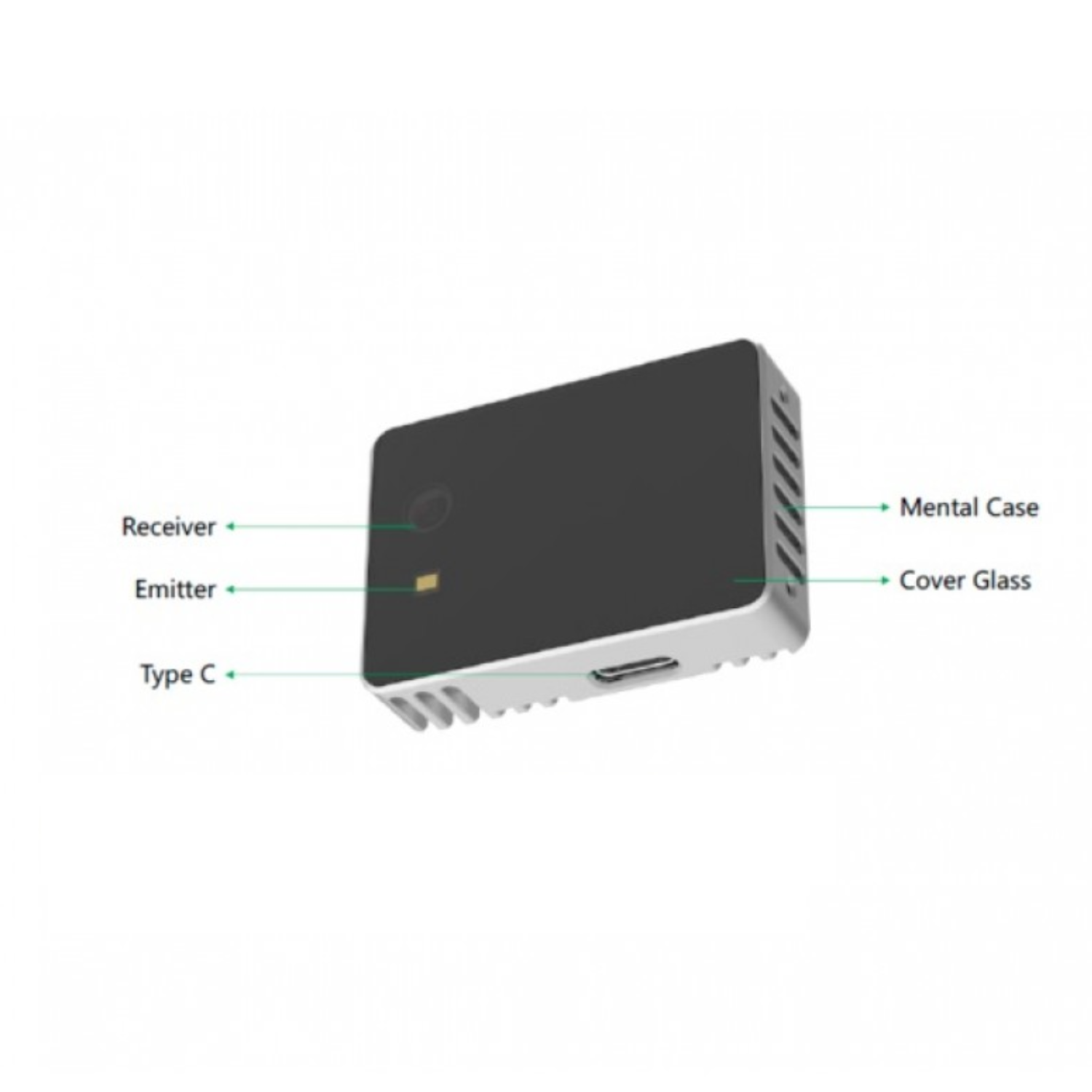

CS20 3D TOF Solid-State LiDAR Sensor Unleash Precision 3D Perception with the CS20 Dual-Resolution 3D TOF LiDAR. This compact, solid-state sensor redefines depth sensing with a 640x480 resolution ToF image sensor, delivering accurate 3D information up to 5 meters. Its ultra-low 1.2W power consumption makes it incredibly efficient for diverse applications. Get precise depth data and point clouds via the convenient Type-C interface and SDK, compatible with Linux, Windows, ROS, and Android. Experience millimeter-level accuracy and superior environmental adaptability, overcoming the limitations of traditional 3D cameras.

Specifications:

  • Model Type: LiDAR Sensor
  • Distance Measuring Range: 5M
  • Model Name: CS20
  • Max. Depth Resolution: 640×480/320×240
  • Wavelength: 940nm (VCSEL)
  • Accuracy: 1% @white wall
  • Data Transmission Method: USB 2.0, Type C Interface
  • Power Supply: 5V, 0.5A
  • Power Dissipation: 1.2W
  • Supported: Linux/Windows/ROS/Android
  • Operating Temperature: -10 to 50℃

Features:

  • 0.1-5m indoor range (on white wall).
  • 640x480 resolution for clear 3D data.
  • High dynamic range for varied environments.
  • Supports depth and signal amplitude sync.
  • Adjustable range and frame rate for flexible use.

Applications:

  • Robot SLAM
  • Volume measurement
  • Face recognition
  • Somatosensory interaction
  • 3D modeling
  • Security monitoring/People counting

Package Included:

1 x CS20 3D TOF Solid-State LiDAR Sensor
