Description:

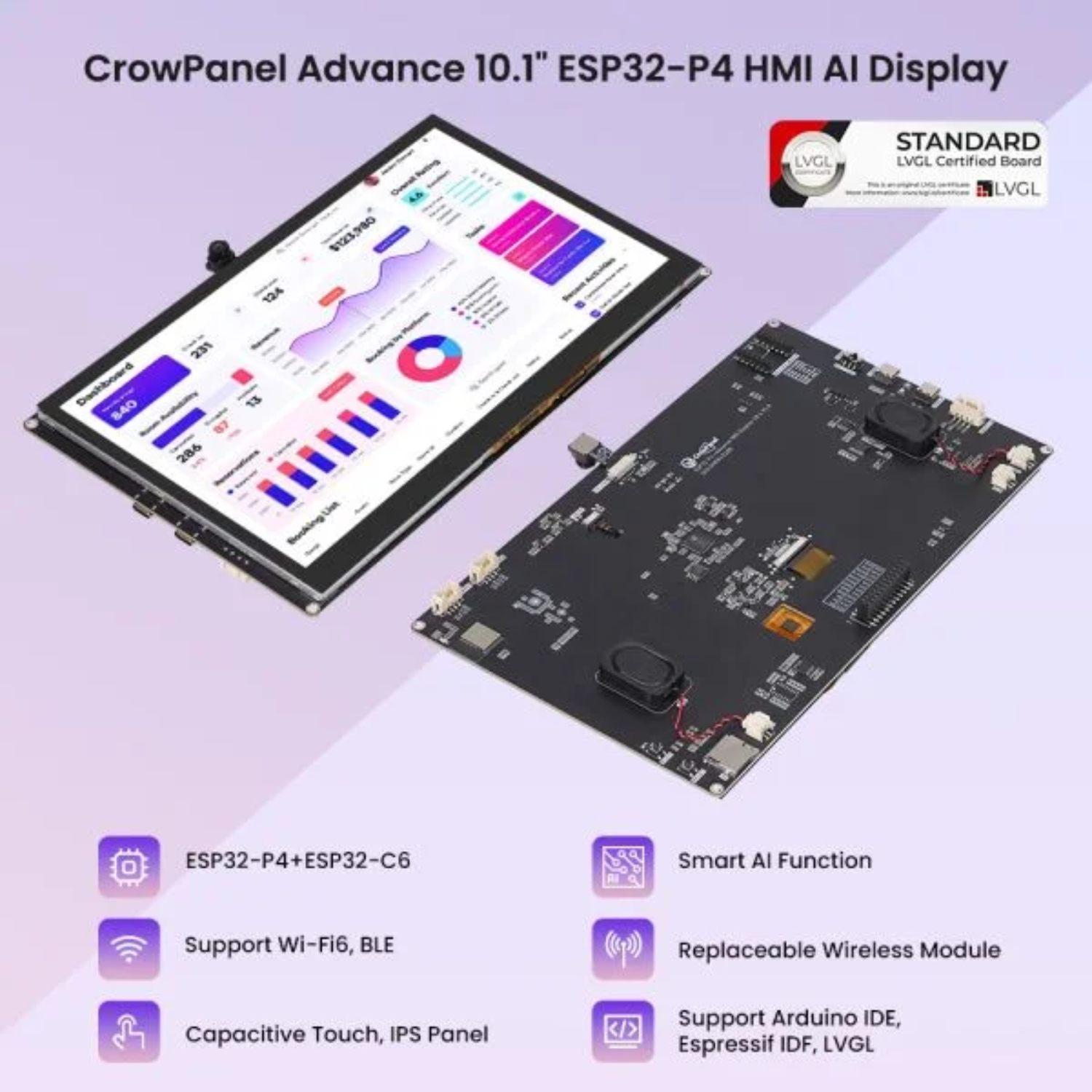

The CrowPanel Advance ESP32-P4 HMI series is a high-performance AI-powered intelligent interactive terminal designed for demanding applications. It employs an innovative dual-chip architecture, combining powerful computing capabilities, rich multimedia functions, and extreme scalability, making it the ideal core for driving next-generation intelligent devices.
Specifications:
|
Main Chip-ESP32-P4NRW32 |
|
|
CPU/SoC |
ESP32-P4 RISC-V 32-bit dual-core processor for HP systems, running at up to 400 MHz; RISC-V 32-bit single-core processor for LP systems, running at up to 40 MHz |
|
System Memory |
|
|
Memory |
|
|
Development Environment |
ESP-IDF、Arduino IDE |
|
Screen |
|
|
Size |
10.1 inch |
|
Resolution |
1024*600 |
|
Display Panel |
IPS Panel |
|
Touch Panel |
Capacitive Touch, Single/5-point Touch |
|
Viewing Angle |
178° |
|
Brightness |
400 cd/m²(Typ.) |
|
Color Depth |
16.7M (8-bit) |
|
Wireless Communication - Onboard Antenna |
|
|
WiFi |
Support 2.4GHz(Wi-Fi6), 802.11a/b/g/n |
|
Bluetooth |
Support Bluetooth 5.3 and BLE |
|
Other |
Zigbee、LoRa、nRF2401、Matter、Thread and Wi-Fi Halow (Optional) |
|
Interface/Function |
|
|
Interface |
USB2.0, UART, I2C, GPIO female headers, SD card holder, battery socket, speaker jack, camera header, module female headers, etc. |
|
Function |
Audio amplifier, battery charge management, USB to UART, microphones, dual speakers, etc. |
|
Speaker Connector |
|
|
Model |
BX-PH 2.0-2PWT |
|
Number of Pins |
1x2P |
|
Pin Pitch |
2mm |
|
Dimensions(L*W*H) |
8*8.5*5.6mm |
|
Monting Type |
SMT Right Angle |
|
Button/LED Indicator |
|
|
Reset Button |
Yes, press to reset the device |
|
Boot Button |
Yes, press and hold the power button to burn the program |
|
Power Button |
Switch On/Off |
|
PWR |
Device power on/off indication |
|
CHG |
Lithium battery charging status, Low battery state |
|
Other |
|
|
Installation method |
All around mounting holes(M3 3.2mm), embedded, shell assembly |
|
Operating temperature |
-20~70 °C |
|
Storage temperature |
-30~80 °C |
|
Power Input |
5V/2A, USB or UART terminal |
|
Dimensions |
248*147mm |
Features:
- Powerful dual-core architecture, enhanced performance
- Equipped with the RISC-V architecture ESP32-P4 dual-core processor (400MHz high-performance core + low-power core) and equipped with 16MB Flash and 32MB PSRAM, it easily handles complex graphical interfaces and real-time AI calculations.
- An independent ESP32-C6-MINI-1 wireless module supports Wi-Fi 6 and Bluetooth 5.3, balancing stable connectivity with low power consumption.
- AI acceleration, fully upgraded performance
- Significantly improved computing power compared to previous generations, suitable for high-load tasks such as real-time data analysis and suitable for high-performance applications such as smart home appliances and industrial control.
- Features with dual-channel speakers make it suitable for scenarios such as voice assistants and smart home control.
- High-definition IPS touchscreen for smooth and natural interaction
- Available in multiple sizes: 5.0/7.0/9.0/10.1 inches, IPS TFT screens support capacitive touch, wide viewing angles, and smoother interactions.
- Integrated intelligent vision, empowering AI applications
- An integrated 2-megapixel MIPI-CSI camera smoothly runs AI vision algorithms like facial recognition and object tracking.
- Rich and comprehensive interfaces for flexible expansion
- Dual USB-C (supporting UART debugging and USB 2.0 device), 11-pin GPIO, and Crowtail (I2C/UART) interfaces facilitate connection to various peripherals and sensors.
- The onboard NS4168 audio codec and single microphone array provide high-fidelity audio playback and accurate far-field speech recognition.

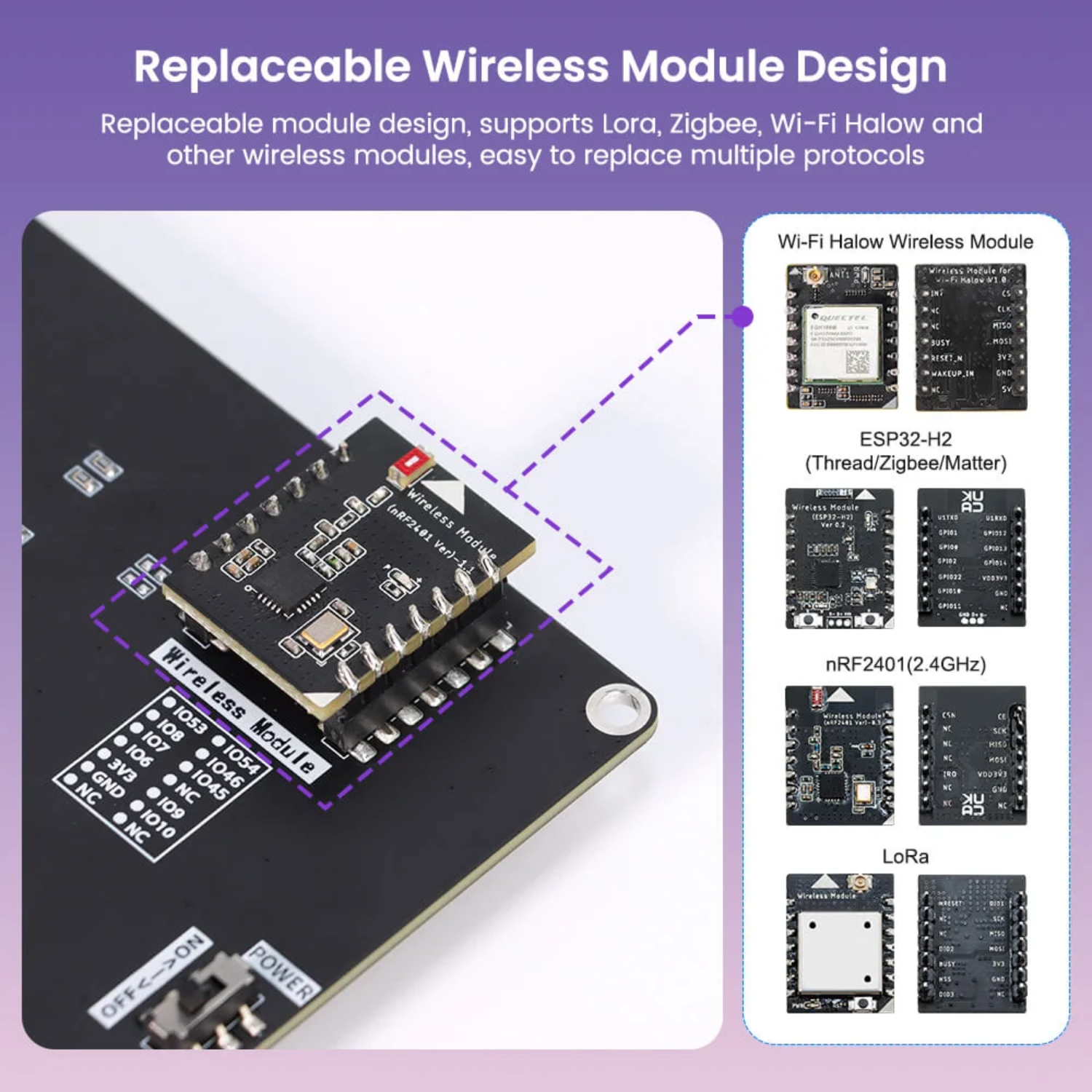

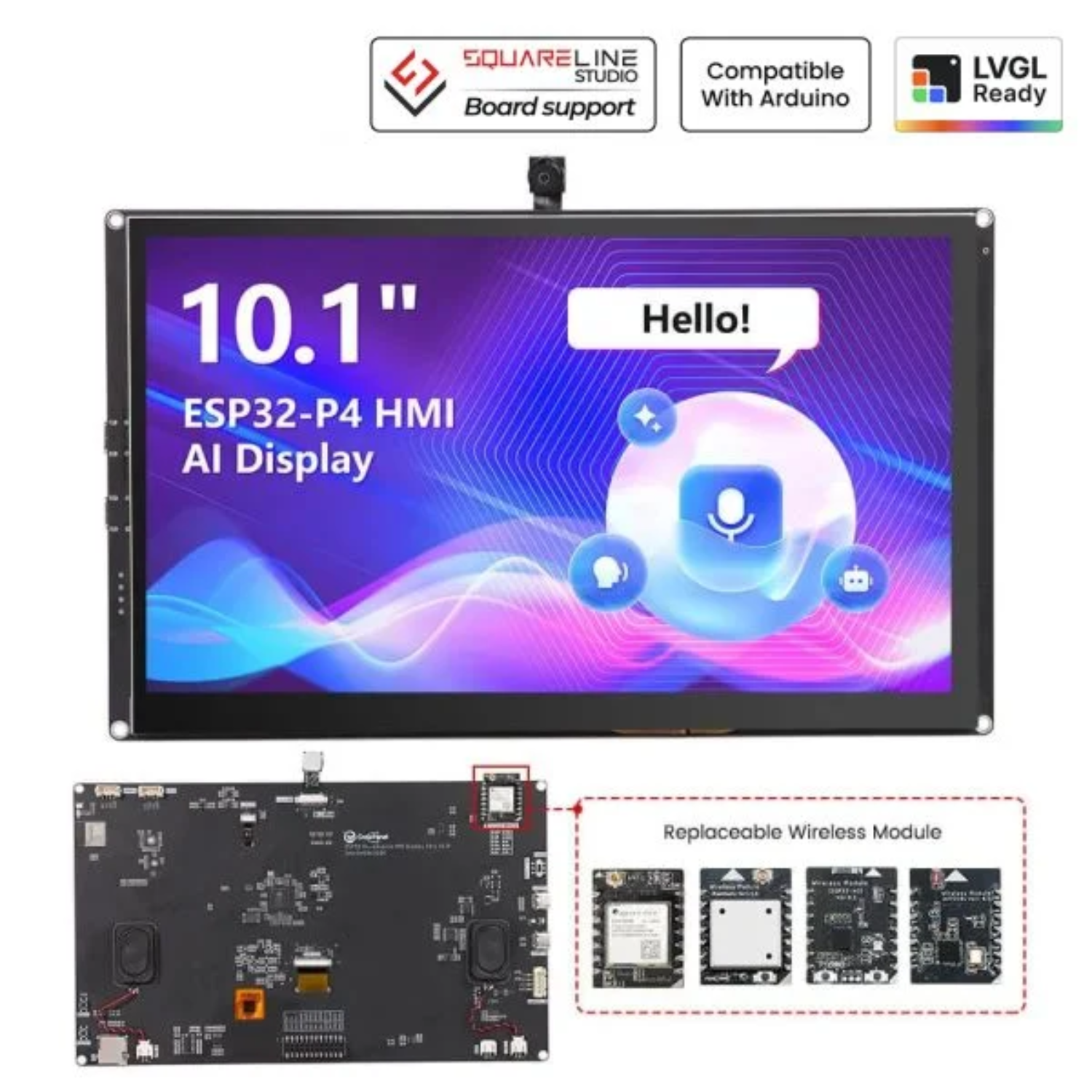

- A replaceable wireless module slot supports multiple communication protocols, including Wi-Fi 6, Thread, Zigbee, and Wi-Fi HaLow, allowing a single board to accommodate diverse IoT scenarios.

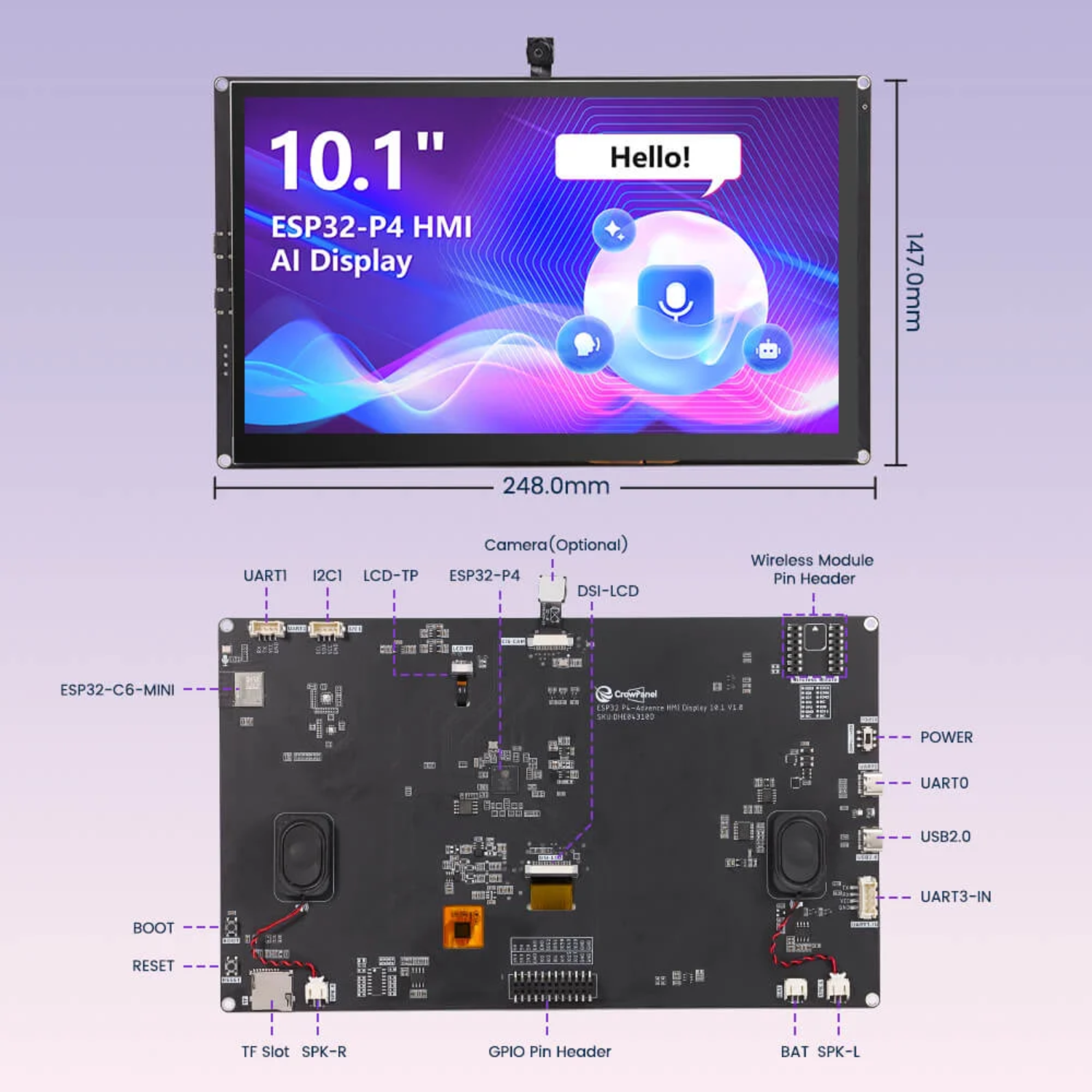

Product Interface:
