Description:

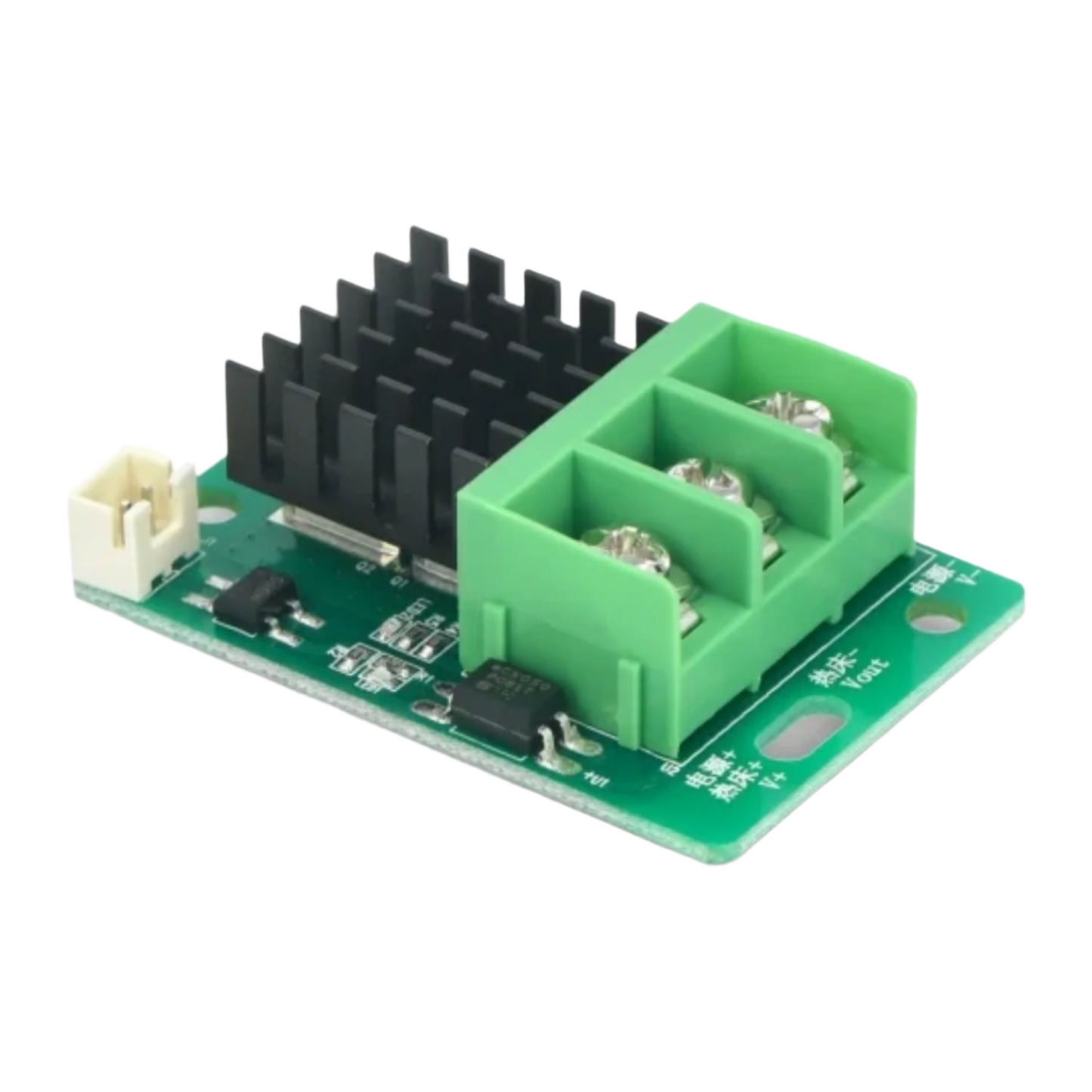

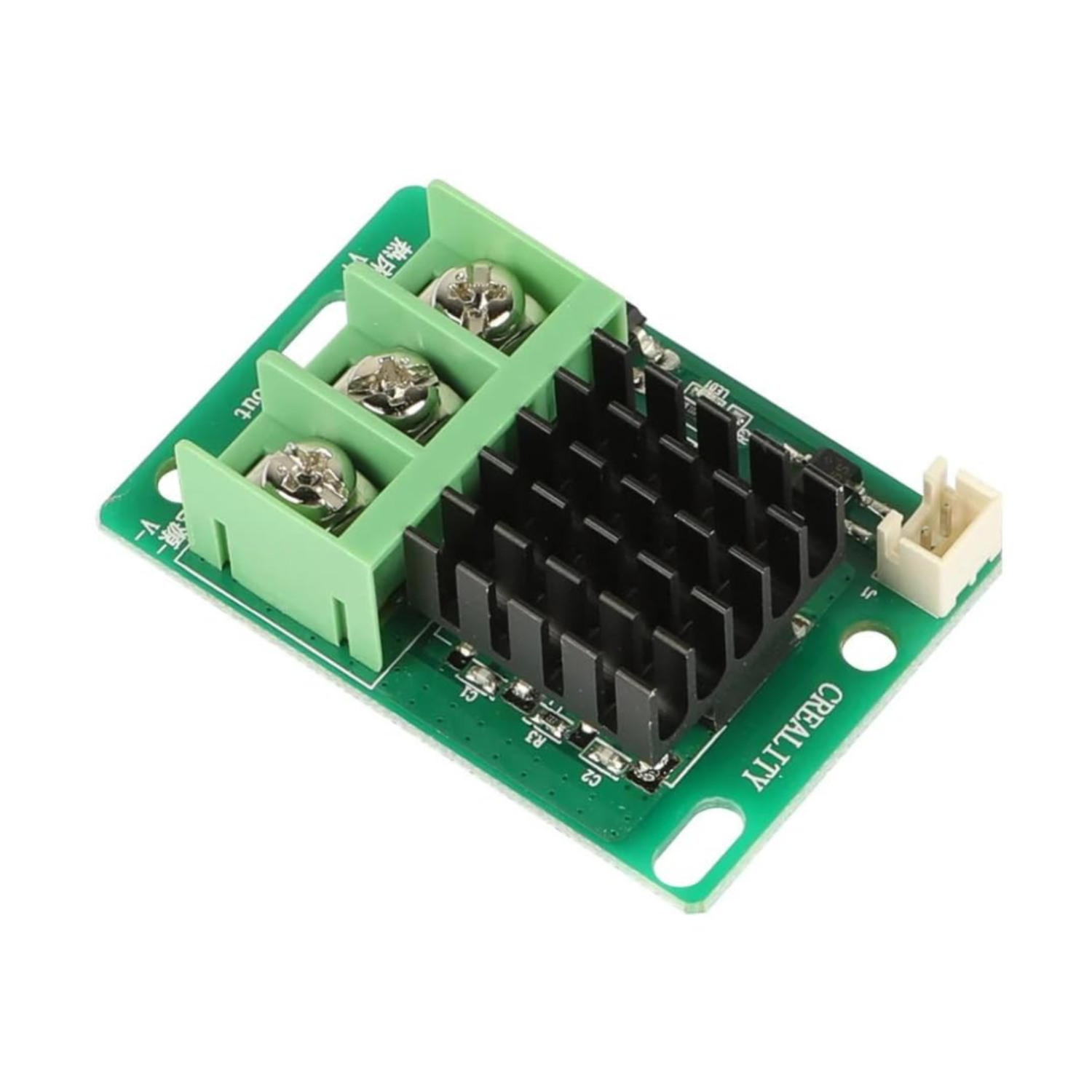

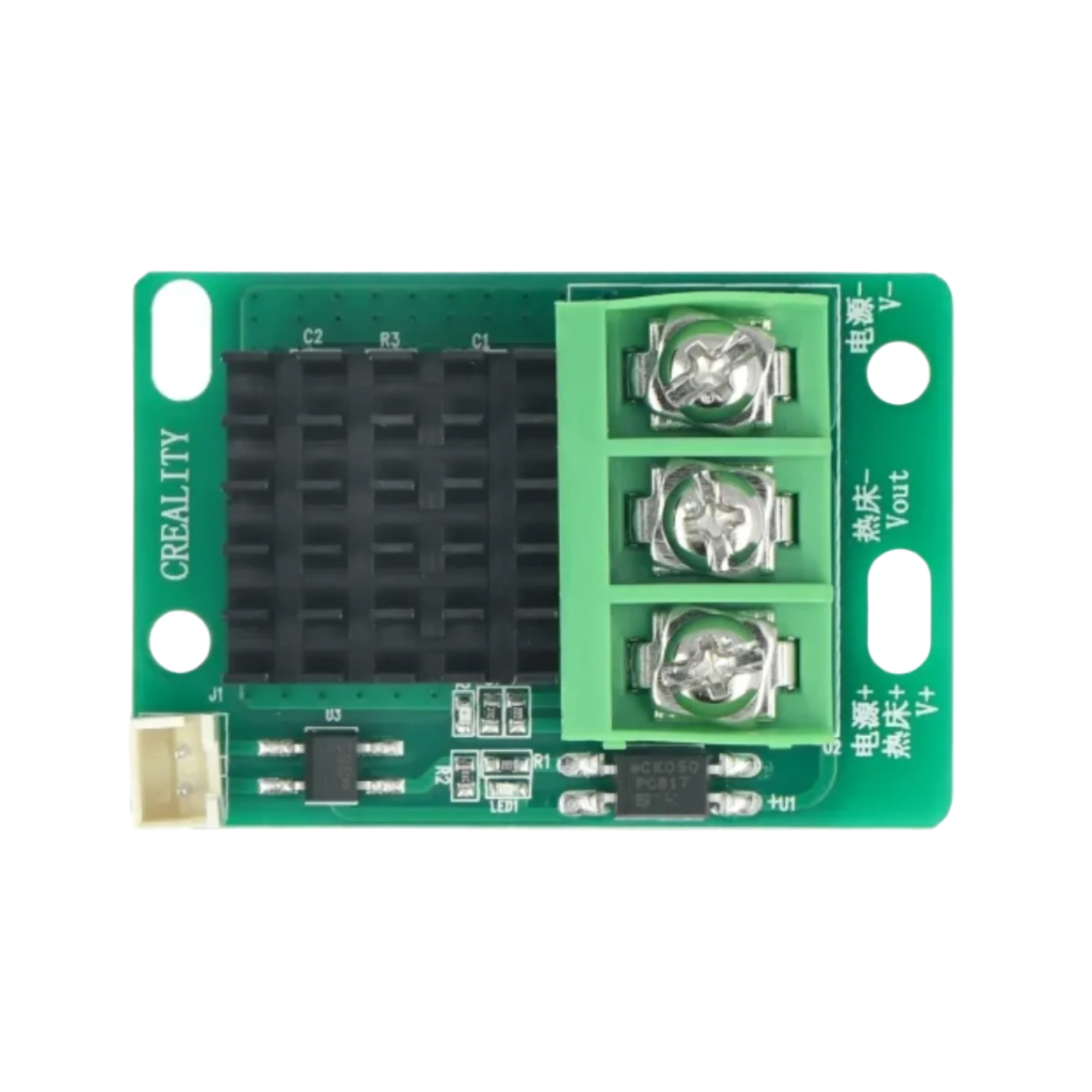

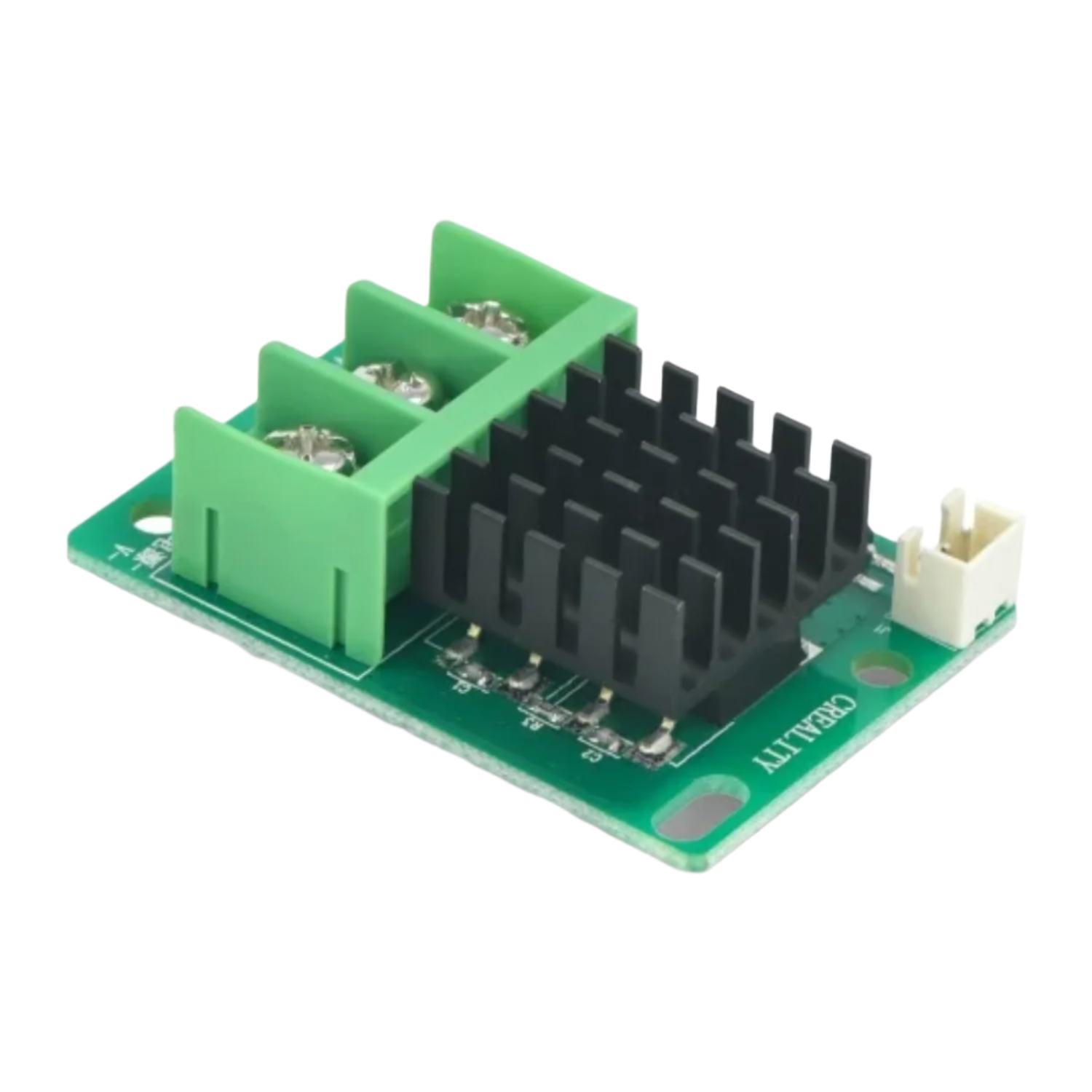

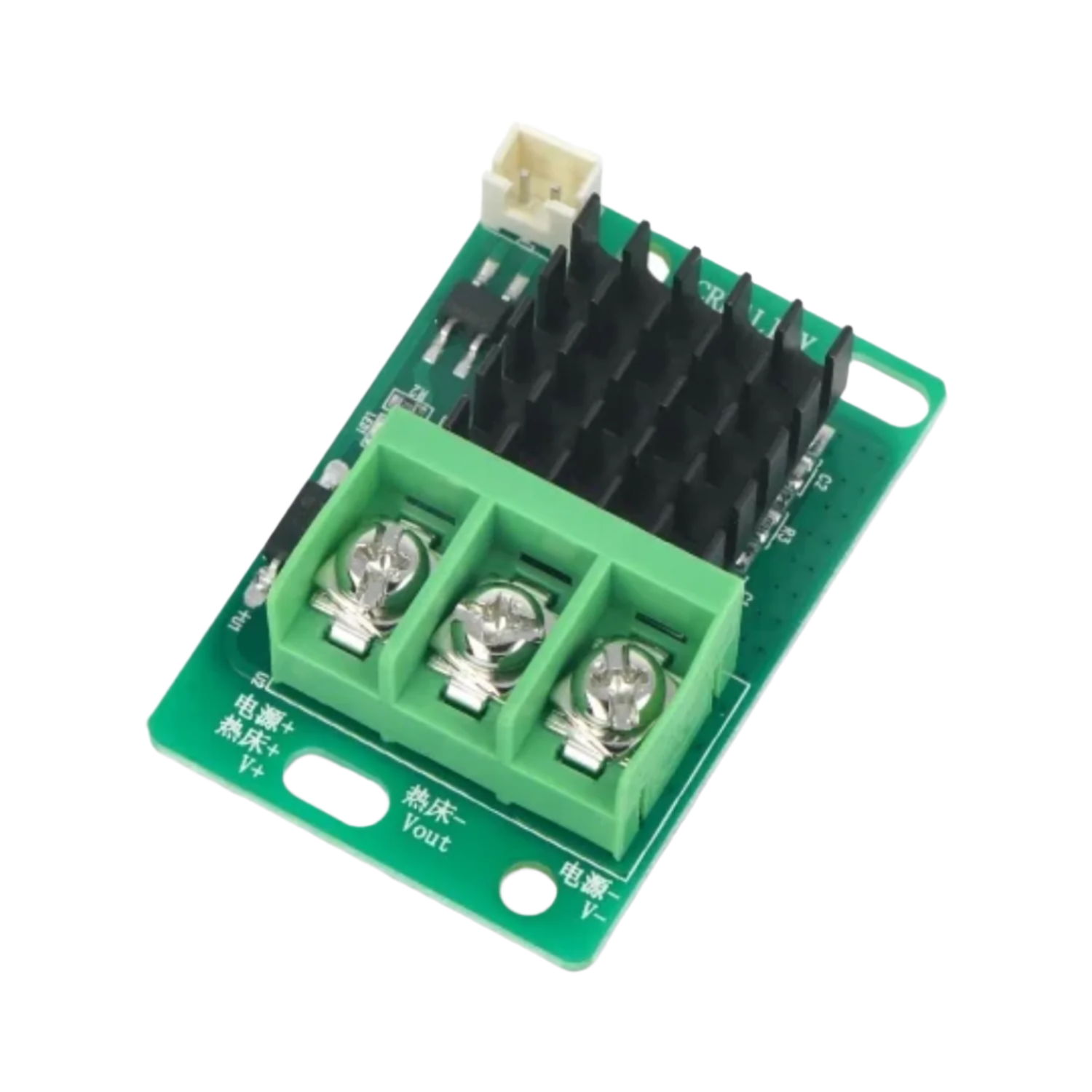

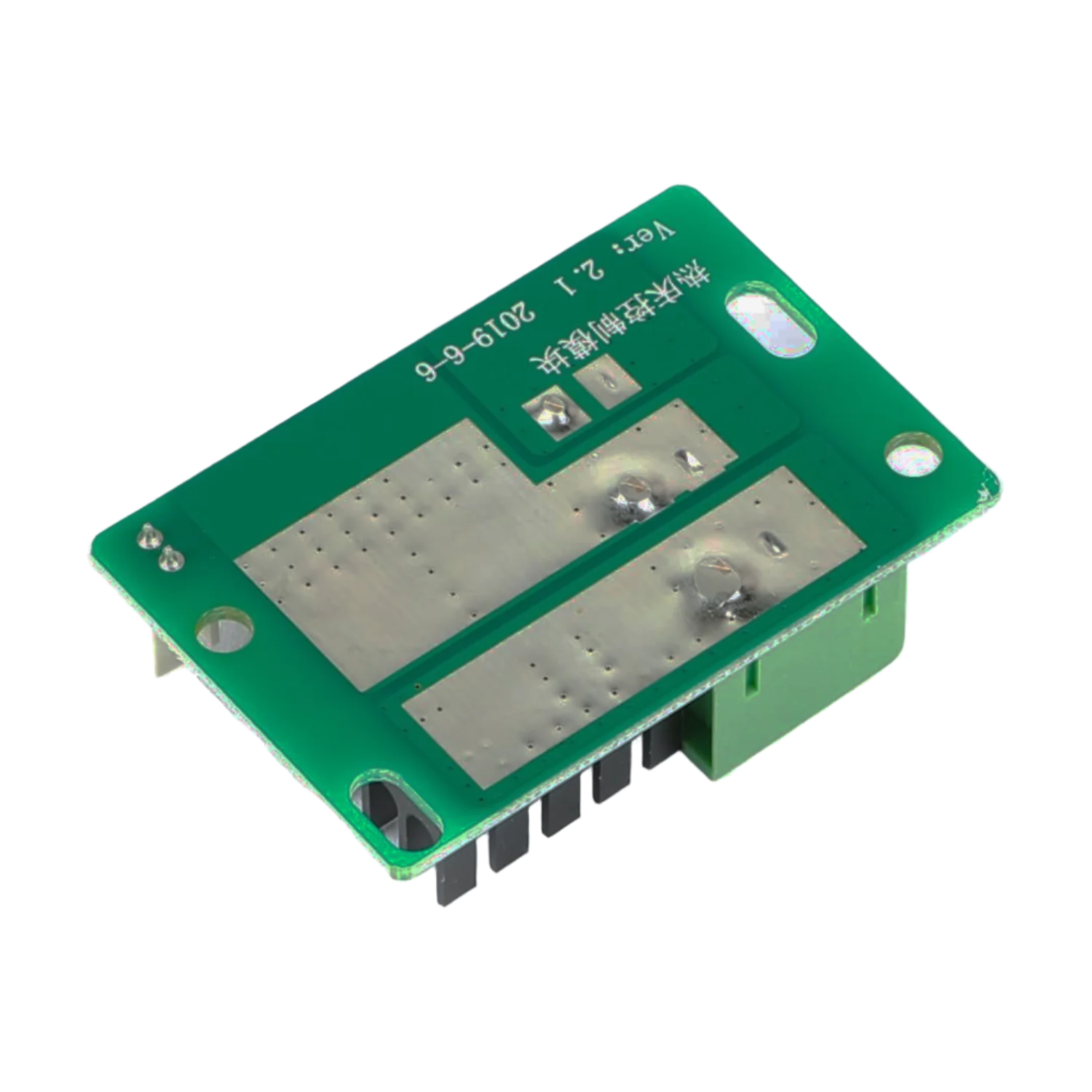

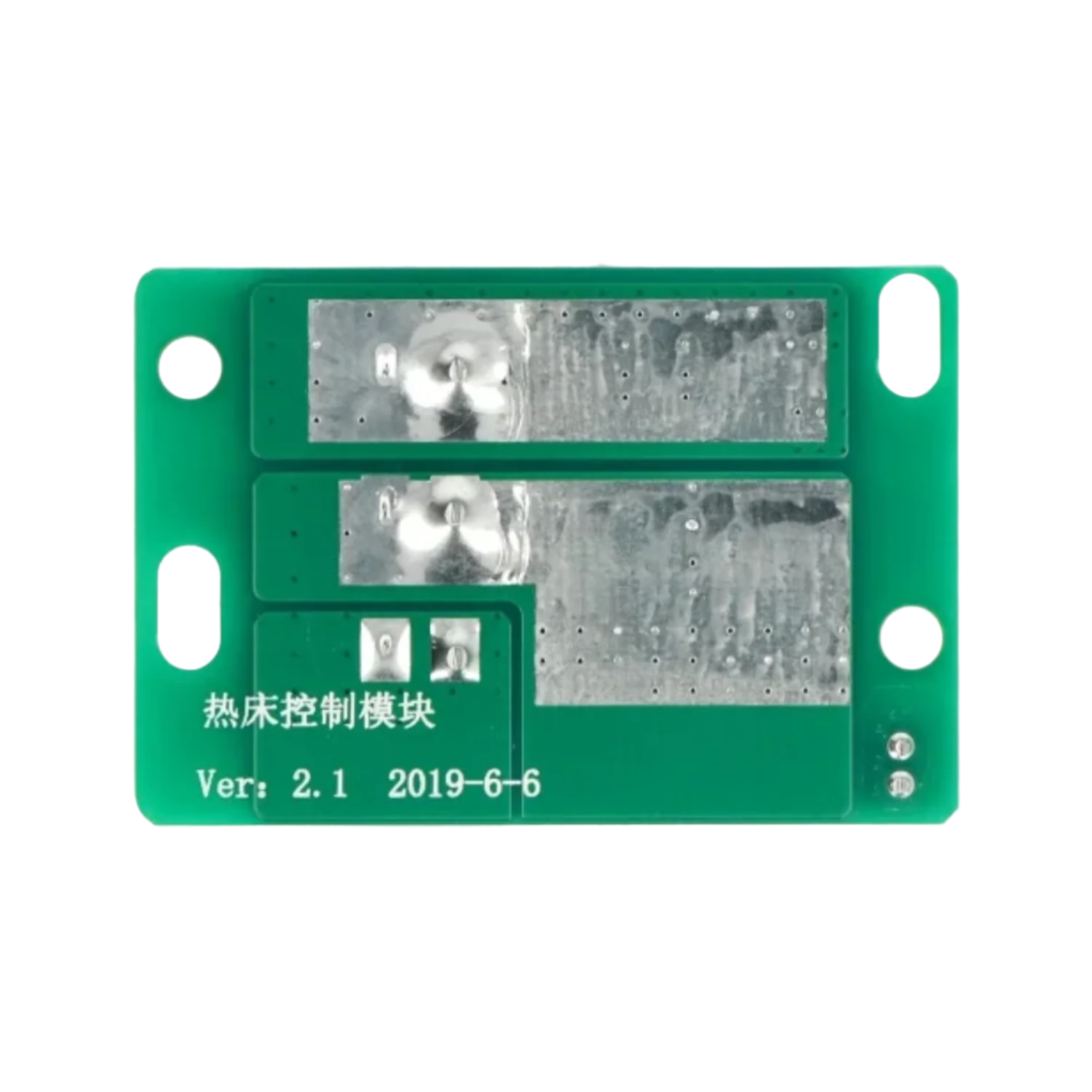

The Creality Hotbed Control Module is an authentic, original equipment manufacturer (OEM) replacement component designed to optimize and regulate the heated bed functionality of your Creality 3D printer. This module acts as a high-power MOSFET switch, effectively controlling the flow of current to your hotbed and ensuring stable, precise temperature management. It receives pulse-width modulation (PWM) signals from your printer's mainboard, translating them into the necessary power adjustments to maintain your desired hotbed temperature.
Specifically, this module is compatible with a wide range of Creality models, including the Ender-5 Plus, CR-M4, CR-10 Max, CR-10s Pro V2, CR-10S Pro V2, CR-10, CR-10S, CR-10 mini, and CR-10S4. It's engineered to handle hotbed power outputs ranging from 300W to 850W, making it suitable for various bed sizes and heating requirements.
Attention: The module cannot be used with a power supply over 30 V. The product must be connected in accordance with the polarity. Its markings can be found on the module housing.
Specifications:
- Compatible Models: CR 10, CR 10 Max, CR 10 mini, CR 10 S, CR 10 S Pro V2, CR 10 S4, CR 10 S5, Ender 5 Plus
- Material: Metal, Plastic
- Heating Table Power: From 300 W to 850 W
- Connector: 3 x screw connector
- Color: Green PCB
- Input Voltage: 01-Dec
- Additional Specs.: Built-in heat sink
Features:
- Precise Heated Bed Temperature: Ensures consistent and accurate temperature for optimal print adhesion.
- High 25A Current Handling: Powers a wide range of heated beds, supporting diverse 3D printing needs.
- Integrated Thermal Monitoring: Built-in sensor prevents overheating for enhanced module safety.
- Cooling Fan Compatibility: Supports active cooling to maximize reliability and longevity.
- Simplified Installation: User-friendly design for quick and easy integration with most heated bed 3D printers.
- Enhanced Safety Features: Protects against overloading, overheating, and short circuits, minimizing potential hazards.
Package Included:
1 x Creality 3D Printer Hotbed Controller
