Description:

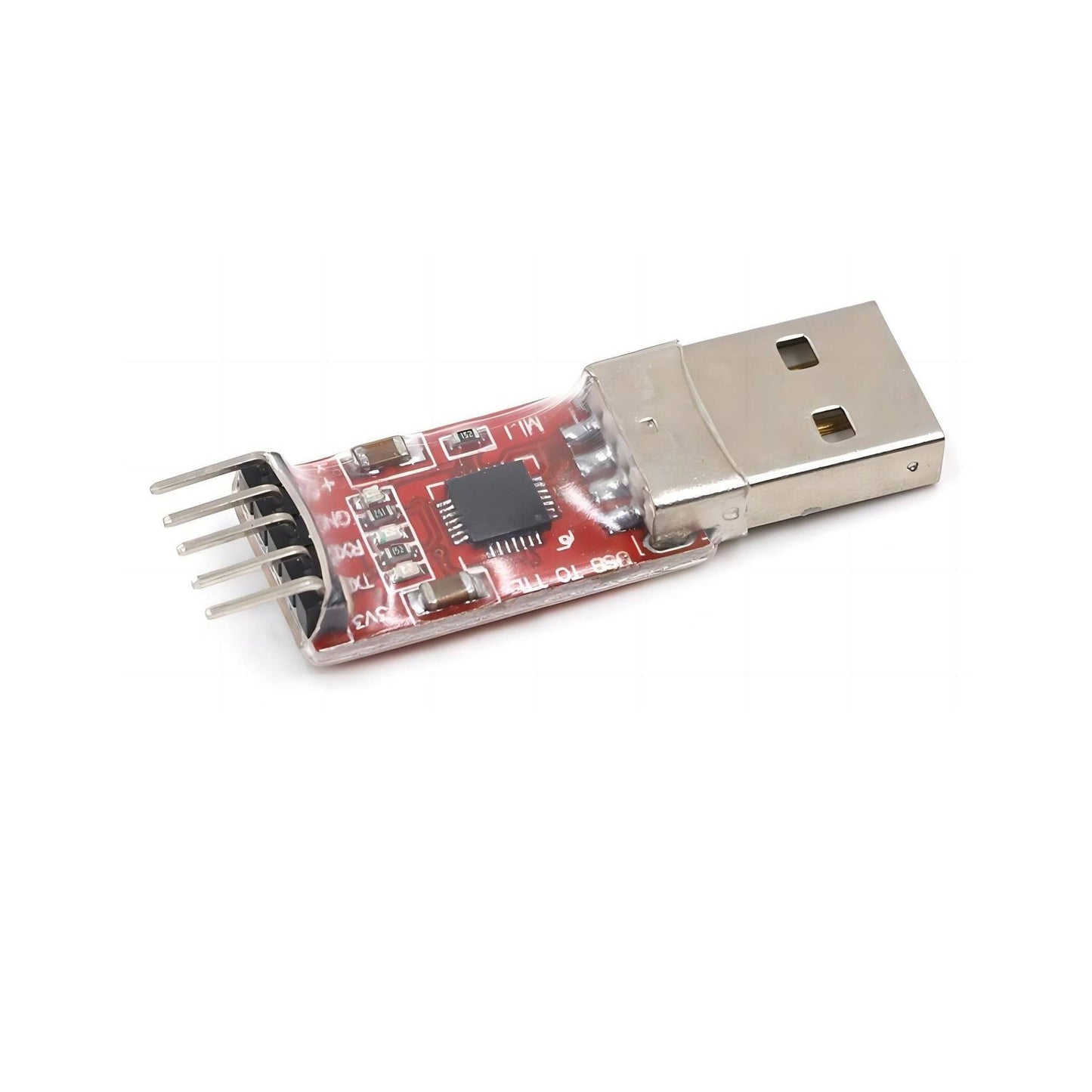

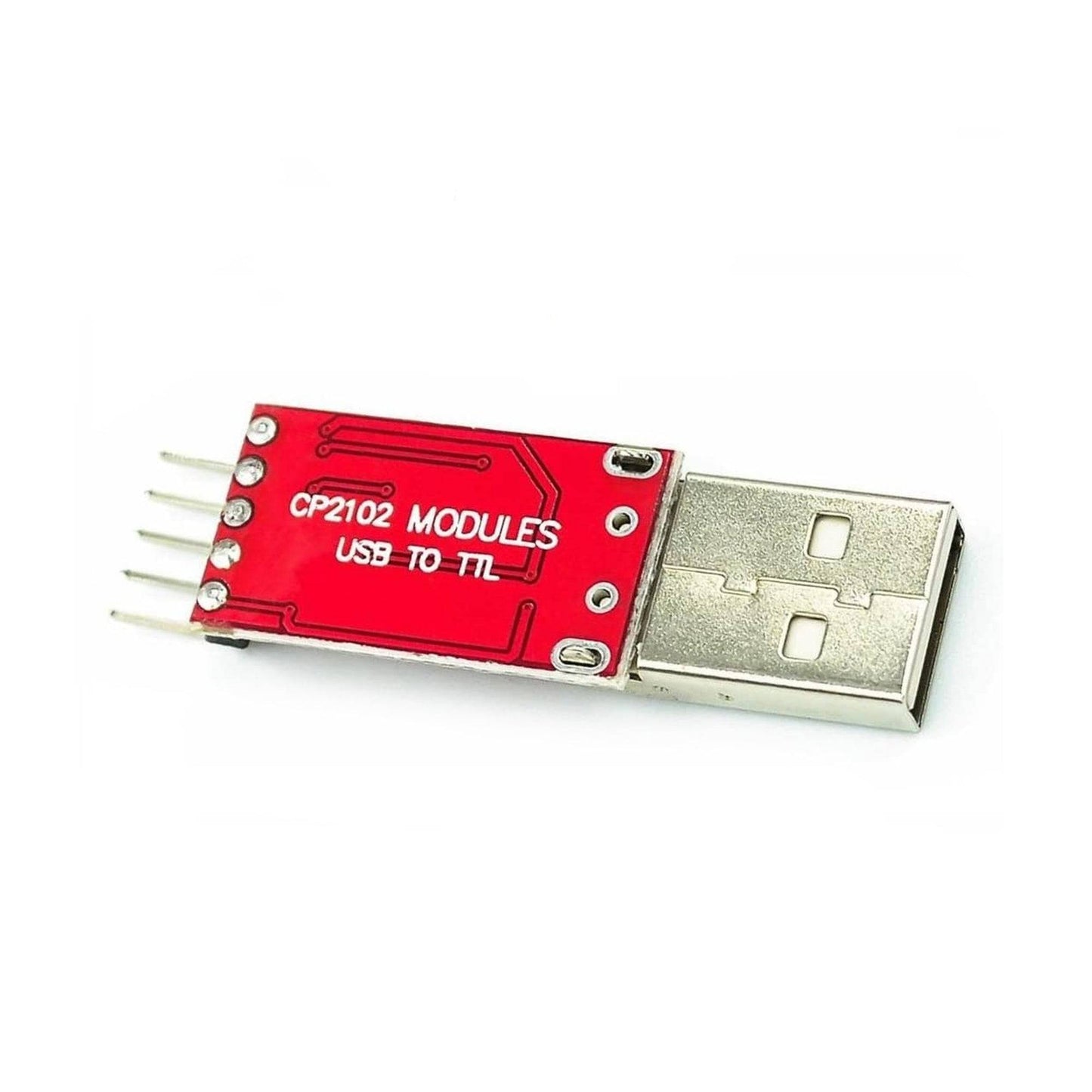

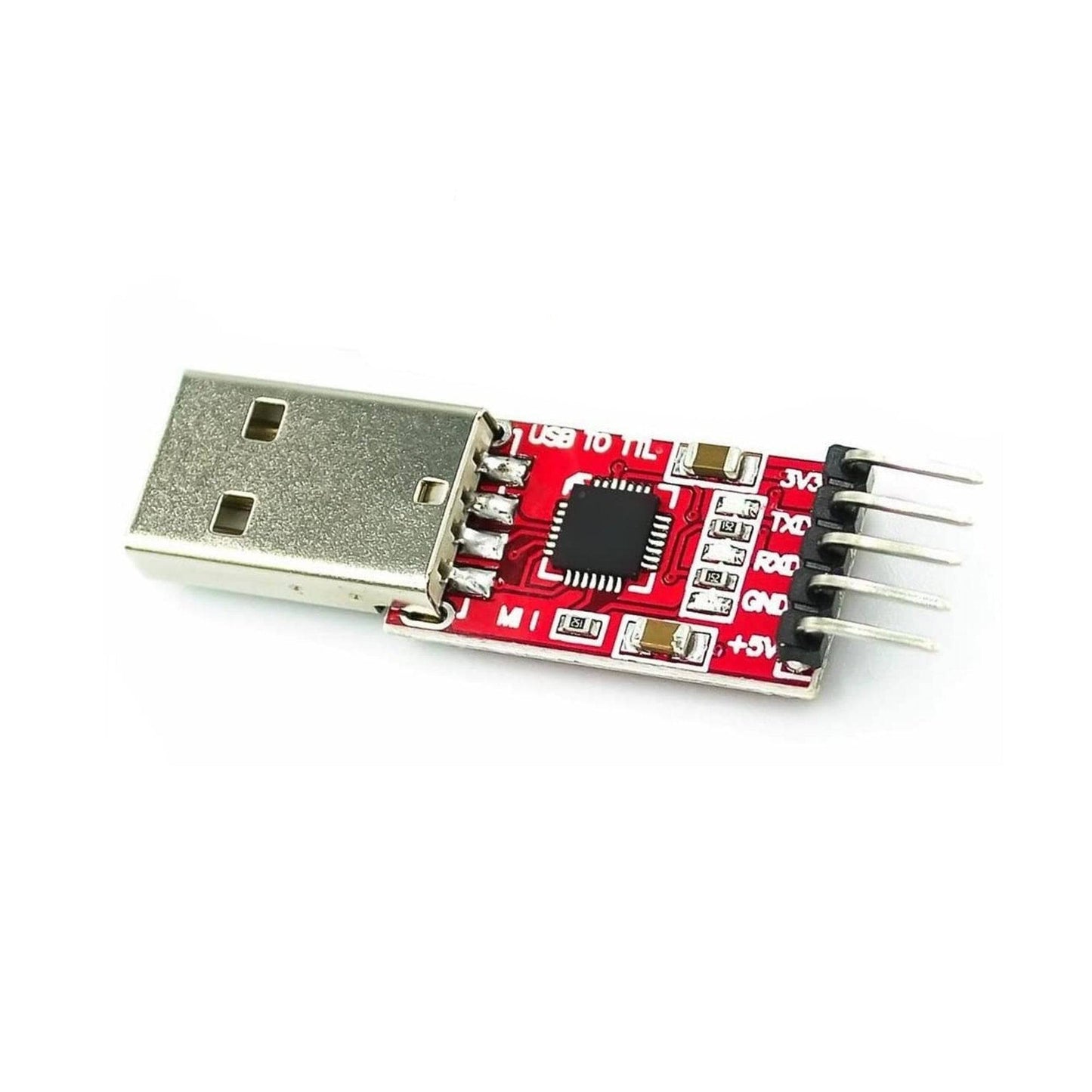

This handy CP2102 USB To TTL Converter bridges the gap between your computer's USB port and TTL UART devices like microcontrollers. Powered by the reliable CP2102 chip, it offers a simple plug-and-play solution for various electronics projects. CP2102 chip is a single chip USB to UART bridge IC. CP2102 USB To TTL Converter requires minimal external components. CP2102 USB To TTL Converter can be used to migrate legacy serial port-based devices to USB.
Specifications:
- Using Serial Conversion Chip: CP2102
- Voltage: TTL compatible with 5V / 3.3V
- Operating Temperature: -40 ℃ ~ +85 ℃
Features:
- USB specification 2.0 compliant with full-speed 12Mbps.
- Standard USB type A male and TTL 6pin connector.
- 6pins for 3.3V, RST, TXD, RXD, GND & 5V.
- Byte receives buffer; 640 bytes transmit buffer.
- Hardware or X-On/X-Off handshaking supported.
- The event character supports Line break transmission.
- USB suspend states are supported via SUSPEND pins.
Package Included:
1 X CP2102 USB To TTL Converter 3.3V / 5V Compatible CP2102 Stable USB To TTL UART Serial Port Module For Arduino
