Control LED by programming NODE MCU ESP8266-12E sing Arduino IDE - KT872

Control LED by programming NODE MCU ESP8266-12E sing Arduino IDE - KT872

SKU:KT872

1000 in stock

Regular price Rs. 450.00
Regular price Sale price Rs. 450.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • SDIO 2.0, SPI, UART
  • 32-pin QFN package
  • Integrated RF switch,24dBm PA, DCXO, and PMU
  • Integrated RISC processor, on-chip memory and external memory interfaces
  • Integrated MAC/baseband processors
  • I2S interface for high fidelity audio applications
  • On-chip low-dropout linear regulators for all internal supplies

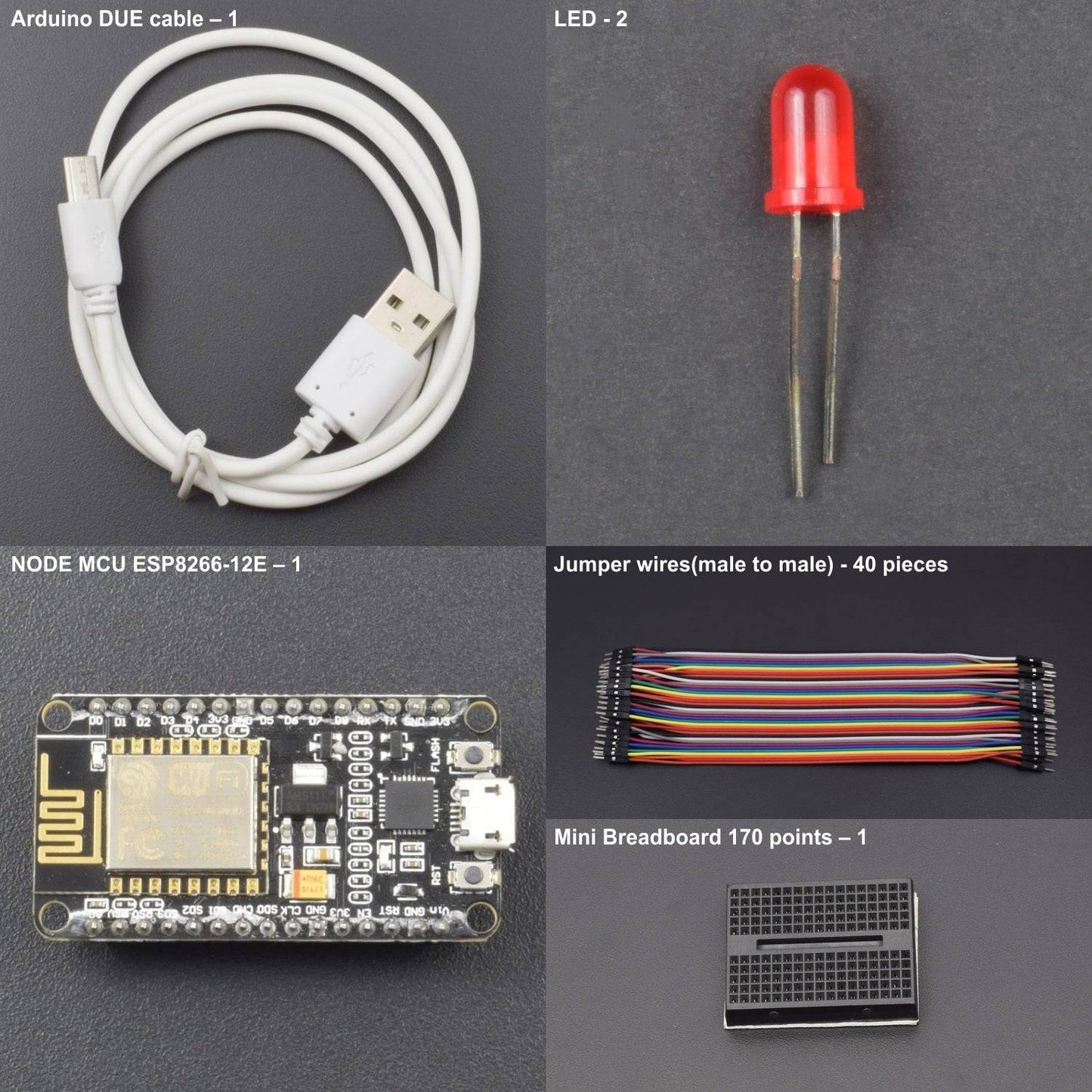

HARDWARE REQUIRED

  • NODE MCU ESP8266-12E – 1

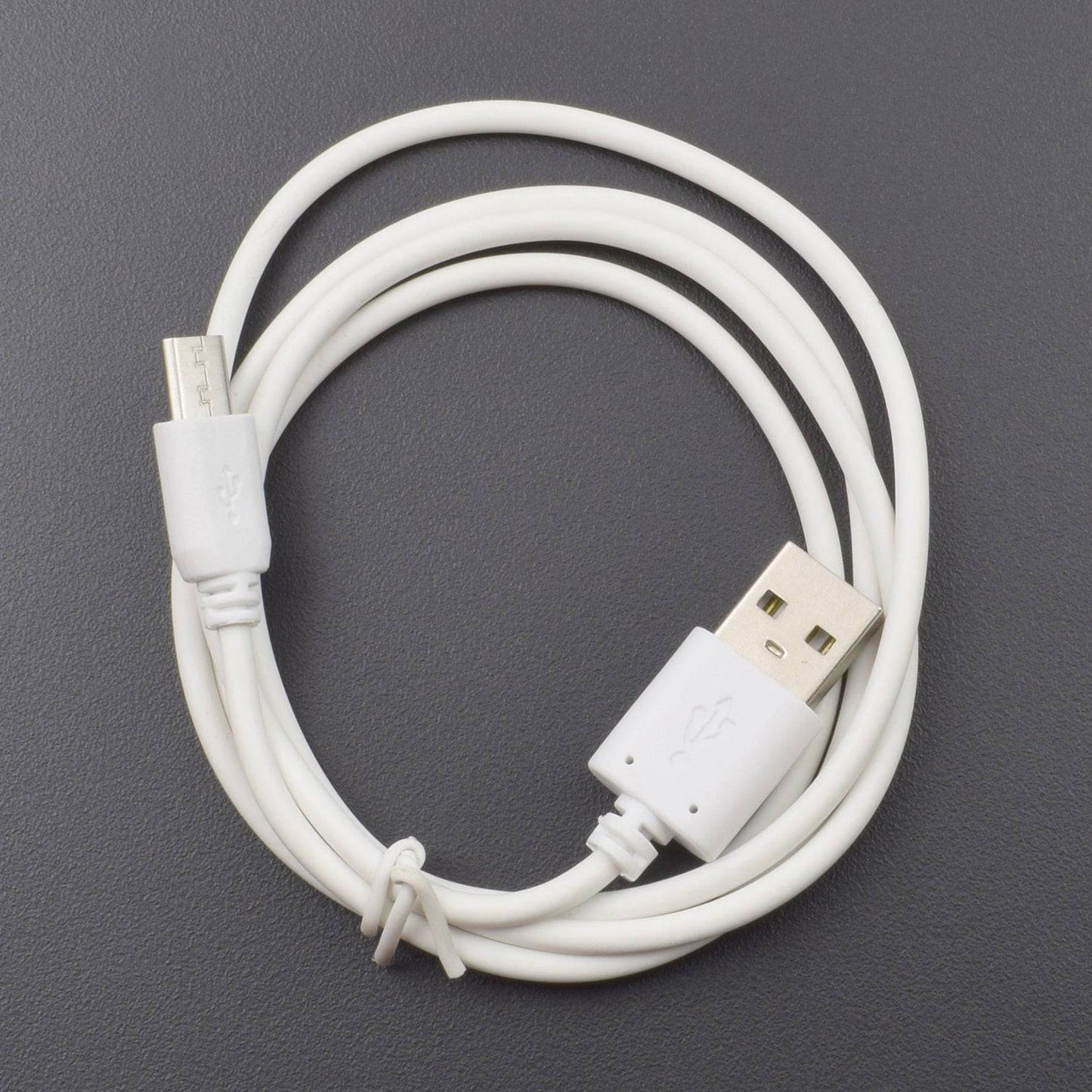

  • Arduino DUE cable – 1

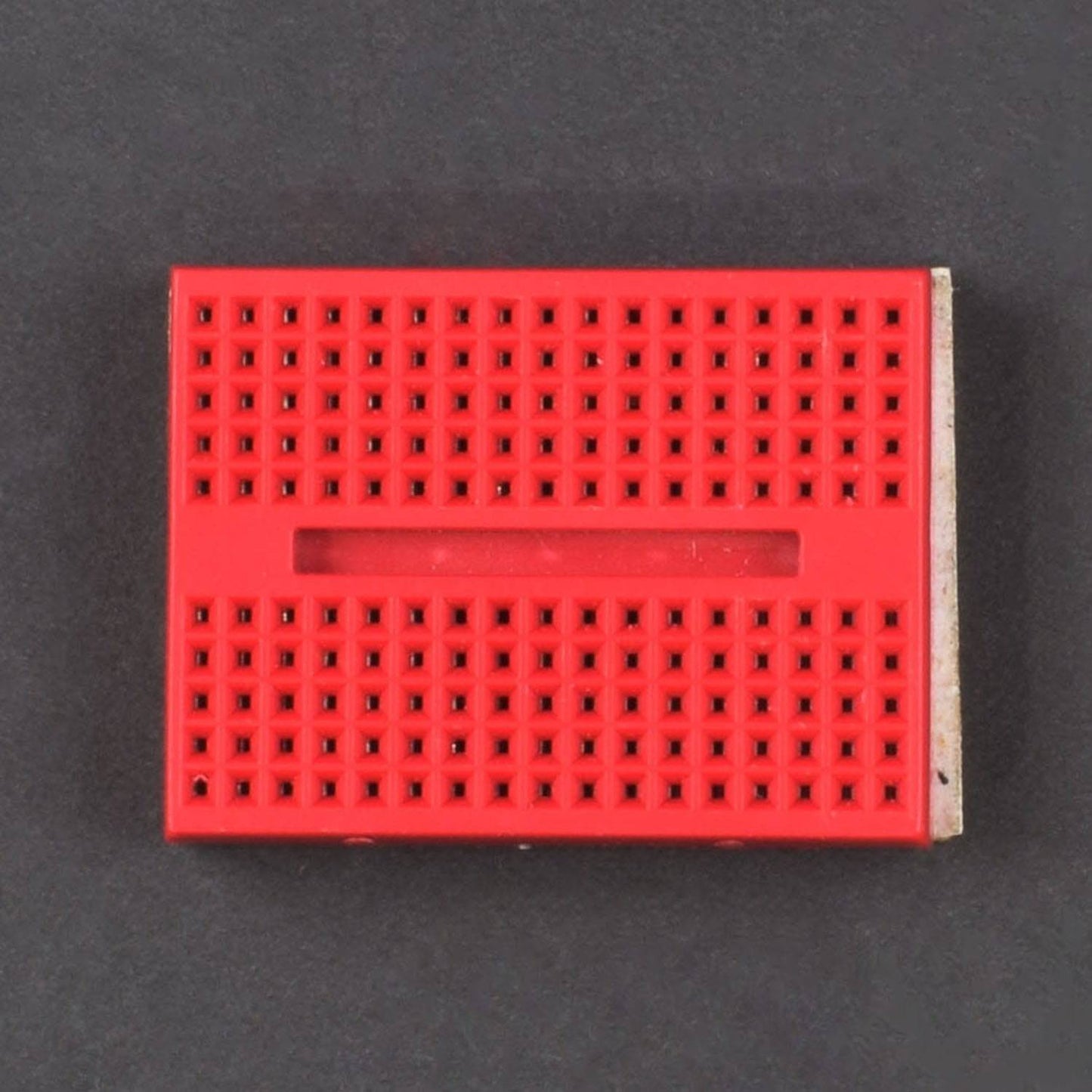

  • Mini Breadboard 170 points – 1

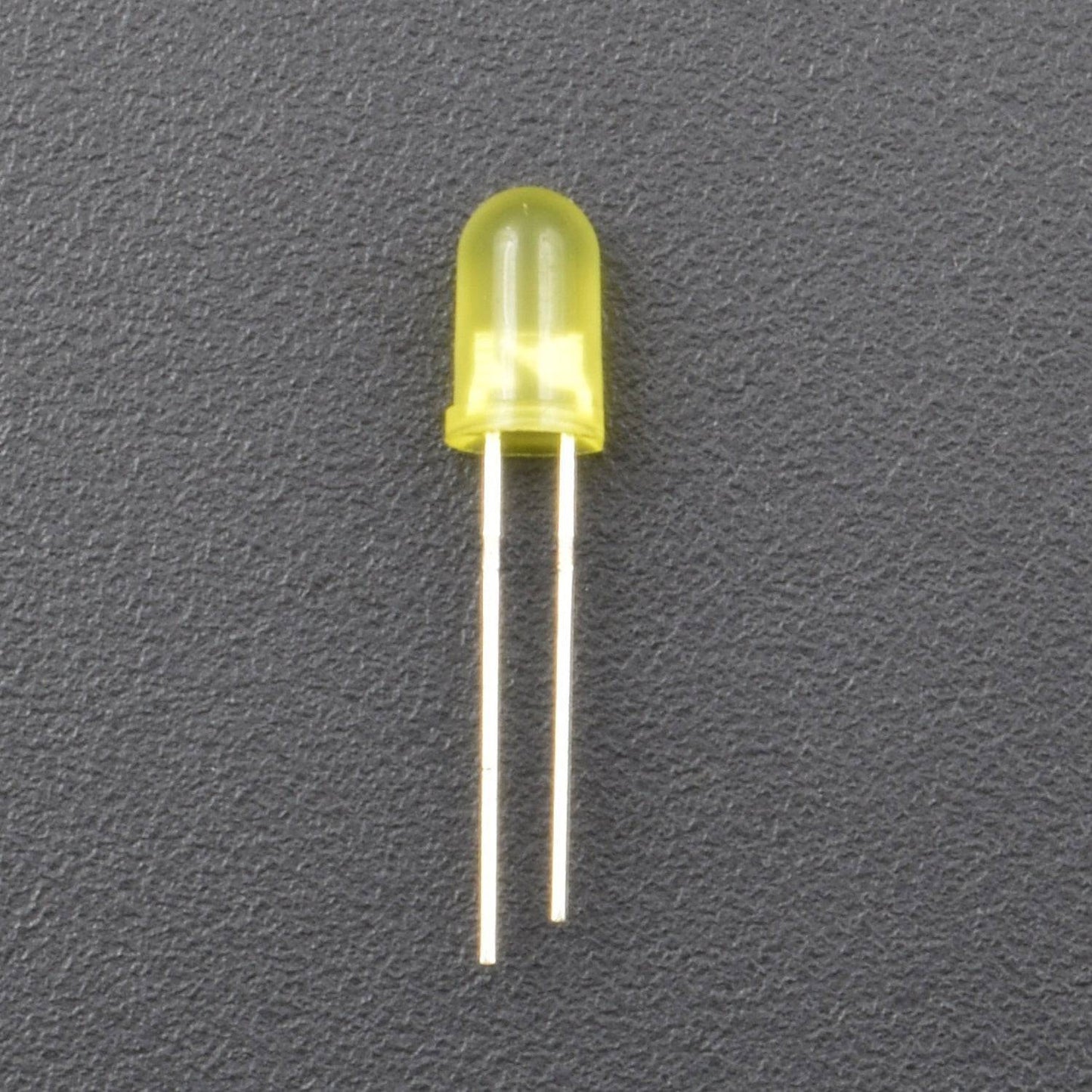

  • LED - 2
  • Jumper wires(male to male) - 40 pieces each

SOFTWARE REQUIRED

Arduino IDE ( programmable software for Arduino boards )

You can download the software from this link : https://www.arduino.cc/en/Main/Software



PIN DESCRIPTION

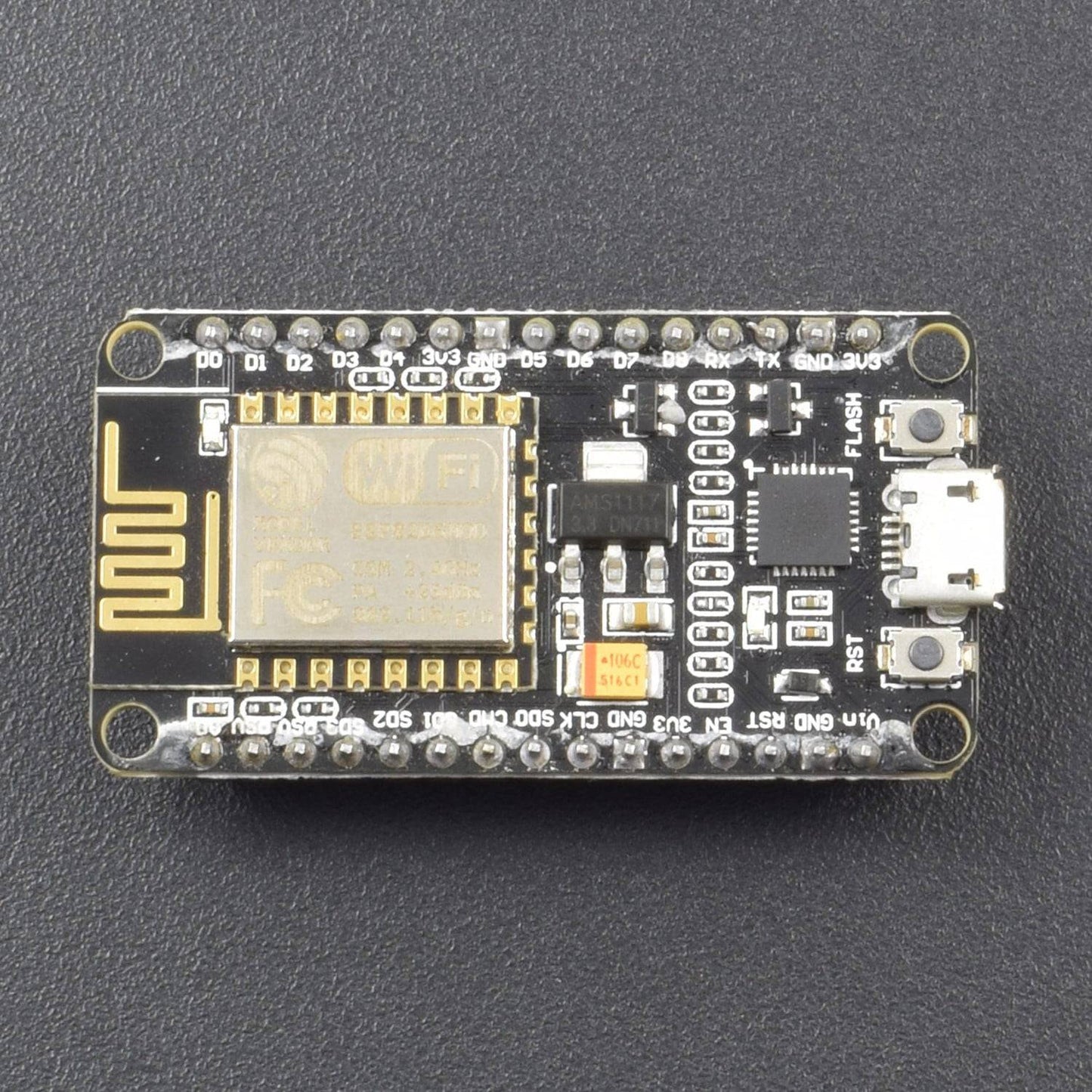

ESP8266-12E

ESP8266EX offers a complete and self-contained Wi-Fi networking solution; it can be used to host the application or to offload Wi-Fi networking functions from another application processor. When ESP8266EX hosts the application, it boots up directly from an external flash. In has integrated cache to improve the performance of the system in such applications.

  • NodeMCU ESP-12E dev board can be connected to 5Vusing micro USB connector or Vin pin available on board.
  • The I/O pins of ESP8266 communicate or input/output max 3.3V only. i.e. the pins are NOT 5V tolerant inputs.
  • In case you have to interface with 5V I/O pins, you need to use level conversion system (either built yourself using resistor voltage divider or using ready to use level converters

STEP- 1 Installing Arduino Core for NodeMCU ESP-12E Using Arduino Boards Manager

As shown in the image, Copy the .json link with latest stable release of NodeMCU package from Github page here.

The link should look something like this-

http://arduino.esp8266.com/stable/package_esp8266com_index.json

Step 2: Insert Link for .json NodeMCU Package Files into Arduino IDE

Paste the copied link and insert it in Arduino IDE using following sequence-

File --> menu --> Preferences

Paste copied link into the area shown in black box in above image.

Close and restart the Arduino IDE.

Step 4: Tools - Boards Manager

Tools --> Boards manager and search for ESP8266 and install the libraries/files given under heading ESP8266 by ESP community.

Restart the Arduino IDE once again.

Step 4: Selecting NodeMCU Board in Arduino IDE

Go to Tools --> Boards (scroll down the list of boards) --> Select NodeMCU 1.0 ( ESP-12EModule).

Select the Port number at which you have connected nodeMCU. Rest of the settings can be left to default values.

CIRCUIT DESCRIPTION

We will be connecting external LED directly to GPIO16 or D0 pin of NodeMCU (no need of external current limiting resistor). This is the pin number for onboard LED or BUILTIN_LED

LIBRARY REQUIRED

OUTPUT

Go to File --> Examples --> ESP8266 à Blink

Upload the sketch to ESP and the On-board LED blue and external LED red starts blinking alternately at every second.

Note- In case, if Arduino IDE version 1.6.7 fails to work for you, try to go back to arduino 1.6.5 or backwards. (some NodeMCU boards have issues with latest versions of Arduino IDEs and going to earlier versions of Arduino IDE solves the problems).
