INTRODUCTION

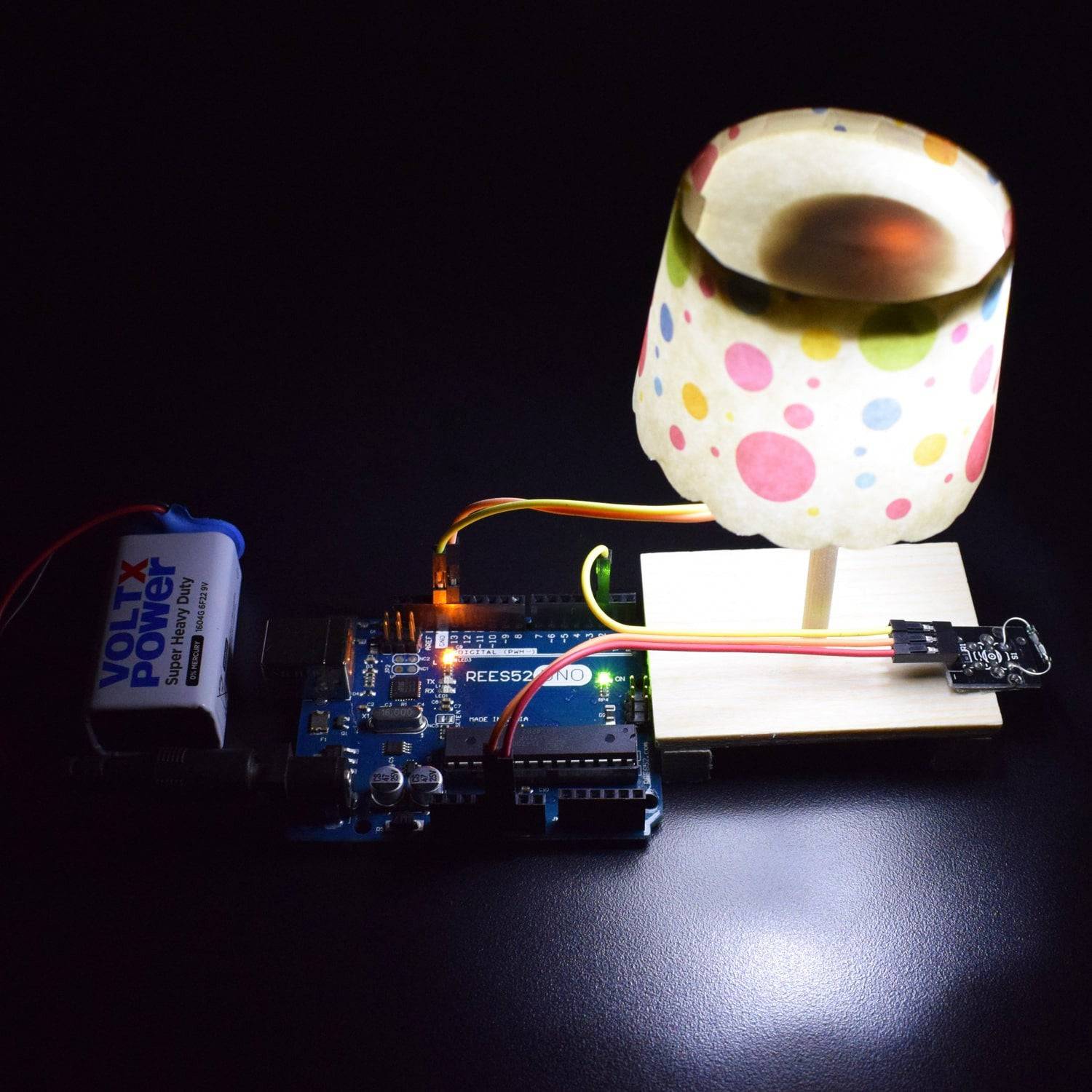

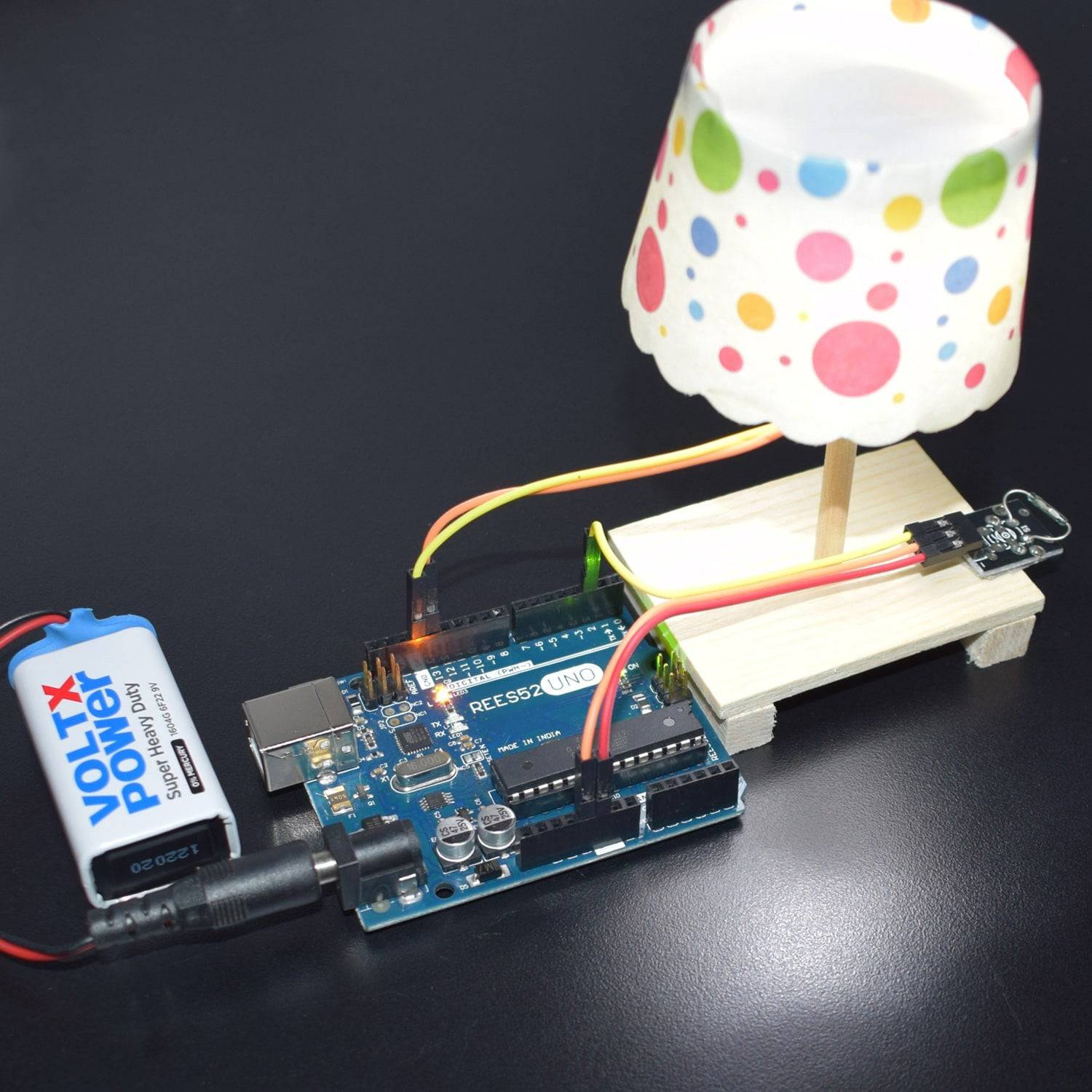

Here, we will be controlling the LED, which acts as a Light Bulb, using a Mini Reed Switch.

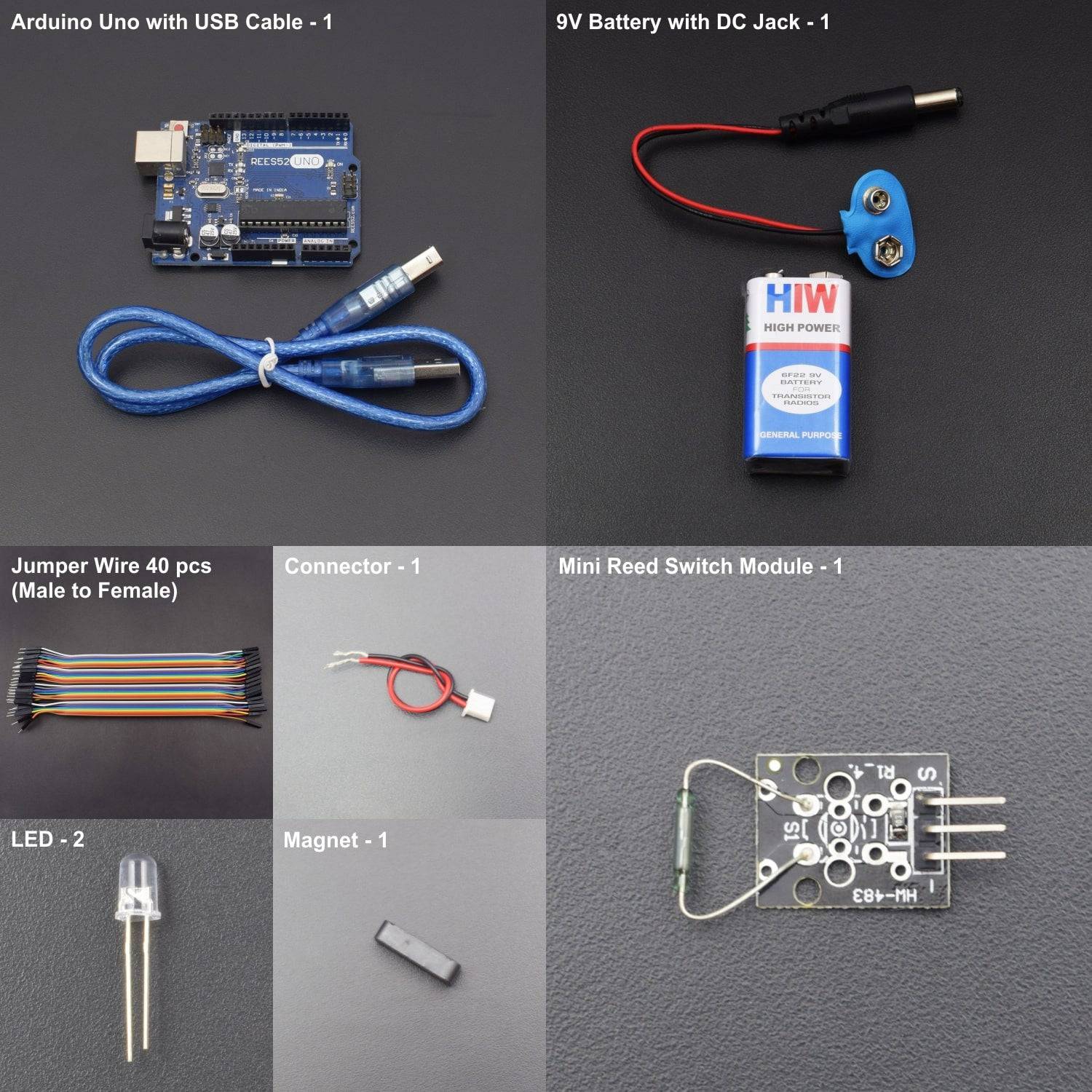

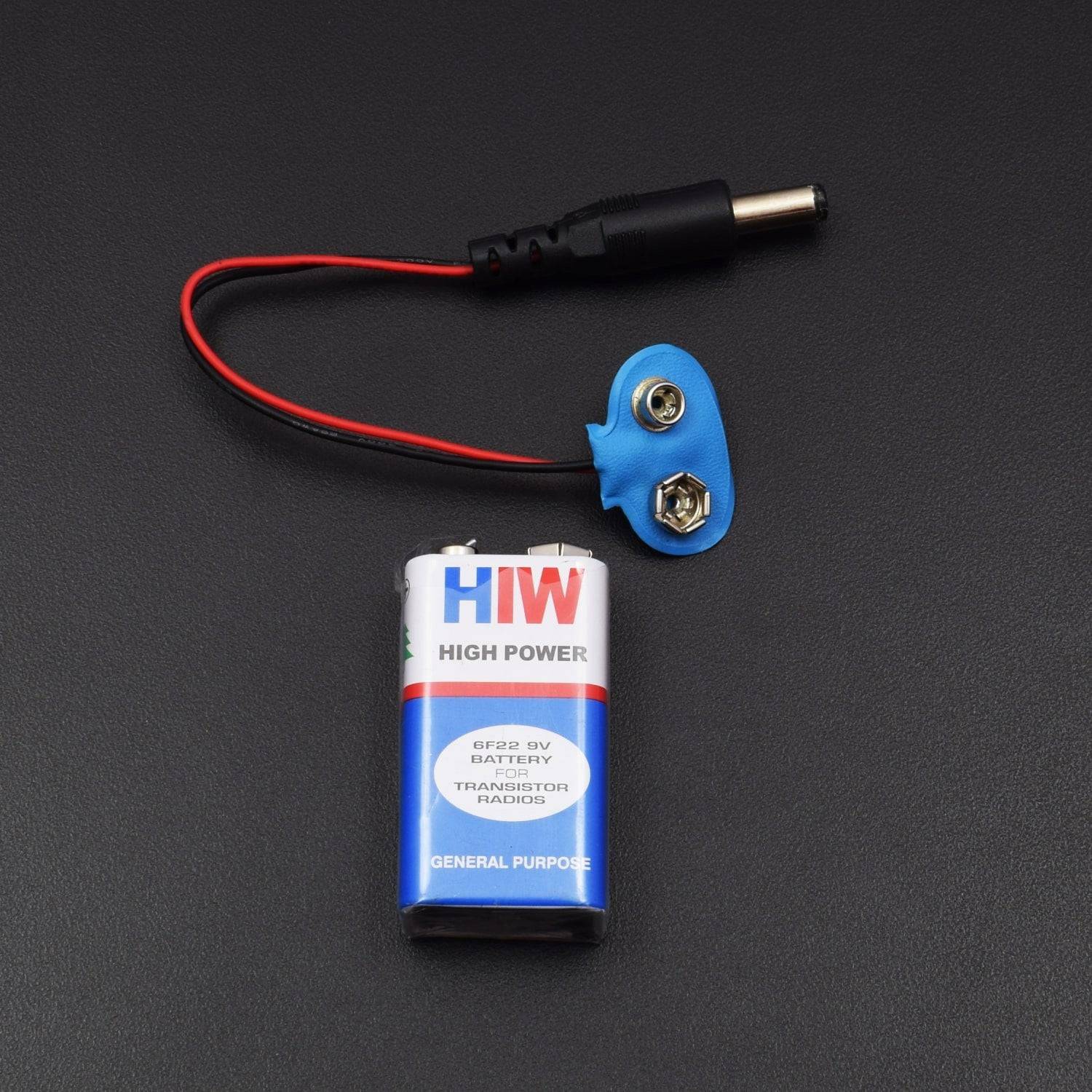

HARDWARE REQUIRED

SOFTWARE REQUIRED

Arduino IDE 1.8.5 (programmable platform for Arduino)

Click here to download the software

SPECIFICATIONS

Mini Reed Switch Module:

A Reed Switch Module is a magnetic sensor that is normally open and gets closed when exposed to a magnetic field. It consists of a 10kΩ resistor and a small reed switch actuated by a magnetic field, commonly used in mechanical systems as proximity sensors. Compatible with popular electronic platforms like Arduino, Teensy and ESP8266.

  • Operating Voltage: 3.3v to 5v
  • Output Type: Digital

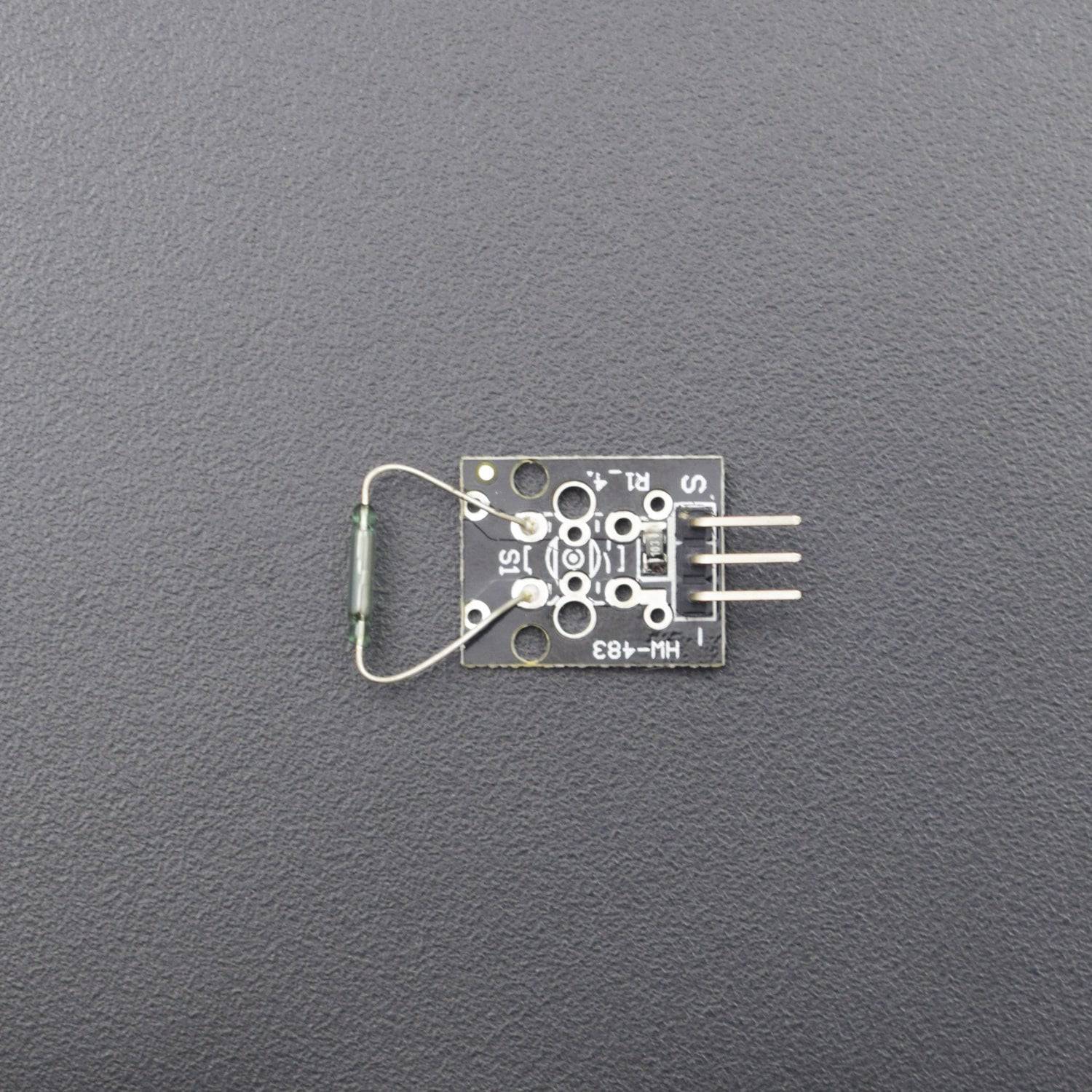

mini magnetic reed switch

Arduino Uno:

Featuring the ATmega328P chip in a DIP package for easy replacement, and the reliable CH340 USB-to-serial converter for seamless programming, this board is a powerful yet affordable option.

  • Input Voltage(Recommended): 7~12V
  • Input Voltage(Limit): 6~20V
  • Analogue I/O Pins: 6
  • Digital I/O Pins: 14
  • PWM Digital I/O Pins: 6a
  • DC Current Per I/O Pin: 40mA
  • Clock Speed: 16MHz
  • SRAM: 2KB
  • Flash Memory: 32KB
  • EEPROM: 1KB

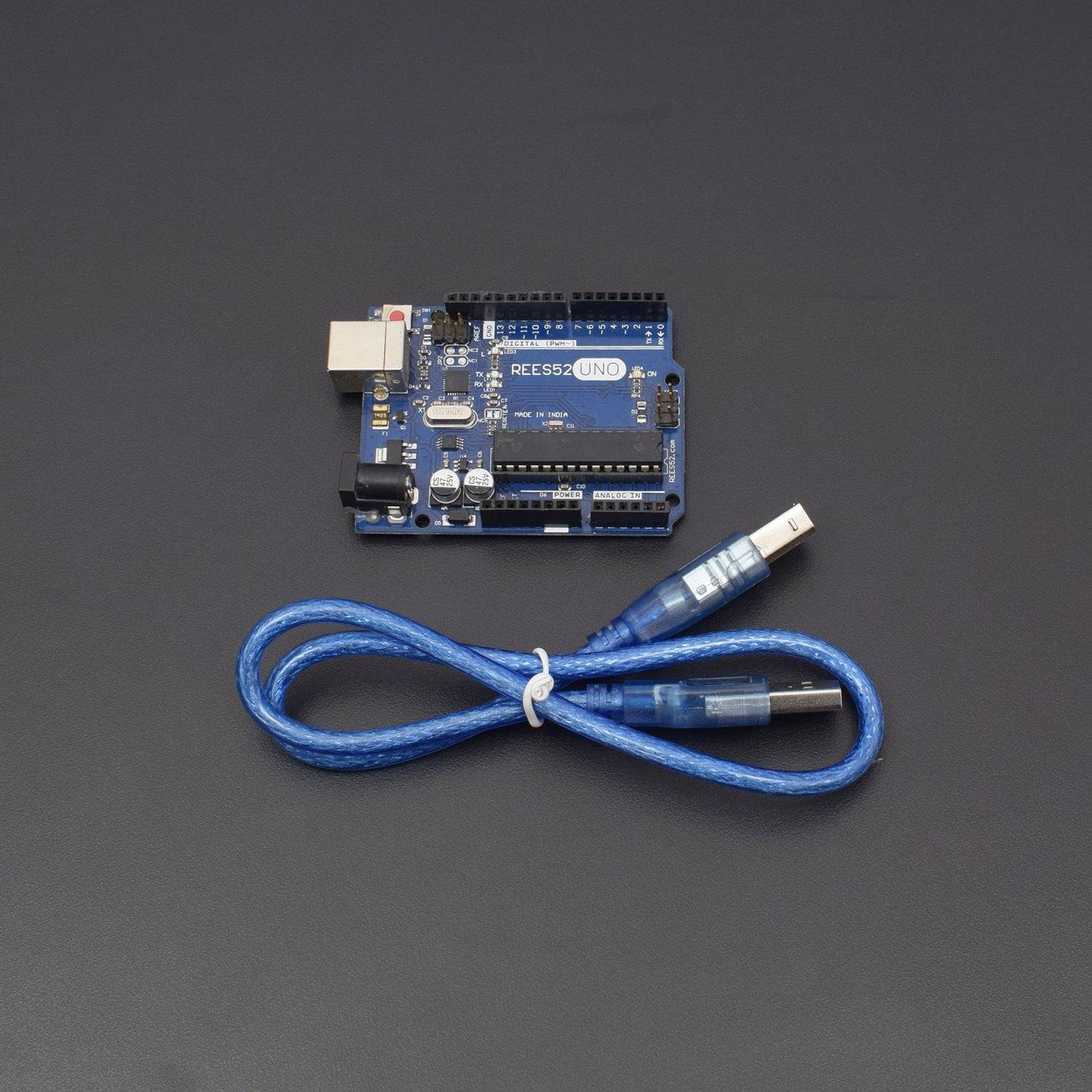

Arduino Uno R3

Led:

A super-bright 5mm White LED is exceptionally bright with a wide beam angle, so they’re suitable for use in your projects, illuminations, headlamps, spotlights, car lighting, and models.

  • Lens Colour: White
  • Emitting Colour: White
  • Operating Voltage: 1.9-2.1v
  • Current: 20mA
  • Luminous Intensity: 1000-2000mcd

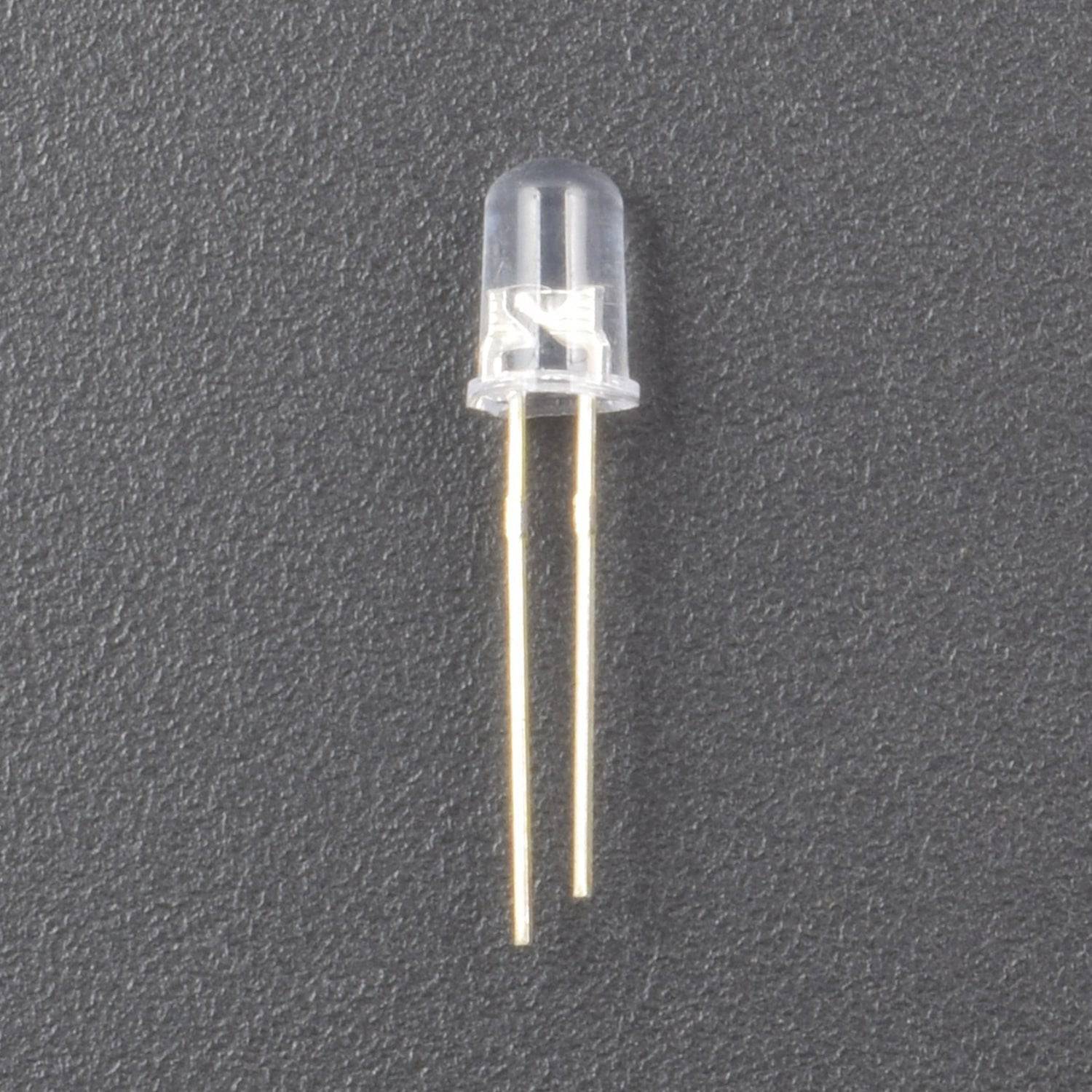

5mm led pinout

CIRCUIT CONNECTION

  • Connect the GND of the Mini Reed Switch with the GND of Arduino Uno.
  • Connect the VCC of the Mini Reed Switch with Pin 5v of Arduino Uno.
  • Connect the Pin Signal of the Mini Reed Switch with Digital Pin 2 of Arduino
  • Connect the positive terminal of the LED with Digital Pin 13 of Arduino Uno.
  • Connect the negative terminal of the LED to the GND of Arduino Uno.
Arduino Uno LED Control with Mini Reed Switch

CODE

Click to open in Drive

WORKING

Welcome to the Arduino-based project, which consists of a Mini reed switch. The basic functionality of this module is described here. A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch.
