Control a speed of DC motor using 12-40V 10A Power DC motor speed controller - KT823

Control a speed of DC motor using 12-40V 10A Power DC motor speed controller - KT823

SKU:KT823

Low stock: 5 left

Regular price Rs. 900.00
Regular price Sale price Rs. 900.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Introduction

In this tutorial, we are testing the speed of a DC motor using 12-40v 10A Power DC Motor Speed Controller

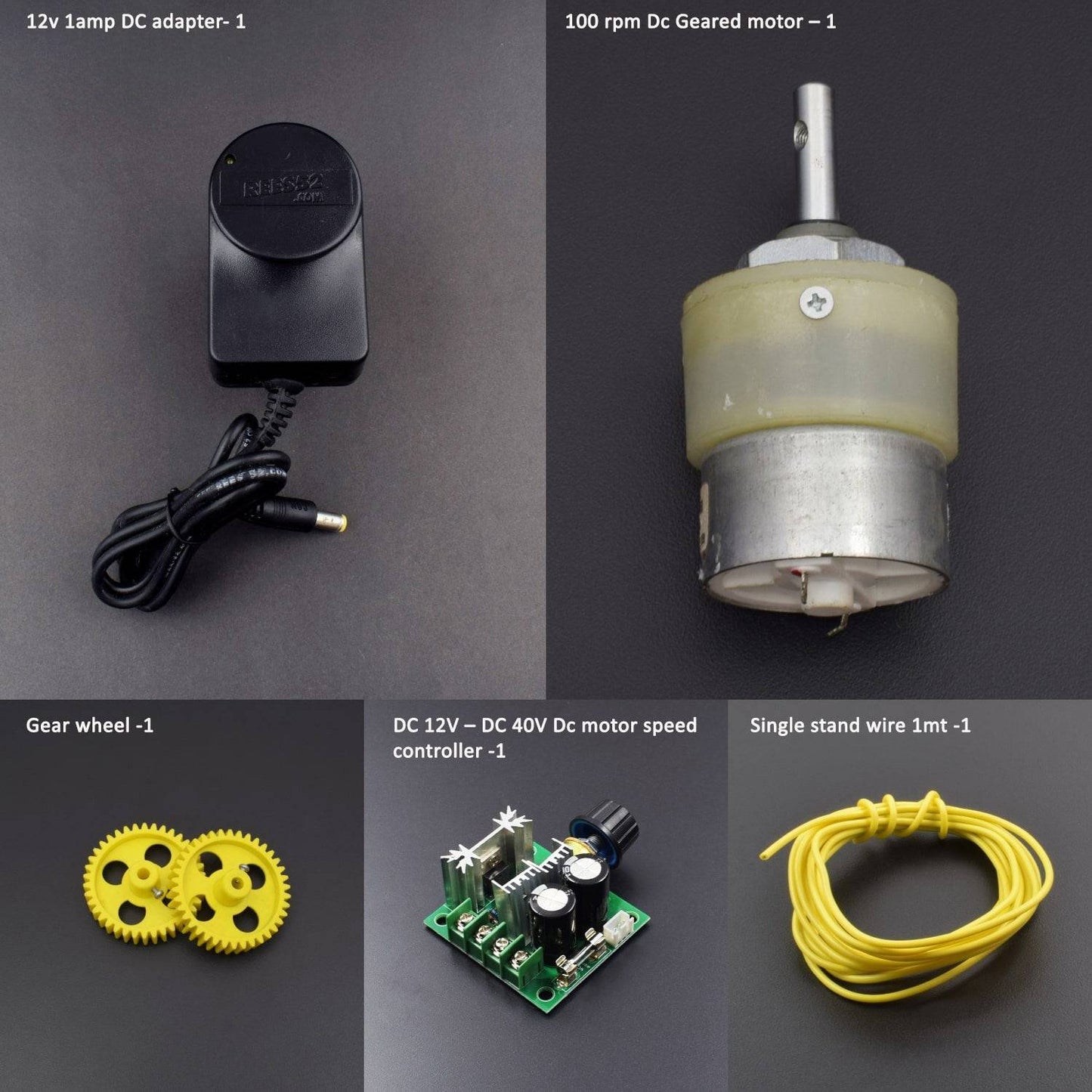

HARDWARE REQUIRED

SOFTWARE REQUIRED

Arduino IDE (programmable platform for Arduino)

Click To Download: https://www.arduino.cc/en/Main/Software

SPECIFICATIONS

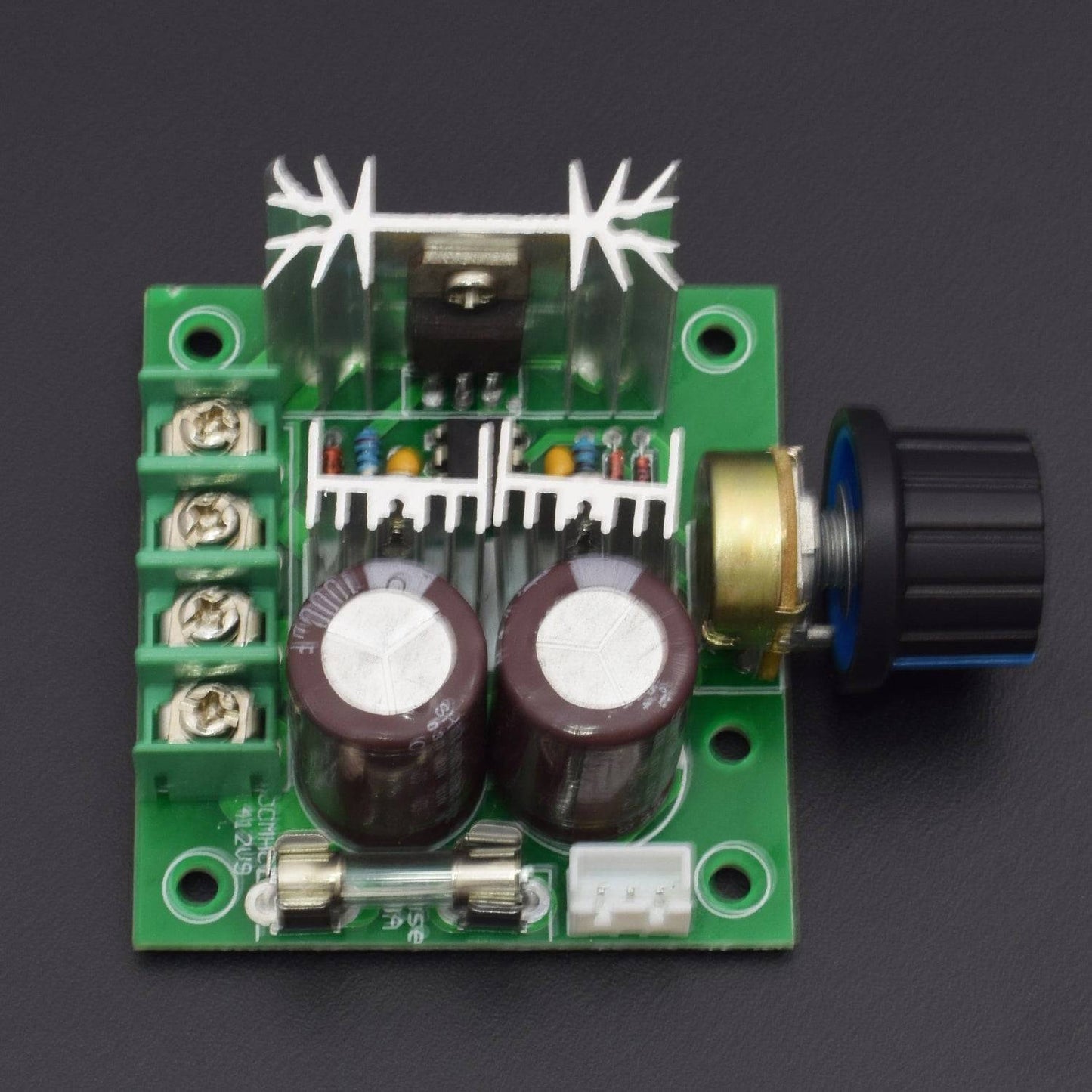

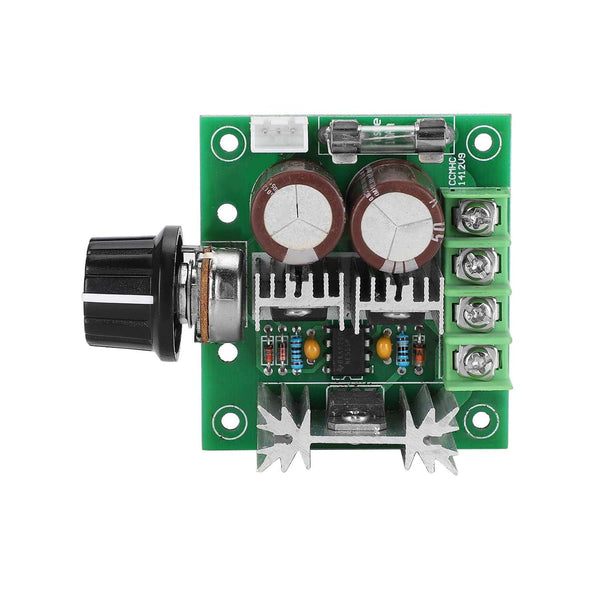

DC Motor Speed Controller

  • Working Voltage: DC 12V – DC 40V
  • Control Power: 0.01 – 400W
  • Static Current: 0.02 A ( Standby )
  • PWM Duty Cycle: 10% -100%
  • PWM Frequency: 13 kHz
  • Control the speed of a DC motor with this controller

High efficiency, high torque, low heat generating
With reverse polarity protection, high current protection

· The 10A fuse with the reverse connection of power supply and control voltage over-voltage protection function
can adjust the speed by the external 0-5V signal

NOTE: This can NOT be used to the BRUSHLESS motor.

· The controller is NOT reverse-polarity protected and will be damaged if it connects the supply voltage with the wrong polarity. Double-check all connections before applying power and always turn off the power supply before making any wiring changes.

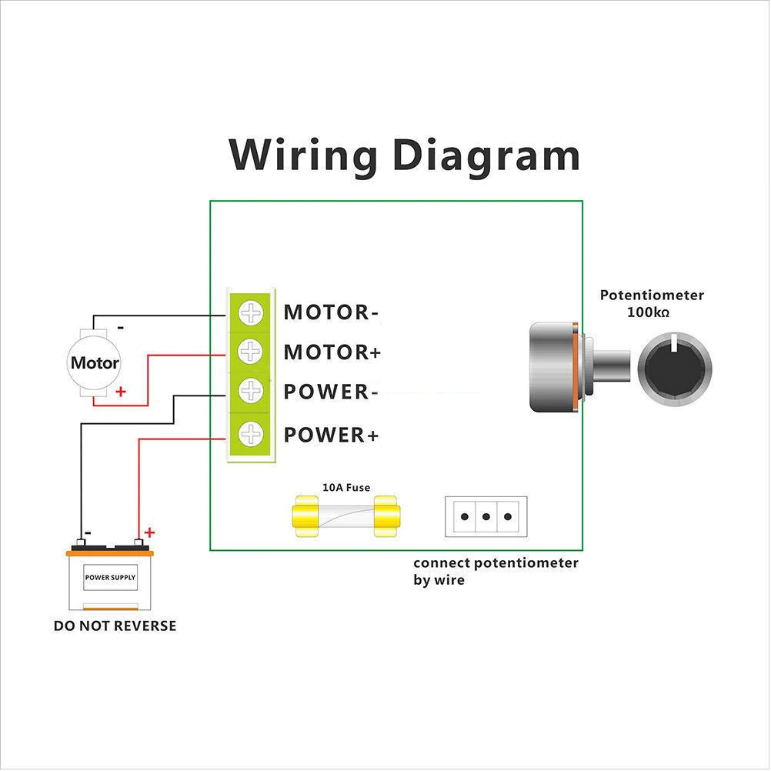

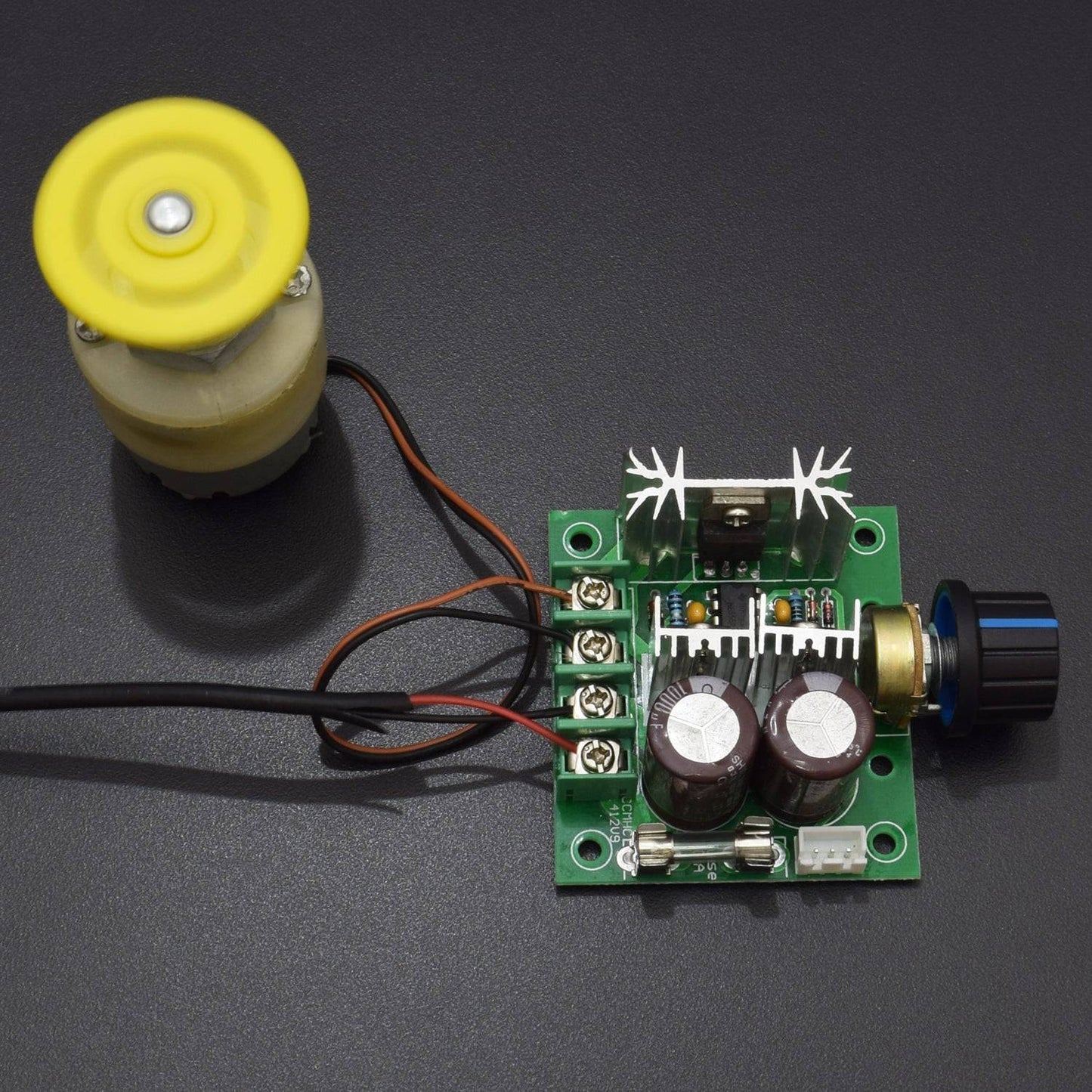

CIRCUIT CONNECTION

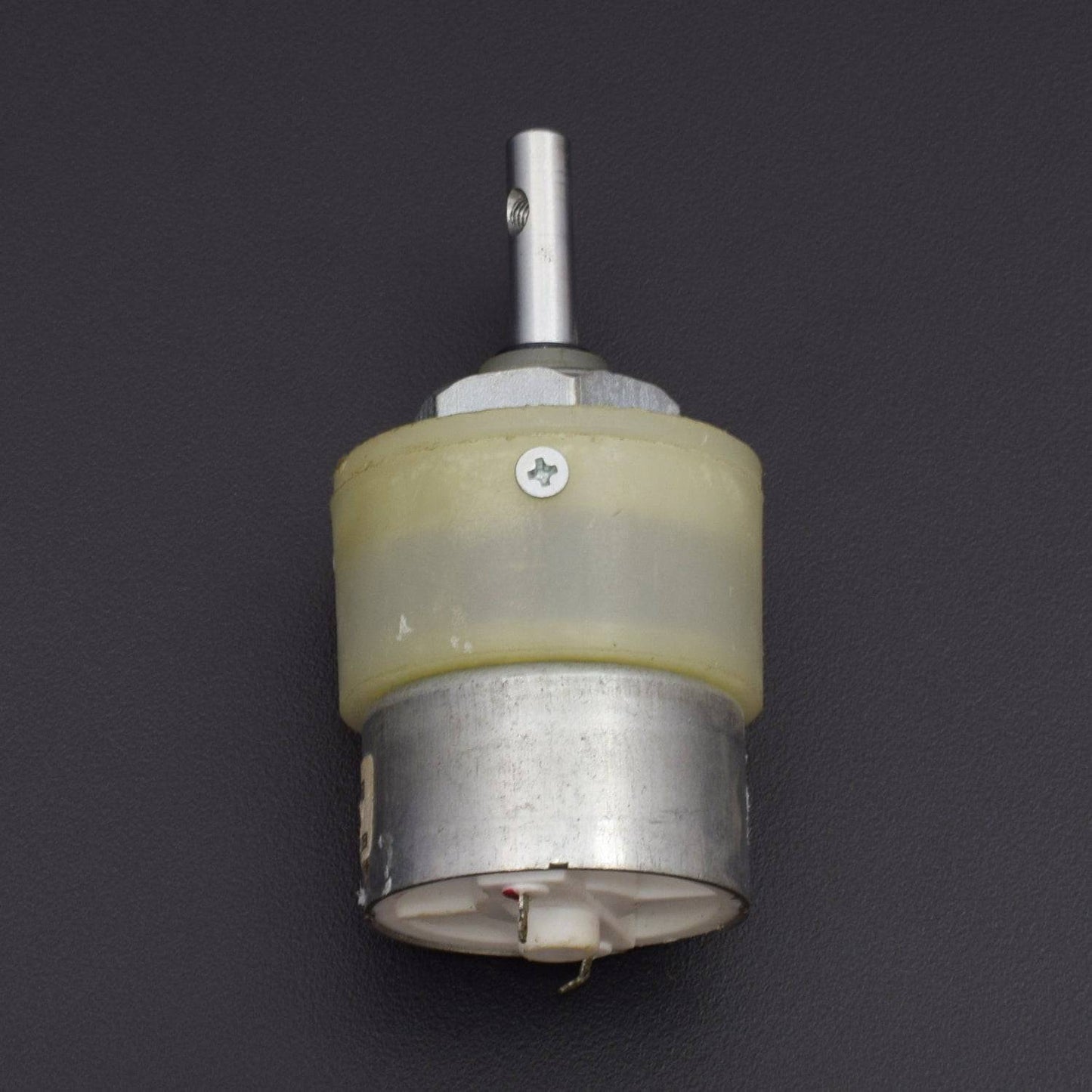

  • First, connect the dc motor negative positive to the knob connection point.

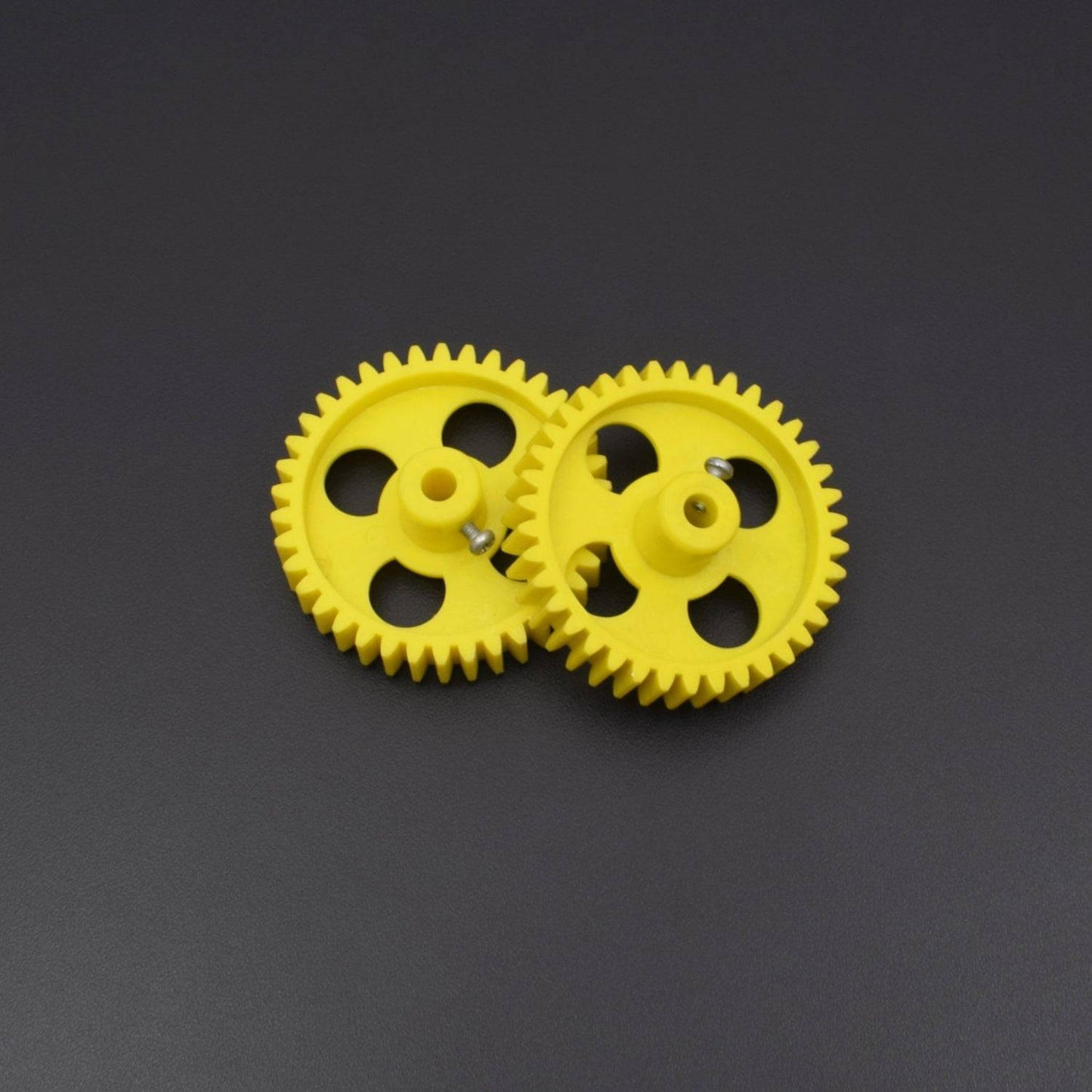

  • Fix a gear wheel on the motor and fix it with the screwdriver.

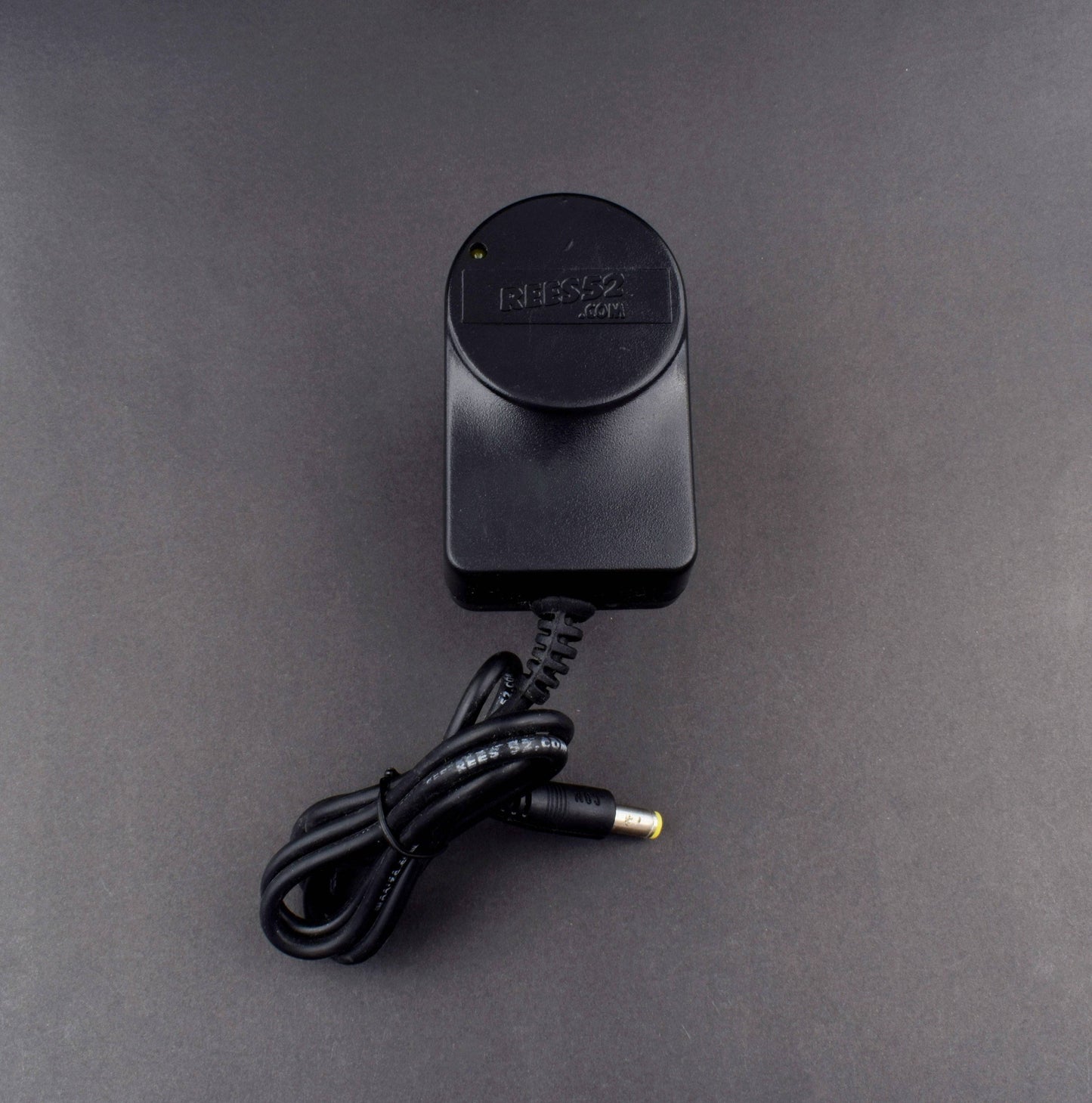

  • Now connect the 12v.1amp adapter for power supply of controller and switch on the power and turn the knob you will see the speed variation on the wheel.
  • You can check the voltage rating using a multimeter. Connect the Positive wire of multimeter to the red wire of motor and similarly connect the black wire of Multimeter to the DC motor black wire.

Schematic –

WORKING AND OUTPUT

Rotate the potentiometer and you can control the speed of rotation motor.

Click to watch the tutorial

https://youtu.be/9muIOBc93hM

For more tutorials subscribe our channel REES52 on YouTube

https://www.youtube.com/channel/UCKuJ1KCjJGat7PrdAcWtu5g
