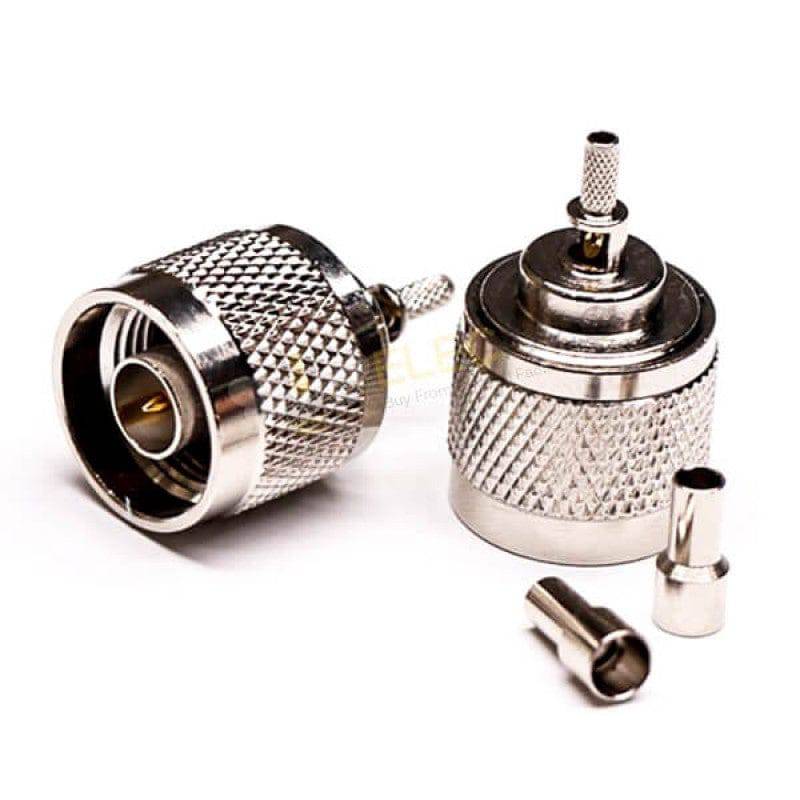

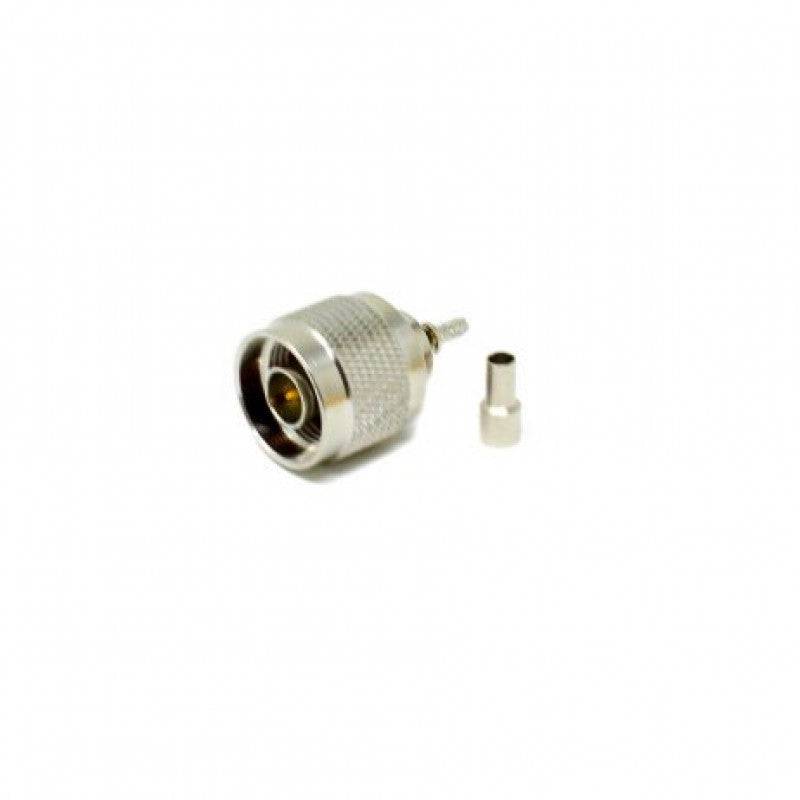

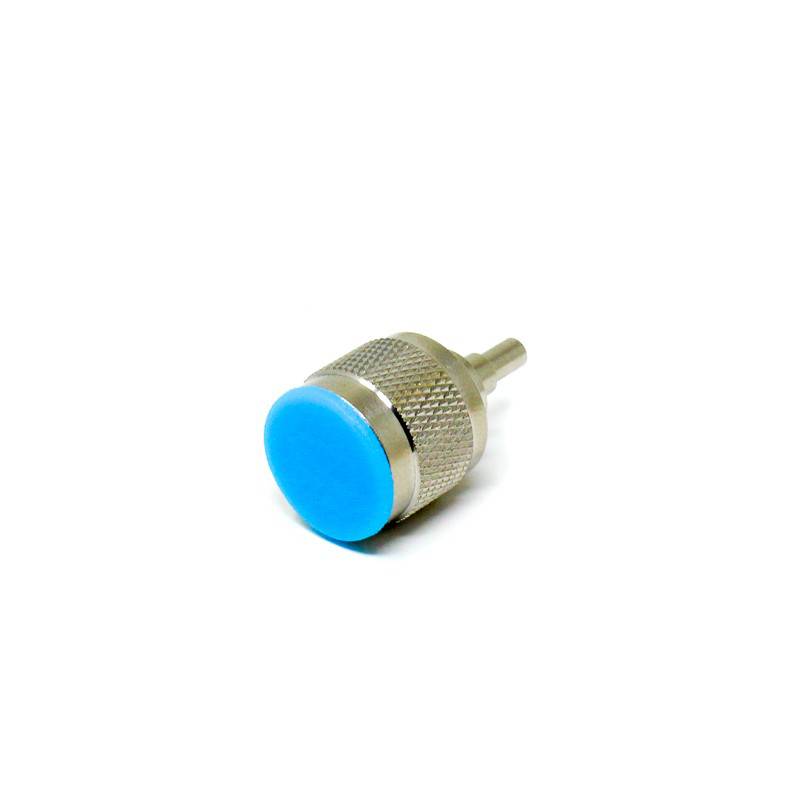

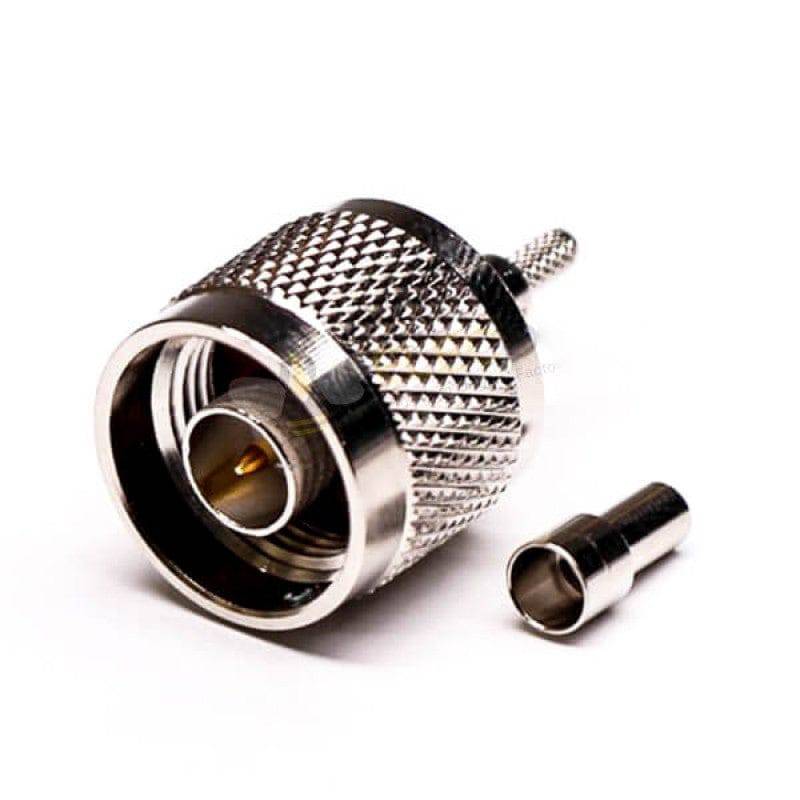

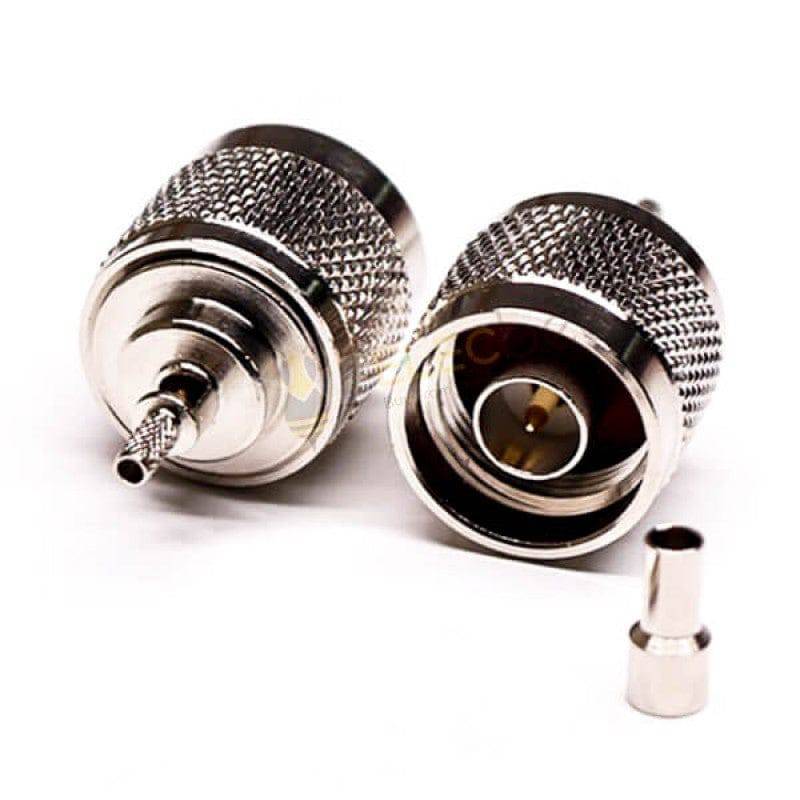

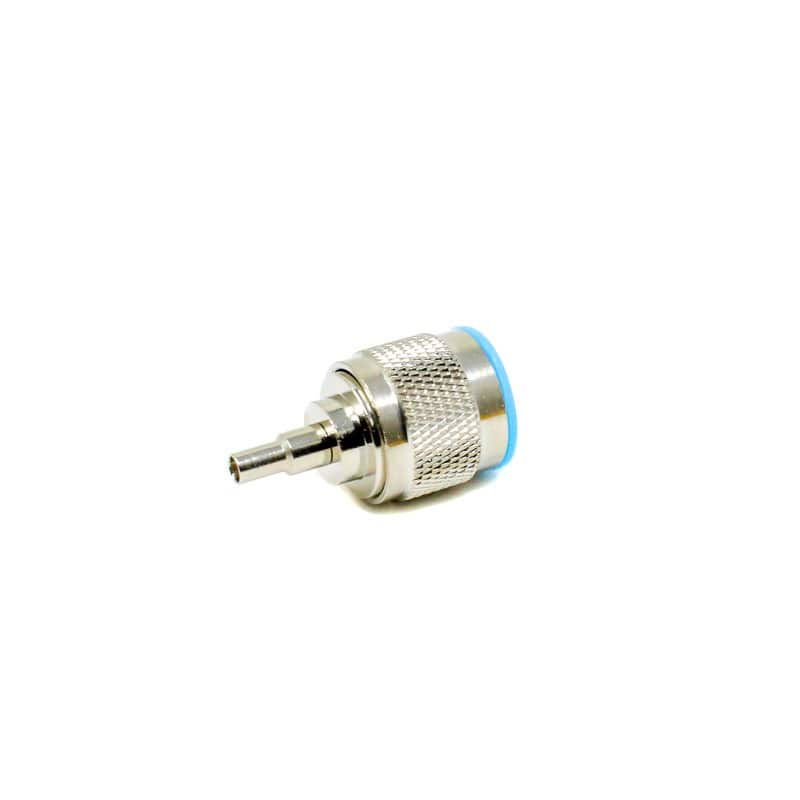

Coaxial Connector Male N Type 180 Degree Crimp Type For Cable - RS3659

Coaxial Connector Male N Type 180 Degree Crimp Type For Cable - RS3659

RS3659

Low stock: 3 left

Rs. 108.00
Rs. 108.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details
  • Impedance : 50 ohm
  • Frequency Range: 0~13 Ghz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage: 2500 V rms
  • Working Voltage: 1000 V rms
  • Center Contact Resistance : 1.0 m (Milliohms max.)
  • Outer Contact Resistance 0.2 m : (Milliohms max.)
  • Insulation Resistance : 5 x 10 m (Megohms min.)

Description :

These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.

Feature:

  • N Connector,Male/Plug,Straight/180,Crimp Type,Coaxial Connector;
  • Great performance with DC to 11GHz Frequency and 50 ohm impedance;
  • Threaded coupling mechanism ensure durability and stability for vibration application;
  • Medium size used in military, industry or consumption electronic area, etc;

Electrical Characteristic :

  • Impedance : 50 ohm
  • Frequency Range: 0~13 Ghz
  • VSWR: Straight type 1.3max / R/A type 1.5max
  • Dielectric Withstanding Voltage: 2500 V rms
  • Working Voltage: 1000 V rms
  • Center Contact Resistance : 1.0 m (Milliohms max.)
  • Outer Contact Resistance 0.2 m : (Milliohms max.)
  • Insulation Resistance : 5 x 10 m (Megohms min.)

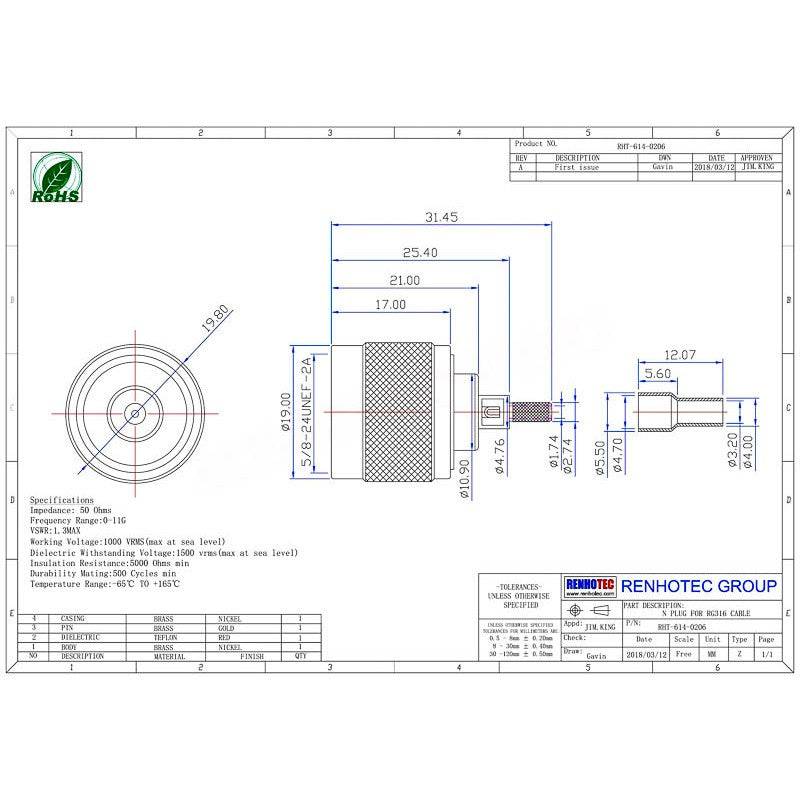

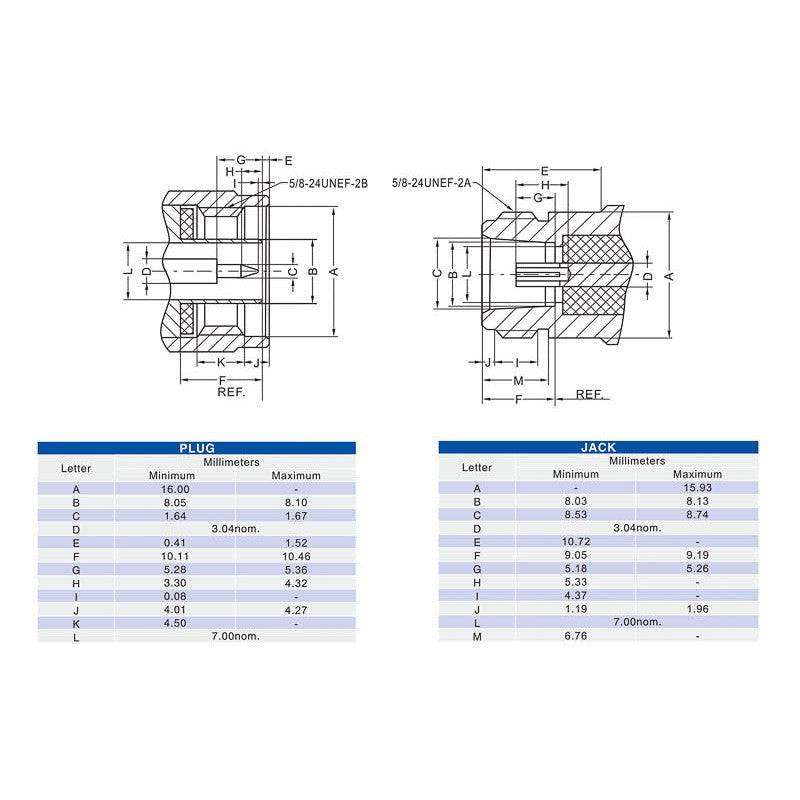

Mechanical Characteristic :

  • Coupling: 5/8-24 thread
  • Contact Retention: 6 lbs min.
  • Coupling nut torque: 30 in-lbs. min.
  • Durability(mating) : 500 cycles (For Beryllium Copper Contact)

Environmental Characteristic :

  • Temperature Range: -65C ~ +125C ( PE Cable-40C ~ +85C )
  • Vibration: MIL-STD-202 Meth.204
  • Corrosion resistance: MIL-STD-202 Meth. 101

Specification:

  • Brand : REES52
  • Orientation : Straight
  • Gender : Male
  • Mounting Type : Cable
  • Termination Style : Solder Type
  • Polarity : Standard
  • Body Material : Copper
  • Body Plating : Nickel Plating
  • Impedance : 50 ohms
  • Shield Termination : Crimp

Package Included:

1 x Coaxial Connector Male N-Type 180 Degree Crimp Type For Cable
