- Model : LBA-B-V4
- Axis : XYZ Three Axis
- Input Supply Voltage (VDC) :12
- Stepper Motor Power :2 A (Max)
- Laser Power : 100mW to 5W
Description :

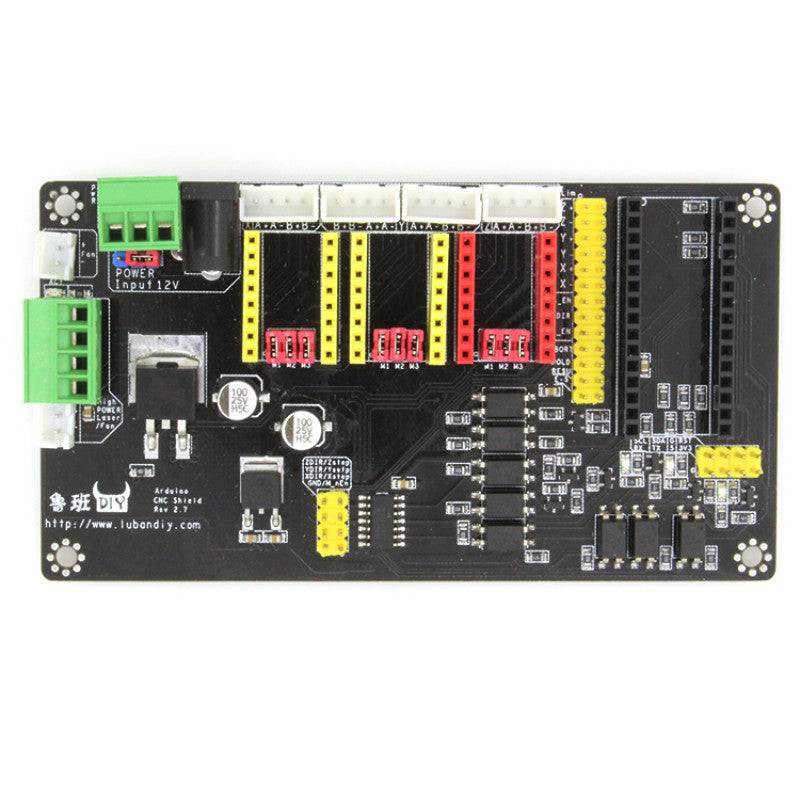

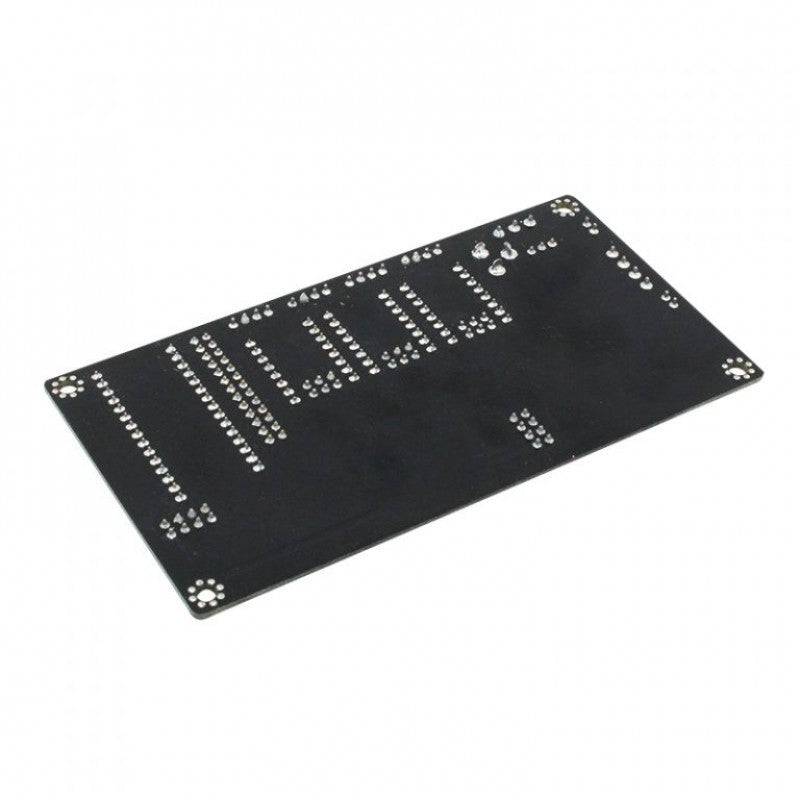

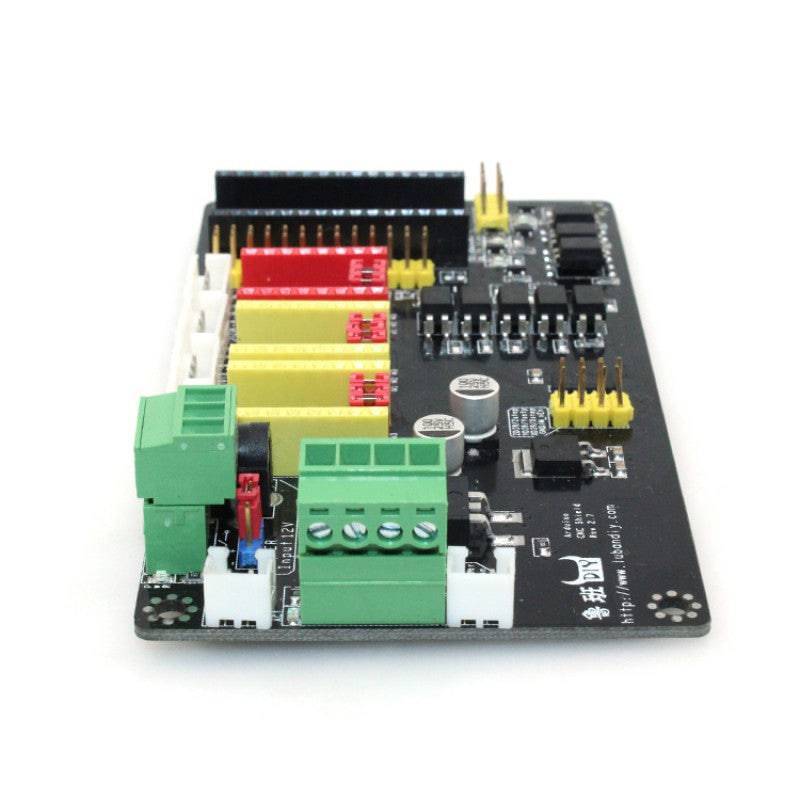

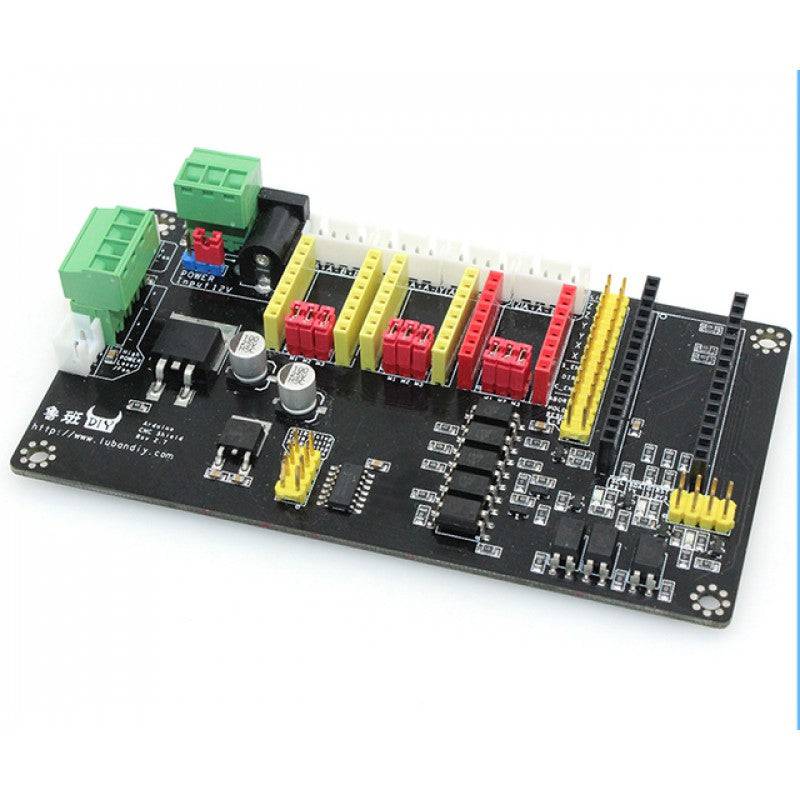

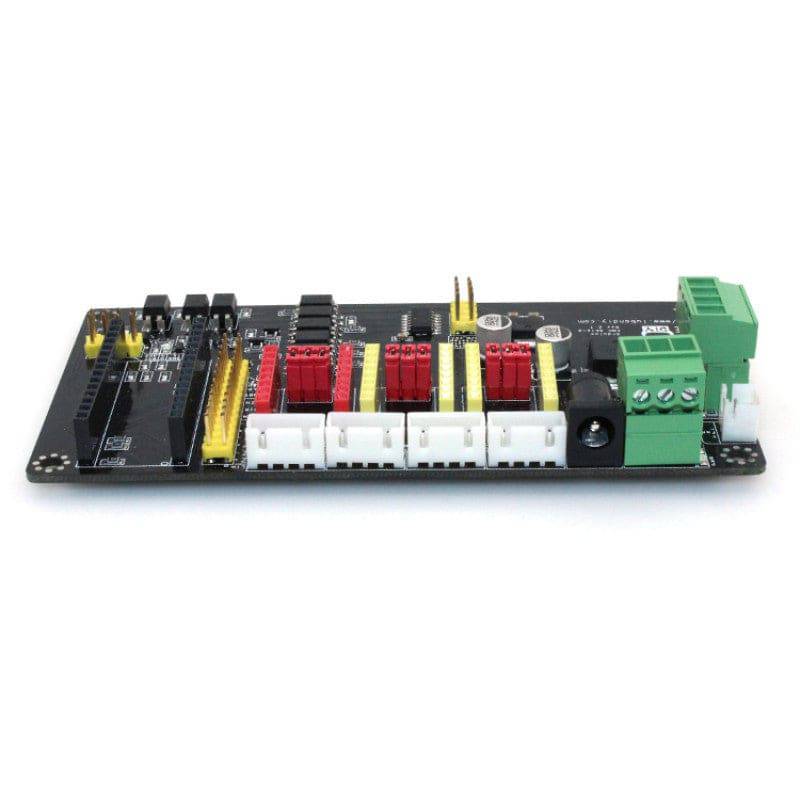

This is CNC Three Axis Stepper Motor Drive Controller Motherboard compatible with Arduino Nano Shield For 3D Printers.
The board features provision for onboard mounting of Nano Arduino Board and two A4988 driver Stepper Motor Driver Modules. This shield is used to power and control stepper motors using A4988 Stepper Motor Driver Module.
The board has 12V DC power jack which provides supply to the motors. This CNC Three Axis Stepper Motor Drive Electronic Control Panel W/ Nano Arduino Shield For 3D Printer Supports adjusting Laser Power; Weak light function, Optical coupling isolation, Anti-jamming. Support for high power laser, Miniature master software support, The latest CNC firmware, Gold plated pins, Limit switch, Motor subdivision, External relay and so on.
Features :
- Adjusting the laser power.
- Low light function.
- Full opto-isolation.
- Fine workmanship and durable.
Additional information
- Model : LBA-B-V4
- Axis : XYZ Three Axis
- Input Supply Voltage (VDC) :12
- Stepper Motor Power :2 A (Max)
- Laser Power : 100mW to 5W
Package Included :
1 x CNC Three Axis Stepper Motor Drive Controller Motherboard compatible with Arduino
