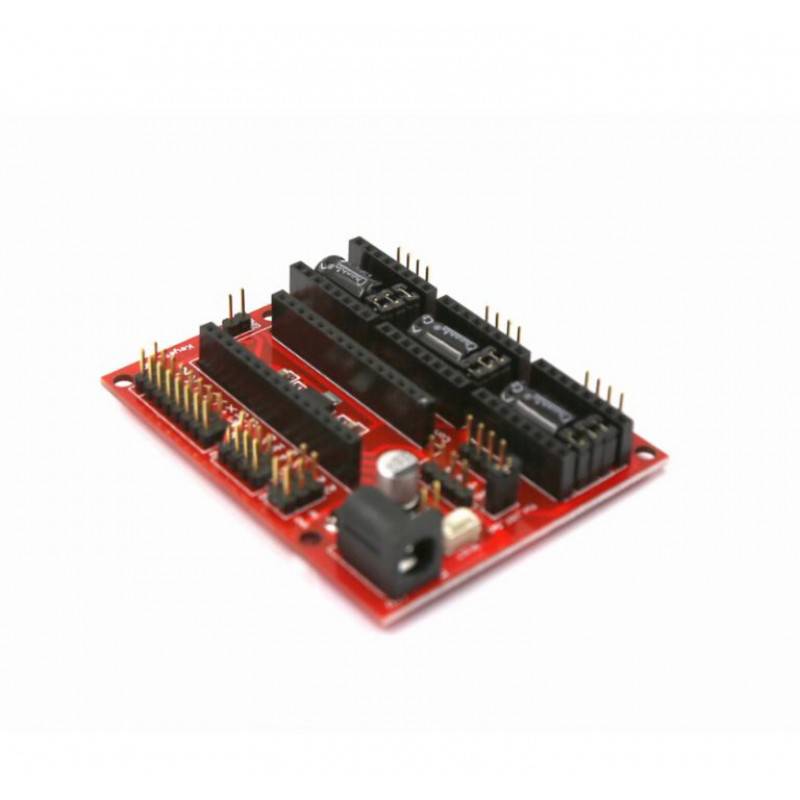

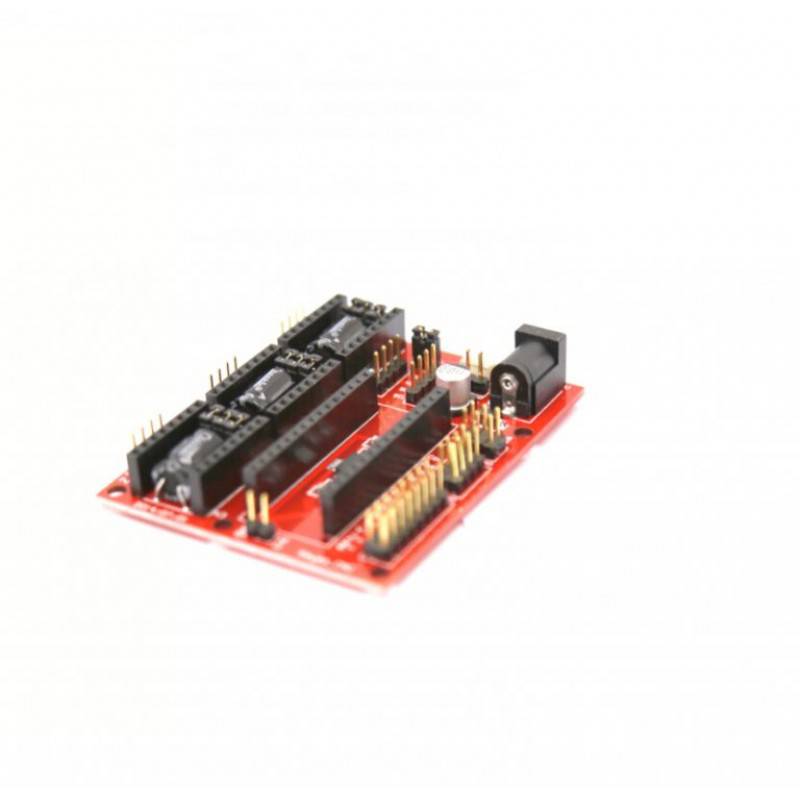

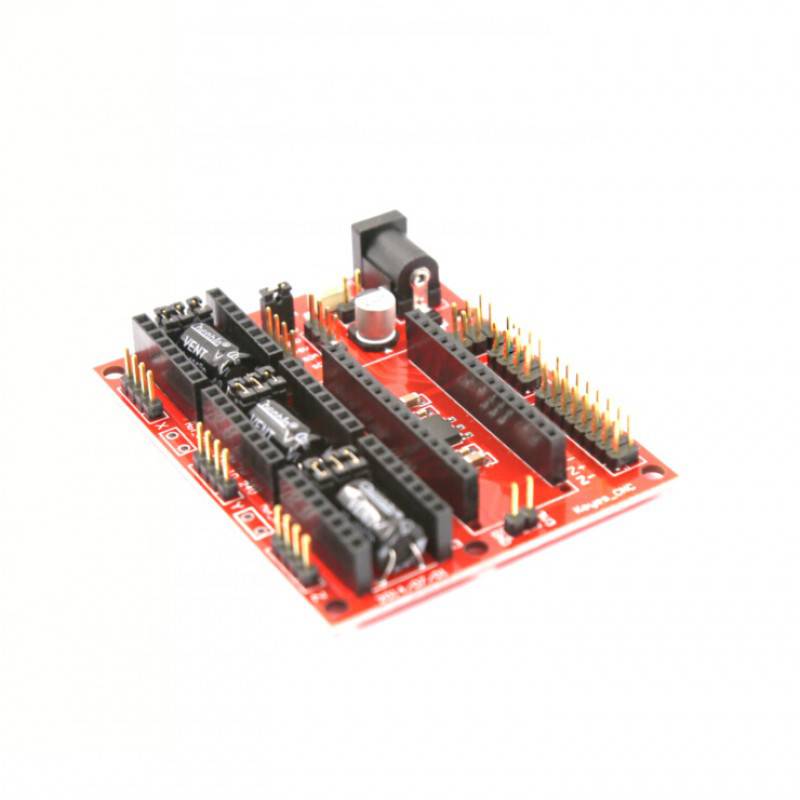

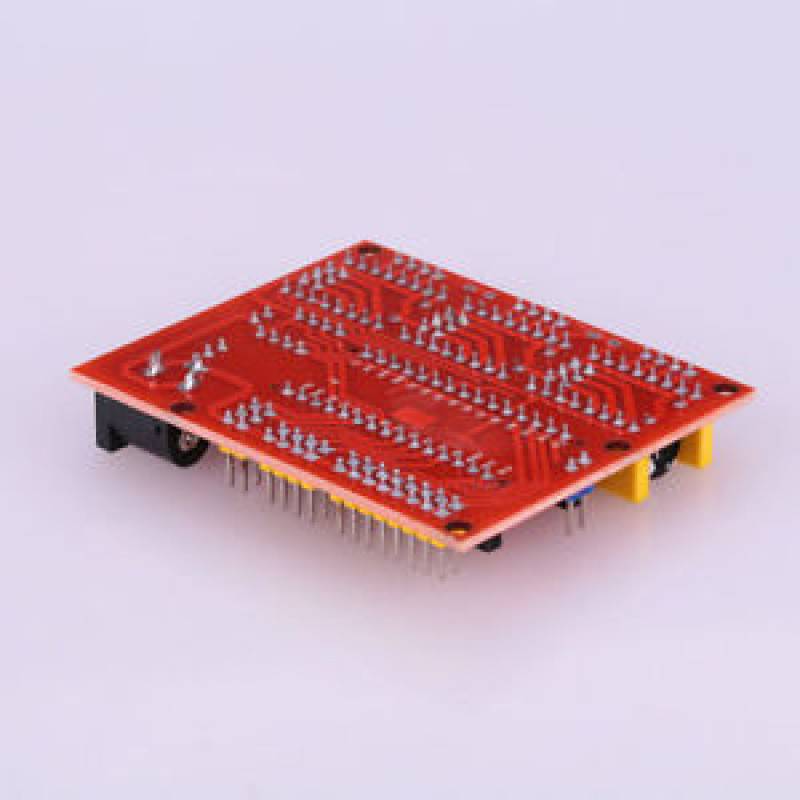

CNC Shield V4 3D Printer Expansion Board for Arduino - RS3160

CNC Shield V4 3D Printer Expansion Board for Arduino - RS3160

SKU:RS3160

Low stock: 9 left

Regular price Rs. 205.00
Regular price Sale price Rs. 205.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • 3 axis stepper motor driver
  • Compatible with a micro-drive laser engraving machine, three-axis CNC engraving machine
  • 2A can be controlled within the two-phase four-wire stepper motor
  • Released the digital IO interface, easy to connect to other modules, such as endstop
  • Released the I2C interface, you can connect to the LCD I2C or another I2C module
  • Power DC5V interface, 7.5-12V voltage input
  • GRBL compatible
  • Worked with Arduino nano
  • Input Supply voltage (V) : 5 ~ 12
  • No. of Driver can mount :3

Description :

CNC shield V4 needs to work with the Nano board. It can be used as a drivers expansion board for engraving machines and 3D printers. It has in total 3 channel slots for A4988 stepper motor driver modules (not included) for driving 3 channels of stepper motors.
Each channel of stepper motor only needs 2 IO ports, which means 6 IO ports are sufficient to manage 3 stepper motors. This shield can make quick work for managing stepper motors in your project.

Features :

  • 3 axis stepper motor driver
  • Compatible with a micro-drive laser engraving machine, three-axis CNC engraving machine
  • 2A can be controlled within the two-phase four-wire stepper motor
  • Released the digital IO interface, easy to connect to other modules, such as endstop
  • Released the I2C interface, you can connect to the LCD I2C or another I2C module
  • Power DC5V interface, 7.5-12V voltage input
  • GRBL compatible
  • Worked with Arduino nano
  • Input Supply voltage (V) : 5 ~ 12
  • No. of Driver can mount :3

Package Includes :

1 x CNC Shield V4 Expansion Board
