CN3761 Lithium Battery Charger Module 5V-15V Solar Panel Input 4.2V Li-ion Battery Protection Board - RS6612
CN3761 Lithium Battery Charger Module 5V-15V Solar Panel Input 4.2V Li-ion Battery Protection Board - RS6612
SKU:RS6612
Low stock: 5 left
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:

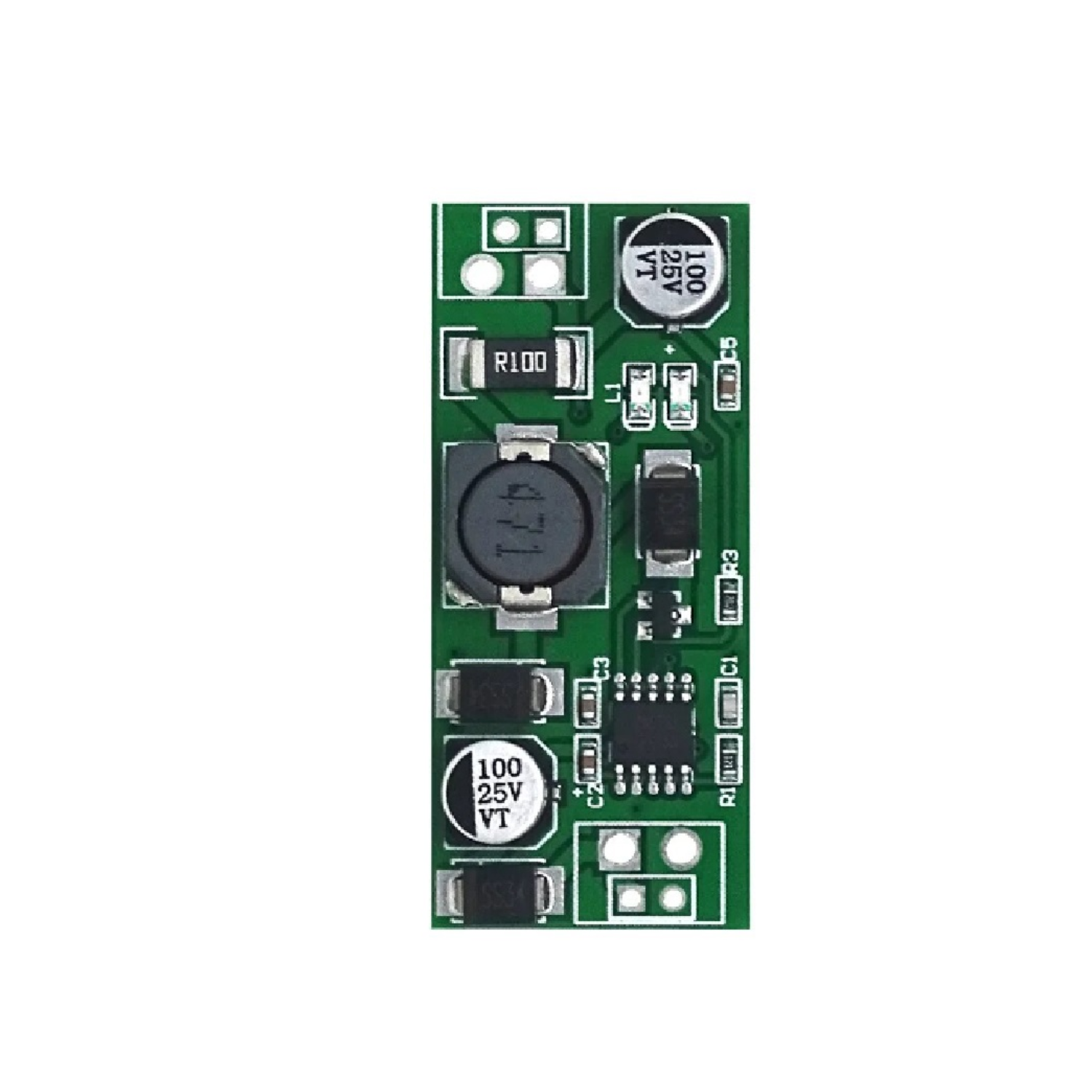

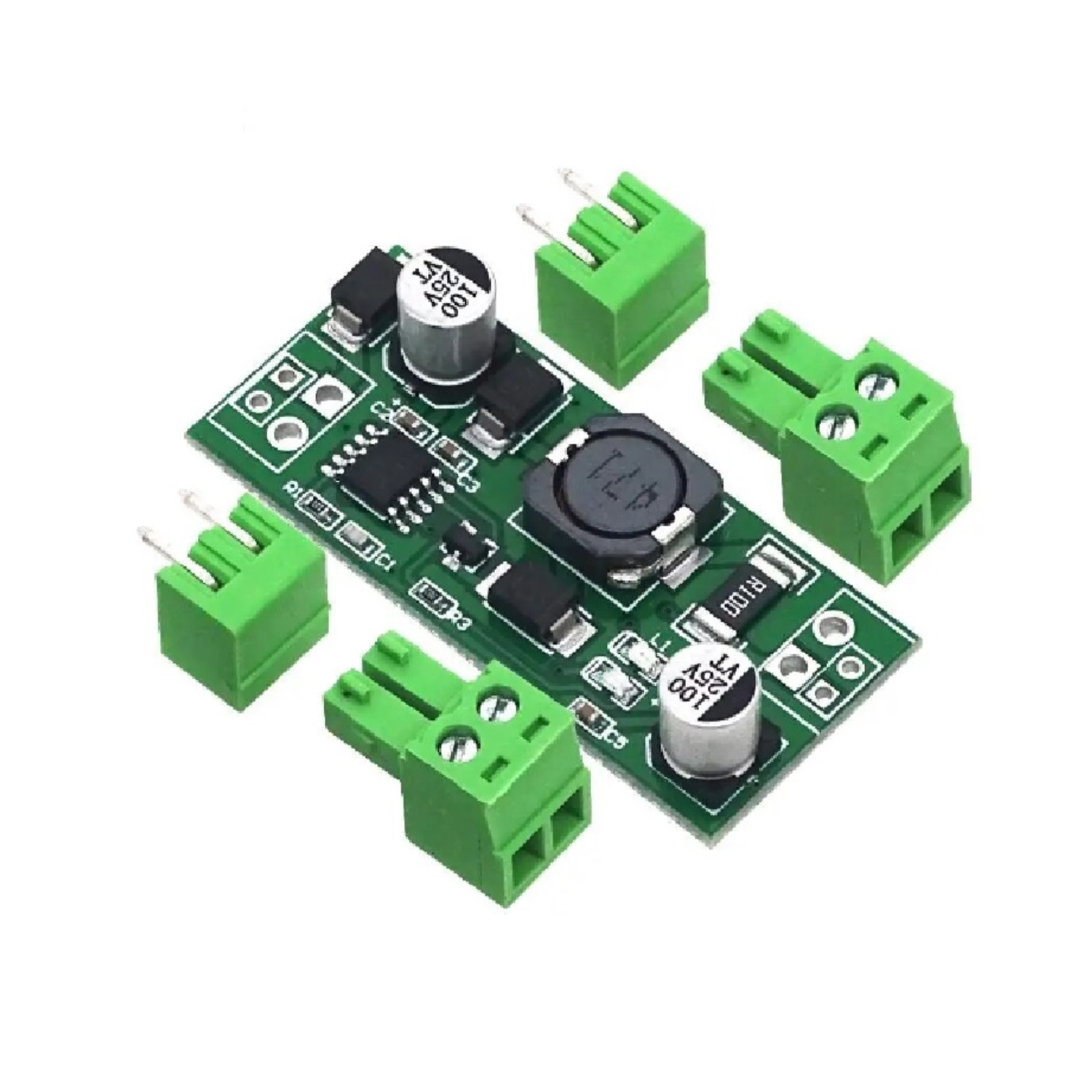

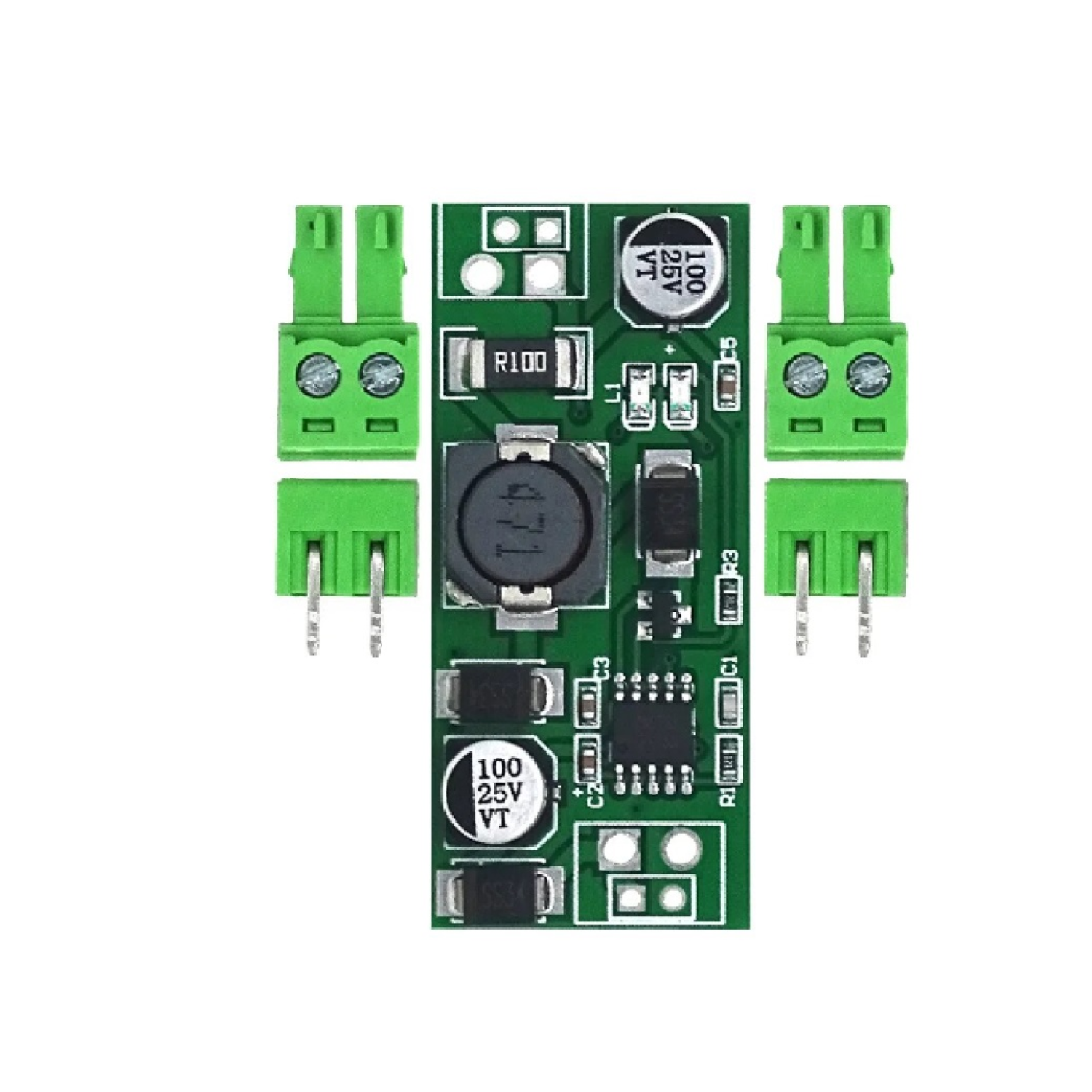

The CN3761 Lithium Battery Charger Protection Board Module is specially designed for charging single-cell lithium batteries (3.6V/4.2V) using solar panels. With a wide input voltage range of 5V–15V, it provides efficient and stable charging for 4.2V lithium batteries. The module integrates intelligent charging management and protection features, ensuring battery safety and extended lifespan. It supports a charging current of up to 1.2A, which can be adjusted to more than 3A by modifying the module’s resistance, making it highly versatile for various solar-powered and portable applications.
Specifications:
- Item Type: Battery Management System
- Voltage Rating: 15, 5V
- Model Name: CN3761 Solar Charger Board
- Input Voltage: DC5V ~ 15V
- Interface: SIP2.54-2P
- Output Voltage: nominal 3.7V full cut-off voltage 4.2V
Features:
- Charging & full-charge status indicator
- Soft start function for wide applications
- Complete charge management for single-cell Li-ion batteries
Package Included:
1 x CN3761 Lithium Battery Charger Module
