Description:
This solar charge controller has an intelligent PWM charging method, PWM charging increases battery life and improves system performance. Intelligent protection against reverse polarity, overload, short circuit, and reverse current. CM5024 12V24V50A solar controller with temperature detection s
Automatic temperature compensation, adjustable charge and discharge control parameters, automatically correcting charging and discharging voltage, improving battery life. Complete technical data for configuration and modification. High-efficiency intelligent PWM charging mode.
Specifications:
- Item Type: Solar Charge Controller
- Standard: CM5024
- Rated Voltage: Lead Acid Battery Voltage 12V/24V
- Maximum charge and discharge current: 60A
- Solar panel input voltage range: 18V-800W/36V-1700W
- Charging working time setting: 1-24 hours adjustable
- Charging mode: PWM
- Overpressure protection: 17V/34V
- Full Disconnection: 13.7V/27.4V
- Under voltage disconnection: 10.5V/21V
- Over-discharge recovery voltage: 12.2V/24.4V
- No-load loss: No-load loss: ≤10 mA, loop step-down: ≤170 mV, temperature
- compensation: -4 nv/cell/C
- Wiring Specification: >3#AWG (25mm2)
- Working environment temperature: -25℃ -55℃
Features:
- LCD design: very user-friendly interface with LCD display. Image LCD graphic shield, easy button operation.
- Automatic voltage detection: automatic identification of system voltage level, intelligent PWM charging method.
- Other highlights: automatic temperature compensation, adjustable charging and discharge control parameters. Charge the adjustable operating mode.
- Protection function: with accumulation function for charging and discharging safety hours, battery back discharge protection, battery undervoltage protection, battery reverse connection protection, overload, short circuit protection.
Package Included:

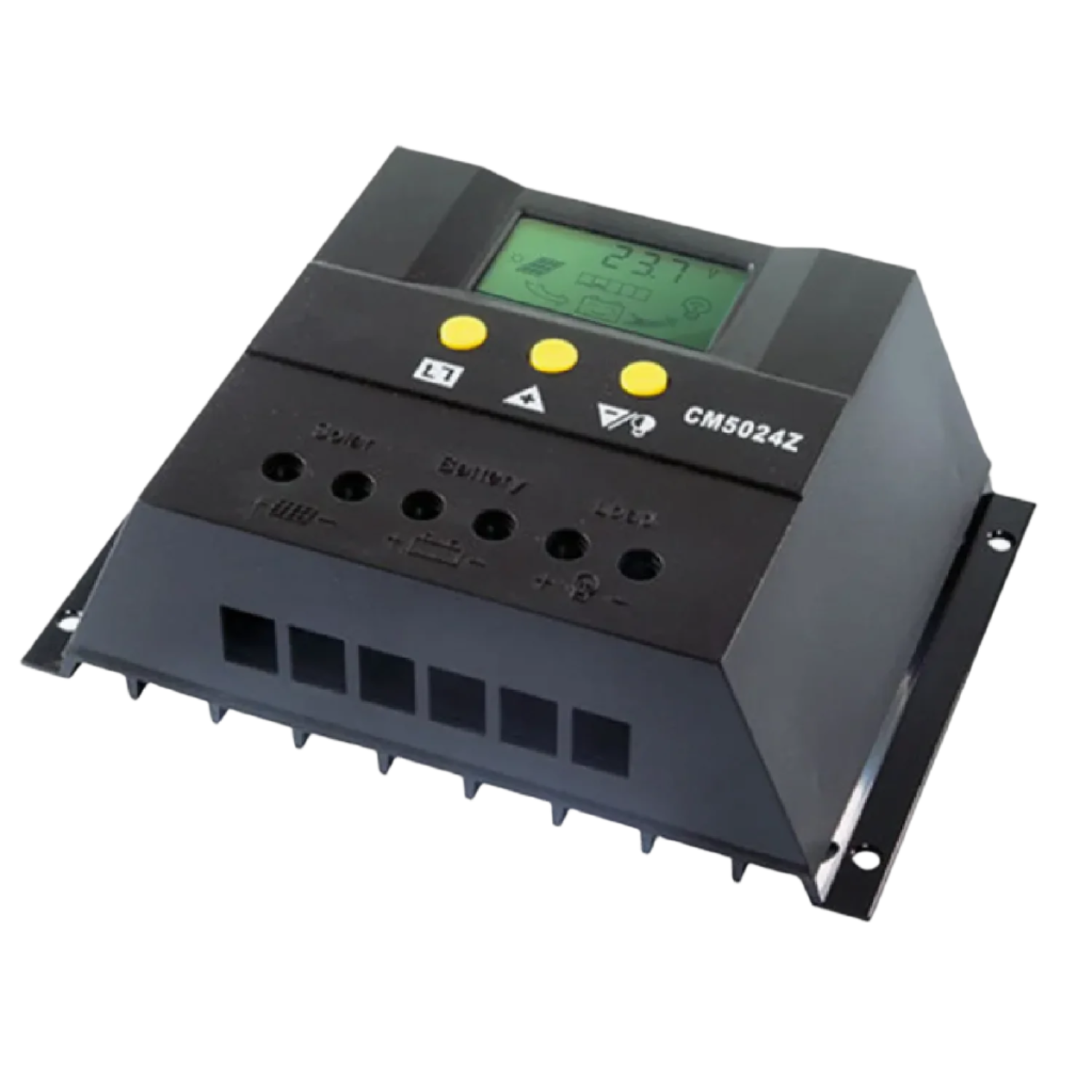

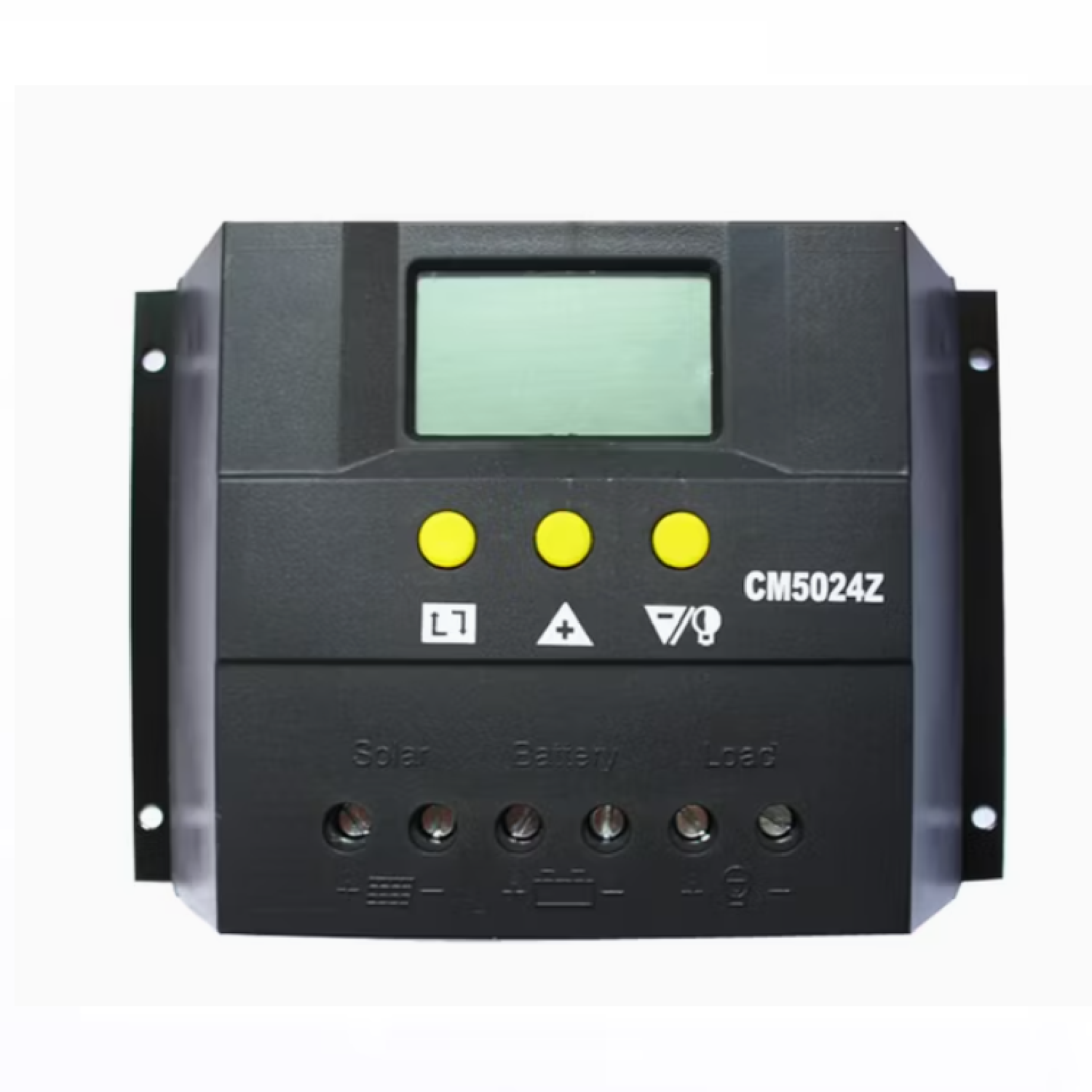

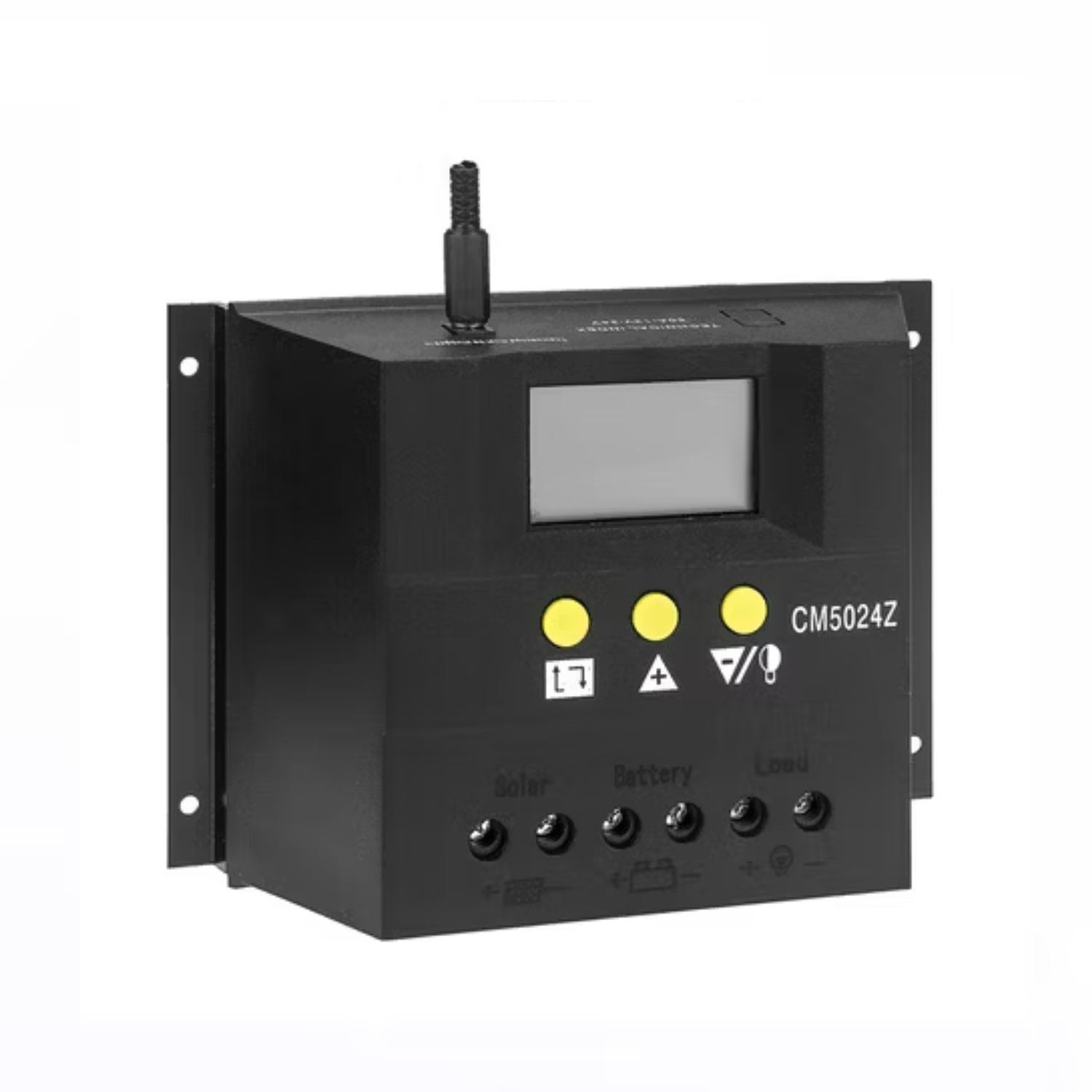

1 x CM5024Z Solar Charge Regulator 12/24V 60A Solar Charge Controller
