Descriptions:

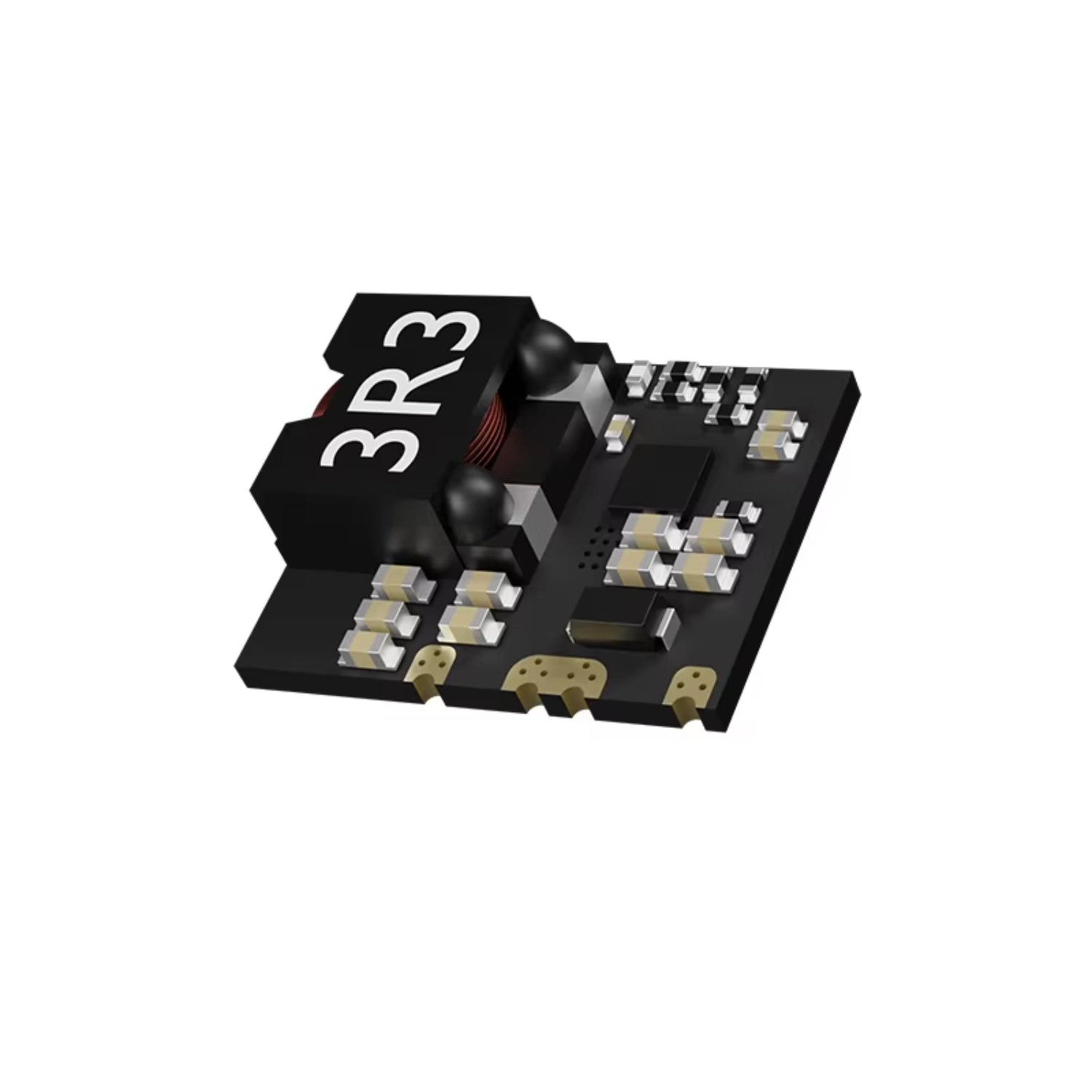

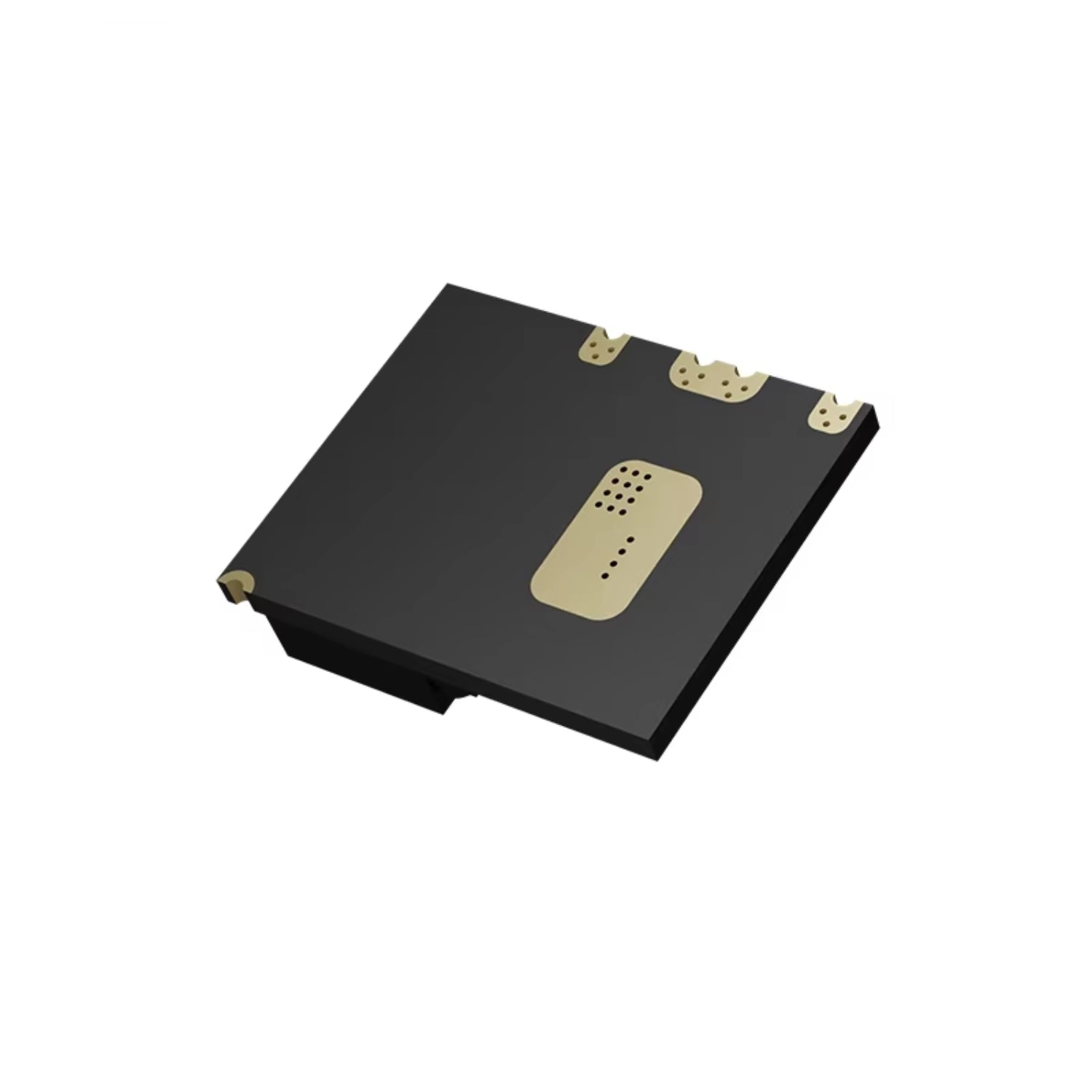

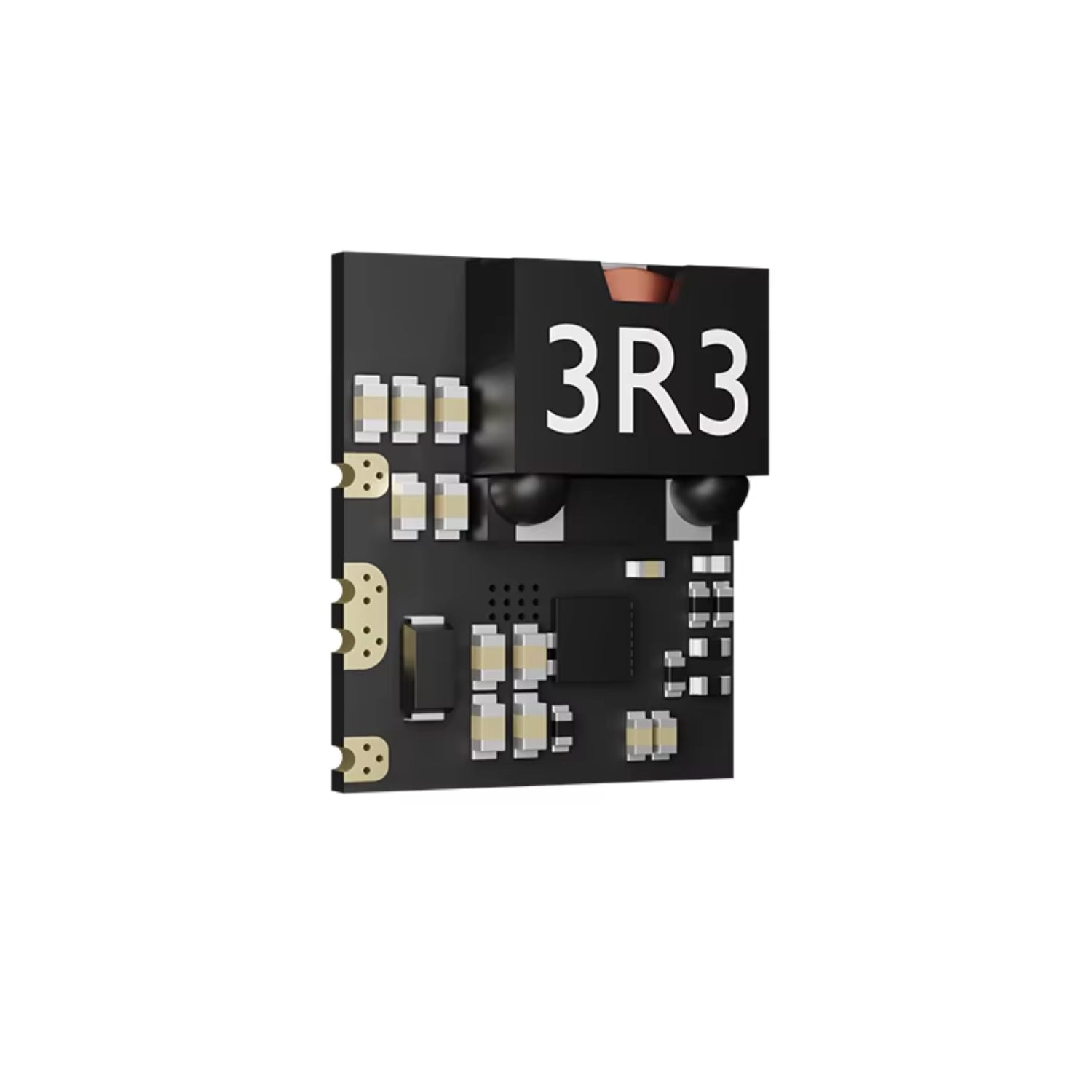

The CK1408 is a high-performance Mini DCDC buck converter module designed for efficient and reliable voltage regulation. With a wide input voltage range of 6-15V, it delivers a stable 5V output at a high current of 8A (40W). Featuring synchronous rectification and high-frequency operation, it boasts exceptional efficiency (up to 96%) and minimal power loss. This compact module is ideal for demanding applications requiring high current and precise voltage control, such as powering industrial controls, robotics and high-performance electronics
Specifications:

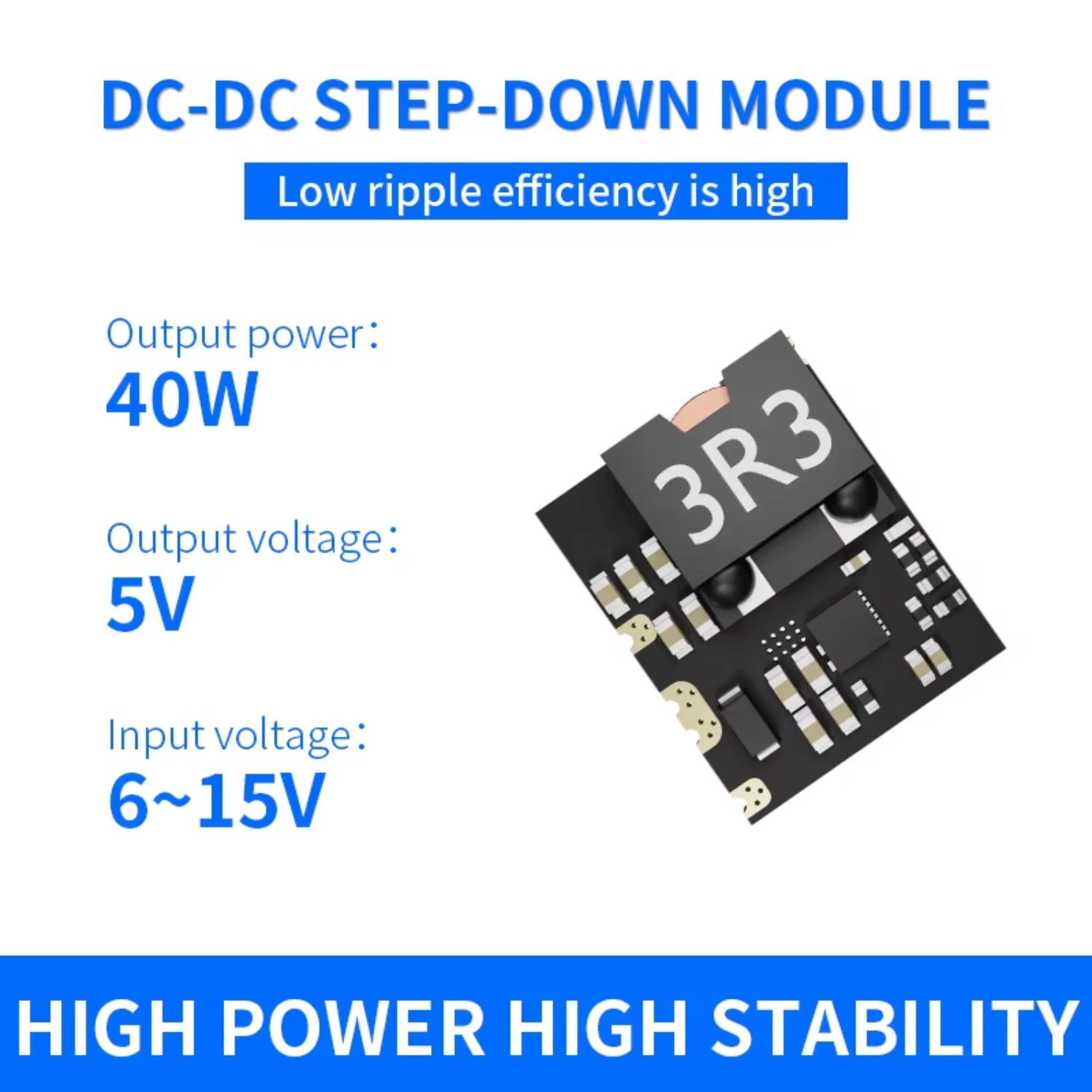

- Model: CK1408
- Type: Voltage Regulator
- Input Voltage: 6~15V
- Output Voltage: 5V
- Output Power: 40W
- Continuous Current: 8A
- Average Efficiency: 96%
- Static Power Consumption: <1mA
- Ripple Noise: <30mV
- Operating Frequency: 500KHz
- Operating Temperature: -40~85°C
- Working Humidity: 20~90RH%
- Storage Temperature: -40~+85°C
- Storage Humidity: 10~90RH%
Features:
- Operates reliably with input voltages ranging from 6V to 15V, providing flexibility in various applications.
- Provides a stable 5V output at a high continuous current of 8A, suitable for powering demanding loads.
- Minimizes output voltage ripple, ensuring stable and clean power delivery to sensitive electronics.
- Designed for demanding applications with a wide operating temperature range and high humidity tolerance.
Package Included:
1 x CK1408 Mini DCDC Buck Converter Module
