Description:

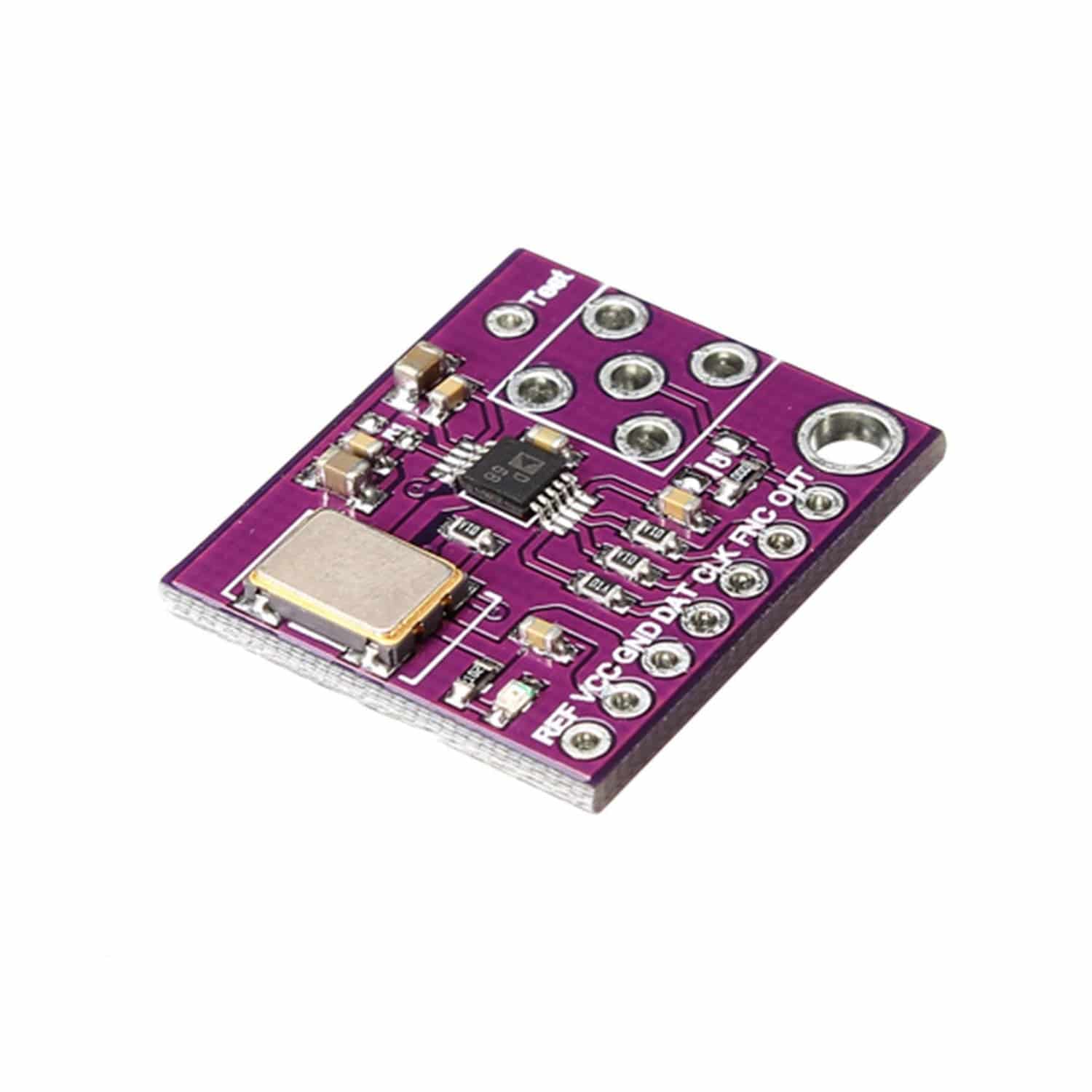

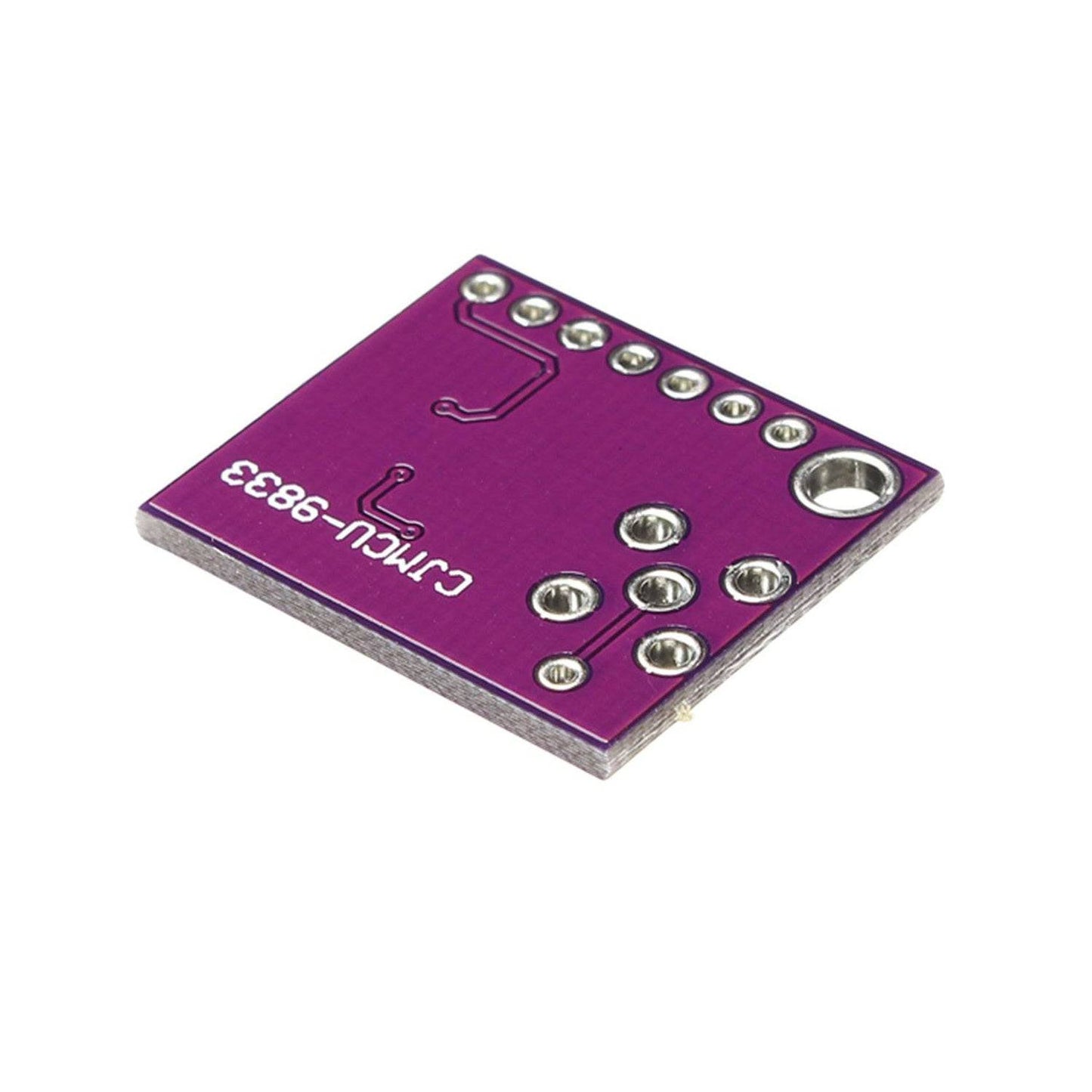

CJMCU-9833 AD9833BRMZ Waveform Generator Module is a programmable waveform generator capable of generating a frequency 0-12.5MHZ sine, triangle, and square wave signal. Easy to adjust, the clocked clock is 25MHz, the precision is 0.1Hz, the clock frequency is 1MHz, and the precision is up to 0.004Hz. Frequency excitation/waveform generation.
Specifications:
- Input Voltage: 2.3 - 5.5V
- Working Temperature Range: -40 ~ + 105°C
- Onboard Crystal Frequency: 25MHz
- Material: Metal and Plastic
- Model: AD9833BRM
Features:
- Onboard 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
- CJMCU-9833 AD9833BRMZ Waveform Generator has onboard high-speed amplifiers 300M and also has low-pass filtering.
- The two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance.

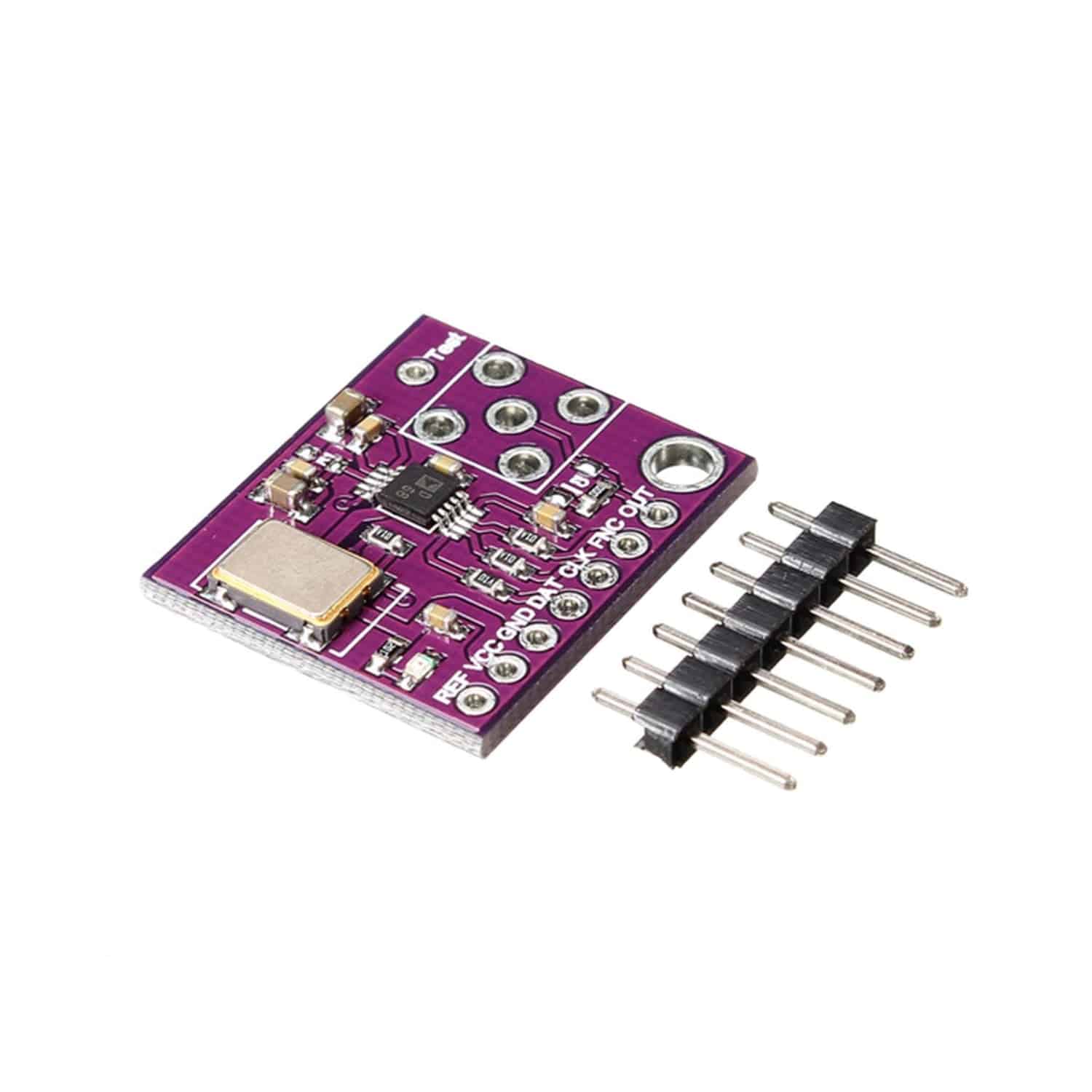

- CJMCU-9833 AD9833BRMZ Waveform Generator Module supports a universal plate (tunnel plate), multiple-board pins are 2.54mm and can be easily welded to universal board.
- Distribution STM32, STM8, STC, and other common microcontrollers debugged a program and relevant information.
Package Included:
1 x CJMCU-9833 AD9833BRMZ Waveform Generator CJMCU-9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator Module
