- Working Voltage: 2.3V-5.5V
- Working Temperature Range: -40 ~ 105℃
- On board Crystal Frequency: 25 mHz
- Model: AD9833BRMZ
Description:
The AD9833 is a low power, programmable waveform generator capable of producing sine, triangular, and square wave outputs. Waveform generation is required in various types of sensing, actuation, and time domain reflectometery (TDR) applications. The output frequency and phase are software programmable, allowing easy tuning. No external components are needed. The frequency registers are 28 bits wide: with a 25 MHz clock rate, resolution of 0.1 Hz can be achieved; with a 1 MHz clock rate, the AD9833 can be tuned to 0.004 Hz resolution.
Specification:
- Working Voltage: 2.3V-5.5V
- Working Temperature Range: -40 ~ 105℃
- On board Crystal Frequency: 25 mHz
- Model: AD9833BRMZ
Features:
- On board 25MHZ (accuracy of 50ppm) active crystal, stepping accuracy 0.1HZ.
- On board high-speed amplifiers 300M and also has low-pass filtering.
- The two-channel output signal, an original signal output, an amplified output signal 5 times, 50Ohm output impedance.
- Very small size: 32mm X 32mm.
- Support universal plate (tunnel plate), multiple-board pins are 2.54mm, can be easily welded universal board.
- Distribution STM32, STM8, STC and other common microcontroller debugged the program and relevant information.
Application:
- Frequency stimulus/waveform generation
- Liquid and gas flow measurement
- Sensory applications: proximity, motion, and defect detection
- Line loss/attenuation
- Test and medical equipment
- Sweep/clock generators
- Time domain reflectometry (TDR) applications
Package Included:

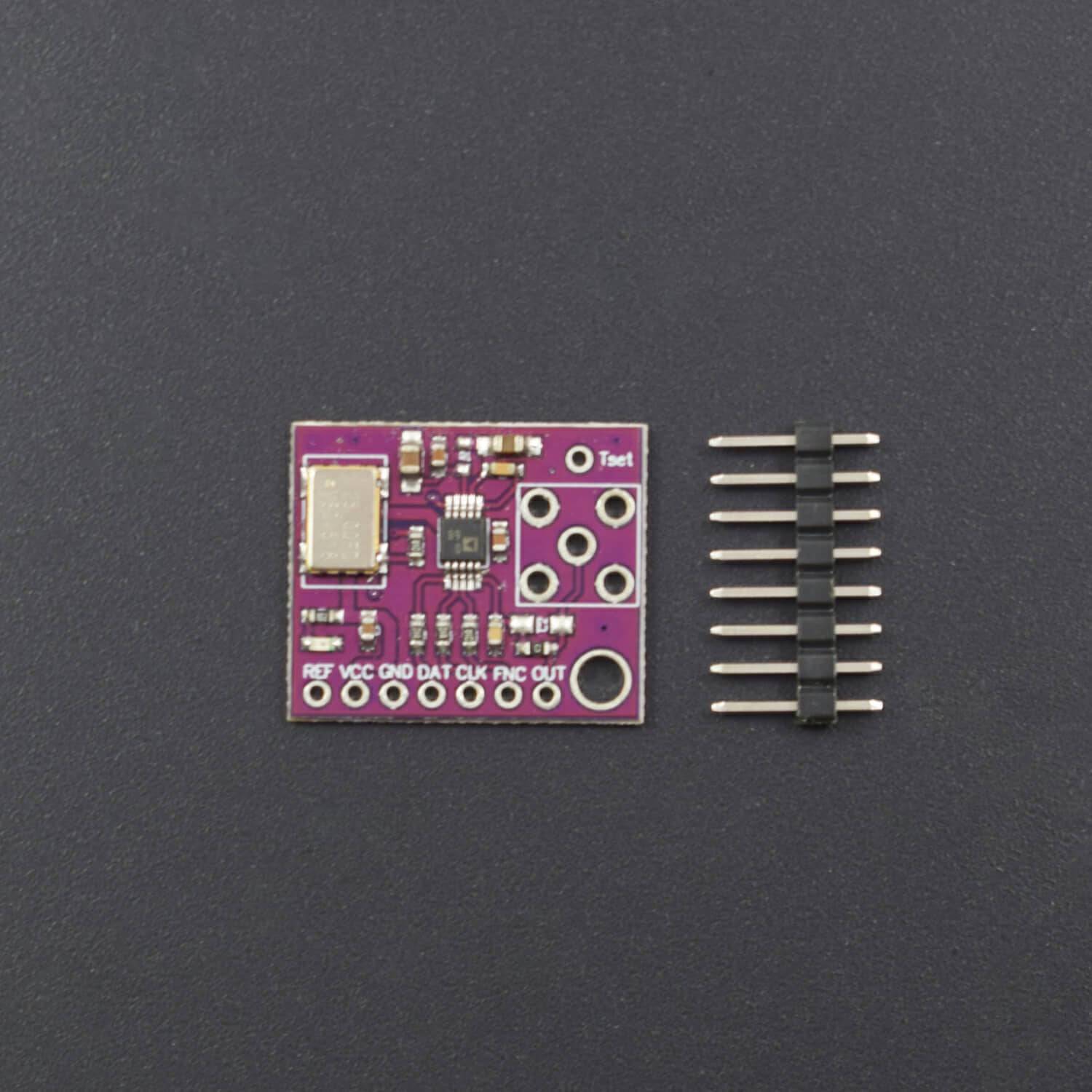

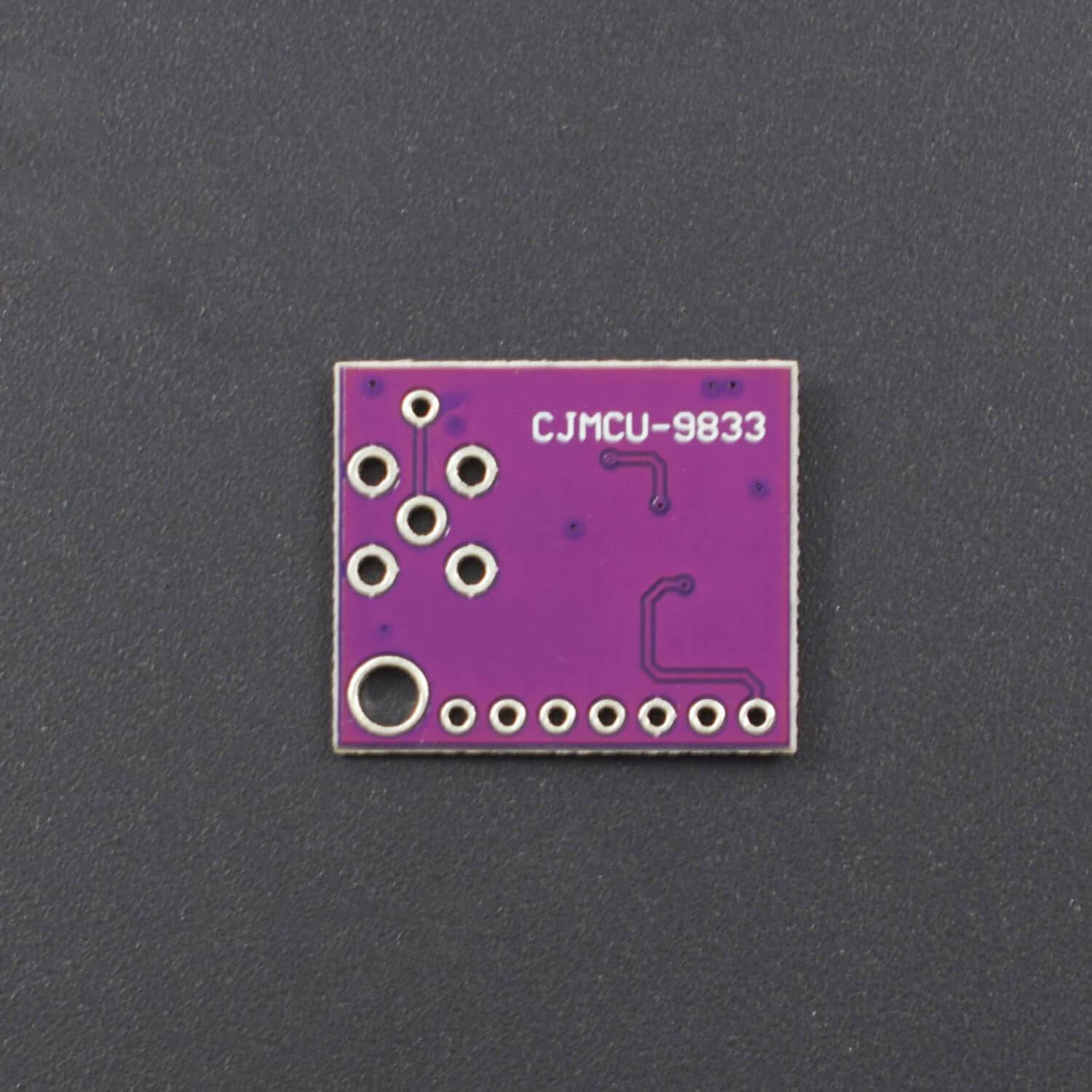

1 x CJMCU 9833 AD9833 AD9833BRMZ Programmable Sine Triangular Square Waveform Generator CJMCU for Arduino
