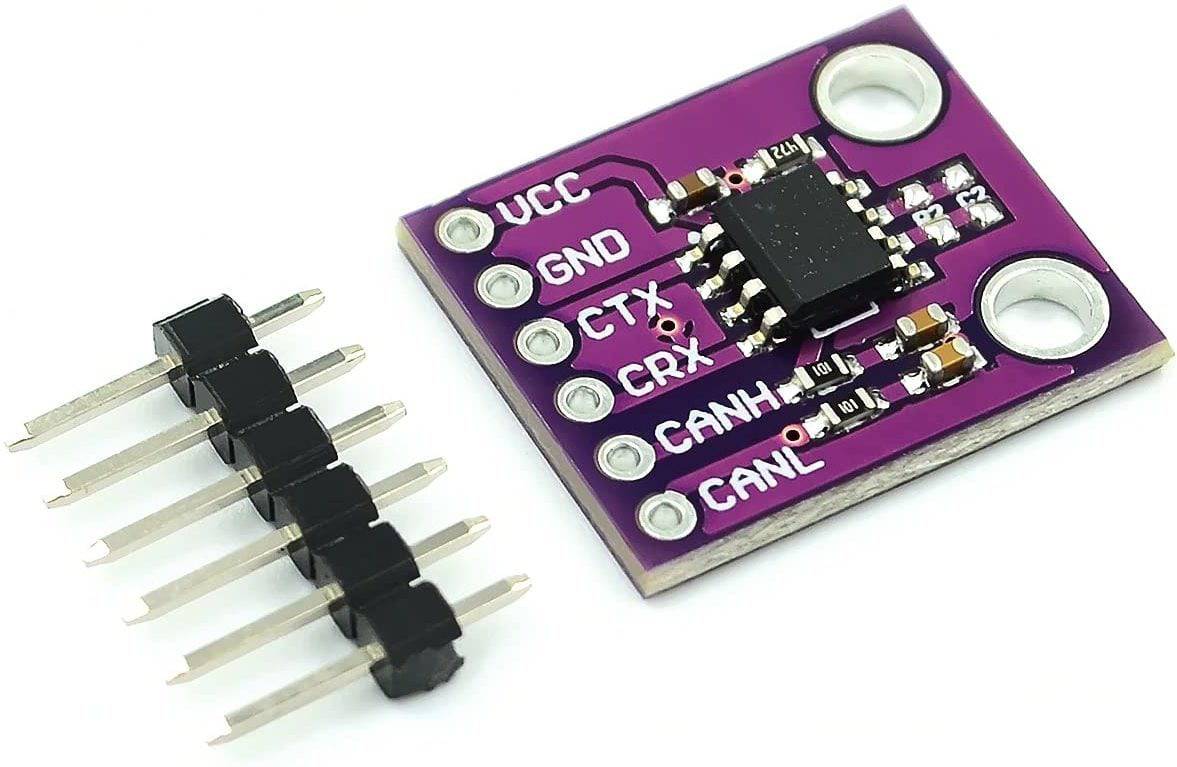

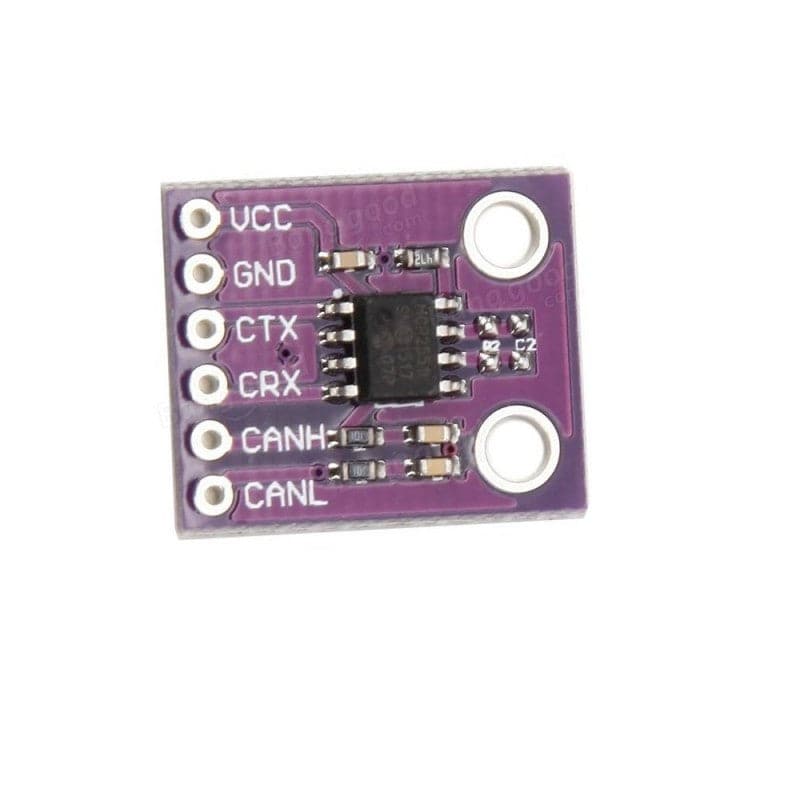

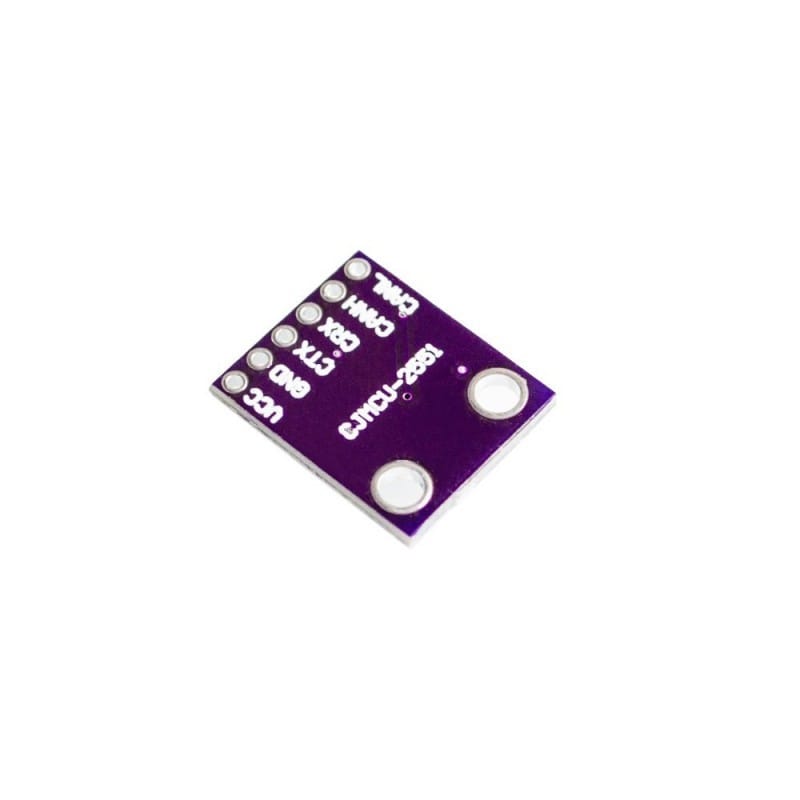

CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module - RS3044

CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module - RS3044

SKU:RS3044

Regular price Rs. 210.00
Regular price Sale price Rs. 210.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Model: MCP2551
  • Material: Metal and plastic
  • Input Voltage: 7V
  • Operating Temperature: -40 to 125°C

Description:

The CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module is a high speed CAN, with fault-tolerant capabilities. It acts as an interfacing device between CAN protocol and the physical bus. The device, MCP2551 provides differential transmit and receive capabilities and is compliant with the ISO-11898, including the 24V requirements. Data transfer rate of up to 1Mb/s is achievable with this module.

The module also provides a buffer between the CAN controller and the high-voltage spikes that can be generated on the CAN bus by outside sources like EMI, ESD, electrical transients, etc.

Specification:

  • Model: MCP2551
  • Material: Metal and plastic
  • Input Voltage: 7V
  • Operating Temperature: -40 to 125°C
  • Storage Condition: -55 to 150°C

Features:

  • Supports 1 Mb/s operation
  • Implements ISO-11898 standard physical layer requirements
  • Suitable for 12V and 24V systems
  • The externally-controlled slope for reduced RFI emissions
  • Detection of ground fault (permanent dominant) on TXD input
  • Power-on Reset and voltage brown-out protection
  • An unpowered node or brown-out event will not disturb the CAN bus
  • Low current standby operation
  • Protection against damage due to short-circuit conditions (positive or negative battery voltage)
  • Protection against high-voltage transients
  • Automatic thermal shutdown protection
  • Up to 112 nodes can be connected
  • High-noise immunity due to differential bus implementation
  • Temperature ranges:
    – Industrial (I): -40°C to +85°C
    – Extended (E): -40°C to +125°C

Pin Description:

Pin Number Pin Name Pin Function
1 TXD Transfer Data Input
2 VSS Ground
3 VDD Supply Voltage
4 RXD Receive Data Output
5 VREF Reference Output Voltage
6 CANL CAN Low-Level Voltage I/O
7 CANH CAN High-Level Voltage I/O
8 RS Slope-control Input

Package Included:

1 x CJMCU-2551 MCP2551 CAN Protocol Controller High-speed Interface Module
