Description:
This current transducer employs a closed-loop (compensated) measurement technique for highly accurate and linear measurement of DC, AC, and pulse currents. It operates with a DC ±12～±15V supply voltage and features galvanic isolation for enhanced safety and signal integrity.
The transducer is designed for ease of installation and demonstrates low-temperature drift, ensuring stable performance. Its optimized response time and high immunity to electromagnetic interference make it ideal for use in challenging environments.
Specifications:
- Model Type: Hall Effect Voltage Sensor
- Model No.: CHV800AL15D25
- Measuring range: 0～1600V
- Turns ratio Np/NS: 5000:1000T
- Rated input Ip: 800mA
- Supply voltage:±15 ~±24(±10%)V
Features:
- Closed-loop hall effect current mode voltage transducer
- The output from the voltage sensor can be expressed as a voltage by passing it through a resistor.
- Input voltage can be expressed as a current by passing it through an input resistor.
- It provides accurate electronic measurement of DC/AC, or pulse and pulsed voltage.
- Supply voltage: DC±12～±15
- High accuracy
- Very good linearity
- Easy installation
- Low-temperature drift
- Optimized response time
- High immunity to external interference
Application:
- AC variable speed drives and servo motor drives
- Static converters for DC motor drives
- Variable speed drives
- Power supplies for welding applications
- Battery supplied applications
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies
Package Included:

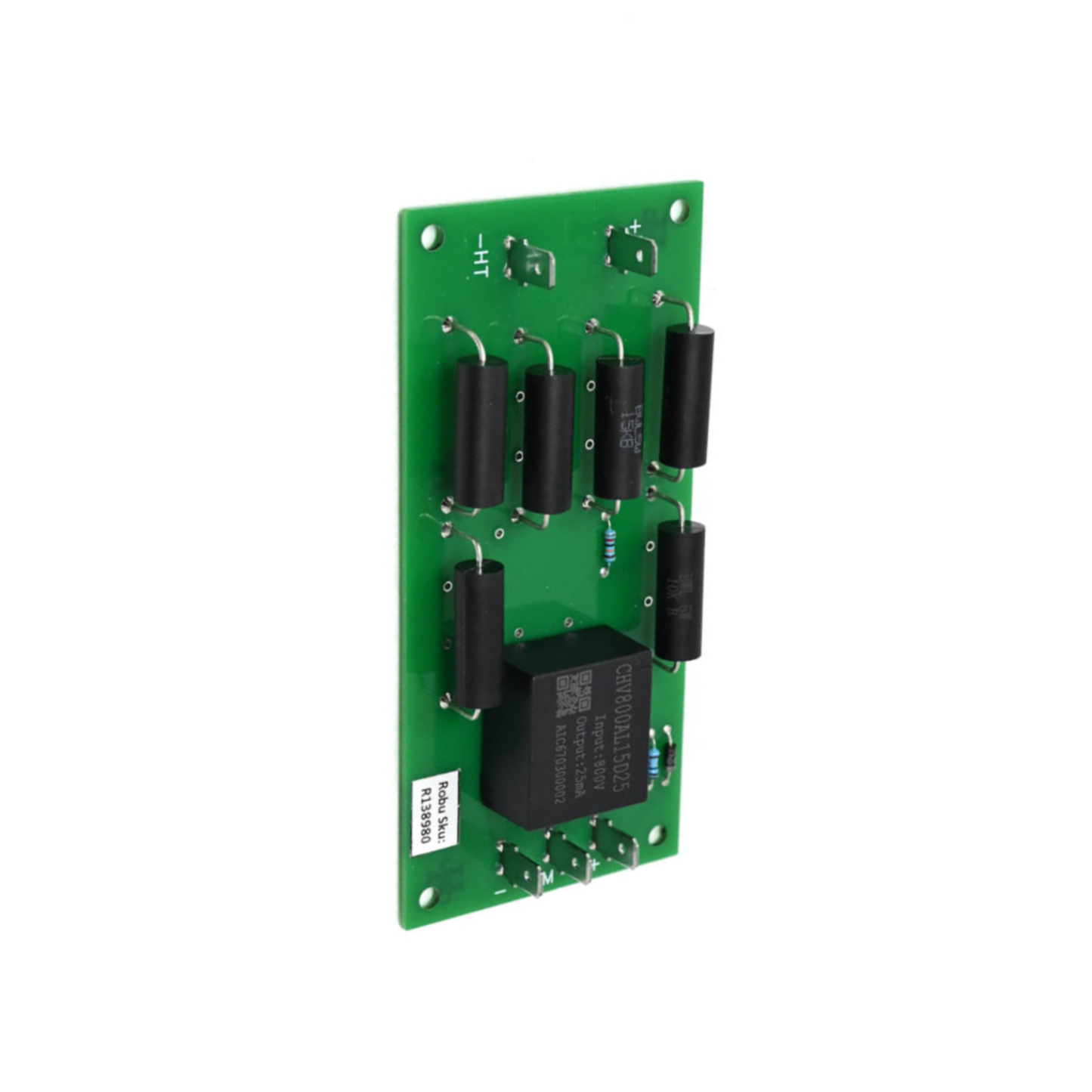

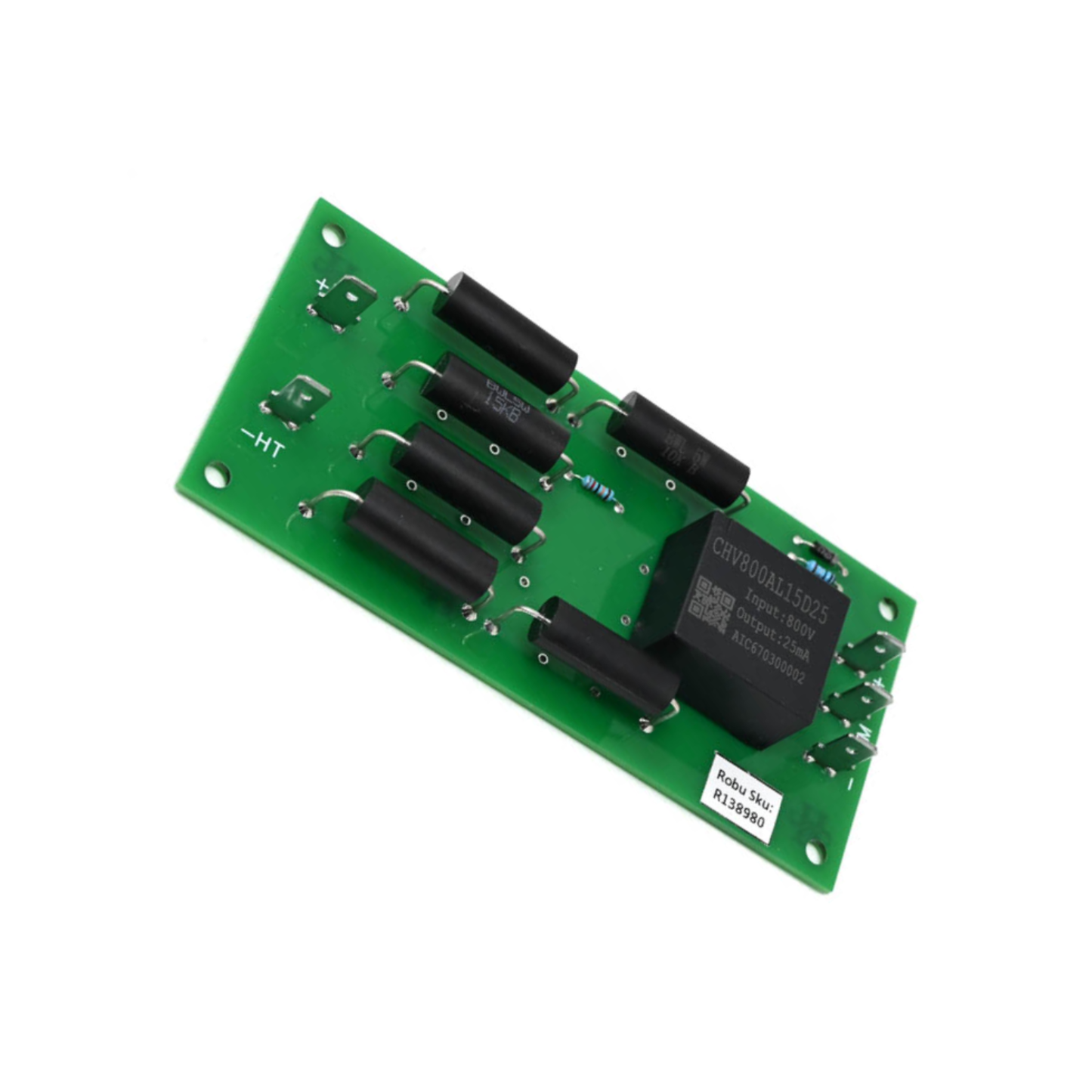

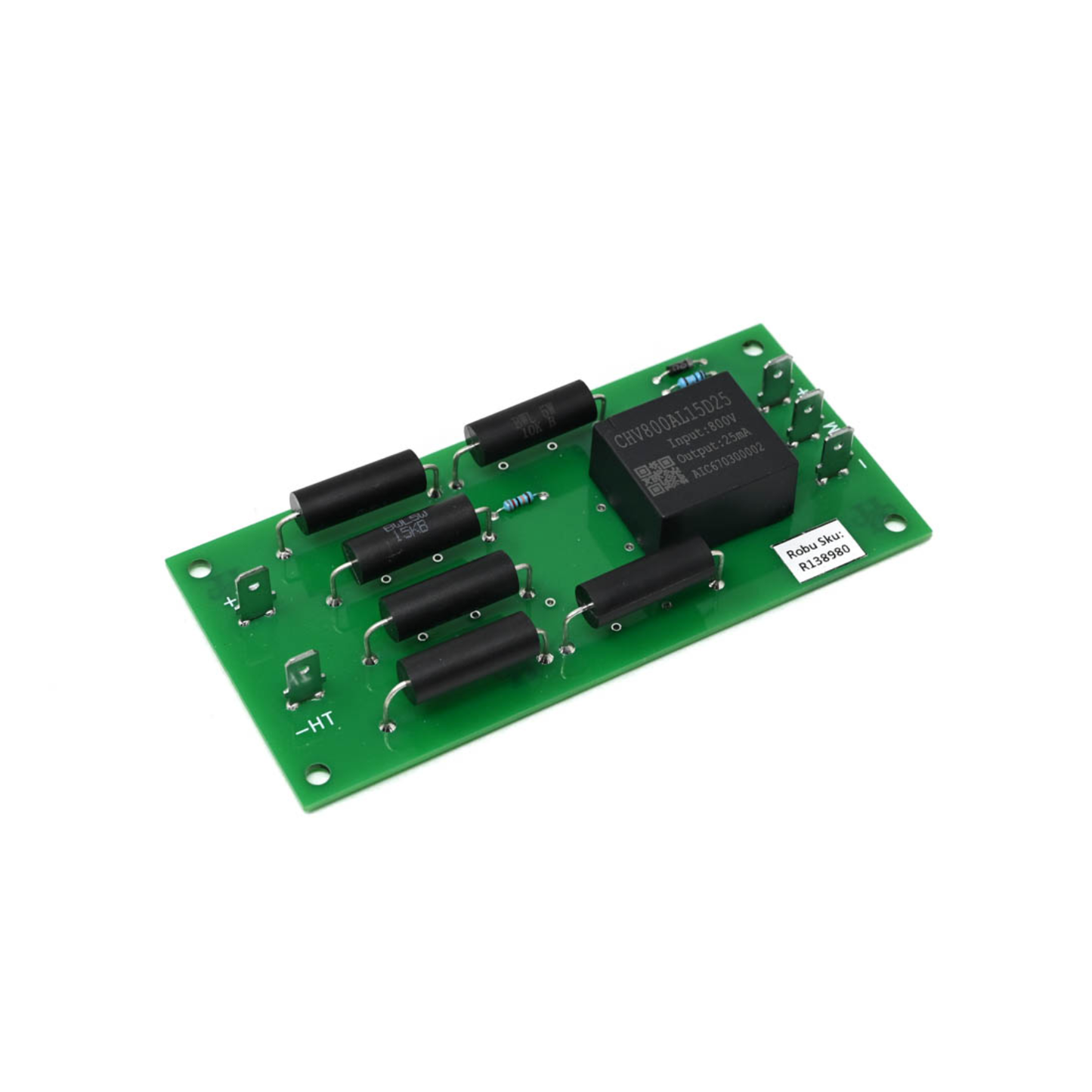

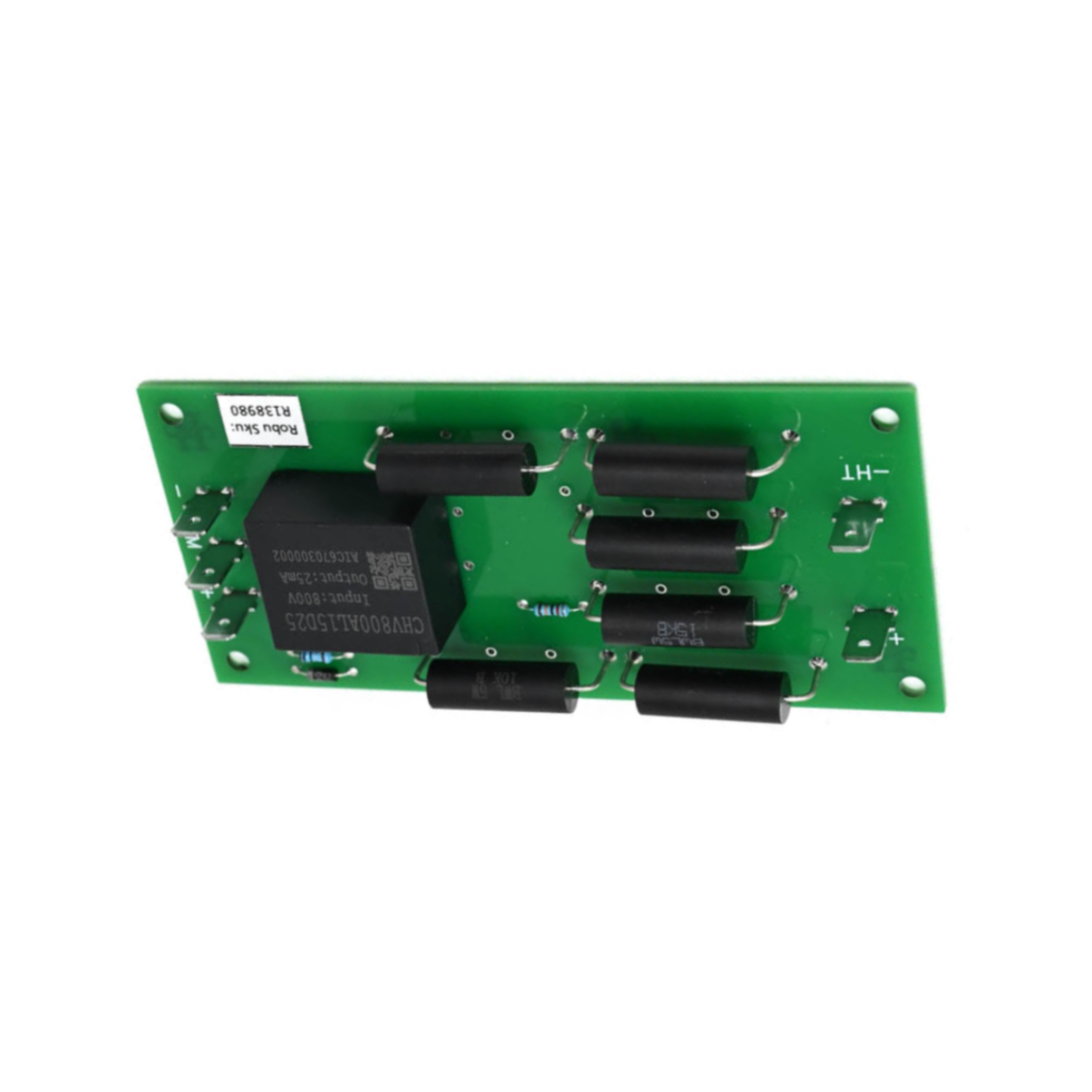

- 1 x Hall Effect Voltage Sensor – CHV800AL15D25 (Measuring range 0～1600V)
