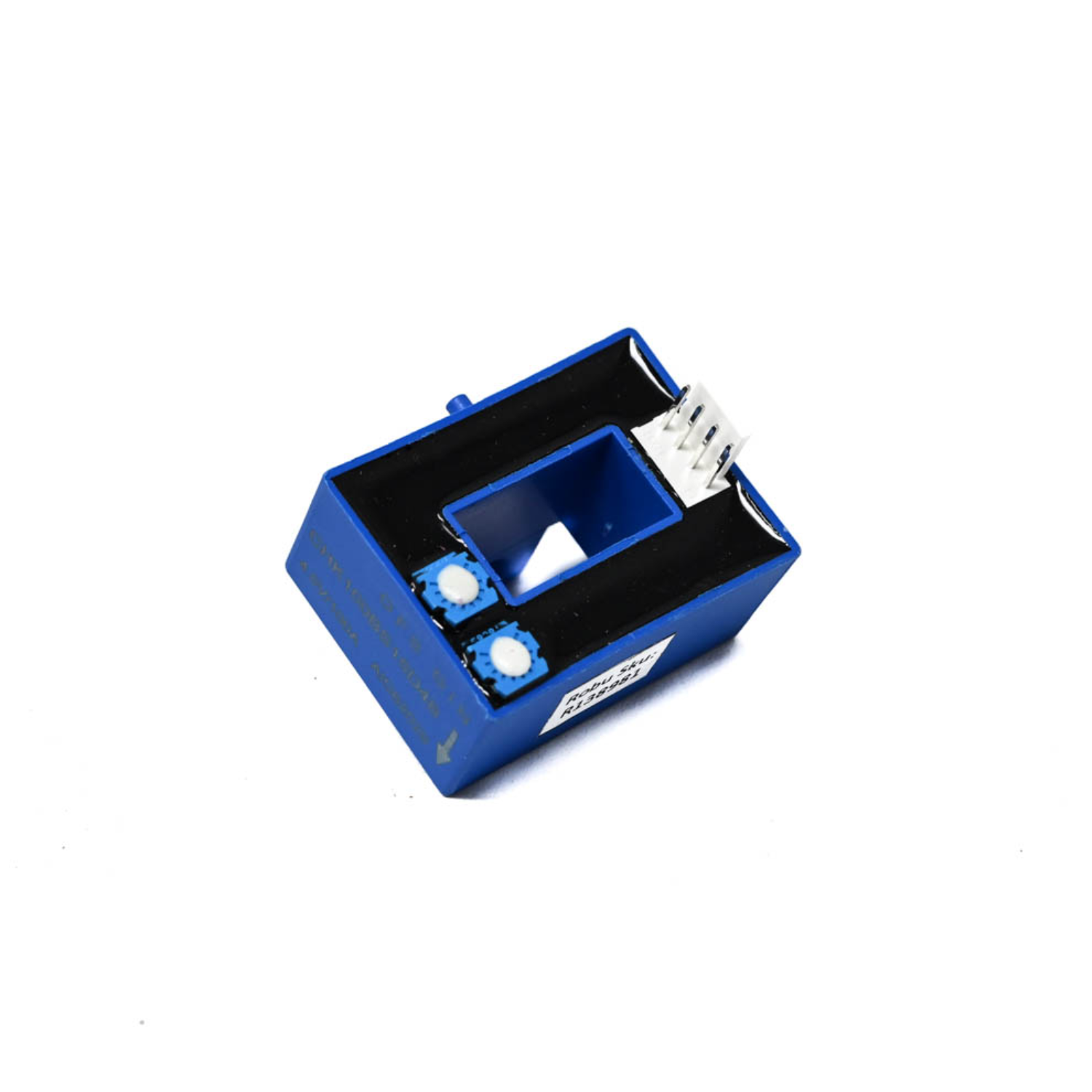

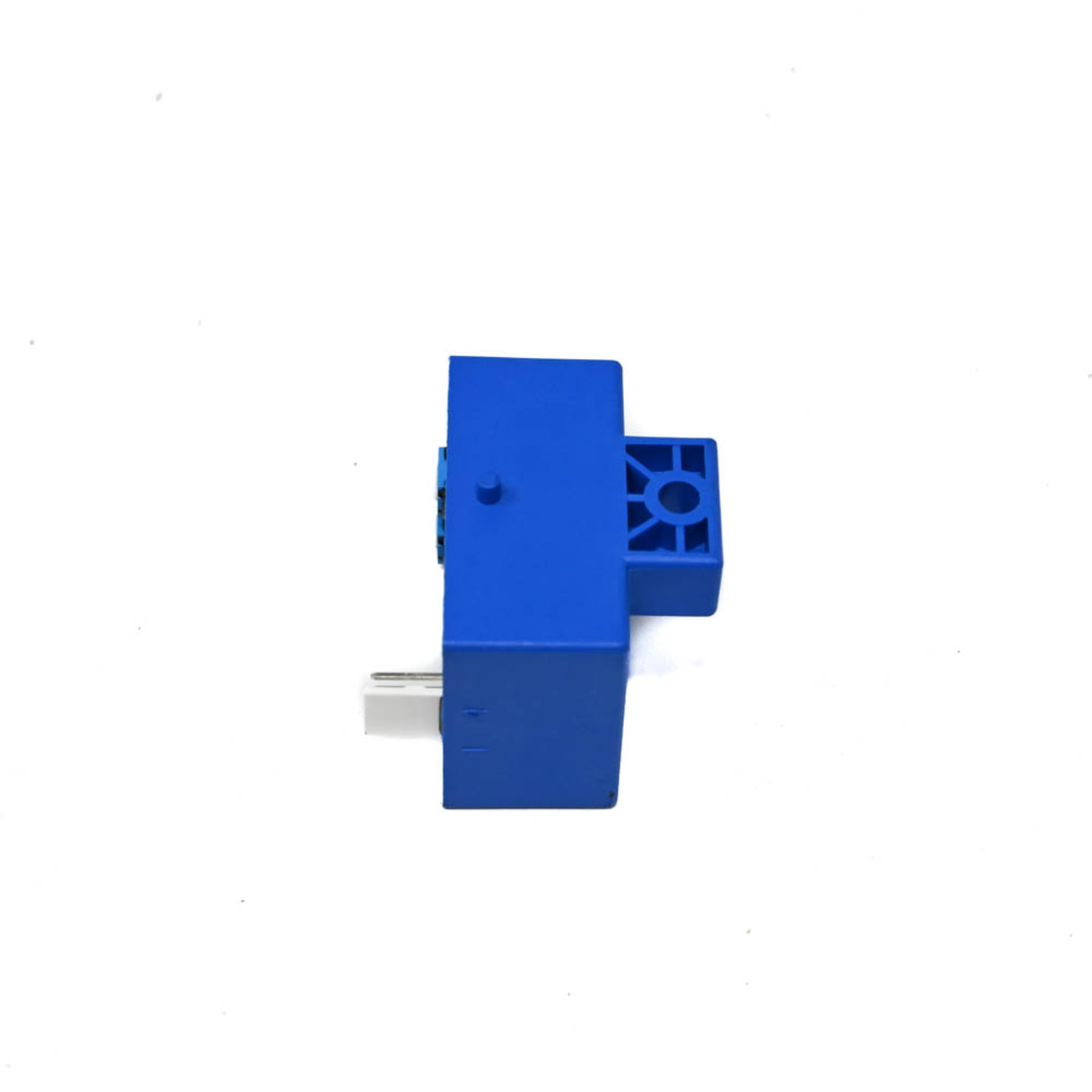

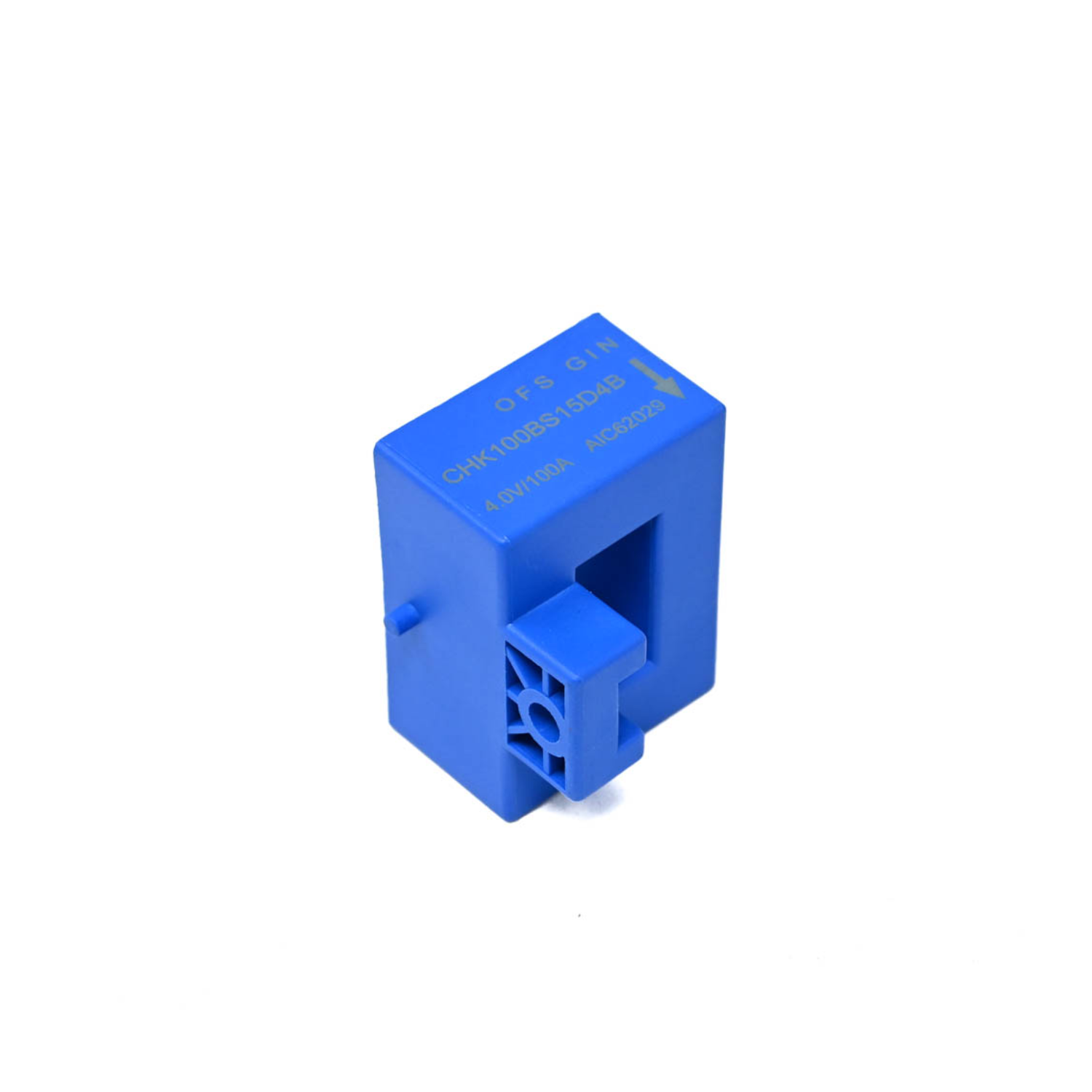

CHK100BS15D4 Hall Effect Current Sensor 0～±300A Measurement Range For Accurate Current Sensing

CHK100BS15D4 Hall Effect Current Sensor 0～±300A Measurement Range For Accurate Current Sensing

In stock

Rs. 539.00
Rs. 539.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This current transducer utilizes closed-loop (compensated) technology and a DC ±12~15V power supply to ensure accurate measurement of DC, AC, and pulse currents. Its key features include essential galvanic isolation, high accuracy, exceptional linearity, and user-friendly installation. Furthermore, its optimized response time and strong resistance to interference guarantee reliable performance in demanding environments.

Specifications:

  • Model Type: Hall Current Sensor
  • Model No.: CHK100BS15D4
  • Rated input Ipn: 100A
  • Output voltage Vo: ±4.0x(IP/IPN)V
  • Supply voltage VC: (±12~±15) ±5%V
  • Response time tra(µs): @90% of IPN < 3.0
  • Power consumption IC: 15mA

Features:

  • Precise, compensated voltage-to-voltage conversion using Hall effect technology.
  • The Output voltage is easily scalable by using a simple resistor.
  • Input voltage can be conveniently converted to a proportional current using an input resistor.
  • Delivers high-fidelity electronic measurement for various voltage waveforms.
  • Versatile power supply requirement for flexible integration.
  • Ensures reliable and precise voltage measurements.
  • Provides a highly proportional output signal across the measurement range.
  • Designed for quick and easy integration into systems.
  • Introduces no disruption or burden to the measured voltage circuit.
  • Operates efficiently, minimizing energy usage.
  • Capable of measuring a broad spectrum of voltage levels.
  • Robust performance even in noisy electromagnetic environments.

Application:

  • Inverter applications
  • AC/DC variable-speed drive
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Frequency drive control of home appliances

Package Included:

1 x CHK100BS15D4 Hall Effect Current Sensor
