Description:
This versatile current transducer is designed for accurate measurement of a wide range of currents, including DC, AC, and pulse currents. The closed-loop (compensated) measurement principle provides high accuracy and excellent linearity across the measurement range.
Operating from a DC ±12~15V supply, the transducer offers galvanic isolation, protecting both the measurement circuitry and personnel. Installation is simple and efficient. The transducer's design minimizes temperature drift and optimizes response time while providing high immunity to electromagnetic interference, ensuring reliable performance in various environments.
Specifications:
- Model Type: Hall Effect Current Sensor

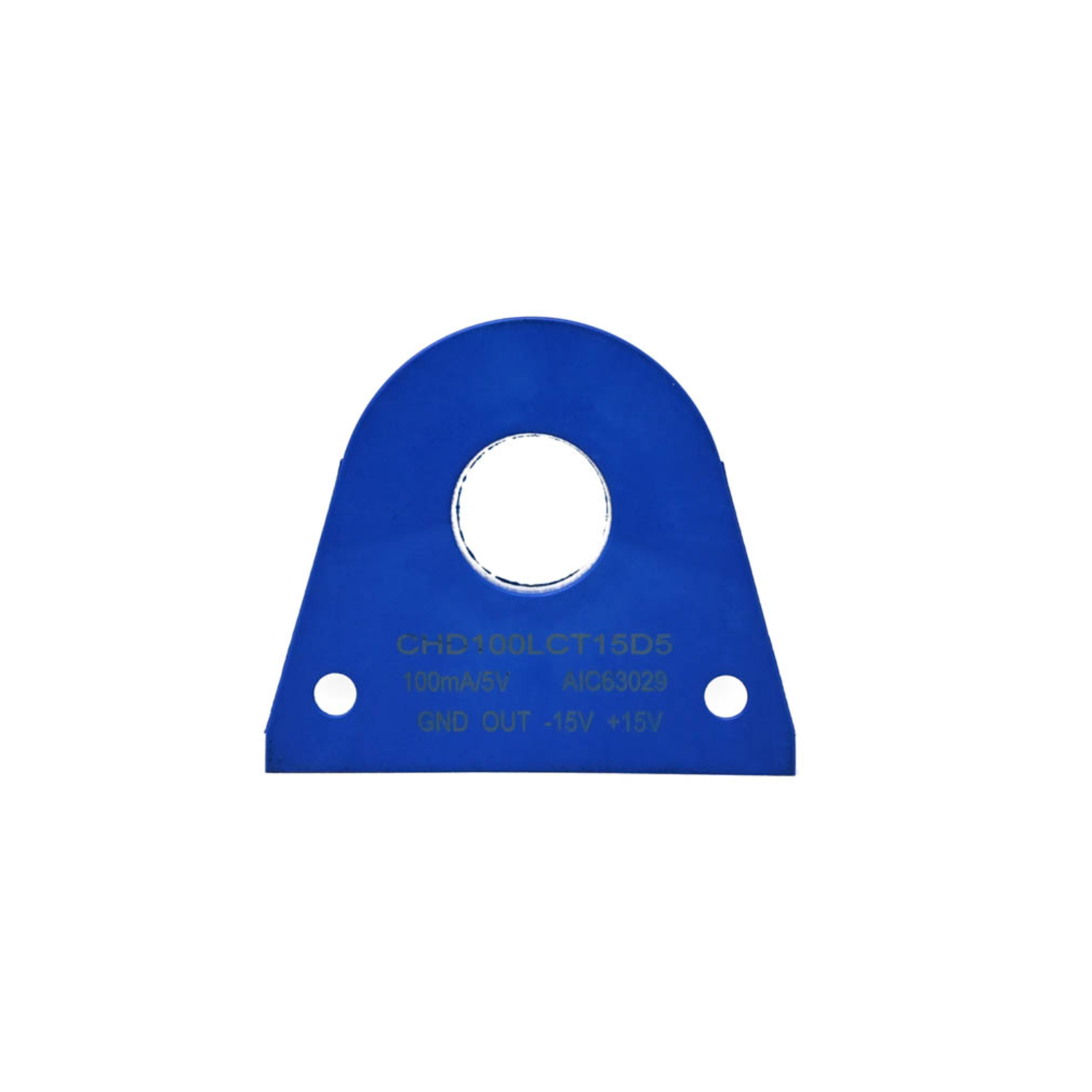

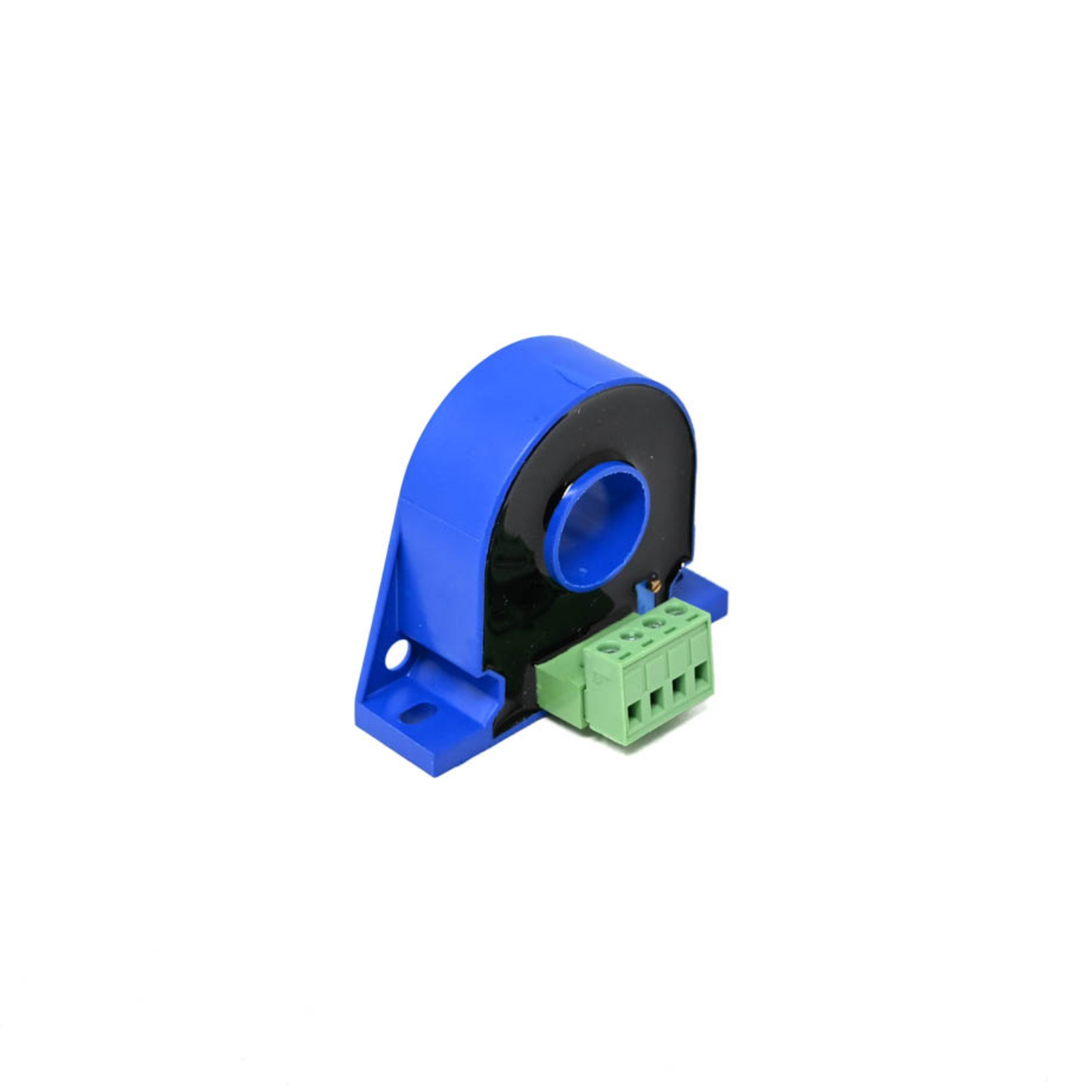

- Model No.: CHD100LCT15D5
- Measuring range Ip: 0～±150mA
- Rated input Ipn: ±100mA
- Output voltage Vo: ±5±0.5%V
- Supply voltage VC: ±12~±15V
- Response time tra: ≤60mS
Features:
- DC Leakage Current Sensor is developed on the basis of the magnetic modulation closed-loop principle
- Apply unique patented technology to measure tiny current (mA level)
- This sensor is used to measure the current of the signal system, circuit, and leakage monitoring system, as well as to measure the current difference.
- Supply voltage: DC±12~15V
- High accuracy
- Very good linearity
- Easy installation
- Optimized response time
- Low power consumption
- Wide current measuring range
- High immunity to external inter
Application:
- The current detection of the lift
- DC panel detection
- The signal system
- Current differential detection
- AC variable-speed drive/ Servo drive
- UPS and In
Package Included:
1 x CHD100LCT15D5 Linear Output Hall Effect Current Sensor
