Description:
This closed-loop current transducer provides precise DC, AC, and pulse current measurement with galvanic isolation, operating on a DC ±15~24V supply. Enjoy high accuracy, linearity, easy installation, low temperature drift, fast response, and excellent interference immunity.
Specifications:
- Model Type: Hall Effect Current Sensor
- Model No.: CHB500LFT15D100SP
- Rated input Ipn: 500A
- Measuring range Ip: 0～±1570A
- Turns ratio Np/NS: 1:5000T
Features:
- Closed-loop (compensated) current transducer
- Capable measurement of currents: DC, AC, pulse, with galvanic isolation between primary circuit and secondary circuit.
- Low-temperature drift
- Optimized response time
- High immunity to external interference

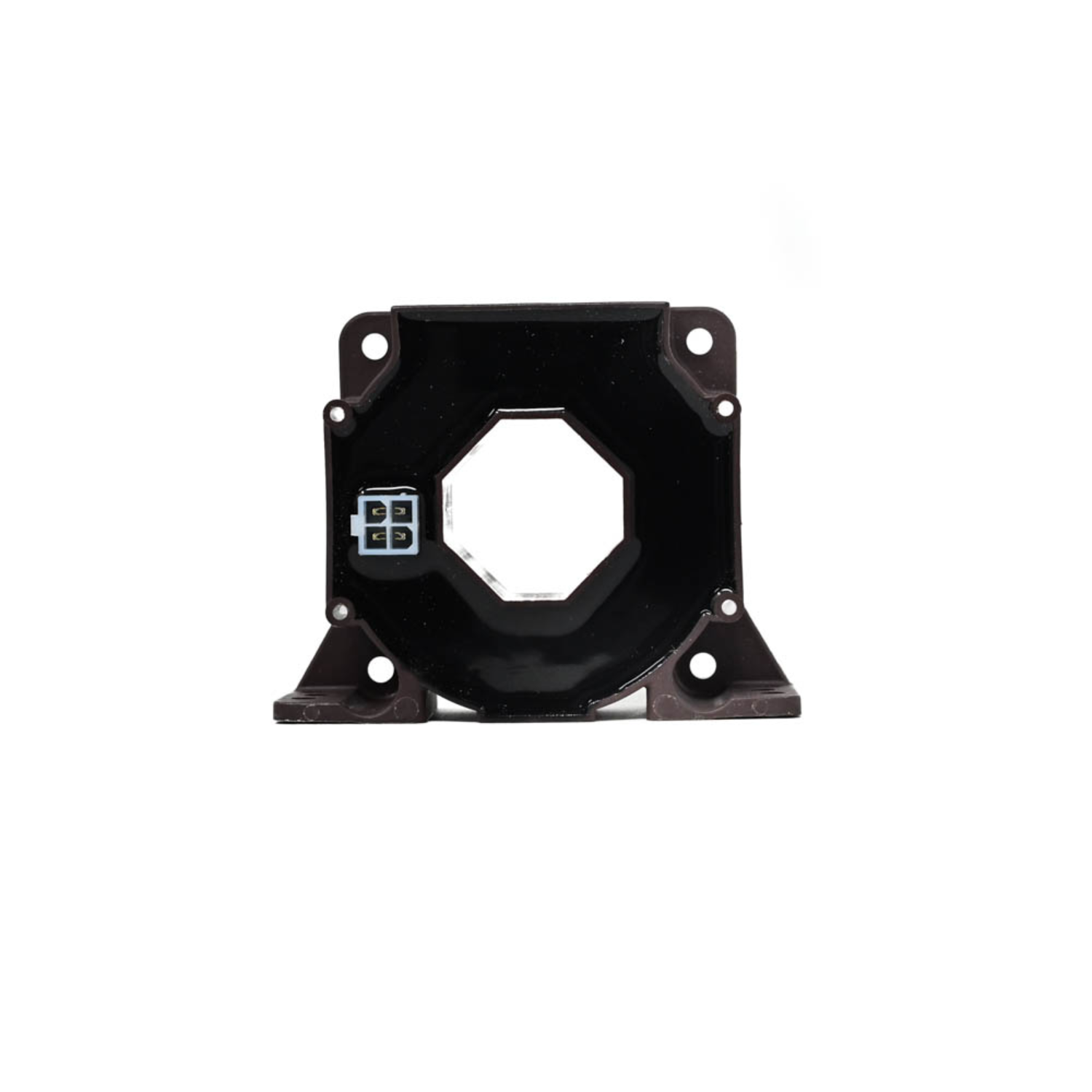

- Molex 4.2mm2 x2P
Application:
- The application of variable frequency electrical appliances
- AC/DC variable-speed drive
- Uninterruptible Power Supplies (UPS)
- Switched Mode Power Supplies (SMPS)
- Inverter applications
Package Included:

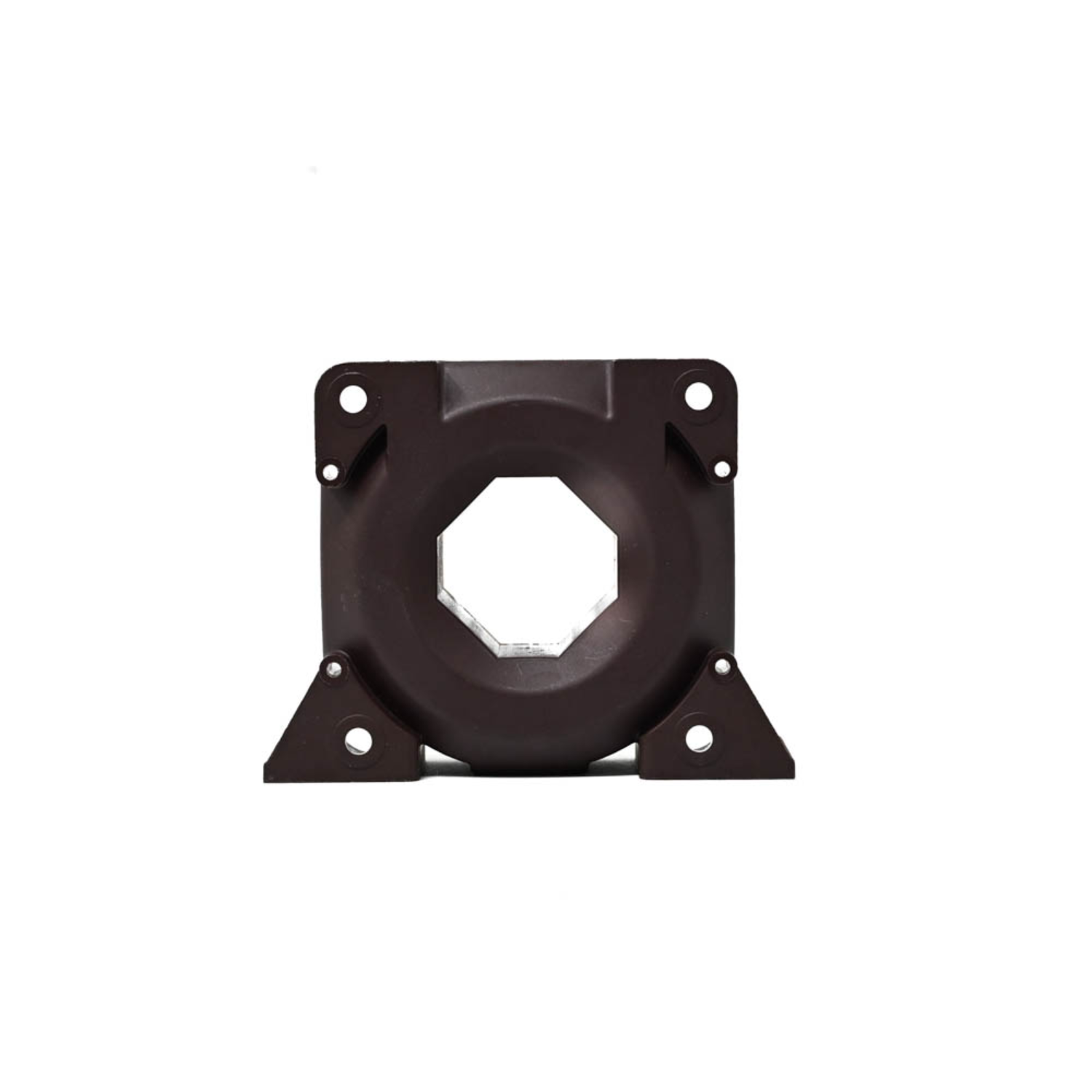

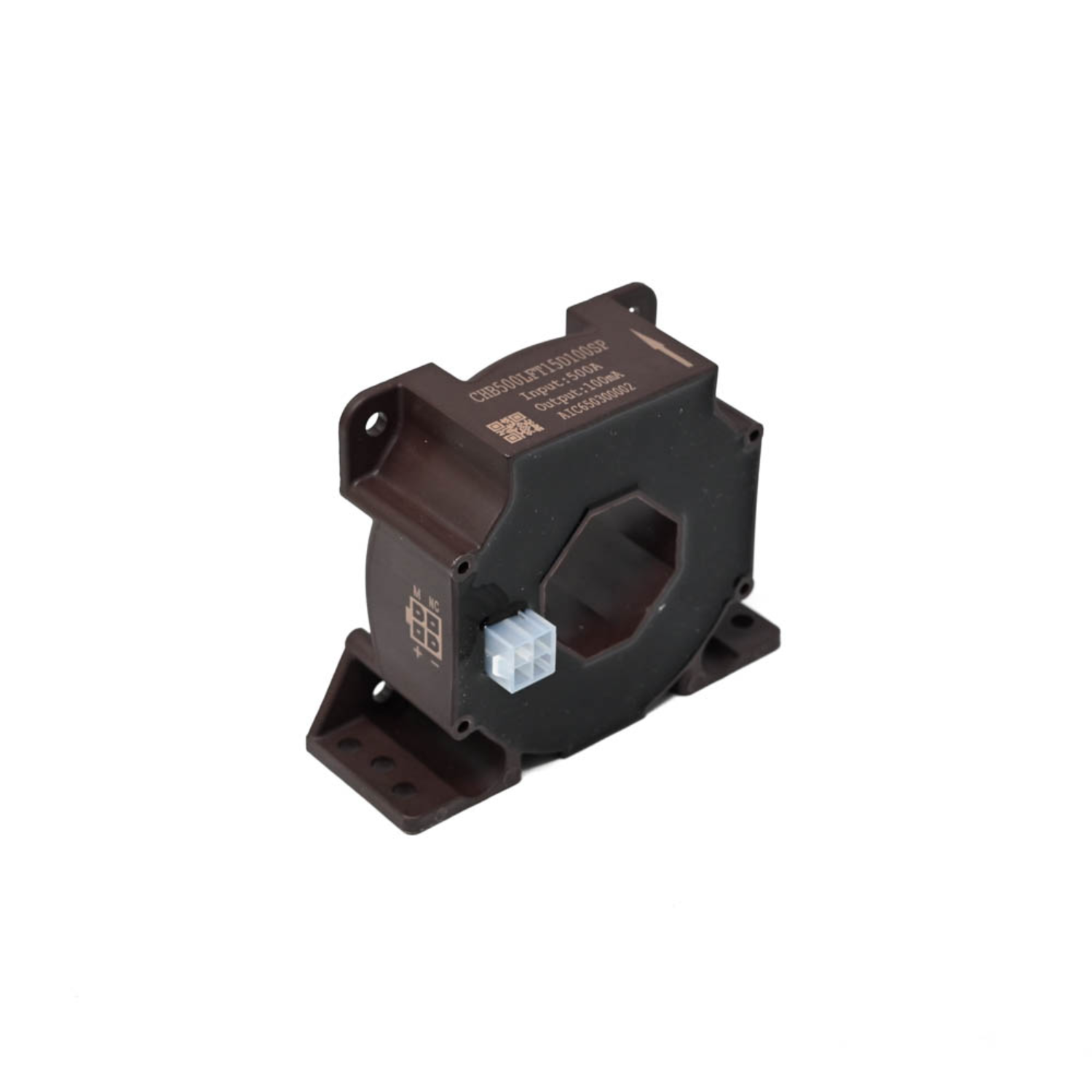

1 x CHB500LFT15D100SP Hall Effect Current Sensor
