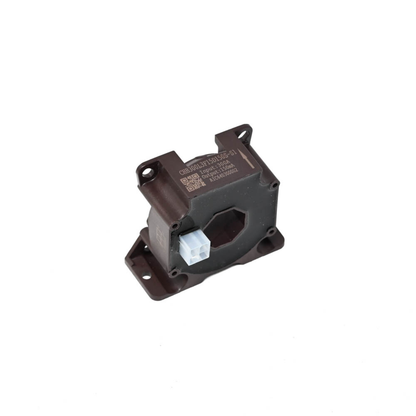

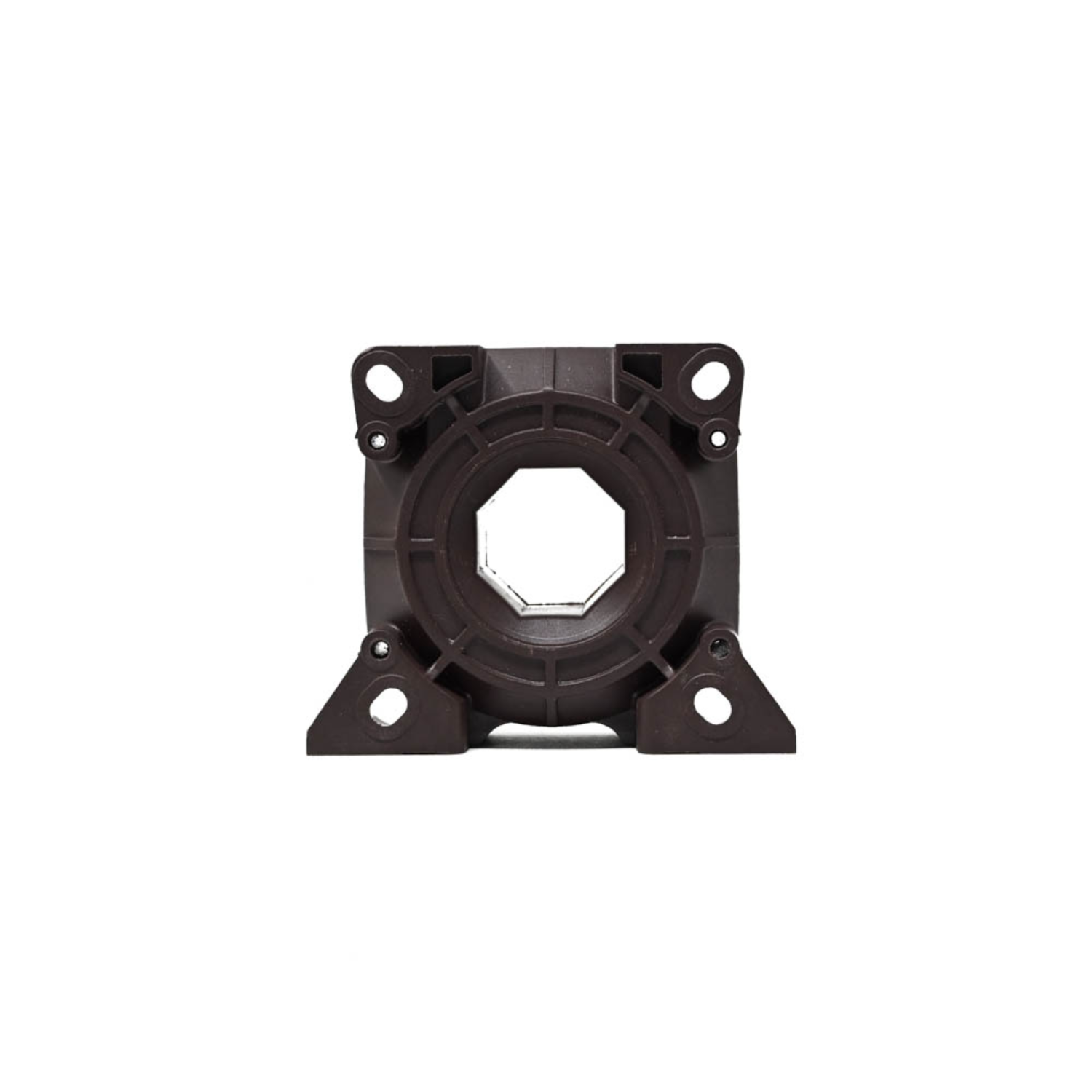

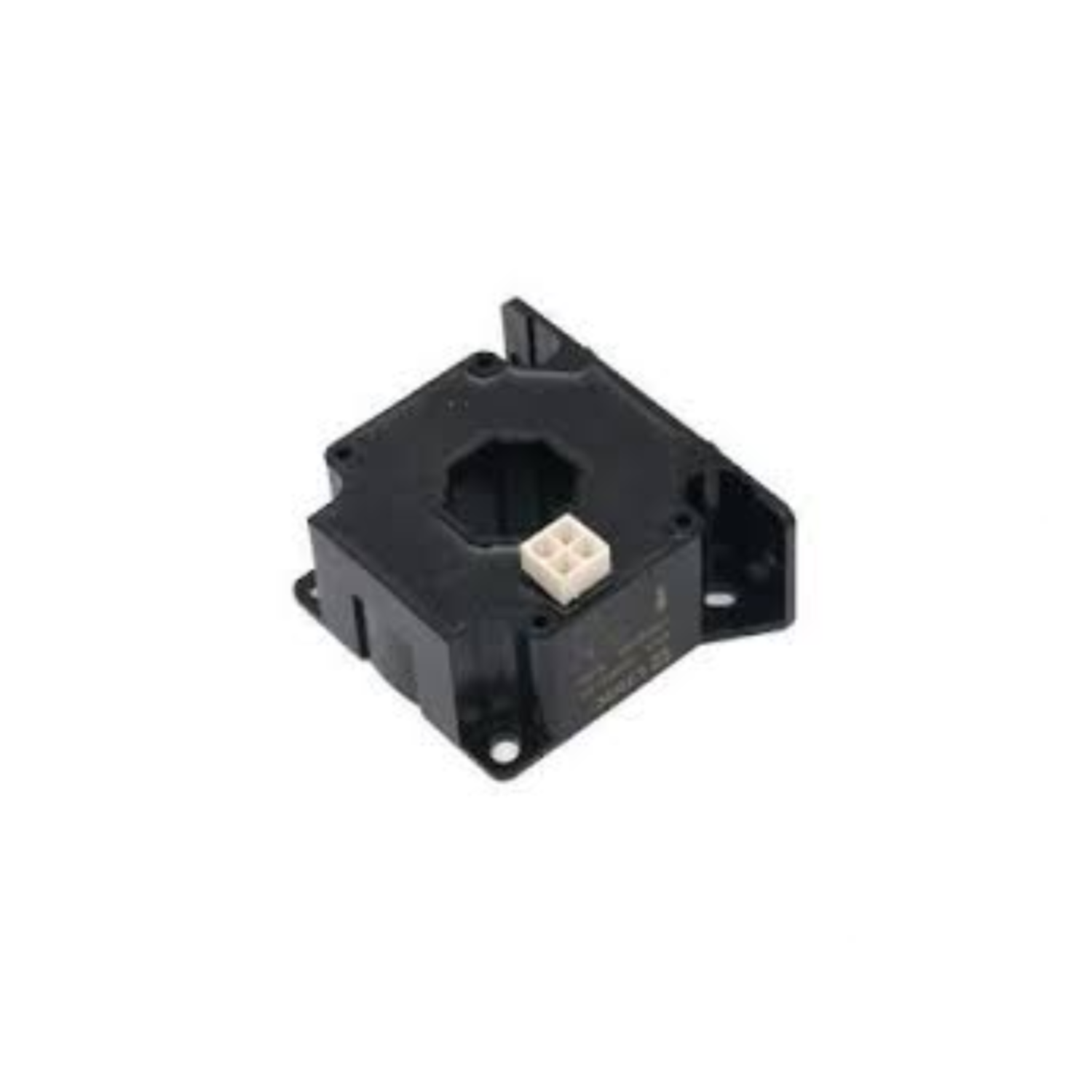

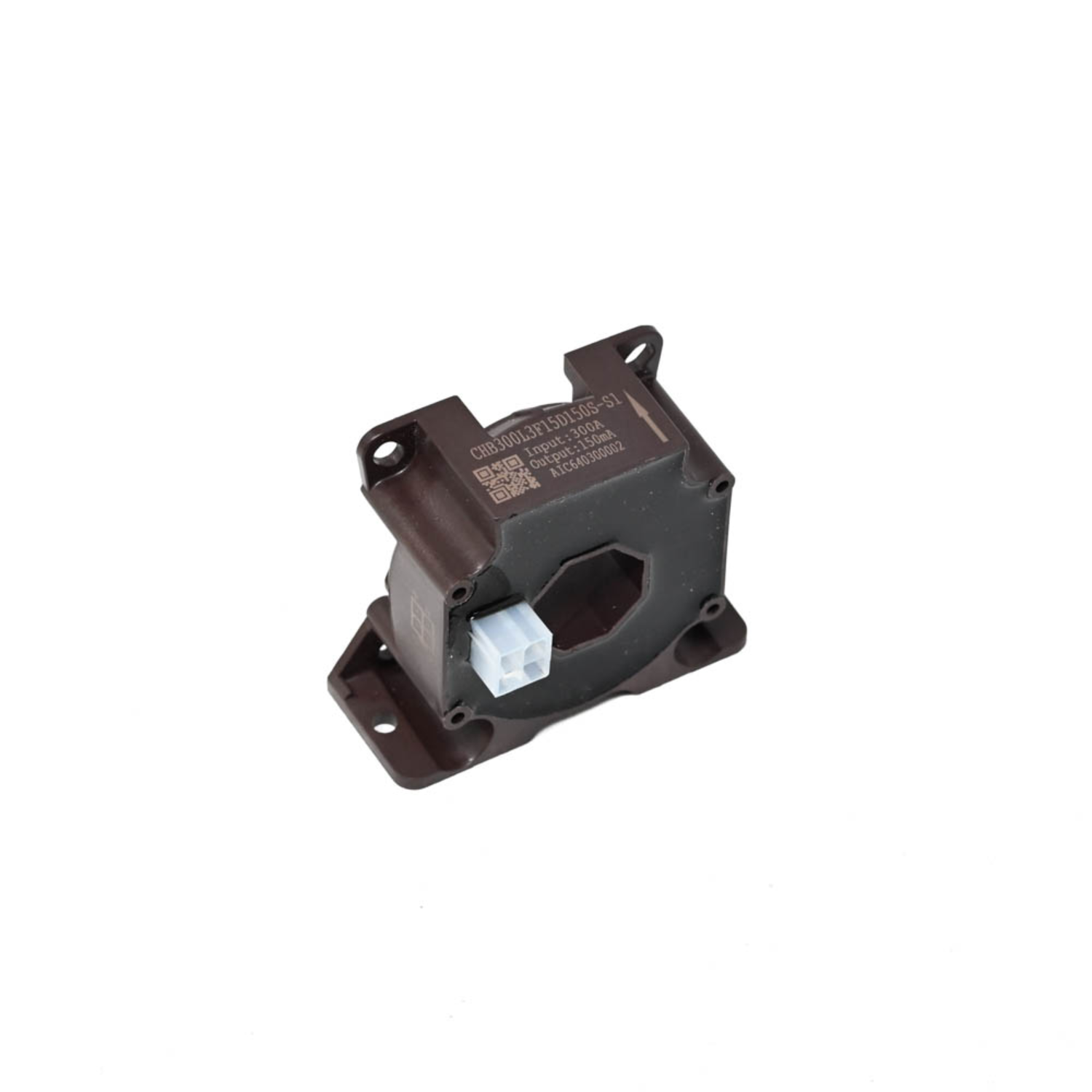

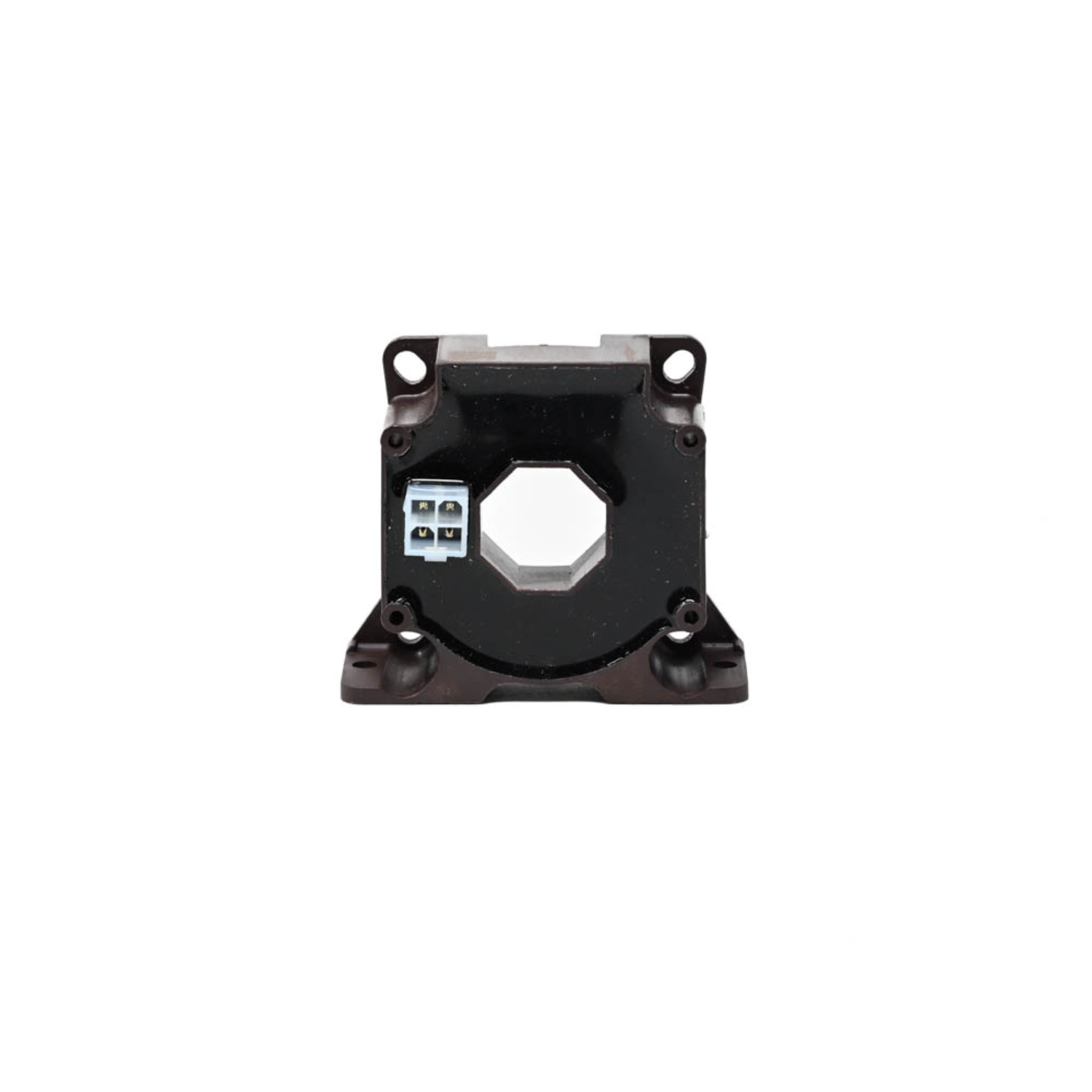

CHB300L3F15D150HM-S1 Hall Effect Current Sensor 0～±500A AC/DC Current Measurement Range Sensor

CHB300L3F15D150HM-S1 Hall Effect Current Sensor 0～±500A AC/DC Current Measurement Range Sensor

In stock

Rs. 2,161.00
Rs. 2,161.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This high-performance current transducer utilizes closed-loop (compensated) measurement and a DC ±12~15V supply to deliver accurate and galvanically isolated measurement of DC, AC, and pulse currents. Engineered for precision, it boasts high accuracy, excellent linearity, minimal temperature drift, and a rapid, optimized response time with superior immunity to electromagnetic interference.

Its user-friendly design facilitates easy installation, making it ideal for applications such as induction cookers, AC/DC variable-speed drives, uninterruptible power supplies (UPS), switched-mode power supplies (SMPS), and inverters.

Specifications:

  • Model Type: Hall Current Sensor
  • Model No.: CHB300L3F15D150HM-S1
  • Rated Current: 300A
  • Current Measuring Range AC: 0～±500
  • No. of Turns: 1.430555556
  • Response Time: @90% of IPN < 1.0μS

Features:

  • Ensures highly accurate current measurement.
  • Operates with a standard ±12~15V DC supply.
  • Measures DC, AC, and pulse currents with electrical safety.
  • Delivers precise current readings.
  • Provides proportional output across the measurement range.
  • Designed for easy integration.
  • Maintains accuracy despite temperature changes.
  • Responds quickly and rejects external noise.

Application:

  • The application of variable frequency electrical appliances
  • AC/DC variable-speed drive
  • Uninterruptible Power Supplies (UPS)
  • Switched Mode Power Supplies (SMPS)
  • Inverter applications

Package Included:

1 x CHB300L3F15D150HM-S1 Hall Effect Current Sensor
