CH341A Programmer CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver - RS3234/AA182/NA260

CH341A Programmer CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver - RS3234/AA182/NA260

SKU:RS3234/AA182/NA260

85 in stock

Regular price Rs. 175.00
Regular price Sale price Rs. 175.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details

Description:

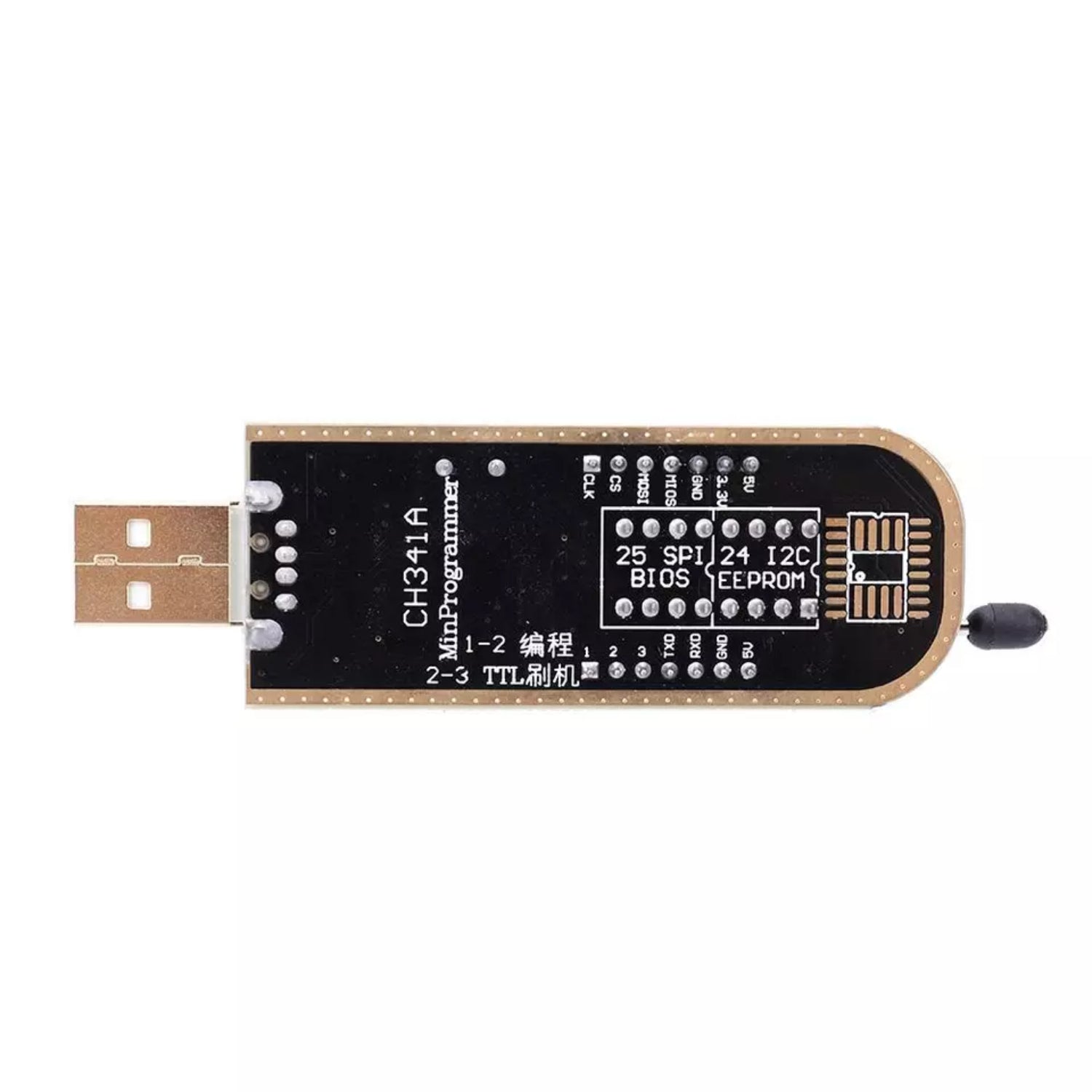

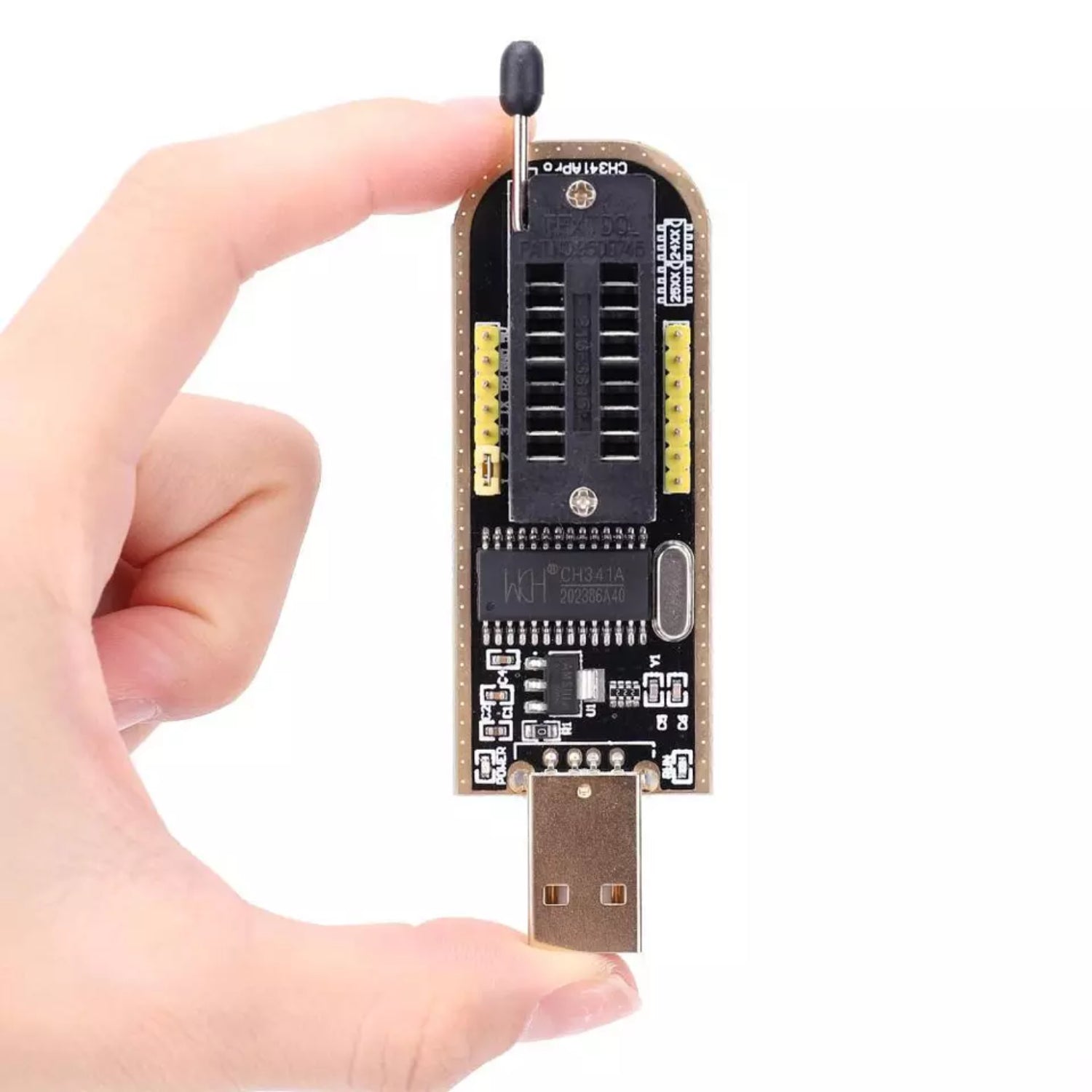

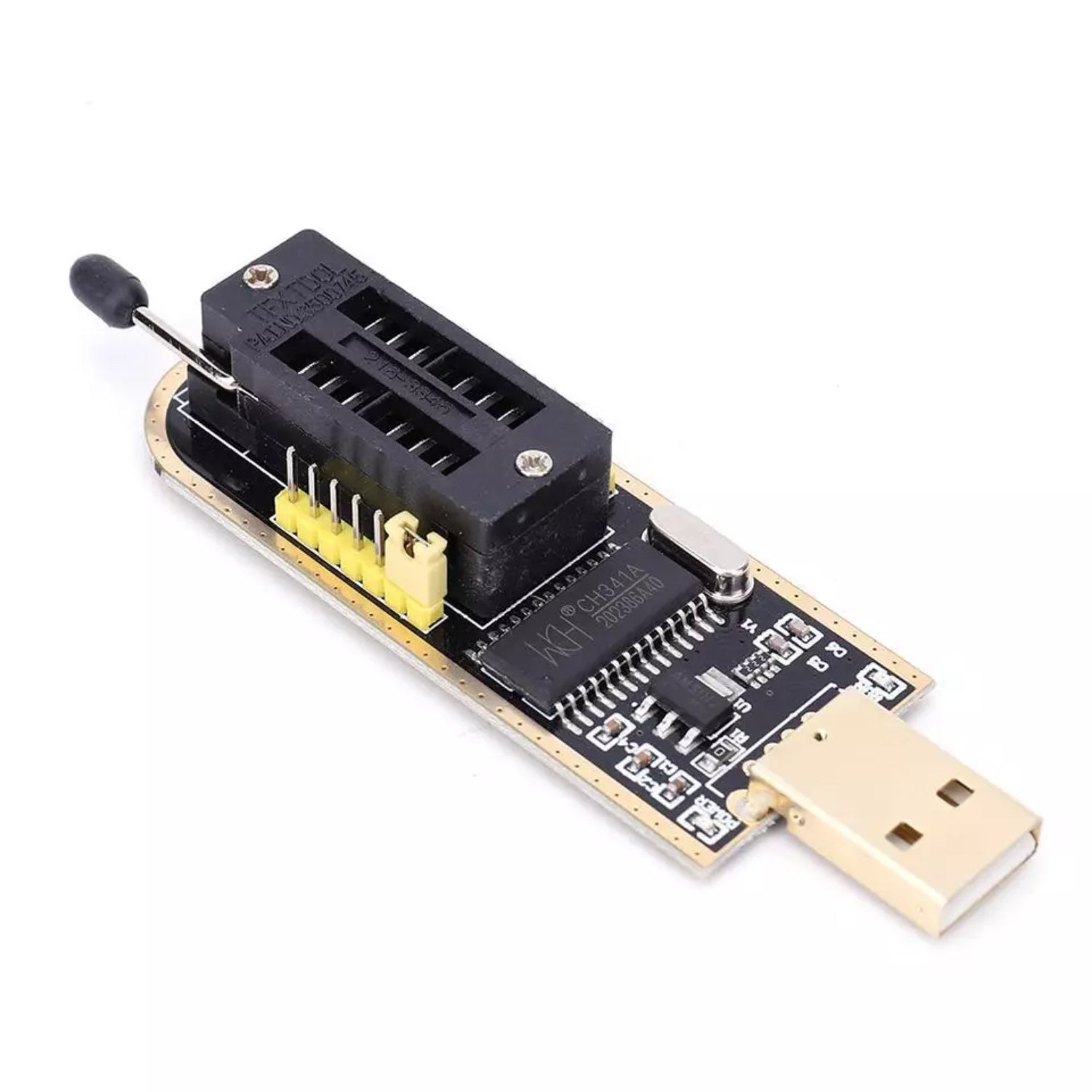

This low-cost CH341A Programmer is intended to support 24 EEPROM and 25 SPI flash 8-pin/16-pin chips. It is equipped with a CH 341A chip, can automatically recognize a 25 series chip, and its 24/25 series indicator lamp enables the user to easily recognize the module’s working status. This awesome programmer is also user-friendly because it supports USB to TTL conversion and the SOP8 SOP16 to DIP8 converter board makes the connection with different chips easily.

CH341 is a USB bus convert chip, providing UART, printer port, parallel and synchronous serial with 2-wire or 4-wire through USB bus. In UART mode, CH341 provides alternant rate control signals such as serial transfer enable, serial receive in ready etc. CH341A Programmer also supplies a common MODEM communication signal to expand UART for computers or upgrade common synchronous interface devices to USB buses directly.

In printer port mode, CH341A Programmer supplies a standard USB printer port which compounds USB relevant protocol and Windows operating system used to upgrade ordinary parallel printers to USB bus directly. In parallel mode, CH341A Programmer gives out 8-bit parallel in EPP or MEM mode. It can be used to input/output data directly without MCU/DSP. Besides, CH341A Programmer also supports some common synchronous serial such as 2-wire (SCL, SDA) and 4-wire (CS, SCK/CLK, MISO/SDI/DIN and MOSI/SDO/DOUT) interfaces.

Specifications:

  • Model Number: CH341A
  • Type: Programmer
  • Interface Type: USB 2.0

Features:

  • Support 24 EEPROM and 25 SPI flash 8pin or 16pin chip
  • With a 24/25 status indicator lamp
  • Support USB to TTL conversionSupport 24EEPROM and 25 SPI flash 8pin/ 16pin chip
  • Recognize 25 series chip automatically
  • Supports download STC series procedure of single chip
  • SPI pin to support expanding the utility
  • STC microcontroller supports a full range of program download
  • CH341A Programmer supports expanding the utility by SPI pin

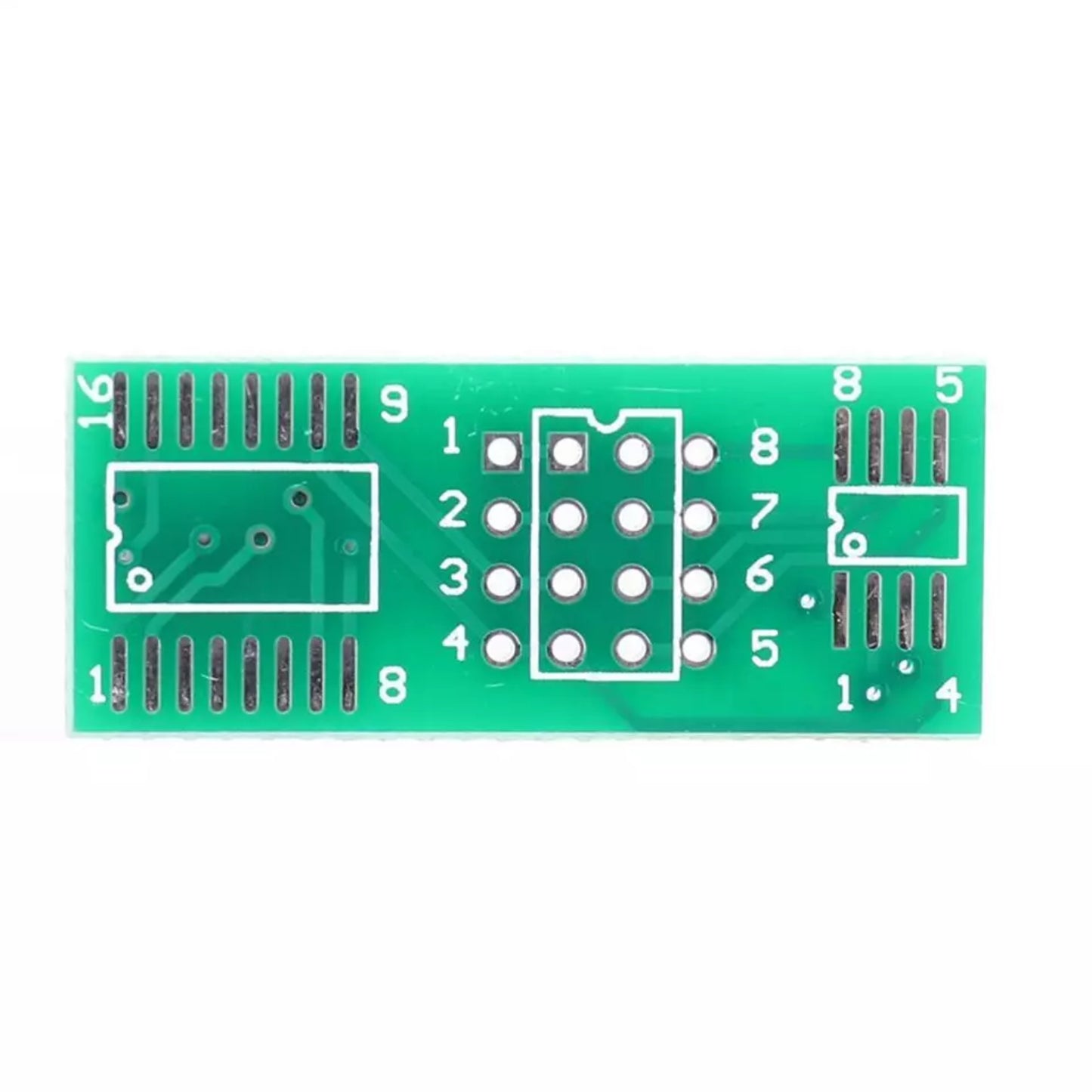

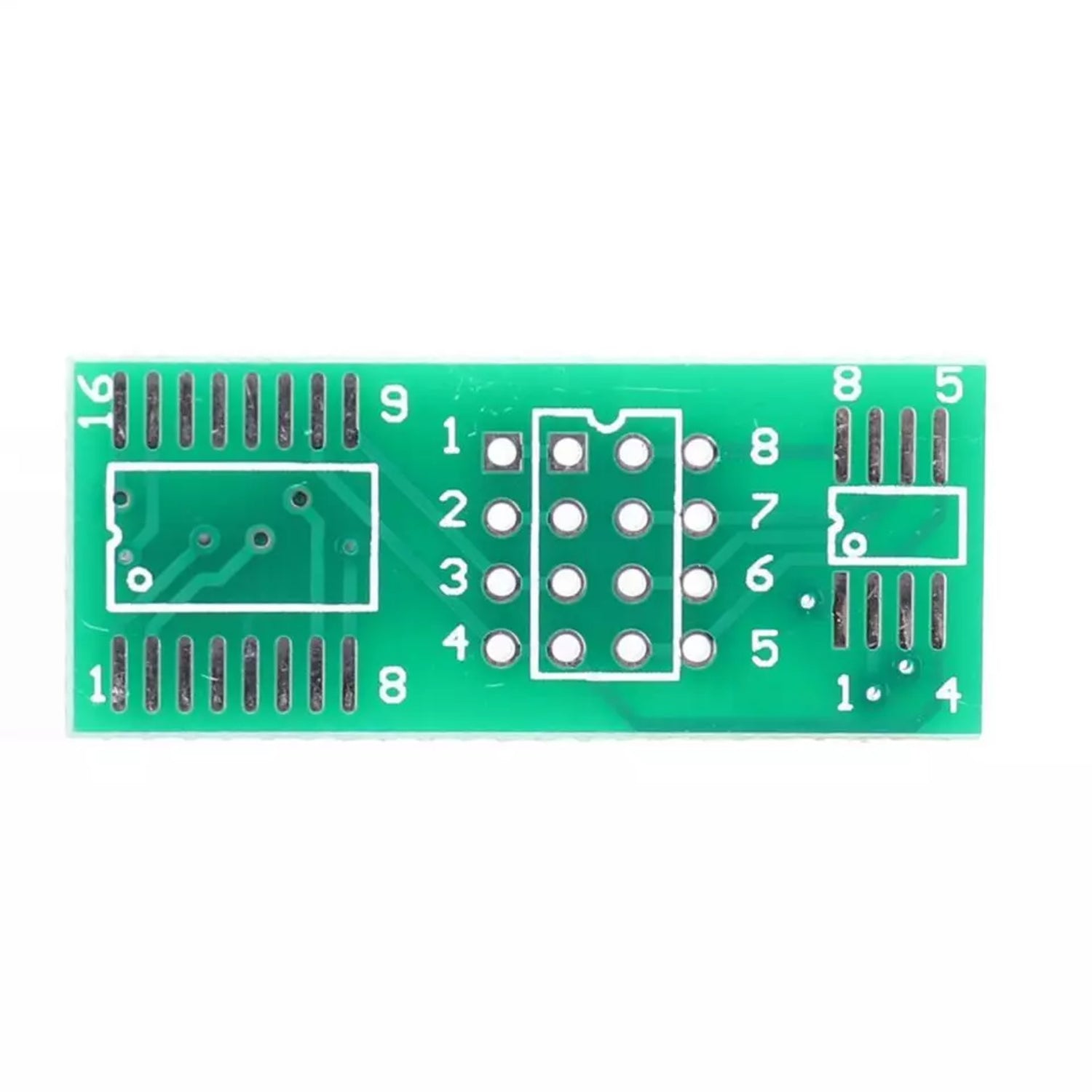

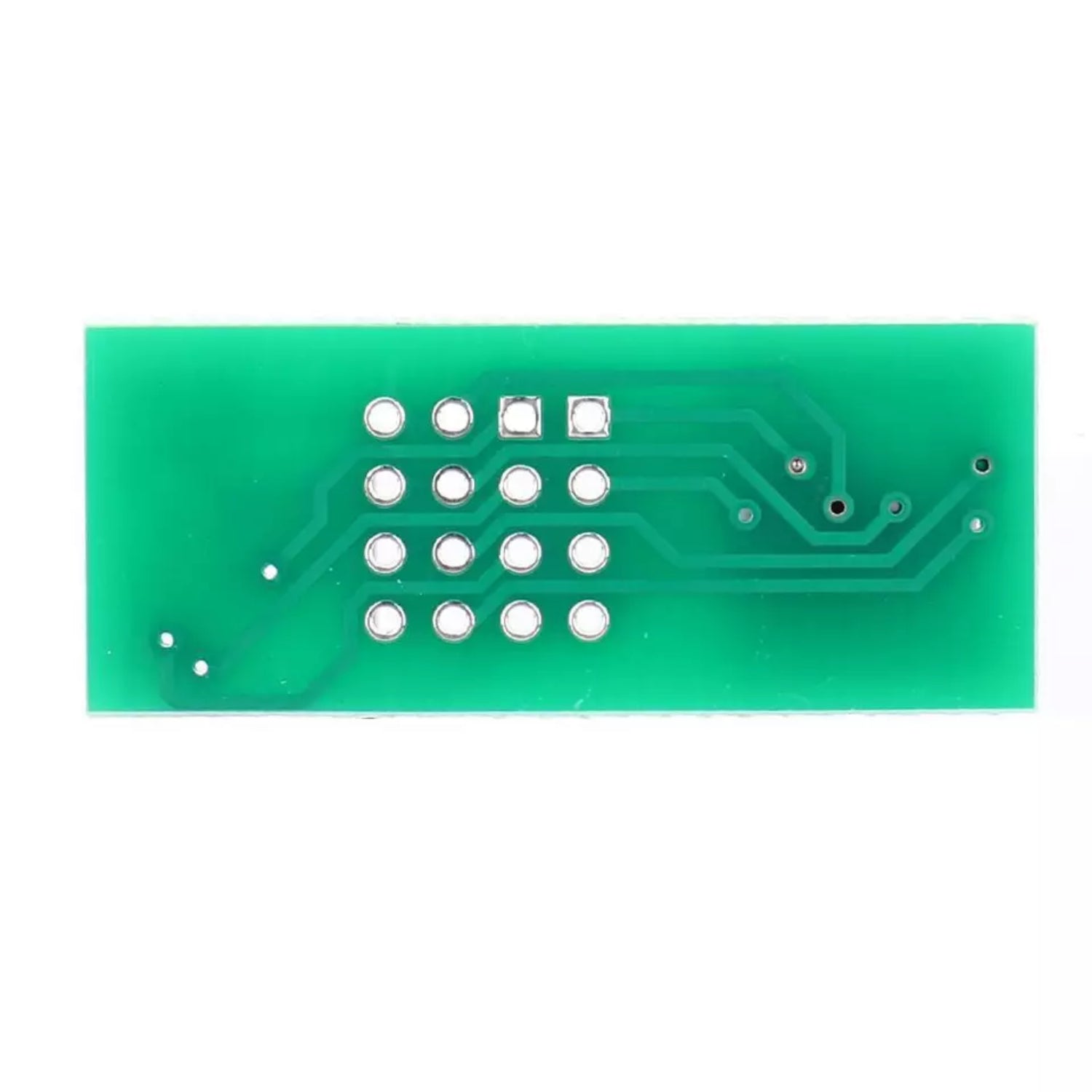

  • With SOP8 SOP16 to DIP8 converter board
  • Used in wide applications – PC motherboard, LCD monitor, DVD, router program reading and writing
  • Supports Windows XP, Vista, Win7 and Win8 (32/64bit) system
  • Provide 5V-3.3V power supply output

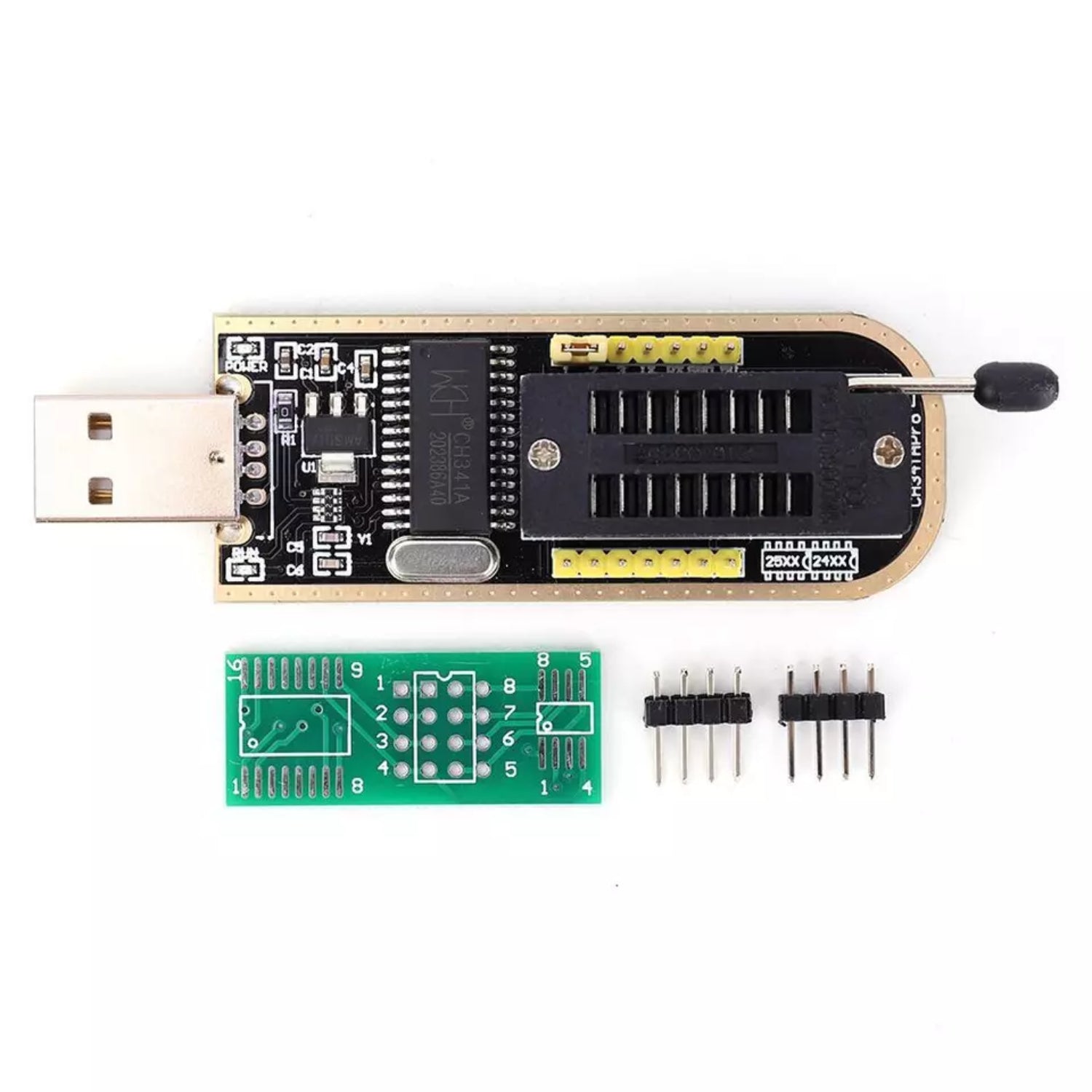

Package Included:

1 x CH341A Programmer CH341A 24 25 Series EEPROM Flash BIOS USB Programmer with Software & Driver
