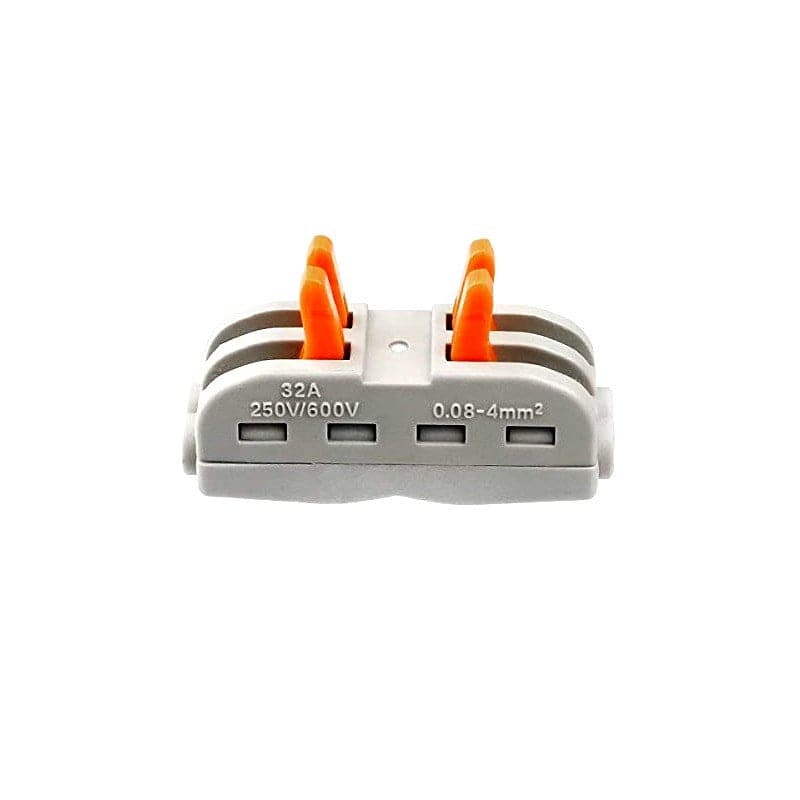

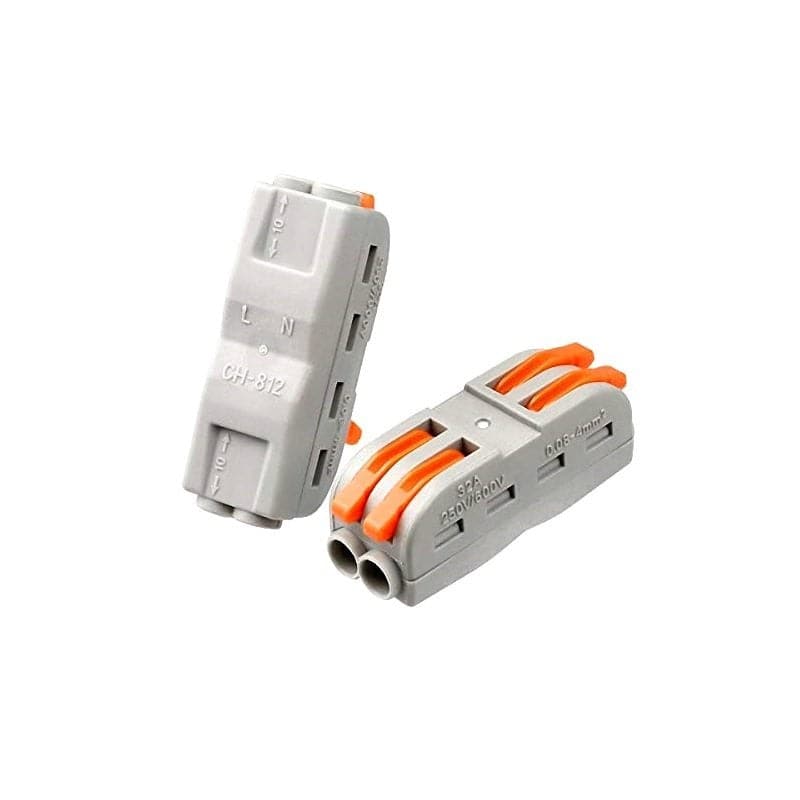

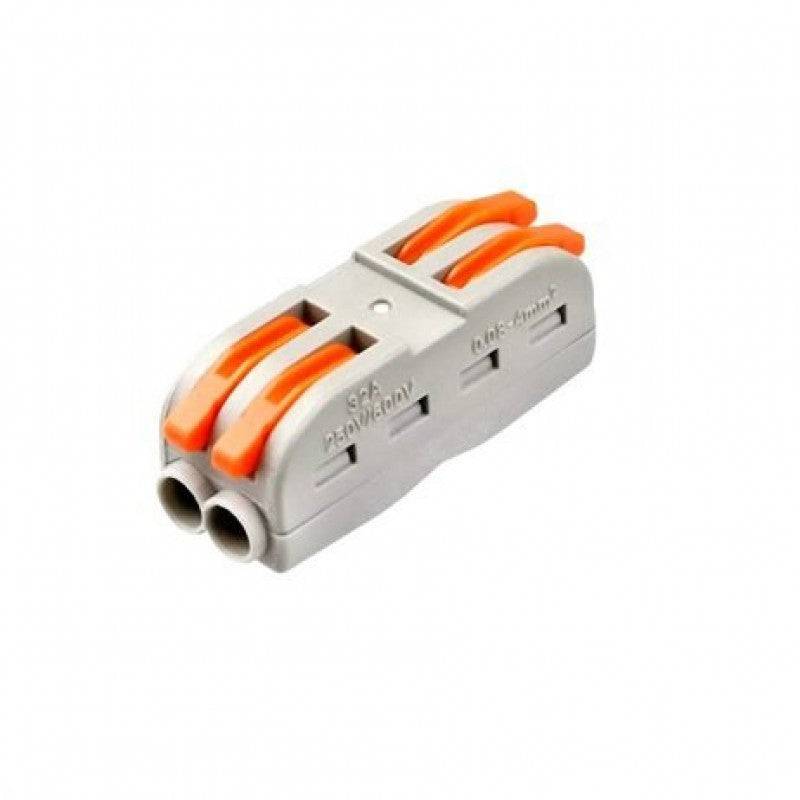

CH-812 SPL-2 Pole Wire Connector CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock Lever for 2 Wire line Connection - RS3286

CH-812 SPL-2 Pole Wire Connector CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock Lever for 2 Wire line Connection - RS3286

RS3286

47 in stock

Rs. 16.00
Rs. 16.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

This is a CH-812 SPL-2 Pole Wire Connector with a Spring Lock Lever for 2 Wire line Connection. This CH-812 SPL-2 Pole Wire Connector comes with a line connection which can be used for Live and Neutral wire separately.

PCT Spring Lever Connector PCT-212, 213, 215, 215, 218 and CH-812, 813, 2-4, 2-6 etc. come with a compact locking wire connector by a spring lever, which is used for single-strand hardwire with 0.08mm to 2.5mm2 area or soft wire with 0.08mm to 4.0mm2 area (or AWG28 to AWG12). This CH-812 SPL-2 Pole Wire Connector can tolerate a rated voltage of up to 400V with an electric current peak of 32A, resulting in a maximum of 7KW Power.

Specifications:

  • Model: CH-812
  • Rated Voltage: 250V/4KV
  • Rated Current: 32A
  • Body Material: Modified Nylon (PA66)
  • Contact Material: Stainless Steel
  • Rated Power: 7 KW
  • No. of Contact Points: 2
  • Allowed Wire Size: 28 ~ 12AWG
  • Operating Temperature Range: -20 to 85°C

Features:

  • Compact, Super easy, Reliable, and Reusable.
  • High-grade Insulative Nylon Material
  • Strong Spring Locking Lever
  • Nickel Plated Metal Point Inside
  • Good Temperature Resistance
  • Compact Splicing Connector
  • Max. Continuous Service Temperature 85C

Package Included:

1 x CH-812 SPL-2 Pole Wire Connector CH-812 0.08-2.5mm SPL-2 Pole Wire Connector with Spring Lock Lever for 2 Wire line Connection
