Description:

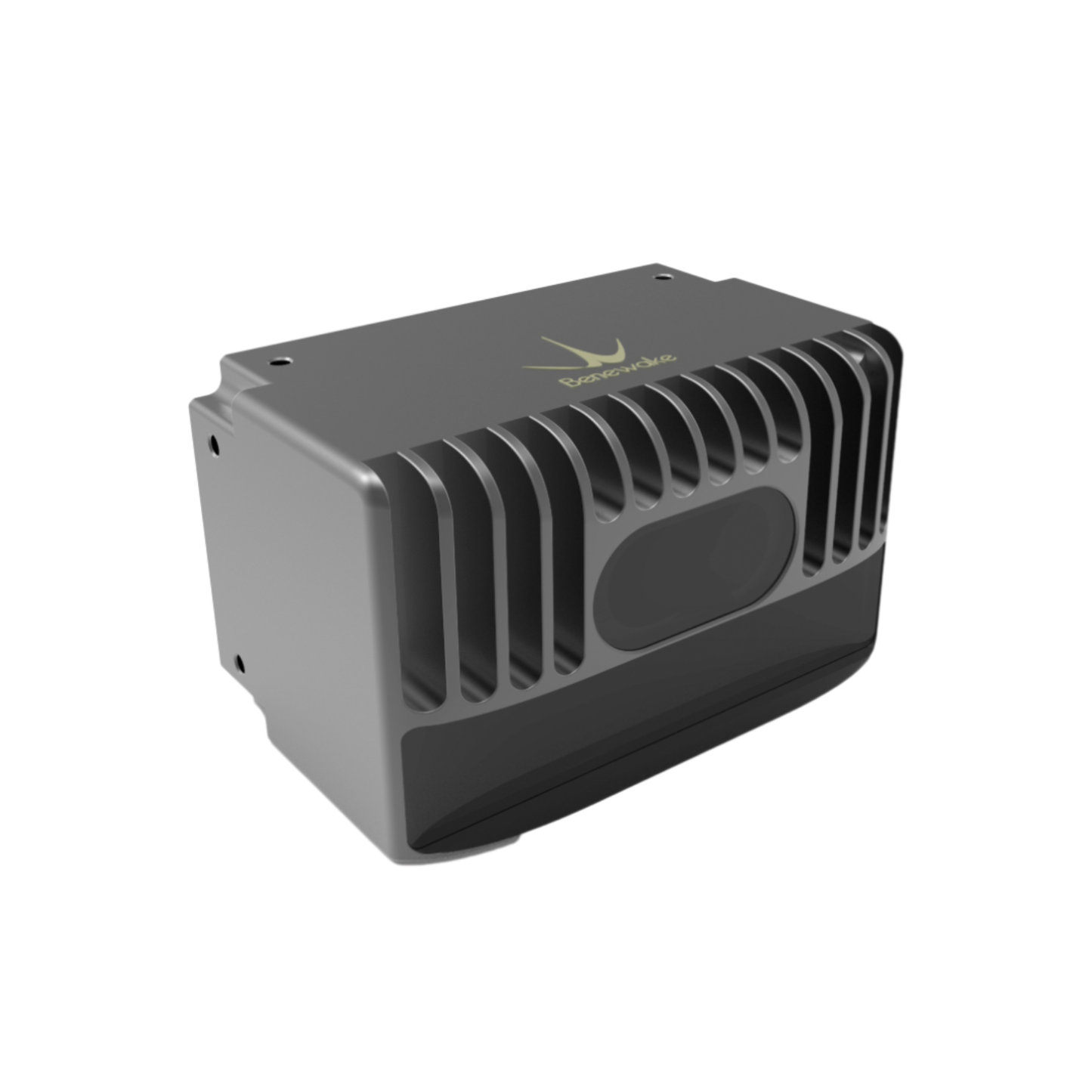

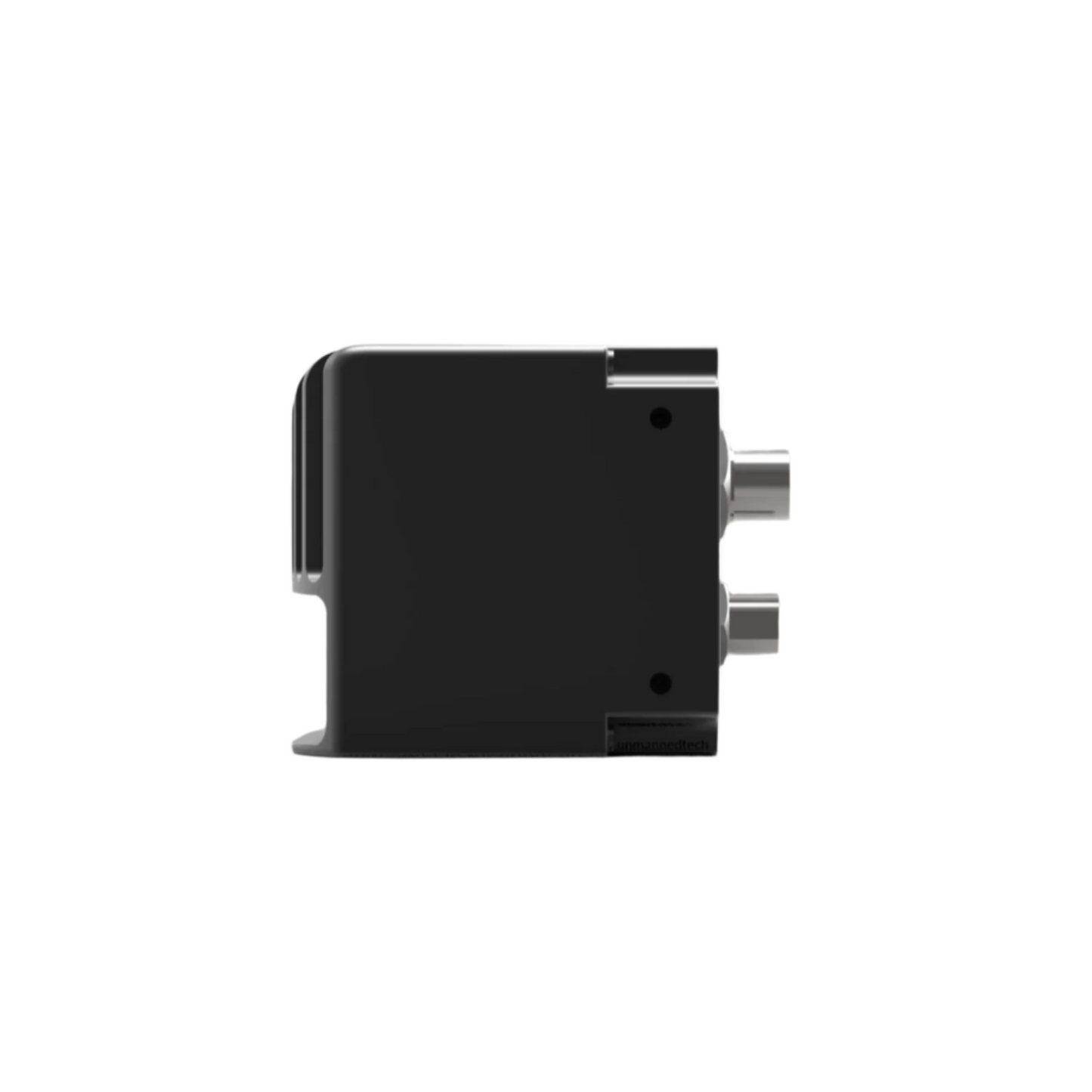

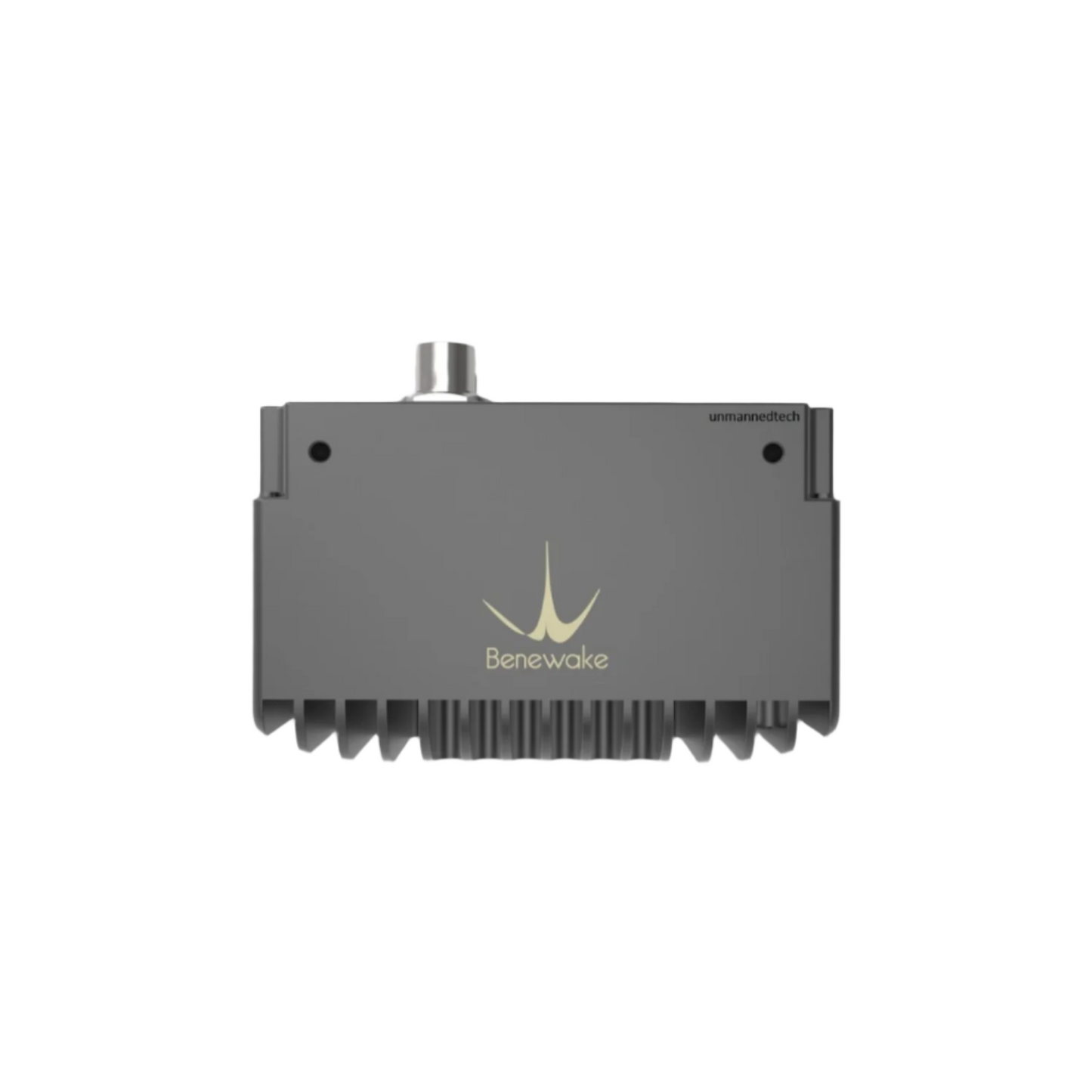

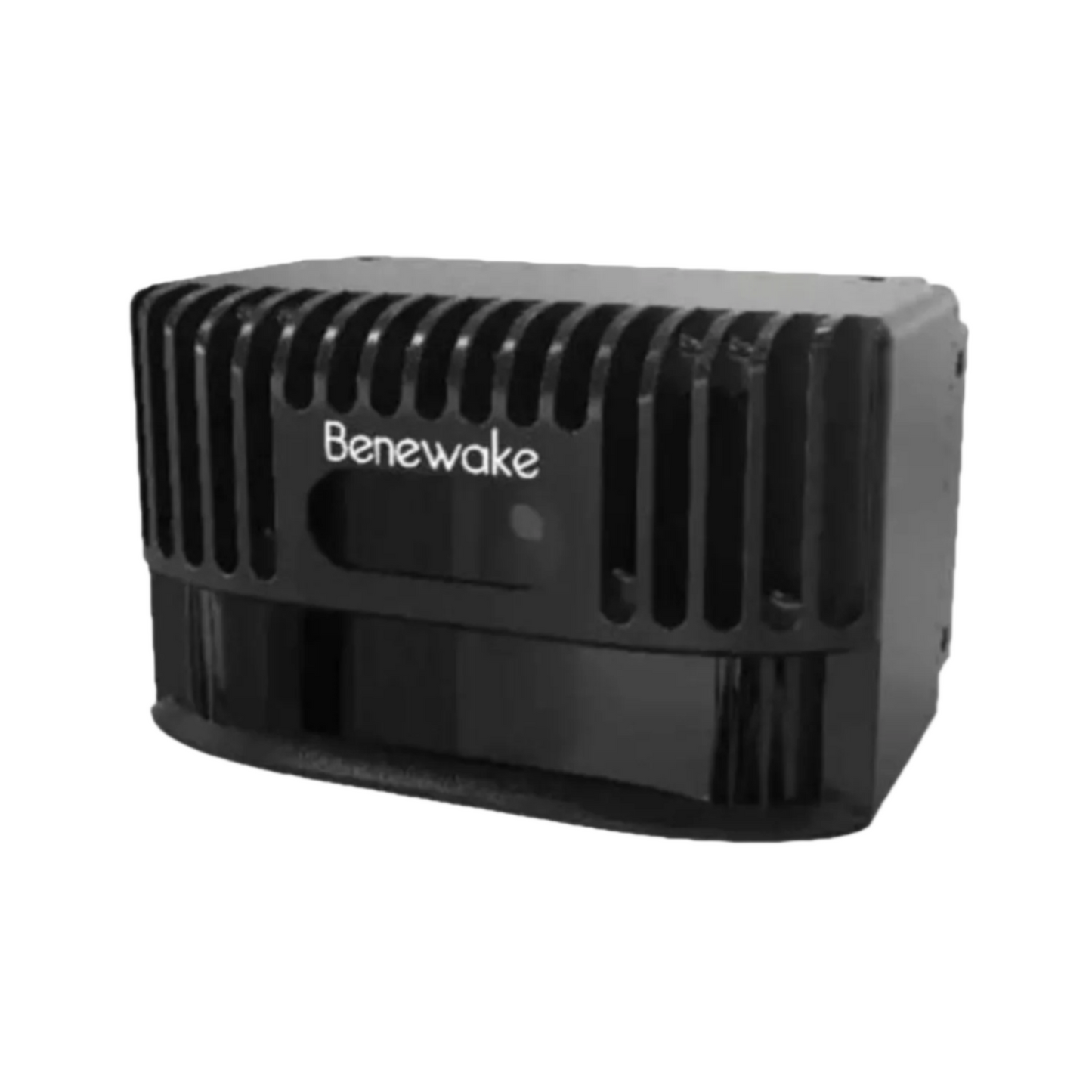

The CE30-A Solid State 3D LiDAR is an advanced infrared sensor designed using the Time-of-Flight (ToF) principle. It features a solid-state architecture that delivers both wide horizontal and vertical field-of-view (FOV) measurements without the need for moving parts. With an impressive 132° horizontal FOV and 9° vertical FOV, it can simultaneously output both grey scale and depth data, making it ideal for various applications requiring precise and reliable distance measurements.
This LiDAR is designed to operate with no rotating components, ensuring greater reliability and longer lifespan compared to traditional mechanical LiDARs, which are susceptible to wear and tear from their moving parts. It excels in obstacle detection with its optimized obstacle avoidance mode, allowing users to define a region of interest (ROI) for more focused and efficient detection, which helps ensure safe and uninterrupted operations.
The CE30-A is particularly useful for applications like Automated Guided Vehicles (AGVs), autonomous vehicles, and industrial automation systems. Its ability to provide real-time depth and grey information, alongside its robust and stable performance in dynamic environments, makes it an essential tool for autonomous navigation and smart transportation systems.
Specifications:
- Model: CE30-A
- Model Type: LiDAR Sensor
- Input Supply Voltage (VDC): 12V
- Power Consumption (W): ≤4.5
- Communication Protocol: CAN/TCP
- Detecting Range: 0.1~4m
- Lense Viewing Angle (FOV): 132° x 9°
- Resolution (pixels): 320 x 24
- Protection Standard: IP65
- Ranging Resolution (cm): 1
- Repeatability: ≤3cm
- Accuracy: ≤5cm
Features:
- Area array detecting.
- Complete Solid-state LiDAR.
- Solid-state system. (no rotating components)
- Can detect lower obstacles.(perfect for AGV or UAV applications)
Applications:
- People Counting.
- Short Distance Trigger.
- Robot Obstacle Avoidance.
- Wheel Ahead Detection / Alert.
- AGV Navigation Positioning.
- Gesture Control and Human-Machine Interface.
- Real Application Video for Smart Warehouse AGV Obstacle Avoidance.
Package Included:
1 x CE30-A LiDAR Sensor.
1 x Power supply cable.
1x CAN BUS Connector.
