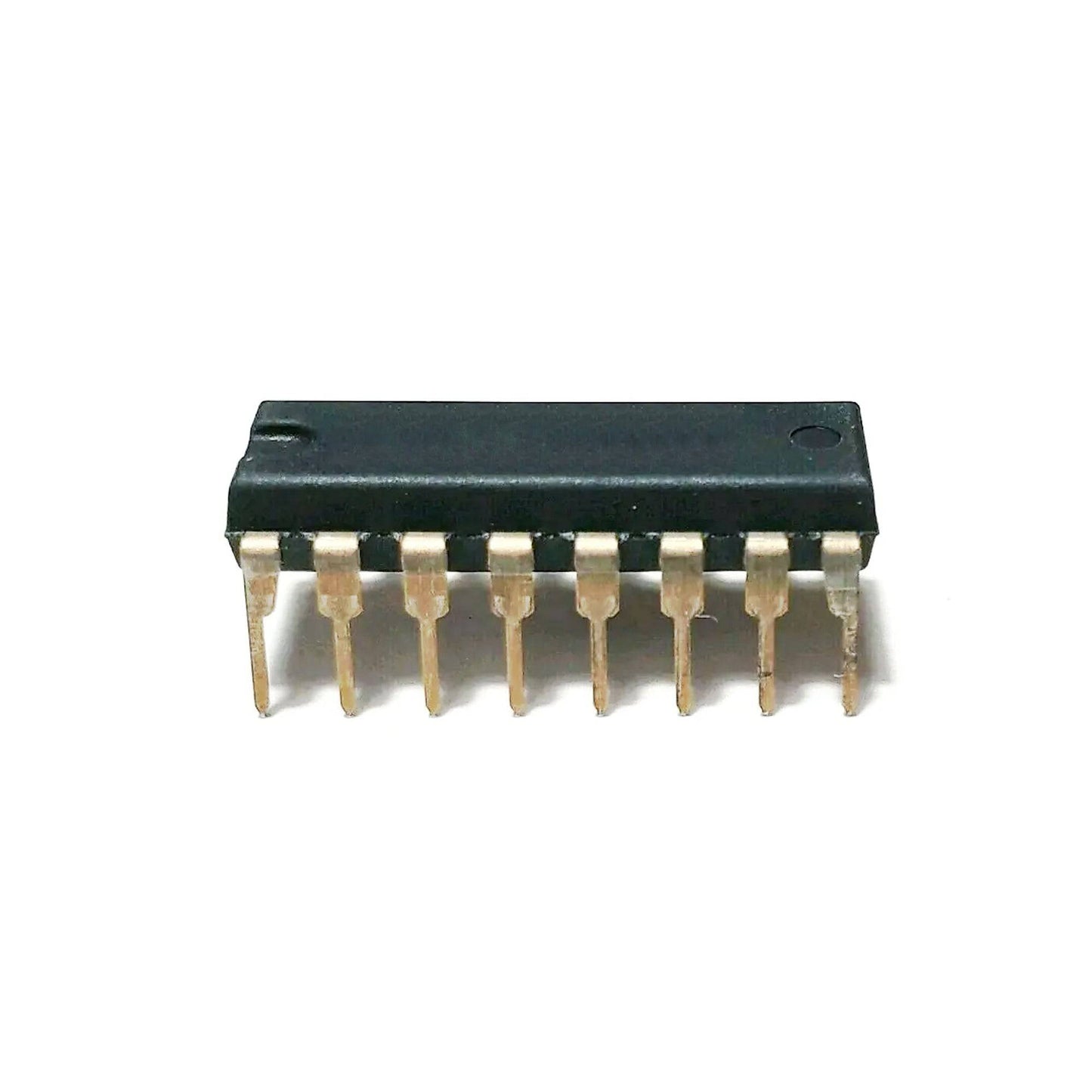

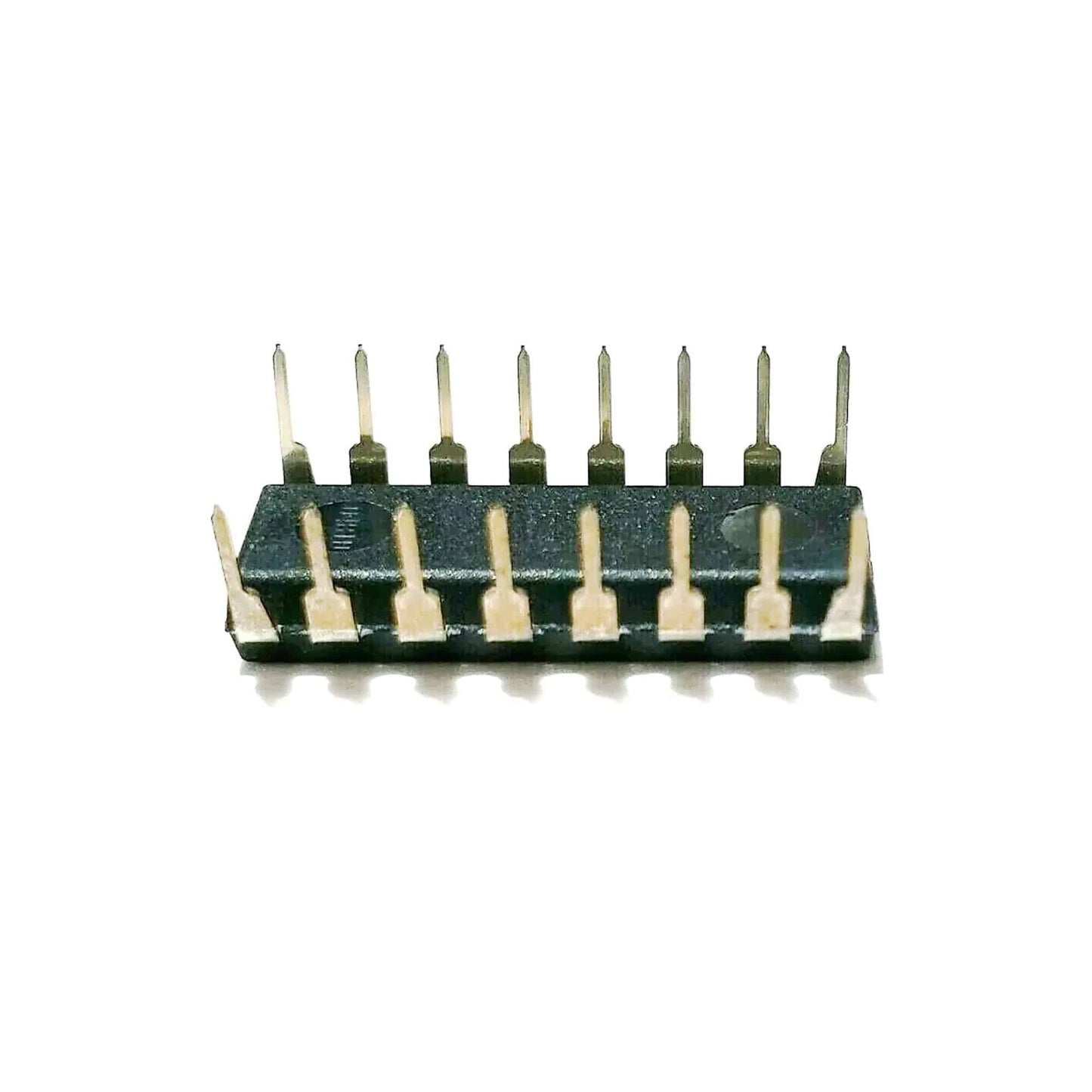

CD4504 IC Hex Voltage Level Shifter IC DIP-16 Package - RS5567

CD4504 IC Hex Voltage Level Shifter IC DIP-16 Package - RS5567

RS5567

54 in stock

Rs. 20.00
Rs. 20.00
Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

If you order a product that is currently in Preorder, and the price of that item increases in the future, you will be required to pay the difference in price.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)

The REES52 Promise

We want you to build, not worry. Here is exactly what happens if something goes wrong with your order.

Dead on arrival or defective? We replace it.

If your item is dead on arrival or has a manufacturing defect, tell us within 7 days of delivery. Email support@rees52.com with your order number and a short video or a couple of photos showing the problem. Our team will get back to you within 24 hours and arrange a free pickup from your doorstep - you never pay return shipping for a defective item. Once we verify the issue, your replacement ships out right away. If the item is out of stock, you get a full refund instead.

Refunds, with real timelines.

  • Approved refunds go back to your original payment method within 6-7 working days.
  • Missing item in your package? Tell us within 7 days with photos of what arrived and the parcel label. Once confirmed, the refund for the missing item reaches you in 2-3 working days - or we ship the missing piece free, your choice.
  • Every refund comes with a reference number by email or WhatsApp, so you can track it with your bank instead of chasing us.

Wrong item or not as described?

Email us your order number and a photo of what you received. We arrange the return pickup, and ship the correct item as soon as the return is on its way. Prefer your money back instead? That is fine too - full refund, same 6-7 working day timeline.

About lead times on some products.

A few items on rees52.com are sourced from our overseas partner warehouses and are not sitting on our shelf. Those products show a lead time of about 20-25 working days on the product page, before you pay. If you order one, we keep you posted as it moves. Changed your mind while waiting? You can cancel any time before dispatch and get a full refund within 6-7 working days. No cancellation fee, no questions.

Talk to a human.

Email support@rees52.com or call/WhatsApp +91 95995 94520, Monday to Saturday, 10:30 AM to 7:00 PM. Real people, order number in hand, actual answers.

View full details

Description:

CD4504 IC consists of six circuits which shift input signals from the VCC logic level to the VDD logic level. To shift TTL signals to CMOS logic levels, the SELECT input is at the VCC HIGH logic state. When the SELECT input is at a LOW logic state, each circuit translates signals from one CMOS level to another.

Specifications:

  • Part number: CD4504
  • Bits (#): 6
  • Voltage (Nom) (V): 5
  • IOL (Max) (mA): 6.8
  • IOH (Max) (mA): -6.8
  • tpd @ nom Voltage (Max) (ns): 2.9
  • F @ nom voltage (Max) (MHz): 50
  • ICC @ nom voltage (Max) (mA): 0.001

Features:

  • CD4504 IC has up and down level-shifting capability
  • Shiftable input threshold for either CMOS or TTL compatibility
  • Standardized symmetrical output characteristics
  • 5V, 10 V, and 15 V parametric ratings
  • Independence of power-supply sequence considerations - VCC can exceed VDD; input signals can exceed both VCC and VDD
  • Maximum input current of 1 µA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C
  • CD4504 IC meets all requirements of JEDEC Standard No. 13B, "Standard Specifications for Description of ’B’ Series CMOS Devices"

Package Included:

1 x CD4504 IC Hex Voltage Level Shifter IC DIP-16 Package
