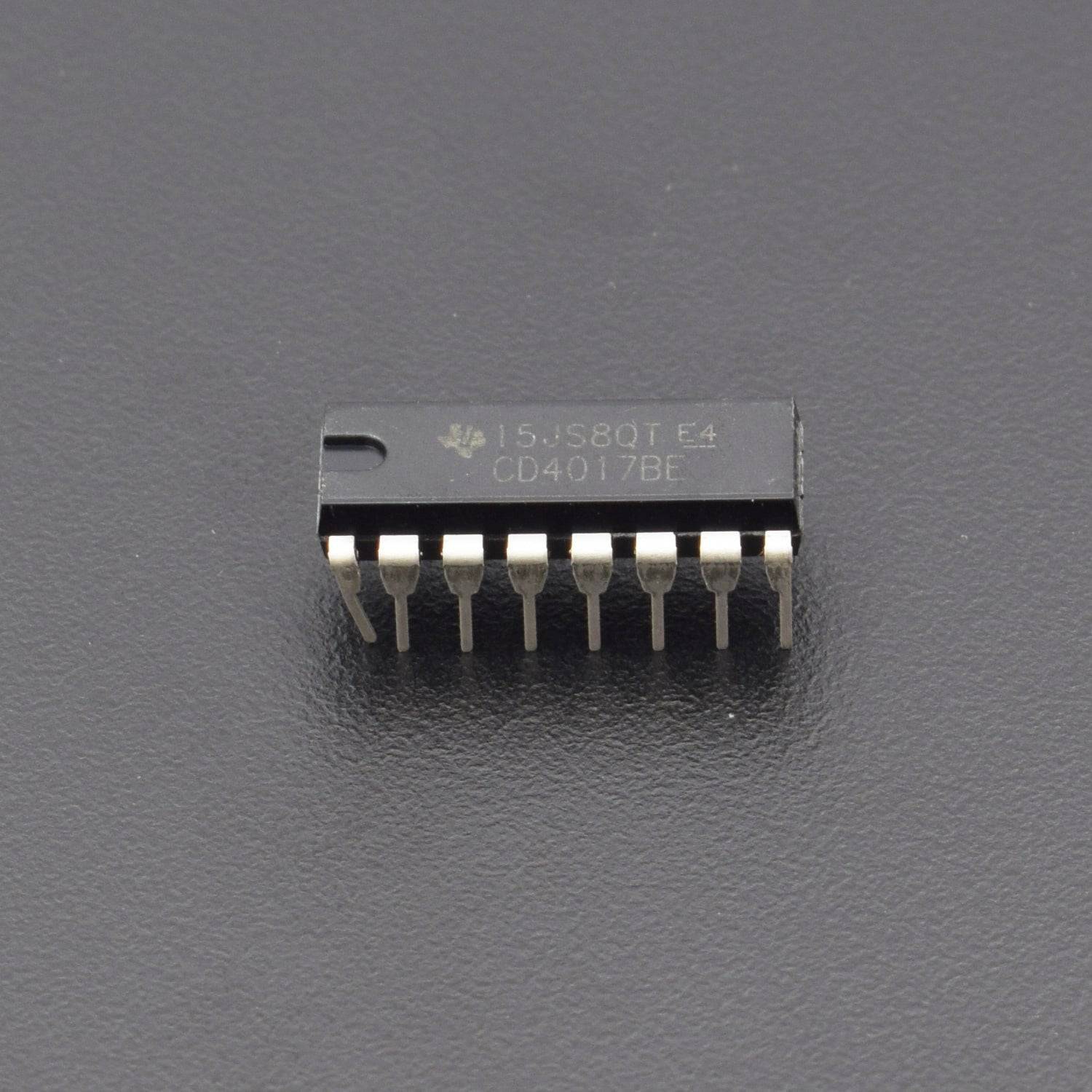

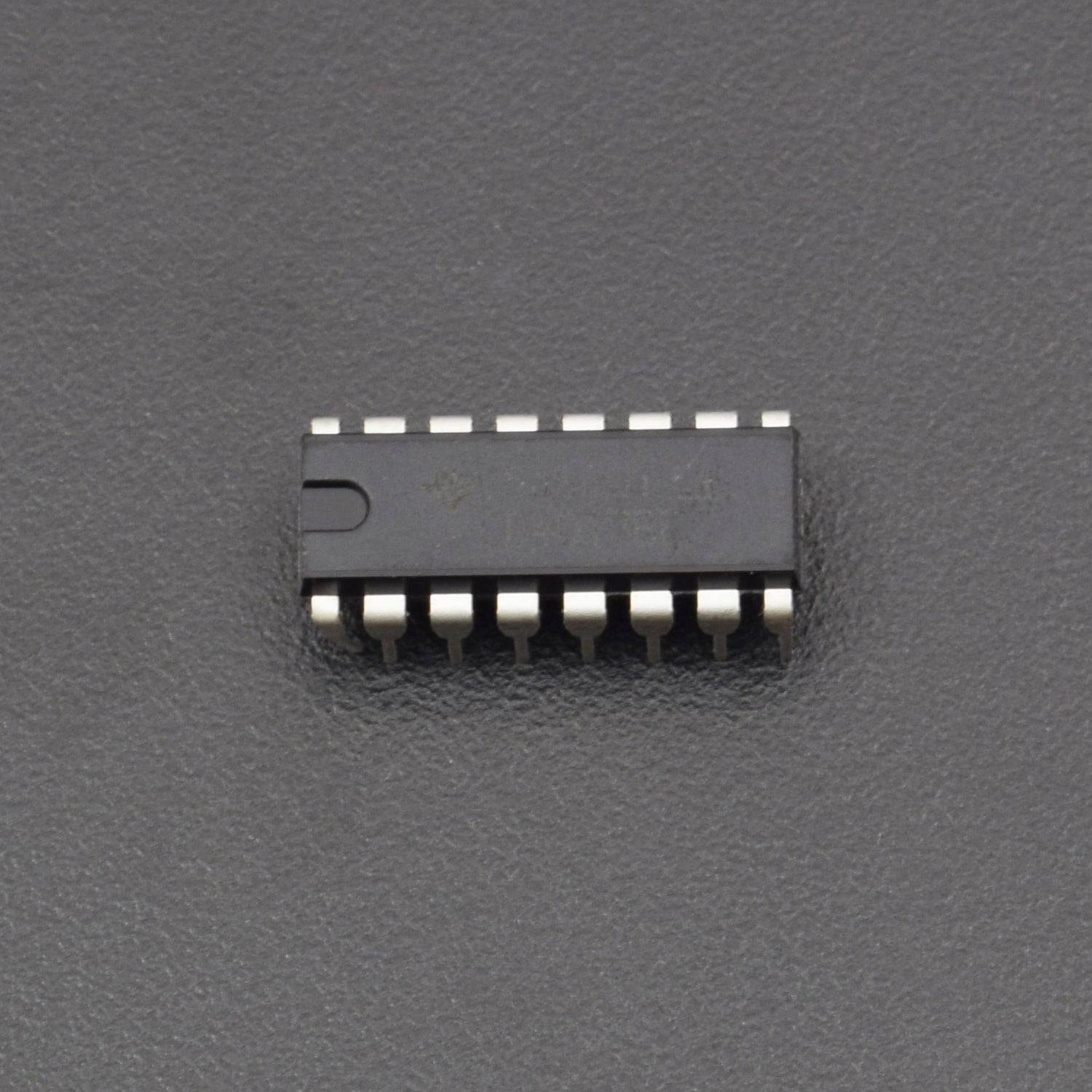

CD4017 CMOS Decade Counter with 10 Decoded Outputs DIP16 Package Best Suitable for Led Sequence Generator - RS534

CD4017 CMOS Decade Counter with 10 Decoded Outputs DIP16 Package Best Suitable for Led Sequence Generator - RS534

SKU:RS534

96 in stock

Regular price Rs. 10.00
Regular price Sale price Rs. 10.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

  • Fast Shipping
  • Affordable Price
  • Support
View full details
  • Package Content: 1 PCD of CD4017 IC
  • Medium speed operation 10 MHz (typ.) at VDD = 10 V
  • 100% tested for quiescent current at 20 V
  • 5-V, 10-V, and 15-V parametric ratings
  • It is compatible with TTL (Transistor -Transistor Logic).

The 4017 is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP. The HCF4017B is 5-stage Johnson counter having 10 decoded outputs. Inputs include a CLOCK, a RESET, and a CLOCK INHIBIT signal. Schmitt trigger action in the clock input circuit provides pulse shaping that allows unlimited clock input pulse rise and fall times. This counter is advanced one count at the positive clock signal transition if the CLOCK INHIBIT signal is low. Counter advanced via the clock line is inhibited when the CLOCK INHIBIT signal is high. A high RESET signal clears the counter to its zero count. Use of the Johnson decade-counter configuration permits high speed operation, 2-input decimal decode gating and spike-free decoded outputs. Anti-lock gating is provided, thus assuring proper counting sequence. The decoded outputs are normally low and go high only at their respective decoded time slot. Each decoded output remains high for one full clock cycle. A CARRY - OUT signal completes one cycle every 10 clock input cycles and is used to ripple-clock the succeeding device in a multi-device counting chain.

Features-

  • Fully static operation
  • Medium speed operation 10 MHz (typ.) at VDD = 10 V
  • Standardized, symmetrical output characteristics
  • 100% tested for quiescent current at 20 V
  • 5-V, 10-V, and 15-V parametric ratings
  • It is compatible with TTL (Transistor -Transistor Logic).

Note:Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
