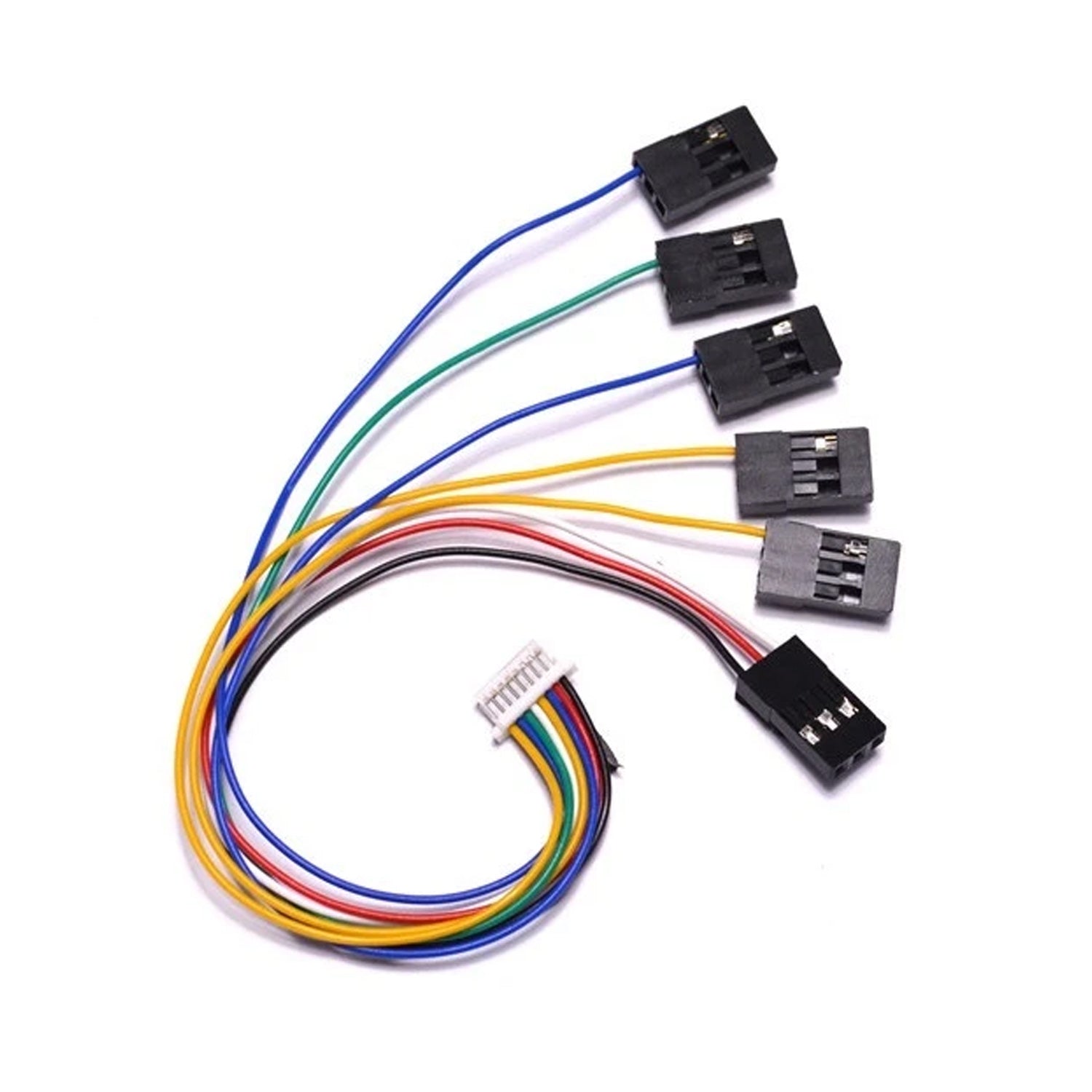

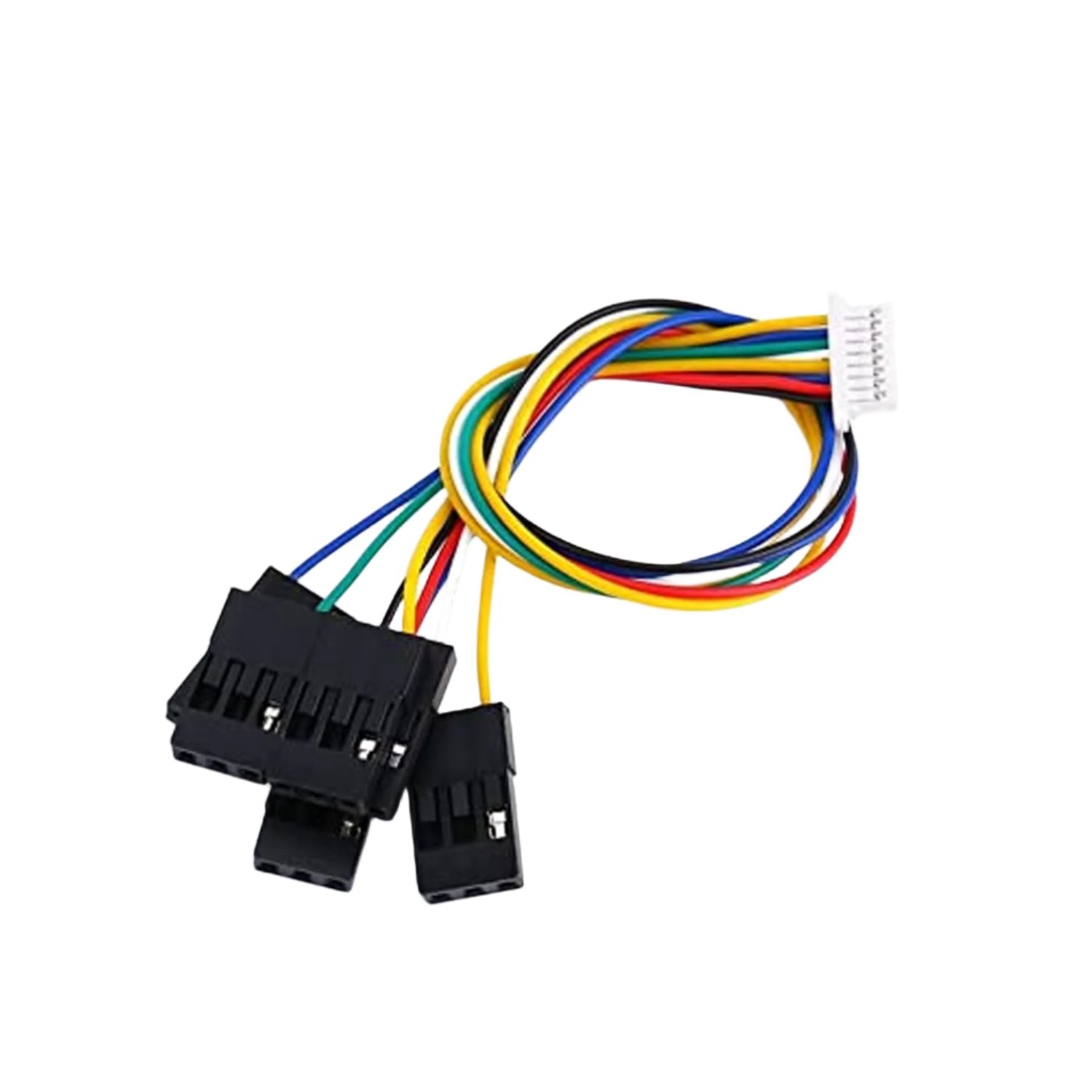

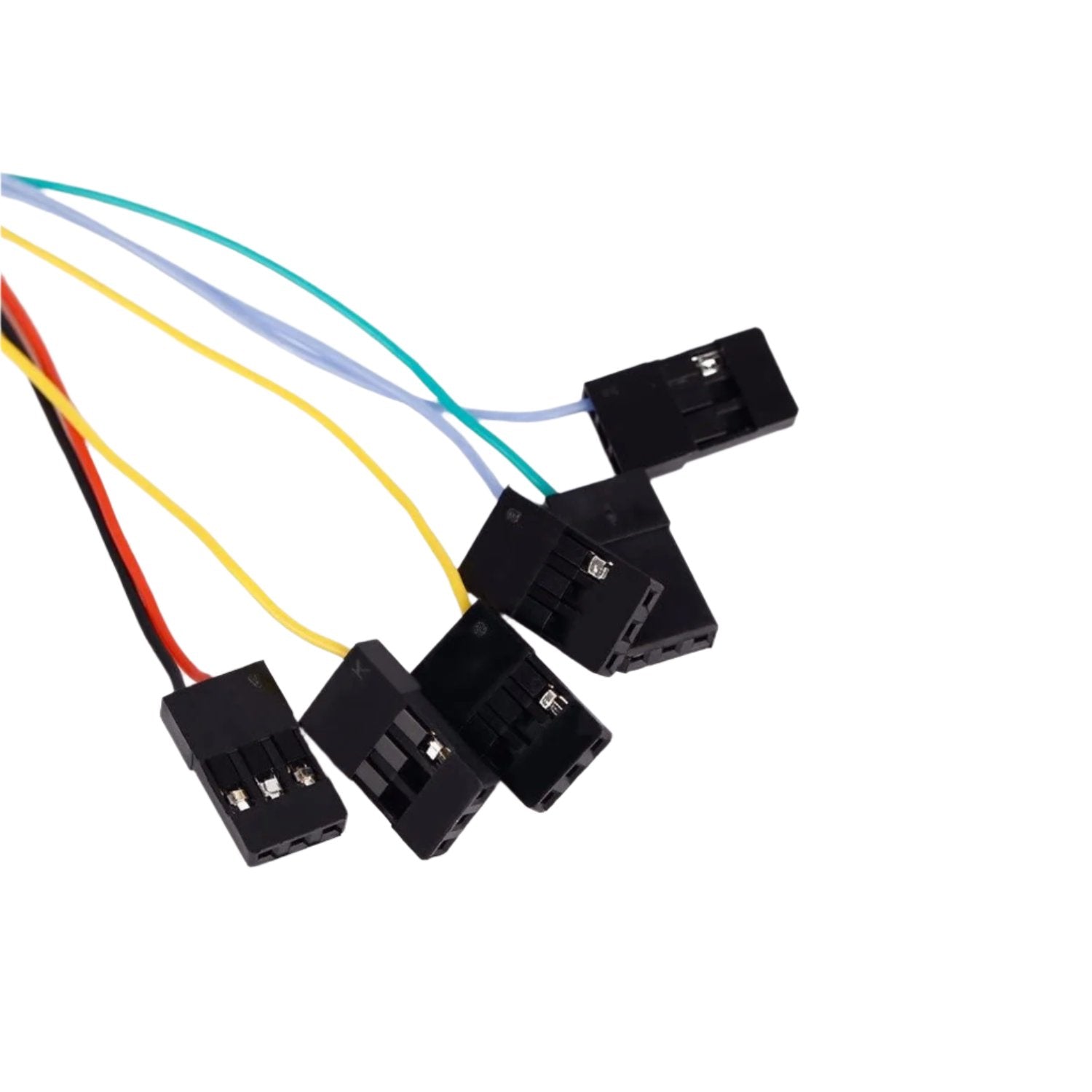

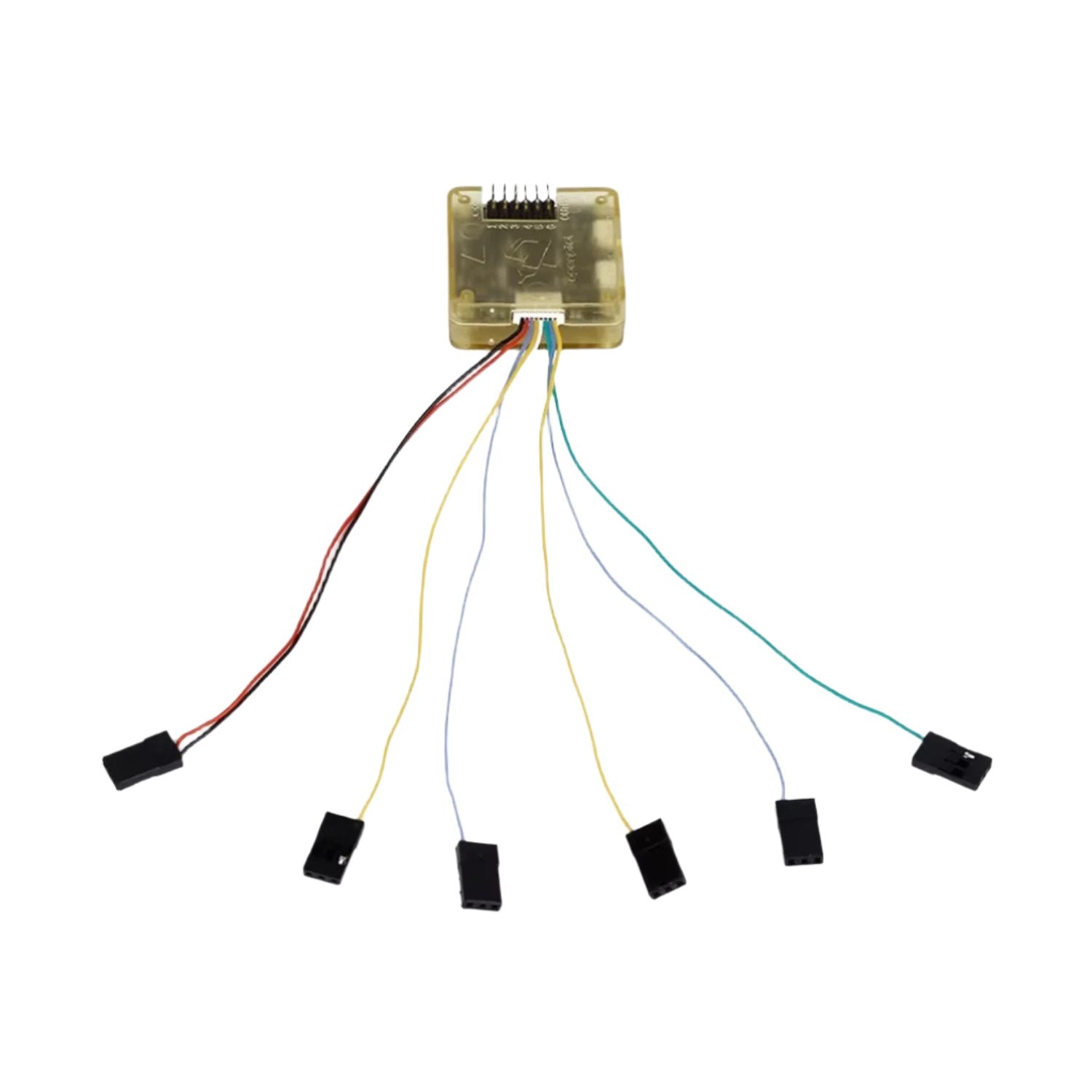

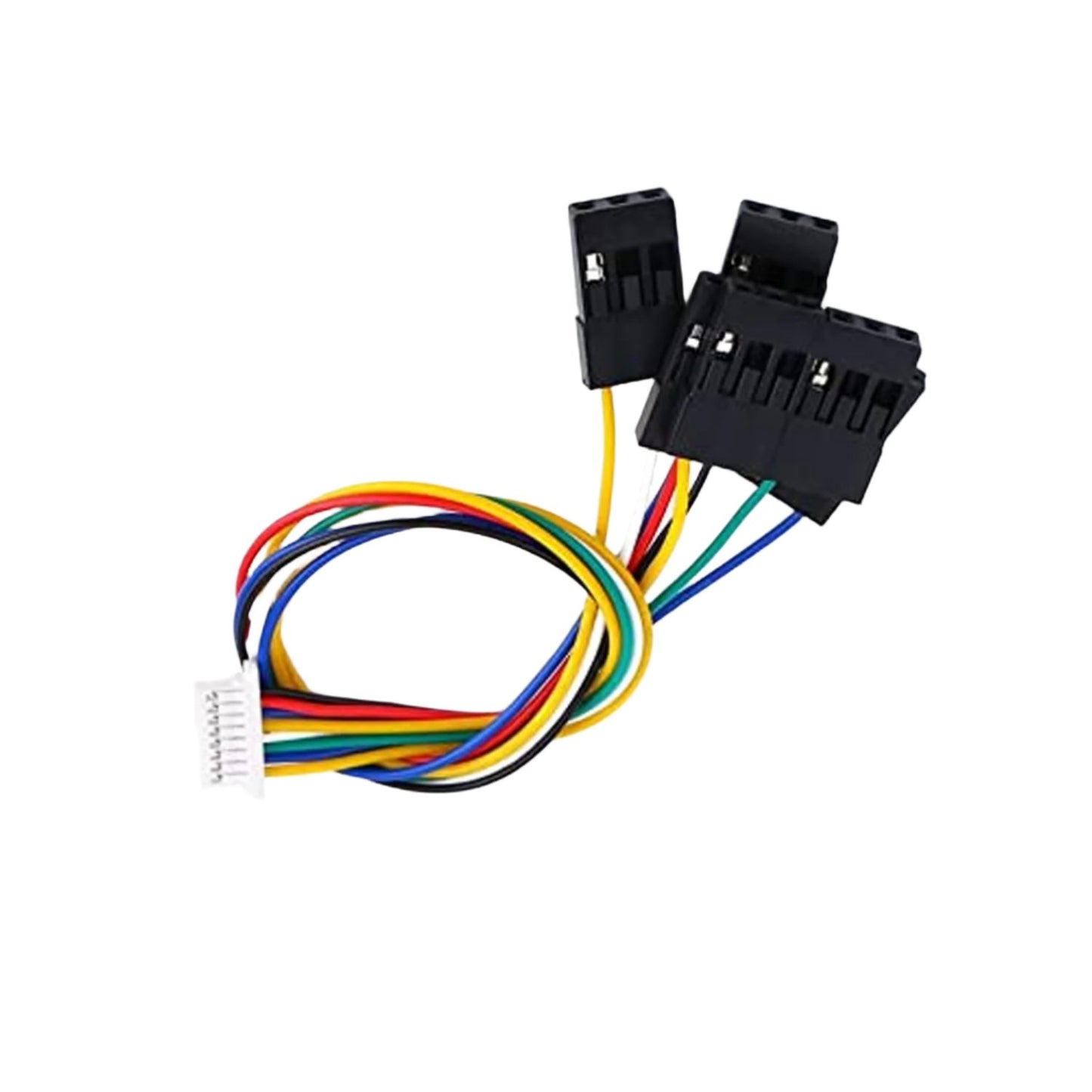

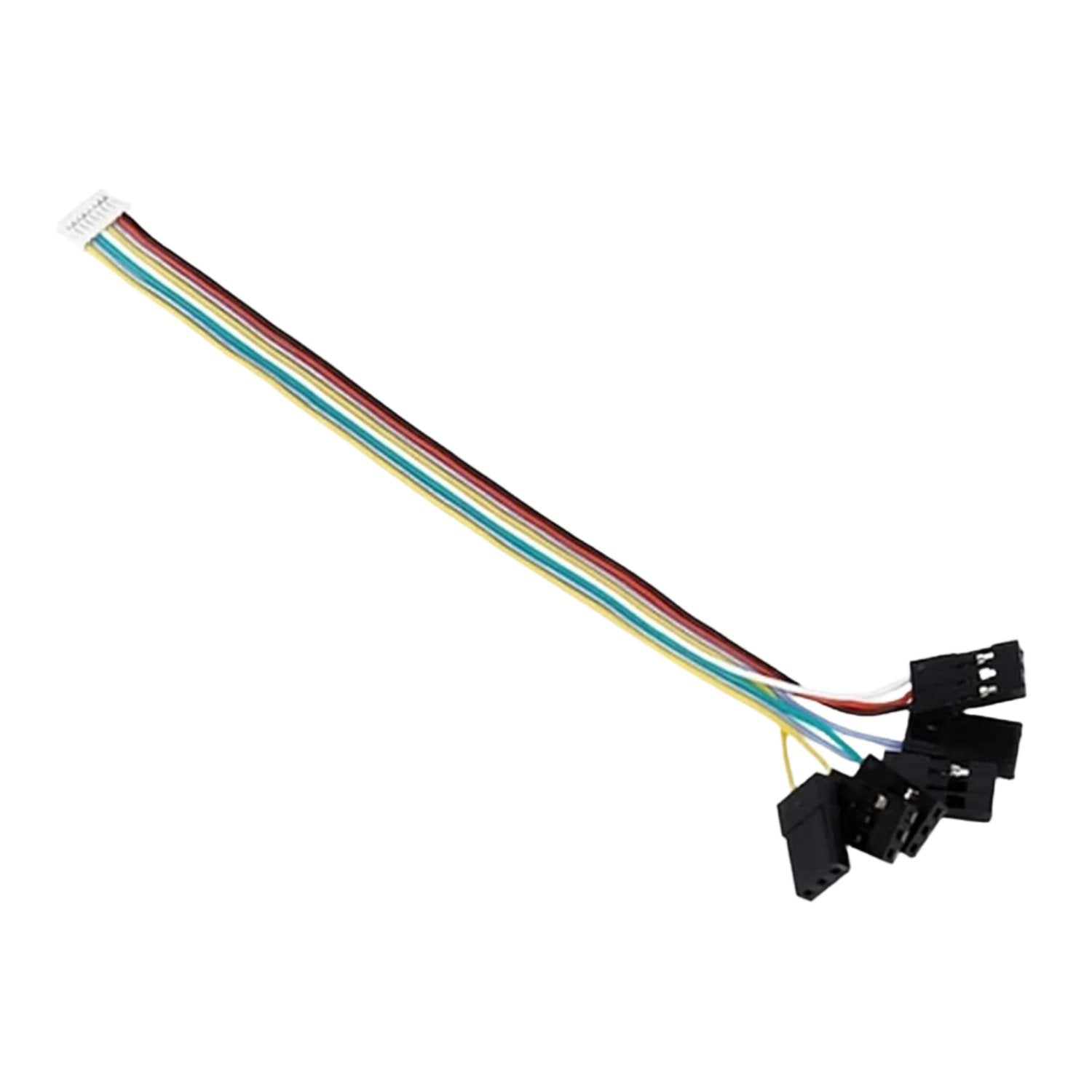

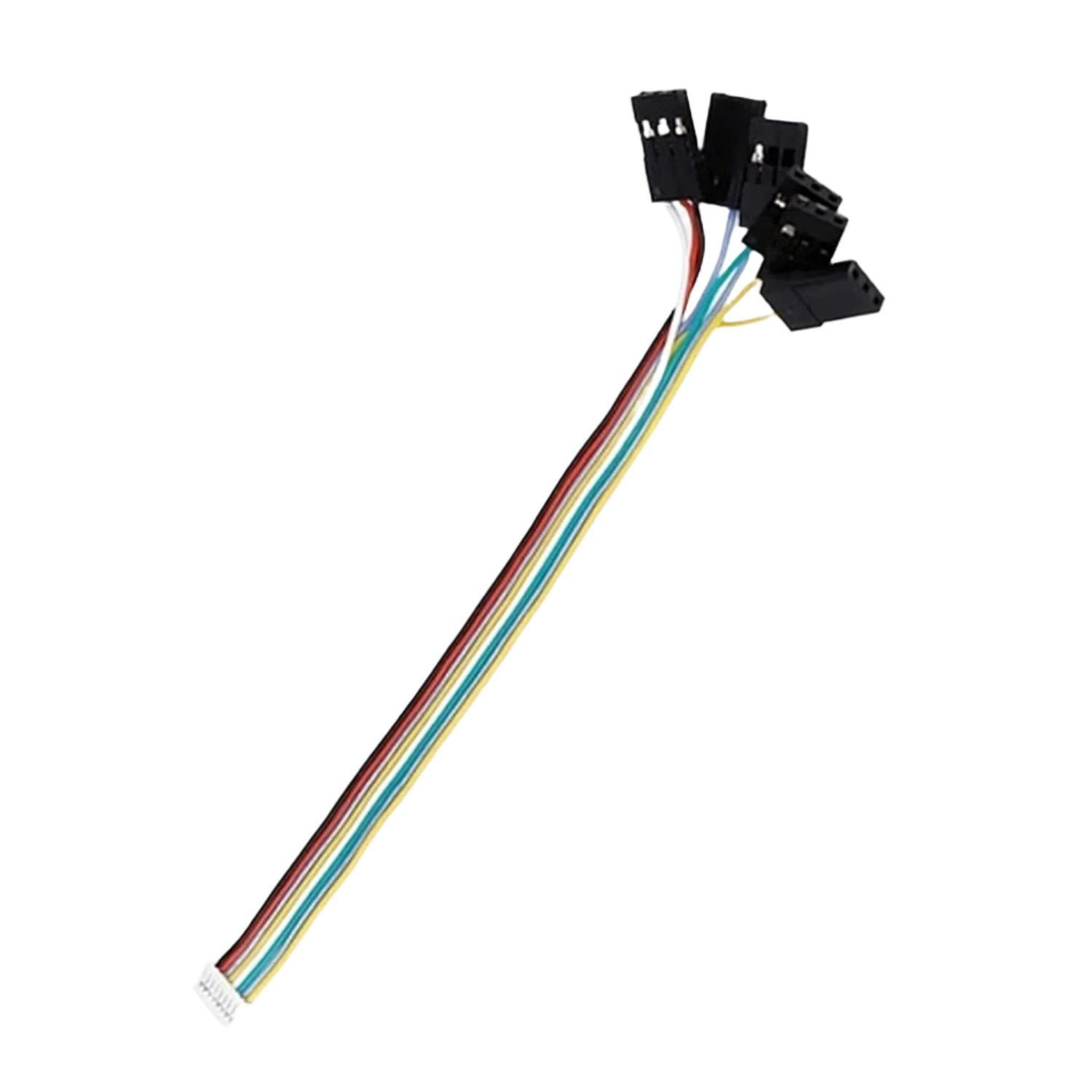

CC3D Flight Controller Receiver Cable CC3D Receiver Cable PPM/PWM Receiver Cable Flight Control Module Receiver Connection Cable - RS7299

CC3D Flight Controller Receiver Cable CC3D Receiver Cable PPM/PWM Receiver Cable Flight Control Module Receiver Connection Cable - RS7299

SKU:RS7299

In stock

Regular price Rs. 113.00
Regular price Sale price Rs. 113.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94524 For bulk and B2B enquiries kindly mail us at support@rees52.com

View full details

Description:

This six-in-one CC3D Flight Controller Receiver Cable is compatible with the MINI, regular, and CC3D EVO models. 6 in 1 CC3D Cable Set, 1 piece. The Colour Function Connector plug for JST-SH Pin servo. White PWM output or signal 3 in yellow.

Specifications:

  • Material: super soft silicone.
  • Color Function JST-SH Pin Servo connector plug.
  • 4 3.3V(5V Tolerant) RX SDA TX (signal).

Cable color denotations:

  1. Black Ground 1 1.
  2. Red Power to RC RX-(VCC Unregulated) 4.8V-15V 2 1.
  3. White PWM signal 1 or combined PPM 3 1.
  4. Blue PWM signal 2 4 2.
  5. Yellow PWM signal 3 or PWM output channel 7 5 3.
  6. Green PWM signal 4 or PWM output channel 8 6 4.
  7. Orange PWM signal 5 or PWM output channel 9 7 5.
  8. Purple PWM signal 6 or PWM output channel 10 8 6.
  9. Black 1 GND GND GND GND.
  10. Red 2 4.8V-15V PWR out (VCC unregulated) PWR out (VCC unregulated) PWR out (unregulated star).Blue 3 3.3V TX SCL.

Package Included:

1 x CC3D Flight Controller Receiver Cable CC3D Receiver Cable PPM/PWM Receiver Cable Flight Control Module Receiver Connection Cable
