Description:

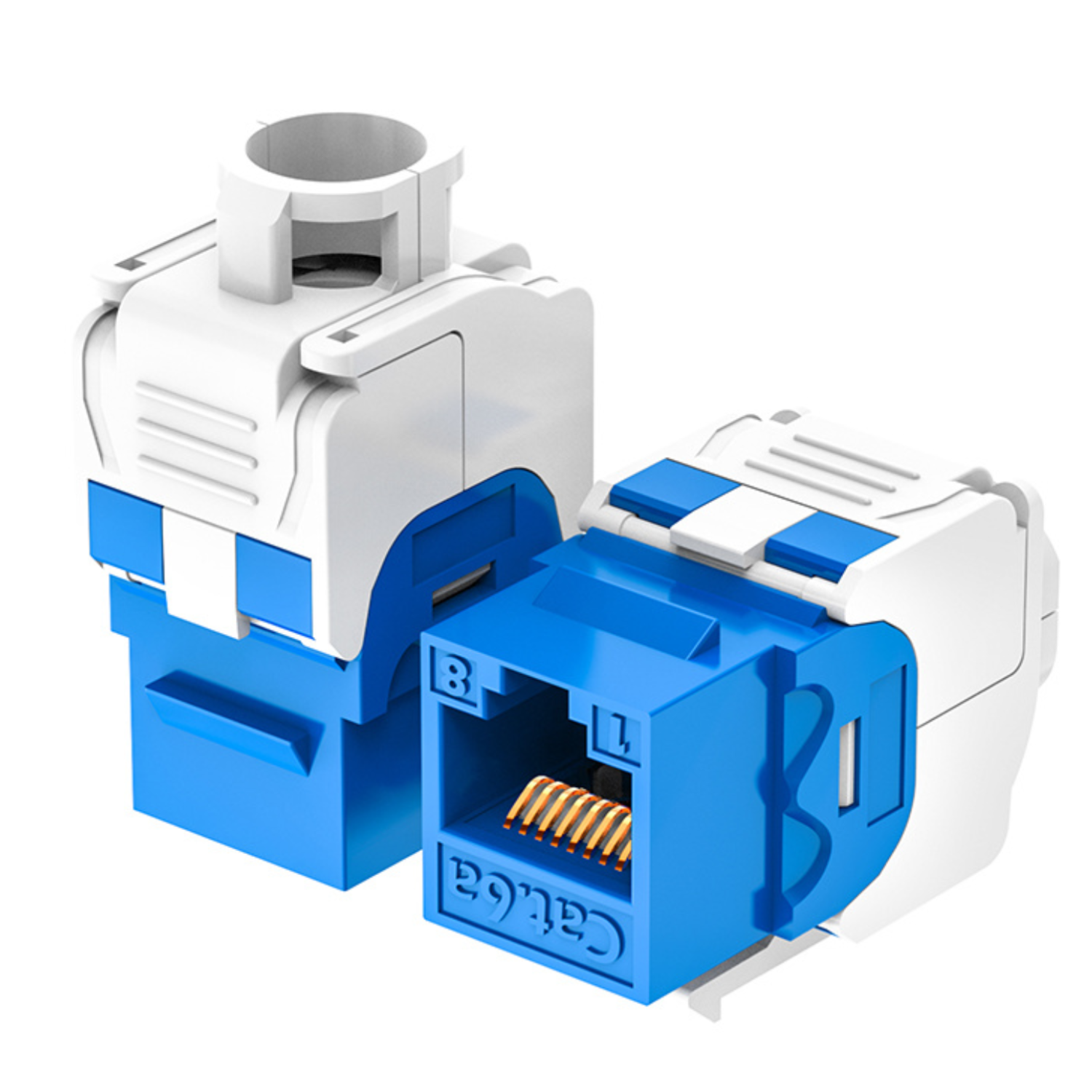

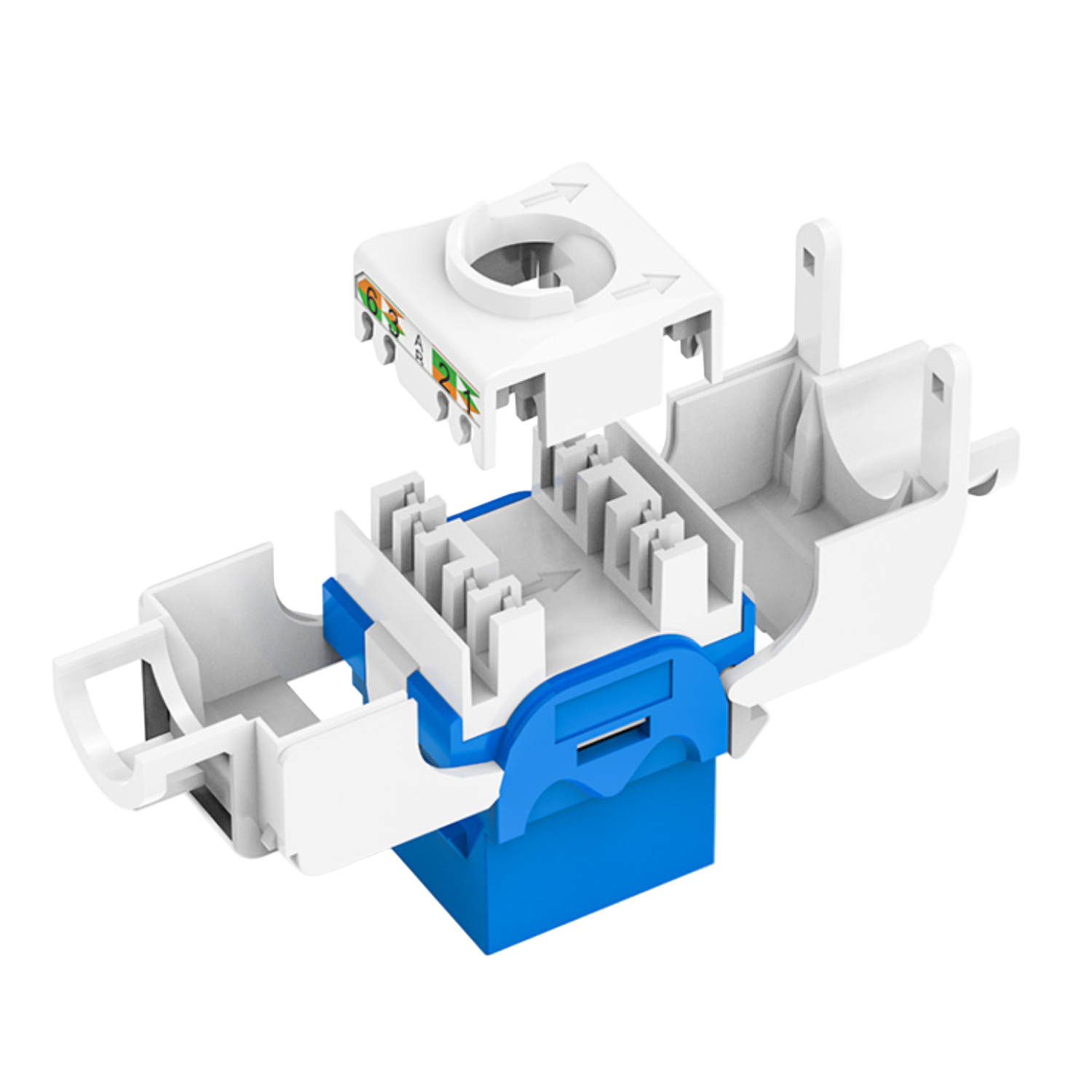

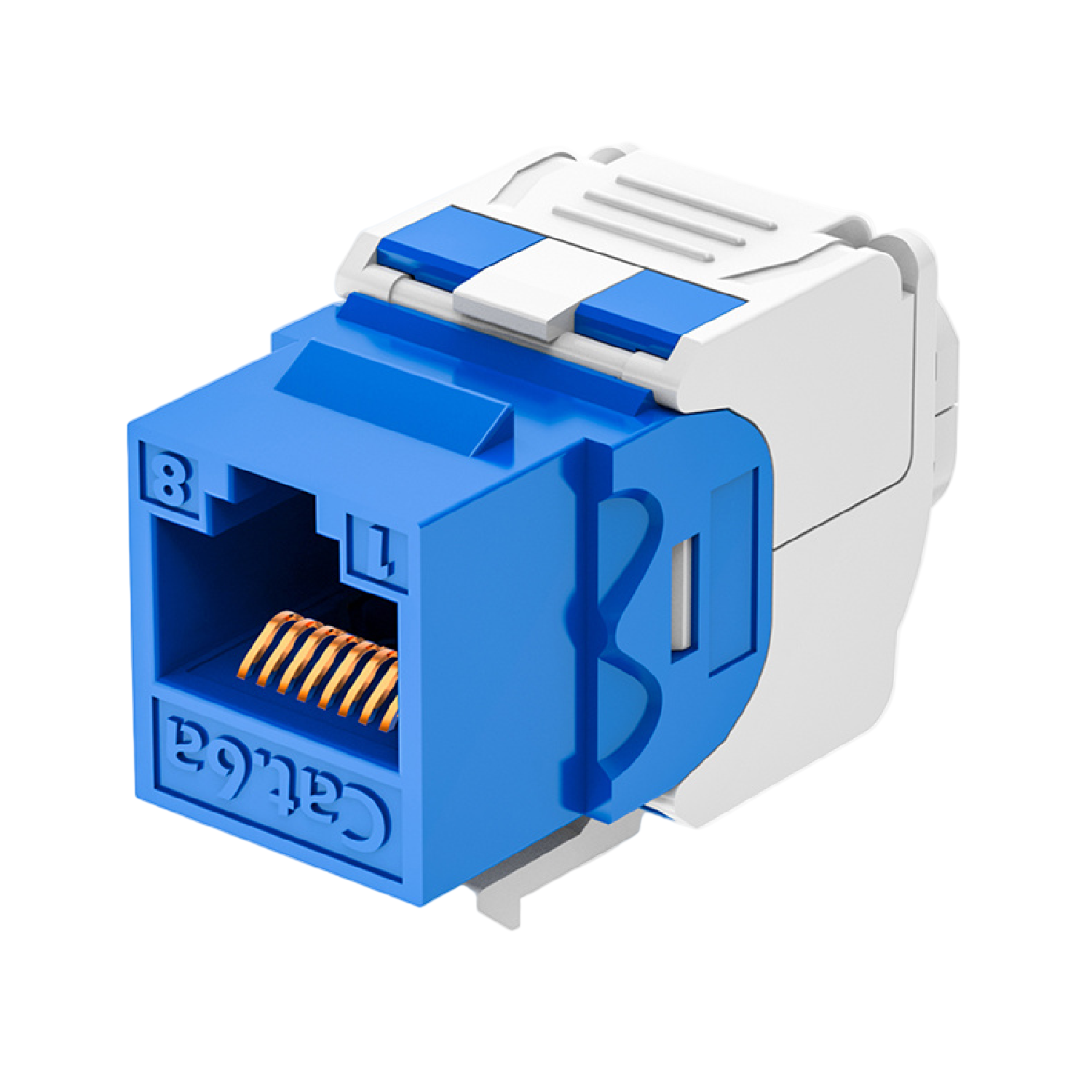

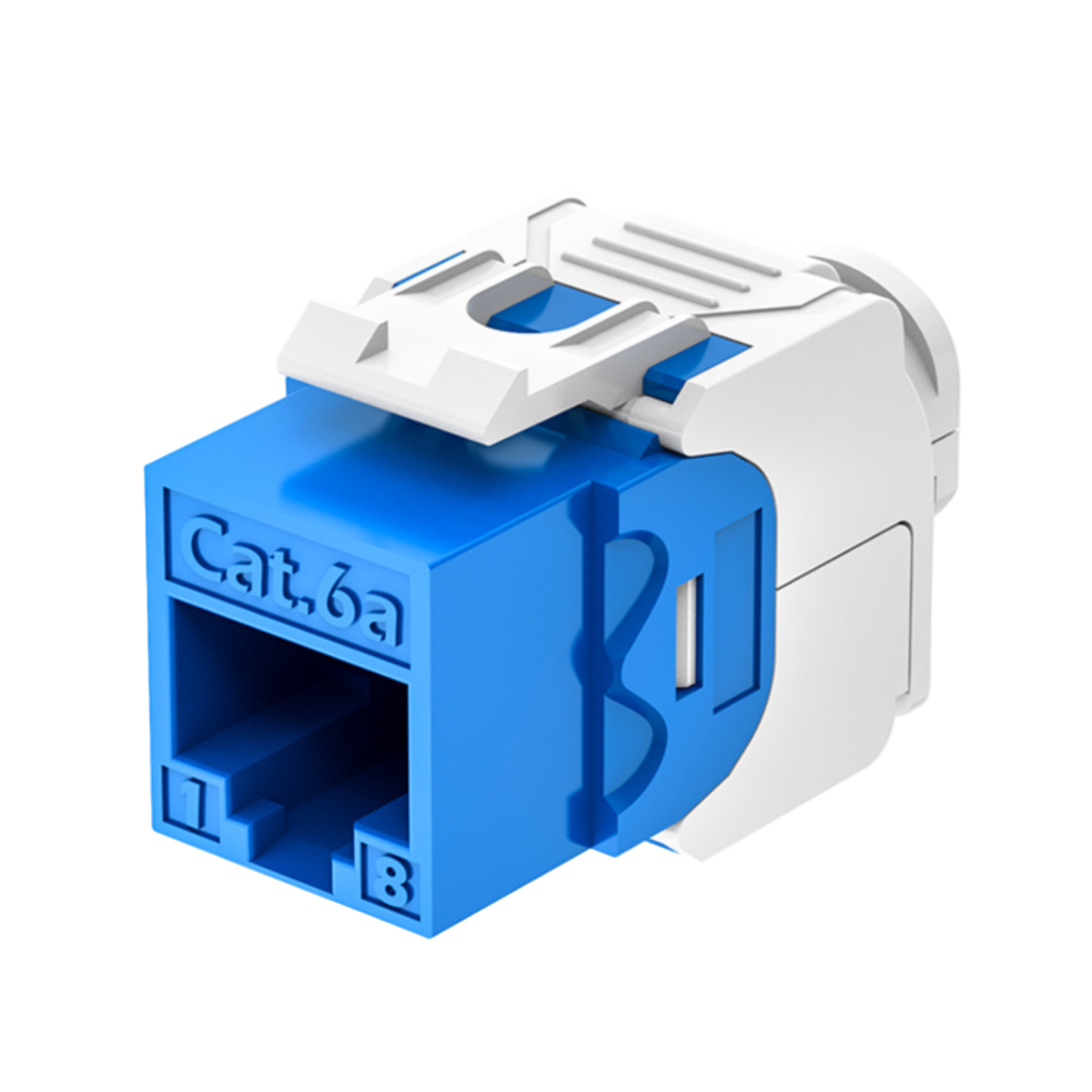

The 180° Cat6 UTP Toolless Keystone Jack RJ45 Ethernet Connector is designed for fast, secure, and hassle-free network installations. Its tool-free design allows easy termination without any specialized tools, saving time and effort during setup. Ideal for structured cabling, patch panels, and LAN networks, this keystone jack supports high-speed data transfer and reliable connectivity. The compact 180° design ensures space-saving installation in tight areas, making it perfect for both home and professional network environments. Durable and high-quality, it ensures stable performance and long-lasting network reliability.
Specifications:
- Model Number: HKJ-803M
- Color: White And Blue
- Usage: Data center, work area, management room, equipment room, etc.
- Nickel-plated phosphor bronze, gold-plated 3μ connector pins.
- IDC Clamp: Nickel-plated tin-plated phosphor bronze pins, suitable for 22-26awg cable.
- Insertion duration: ≥ 750 times
- Punch duration: ≥250 times
- Jack housing plastic parts: UL 94V-2
- Termination cap material UL94V-2
- Working Temperature: -25 ℃ ~ 60 ℃
Schematic:
Applications:
- Network
Package Included:

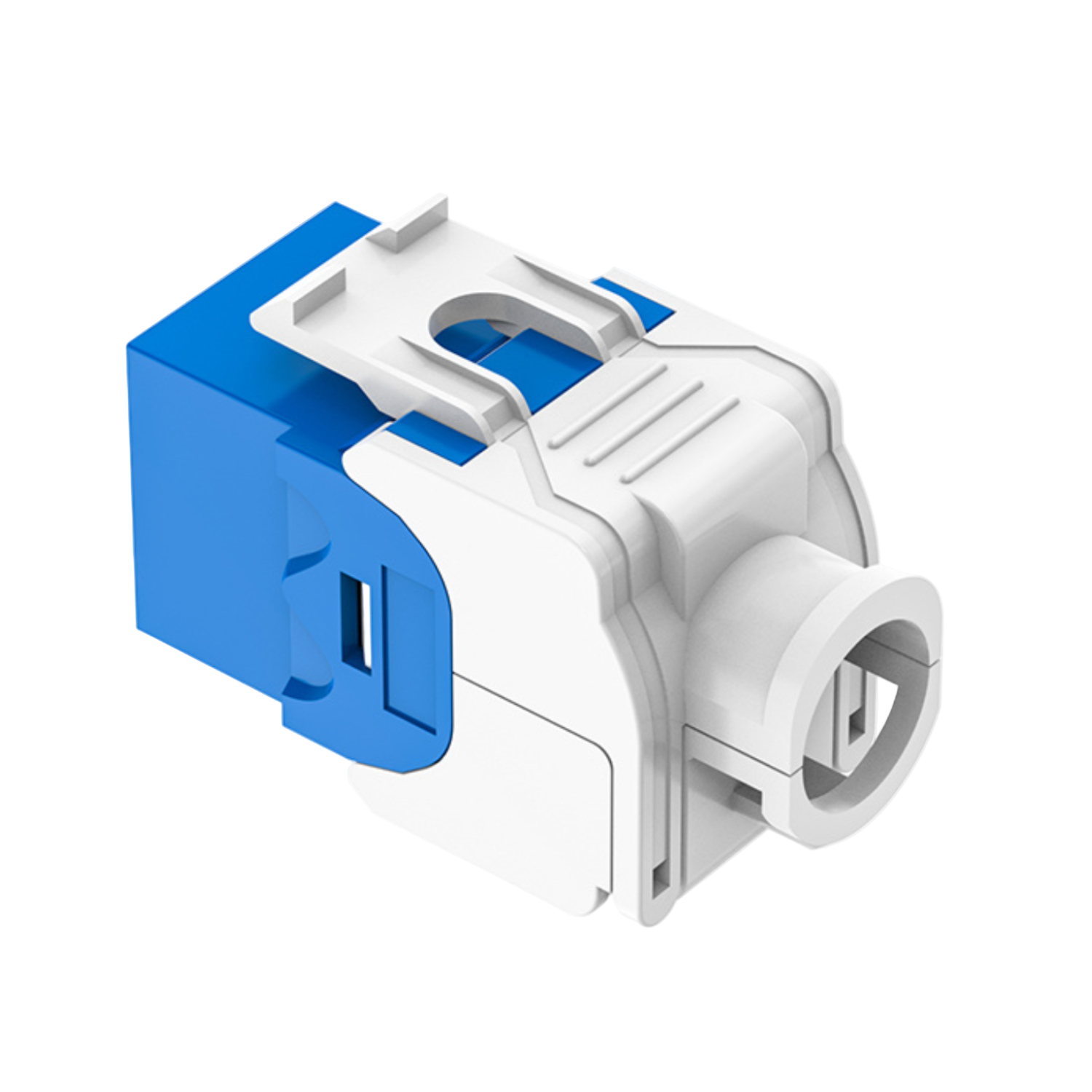

1 x Cat6 UTP Toolless Keystone Jack 180°
