Description:

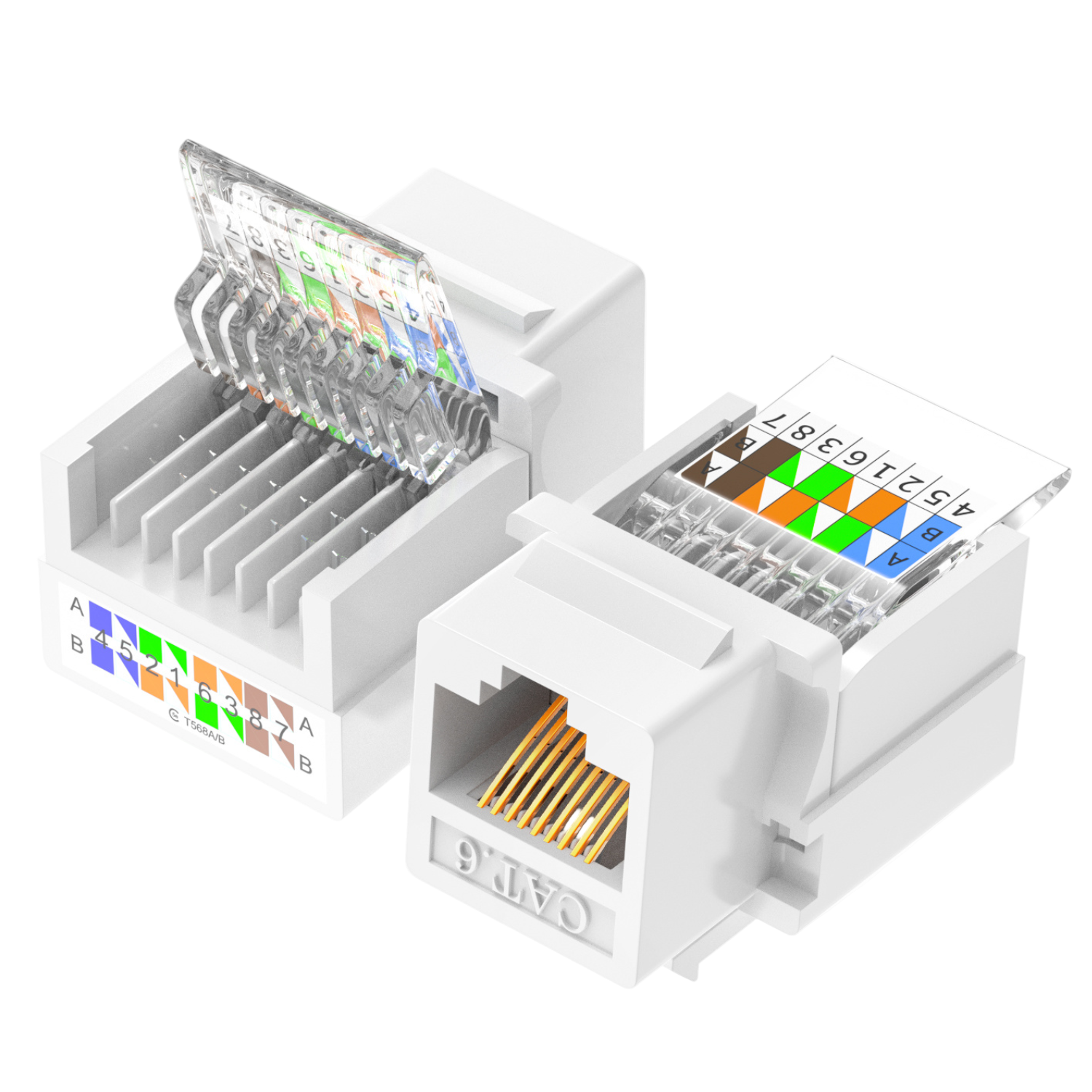

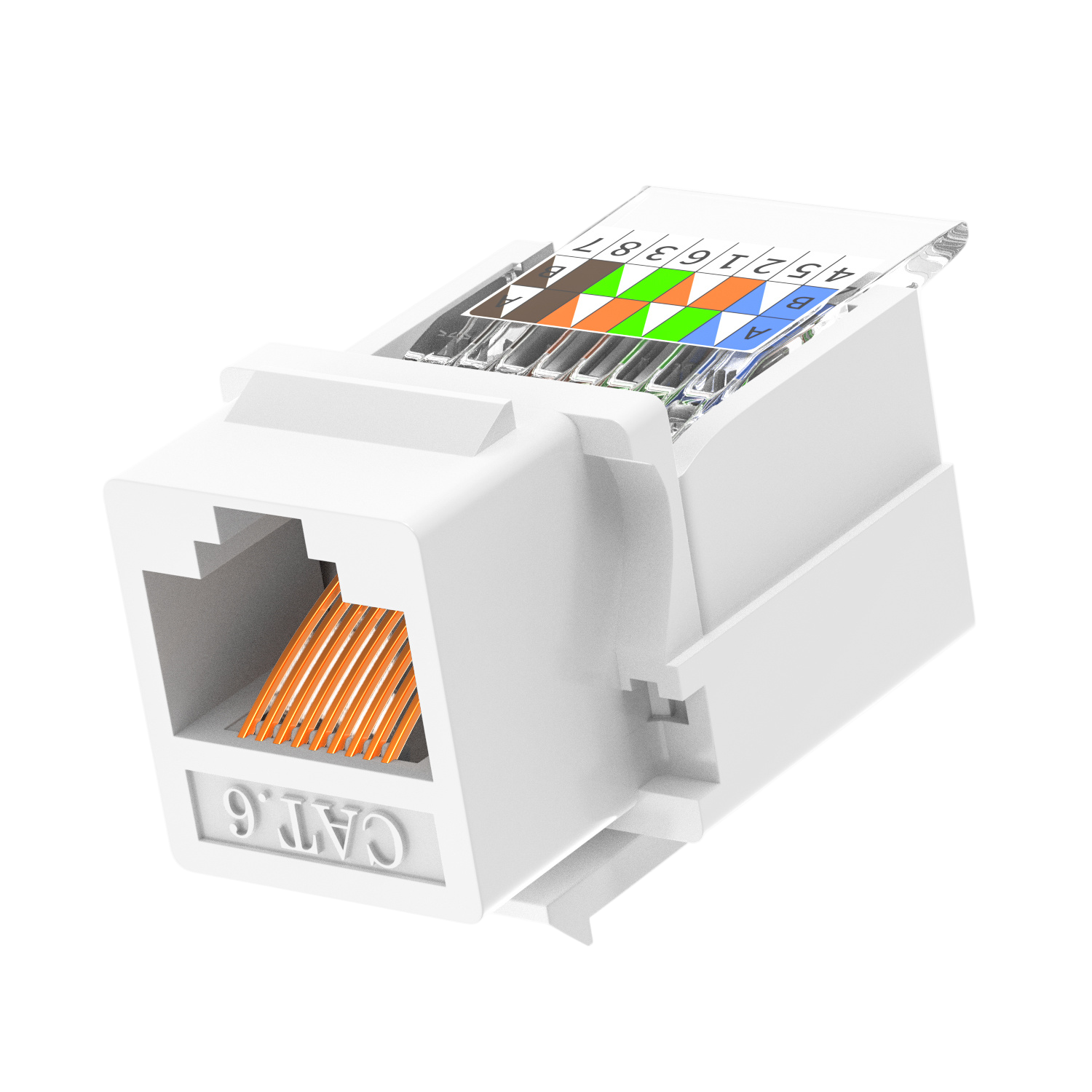

The UTP Keystone Jack 90° Toolless is a high-quality RJ45 Ethernet connector designed for quick, secure, and tool-free termination. Its 90-degree design ensures efficient cable management, making it ideal for patch panels, wall plates, and structured cabling systems. Built for Cat6 UTP networks, it delivers reliable high-speed data transmission with minimal signal loss.
Specifications:
- Model Number: HKJ-901M
- Material: PC UL94V-0
- Port: RJ45
- Color: White
- Gold plated: 3u "-50u"
- Used: Data center, work area, management room, equipment room, etc.
Technical Characteristics:
- Plastic parts material: Computer UL94V-0
- Standard 110 and LSA dual-purpose punching tools make the operation more convenient. The IDC clamp is designed with a 45-degree angle to ensure a reliable cable connection
- According to ISO/IEC 11801 and TIA/EIA 568-B.2 Cat 6A standards, Gold-plated pins, IDC clips, and internal PCB match well and provide optimal performance
- The entire pin is nickel-plated, and the connecting pin is gold-plated to prevent oxidation and have a long service life.
- IDC clip: Tin-plated phosphorbronze and nickel-plated, 250 times more reliable.
Electrical Characteristics:
- DC resistance: ≤ 300mΩ
- Contact resistance: ≤ 20mΩ
- Dielectric strength: 1000V(AC750V)1min
- Insulation resistance: ≥ 1000MΩ
Physical Characteristics:
- Nickel-plated phosphor bronze, gold-plated connector pins
- IDC Clamp: Nickel-plated tin-plated phosphor bronze pins, suitable for 22-26awg cable
- Insertion duration: ≥ 750 times
- Punching duration: ≥ 250 times
- Jack housing plastic parts: UL94V-2, red, yellow, blue, green, black, and other colors available
- Termination cap material UL94V-2
- Working temperature: -25 ℃ ~ 60 ℃
Schematic:
Applications:
- Network
- Structured cabling for transmittingdata, voice, and video
- Applying for category 6a and lower levels
- Suitable for work areas, central rooms, management rooms, equipment rooms and subsystem applications
Standard:
- International Organization for Standardization/IEC11801
- TIA/EIA-568B.2-1
- EN50173
- UL 94V-0
Package Included:

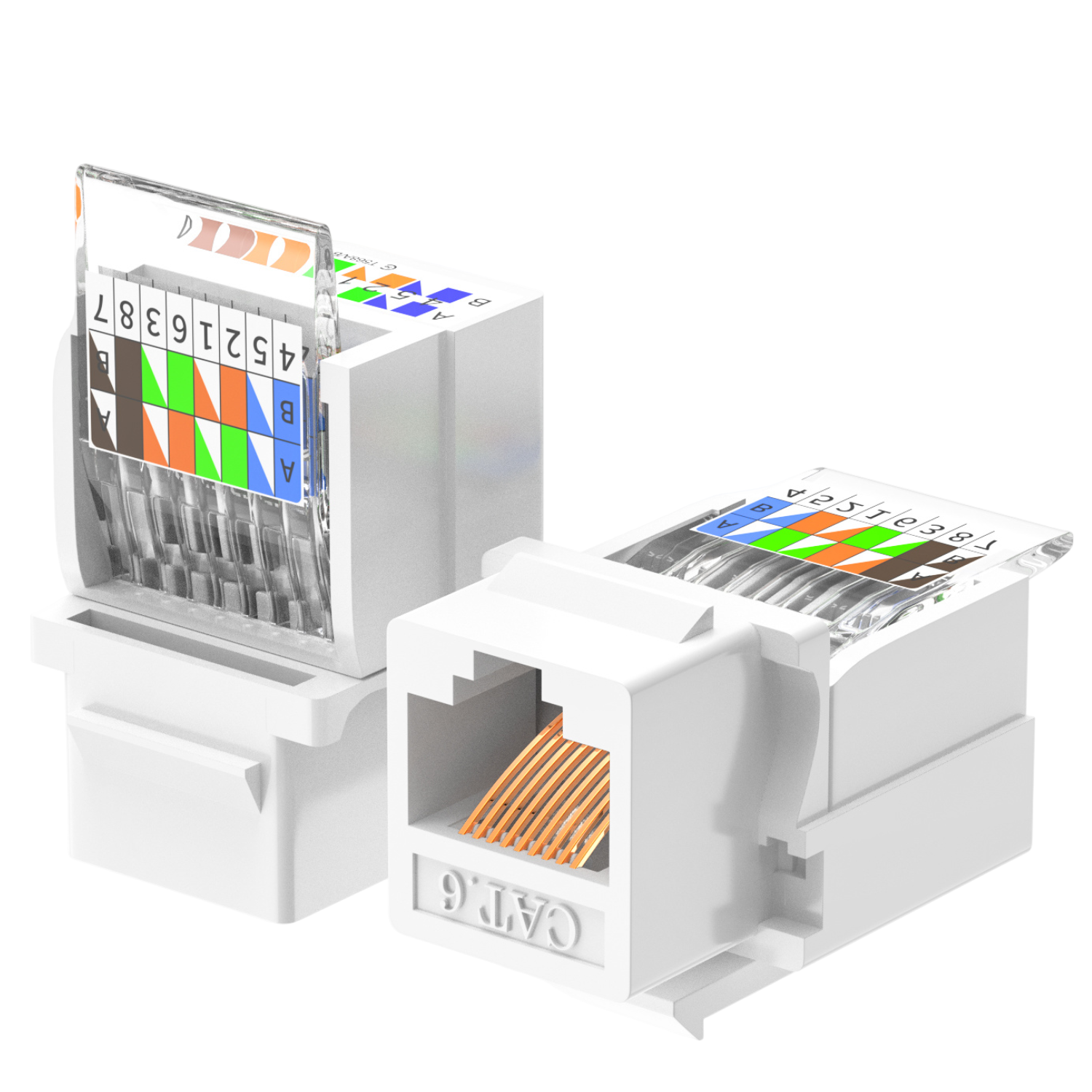

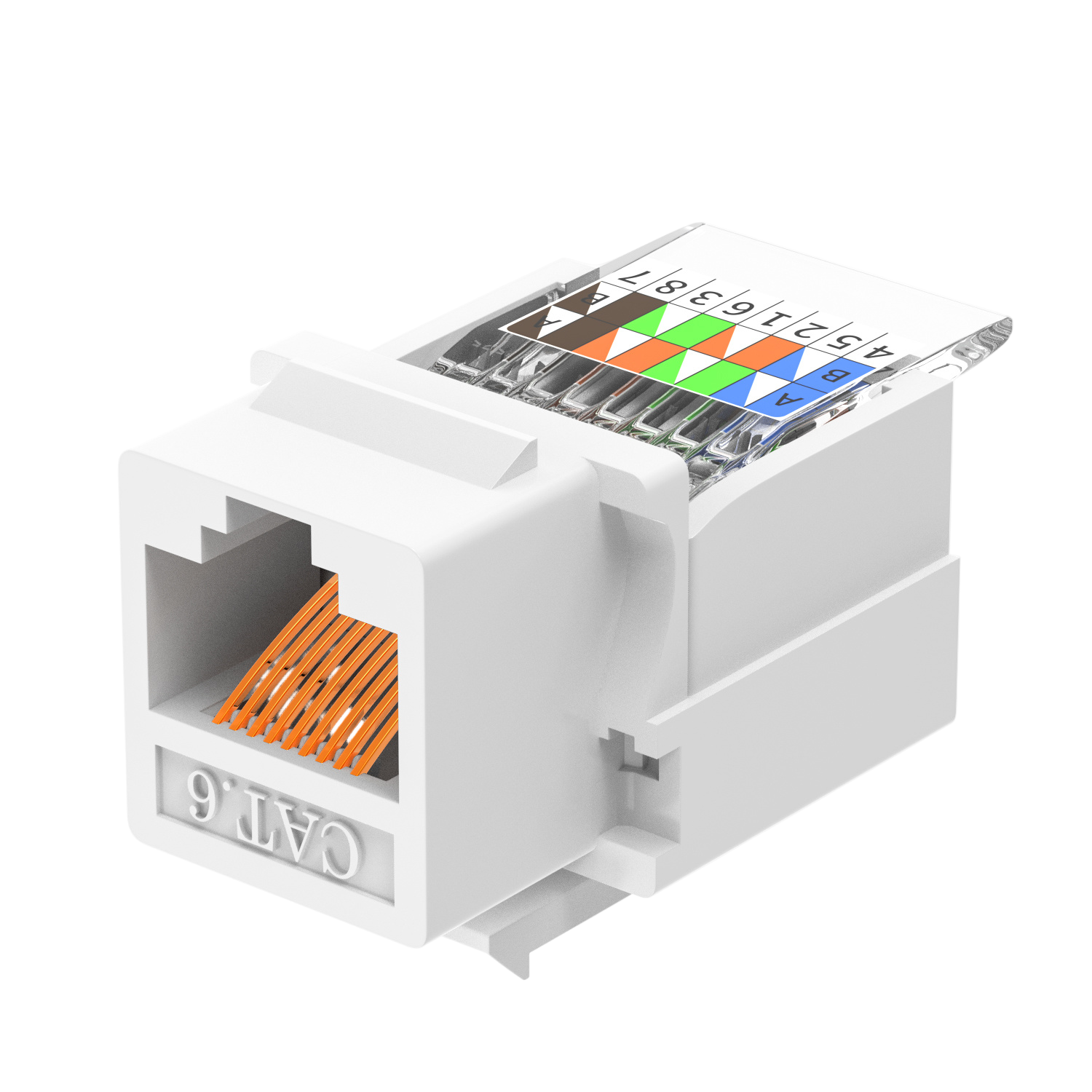

1 x Cat6 UTP 90° Toolless Keystone Jack
