Description:

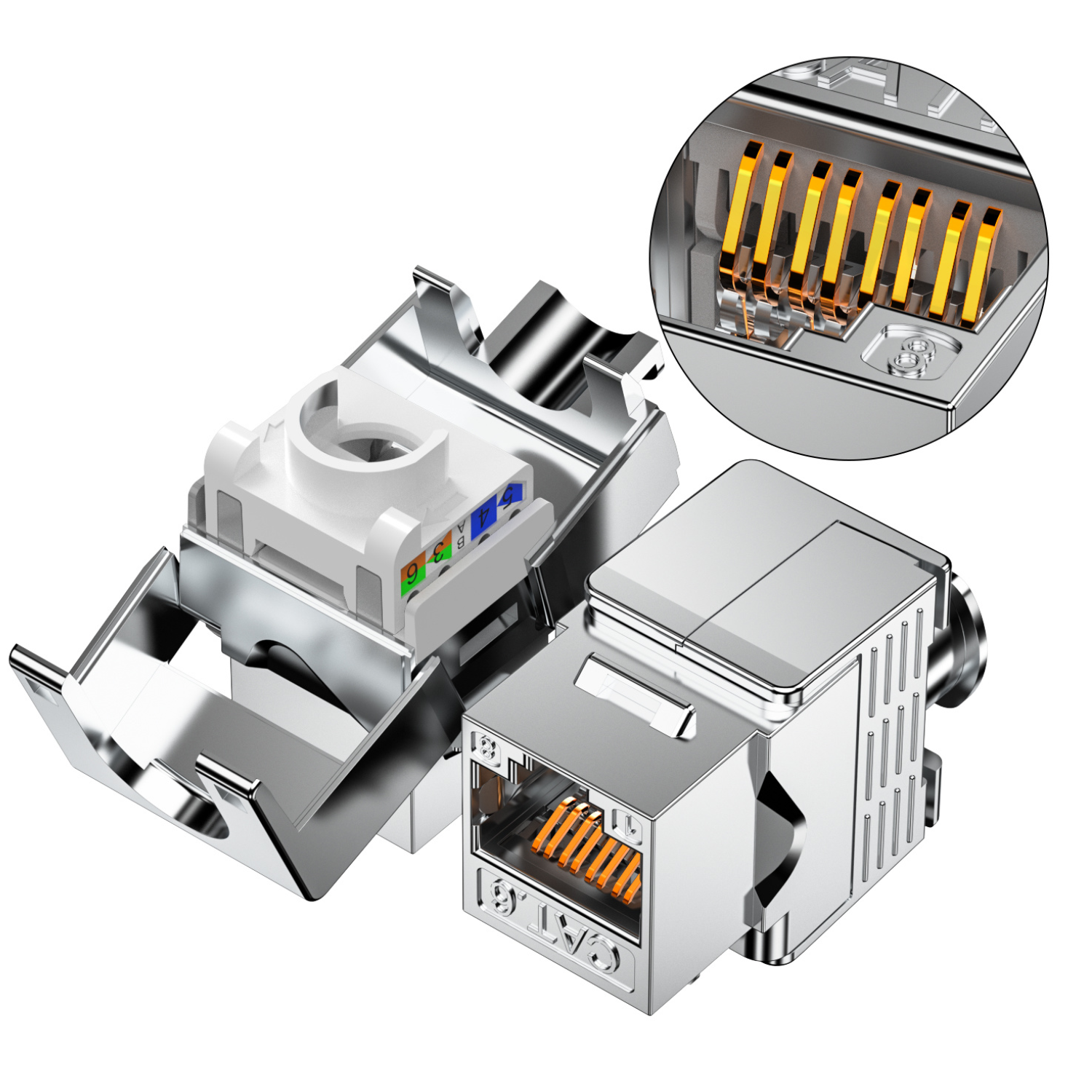

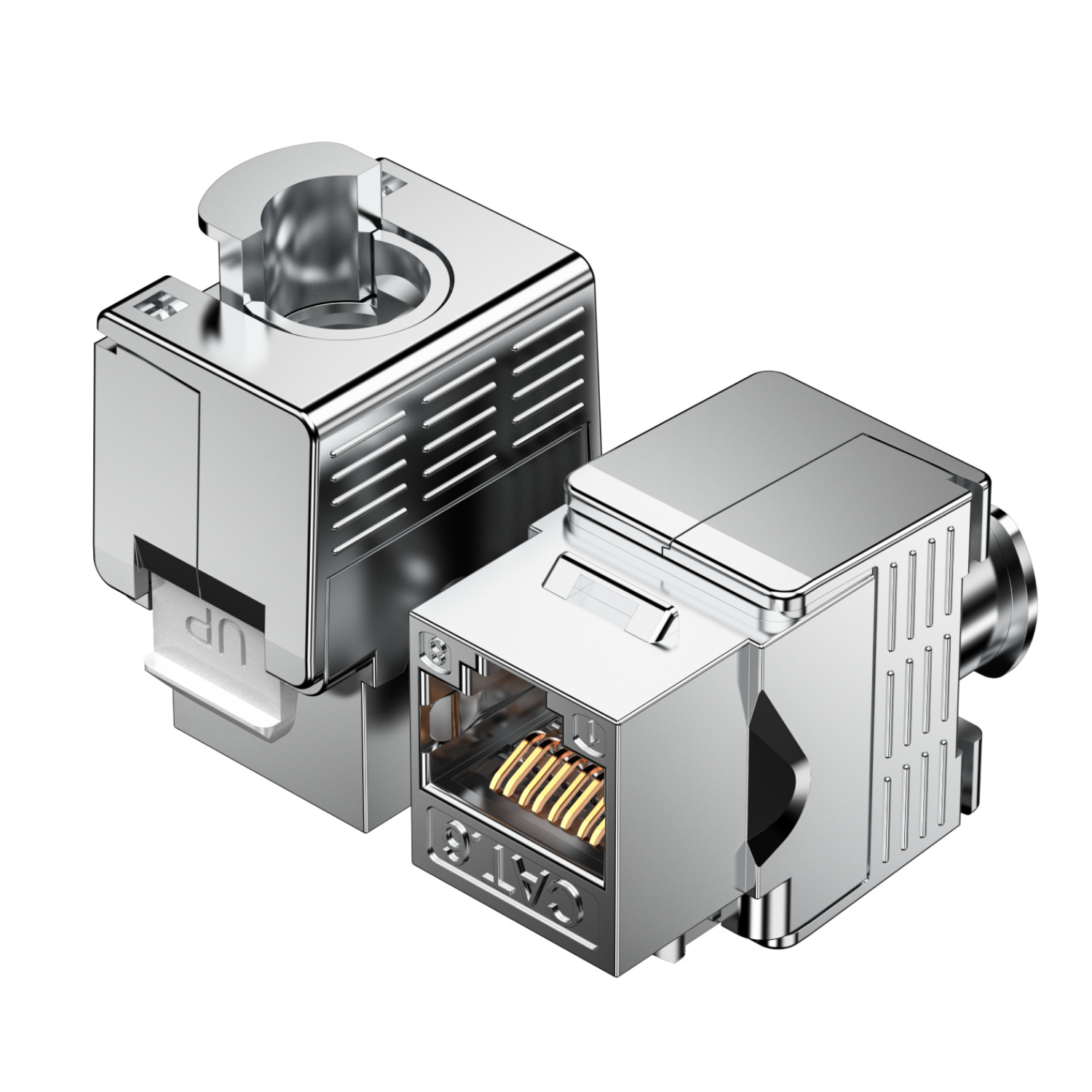

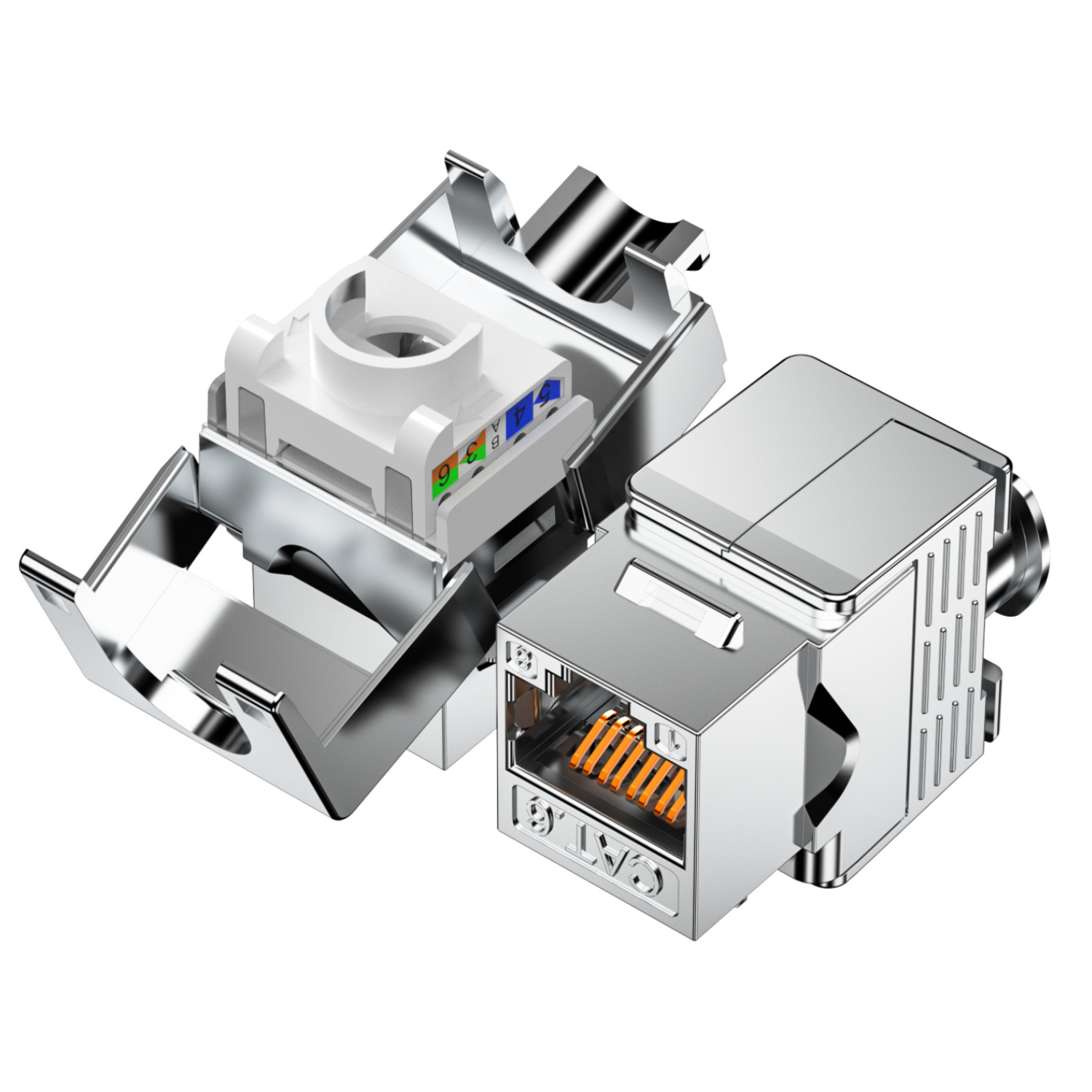

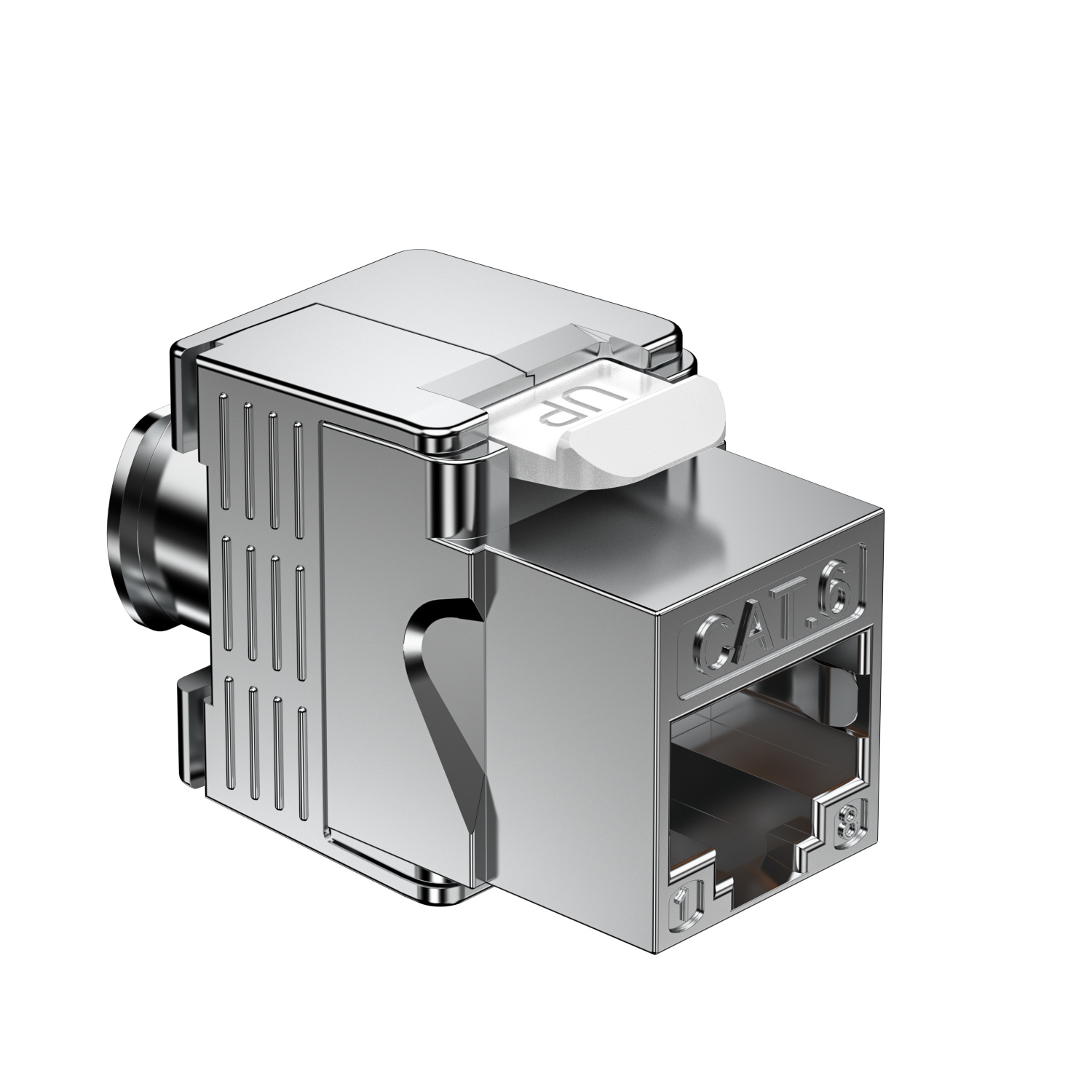

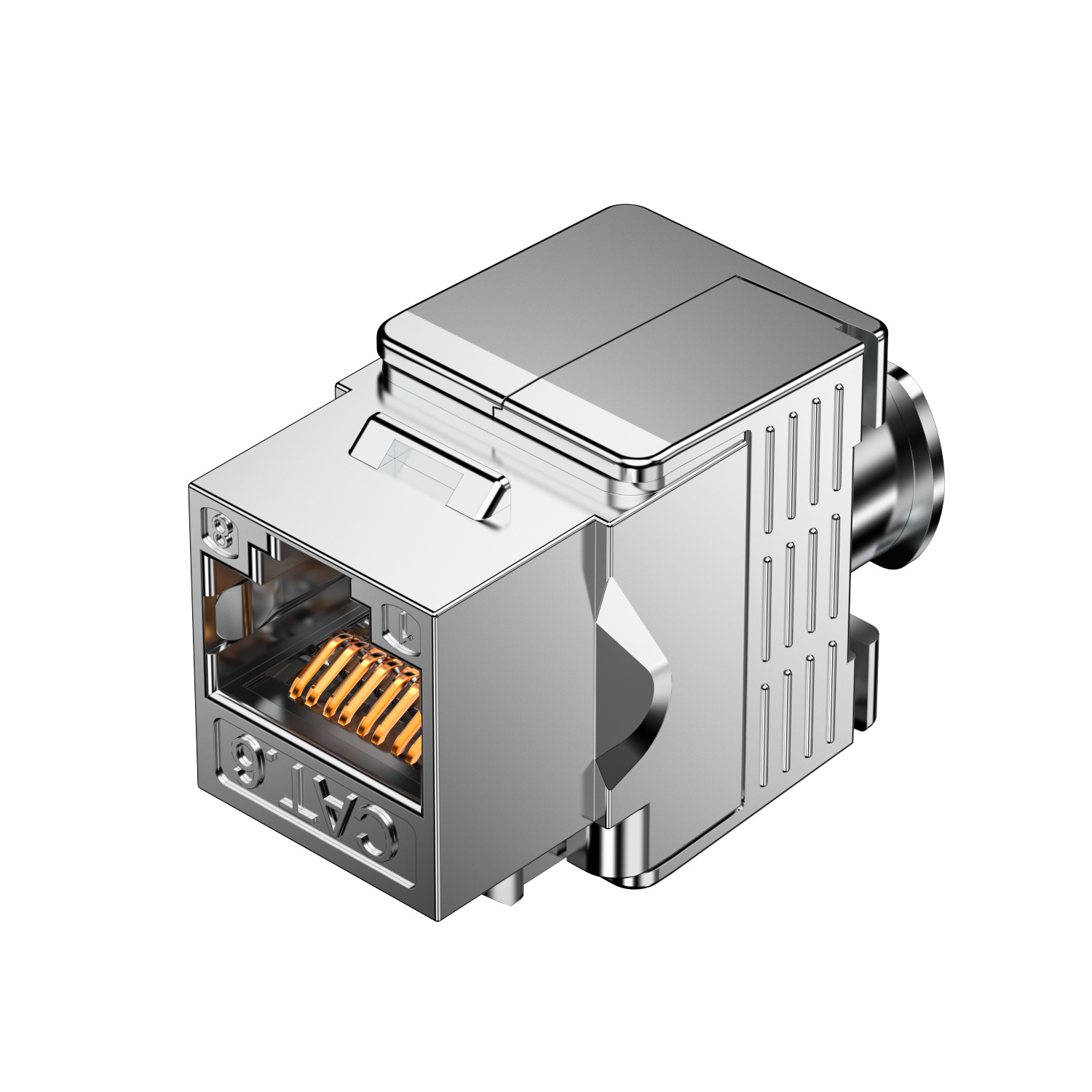

The HKJ-802FM 180° Shielded Toolless Mini Keystone Jack is a compact, high-performance RJ45 Ethernet connector designed for fast and reliable network cabling. Built with a shielded housing, it provides excellent protection against EMI/RFI interference for stable data transmission. Its innovative toolless termination design enables quick, secure, and hassle-free installation without punch-down tools, while the 180-degree layout is ideal for patch panels and structured cabling in tight spaces. Perfect for data centers, office networks, and high-speed applications, the HKJ-802FM delivers durability, efficiency, and superior connectivity performance.
Specifications:
- Model Number: HKJ-802FM
- Material: zinc alloy
- Gold-plated: 3u"-50u"
Electrical Characteristics
- DC Resistance: ≤300mΩ
- Contact Resistance: ≤20mΩ
- Dielectricstrength: 1000V(AC750V)1min
- Insulation Resistance: ≥1000MΩ
Physical Characteristics
- Phosphor bronze with nickel-plated, connector pins with golden-plated 6μ
- IDC clip: Tinned phosphor bronze pins with nickel-plated, fitting for 22-26AWG cables
- Inserting Duration: ≥750 times
- Punching Duration: ≥250 times
- Jack housing plastic part: UL 94V-0, RED, YELLOW, BLUE, GREEN, BLACK, and other colors available
- Termination caps material UL94V-0
- Working temperature: -25ºC~60ºC
Standards
- ISO/IEC11801
- TIA/EIA-568B.2-1
- EN50173
- UL 94V-0
Applications:
- Network
- Structured cabling transmitting data, voice, and video
- Applied for Cat. 6 and E Classes
- Suitable for working area, central room, managing room, equipment room, and subsystem applications
Package Included:
1 x Cat6 180° Shielded Toolless Mini Keystone Jack
