Description:

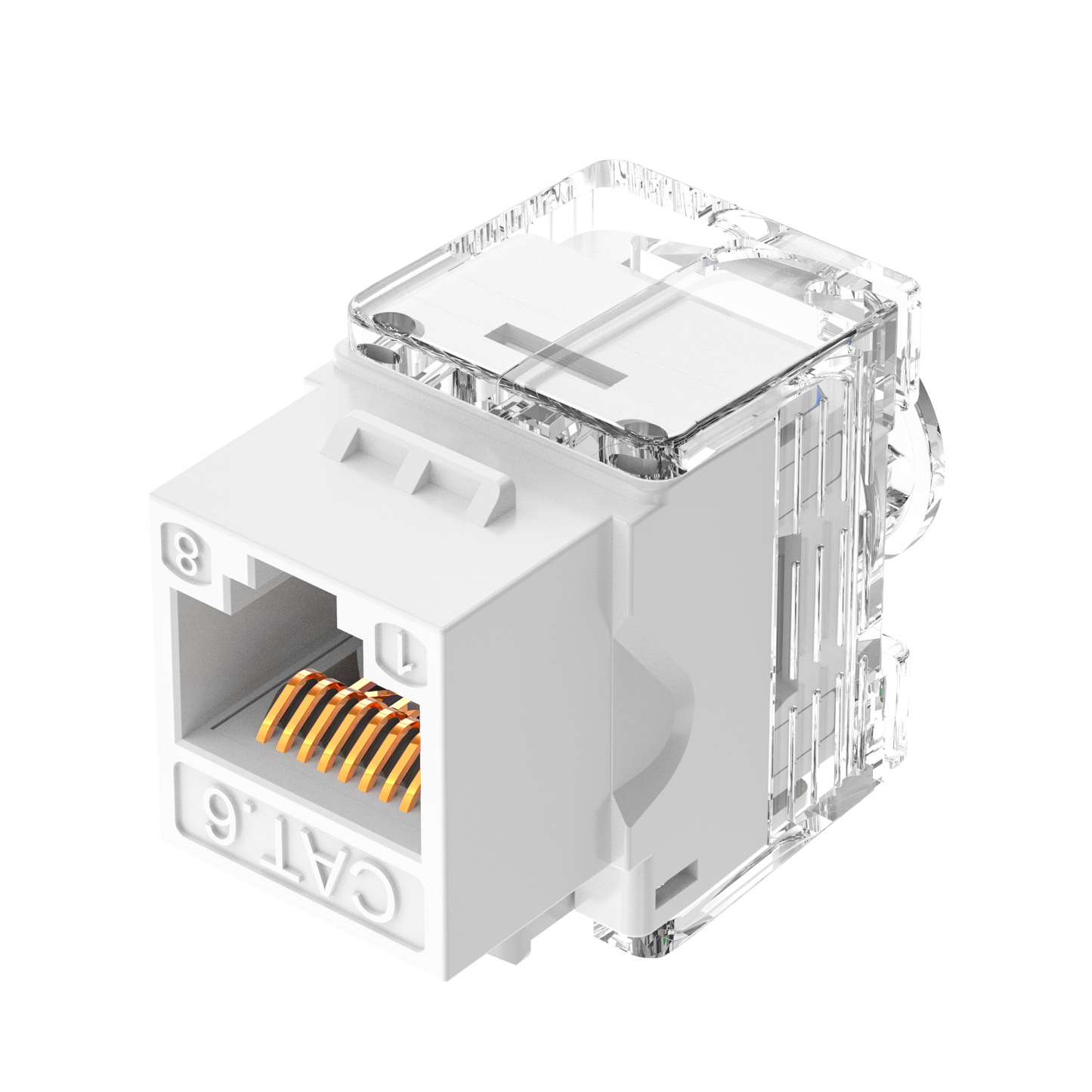

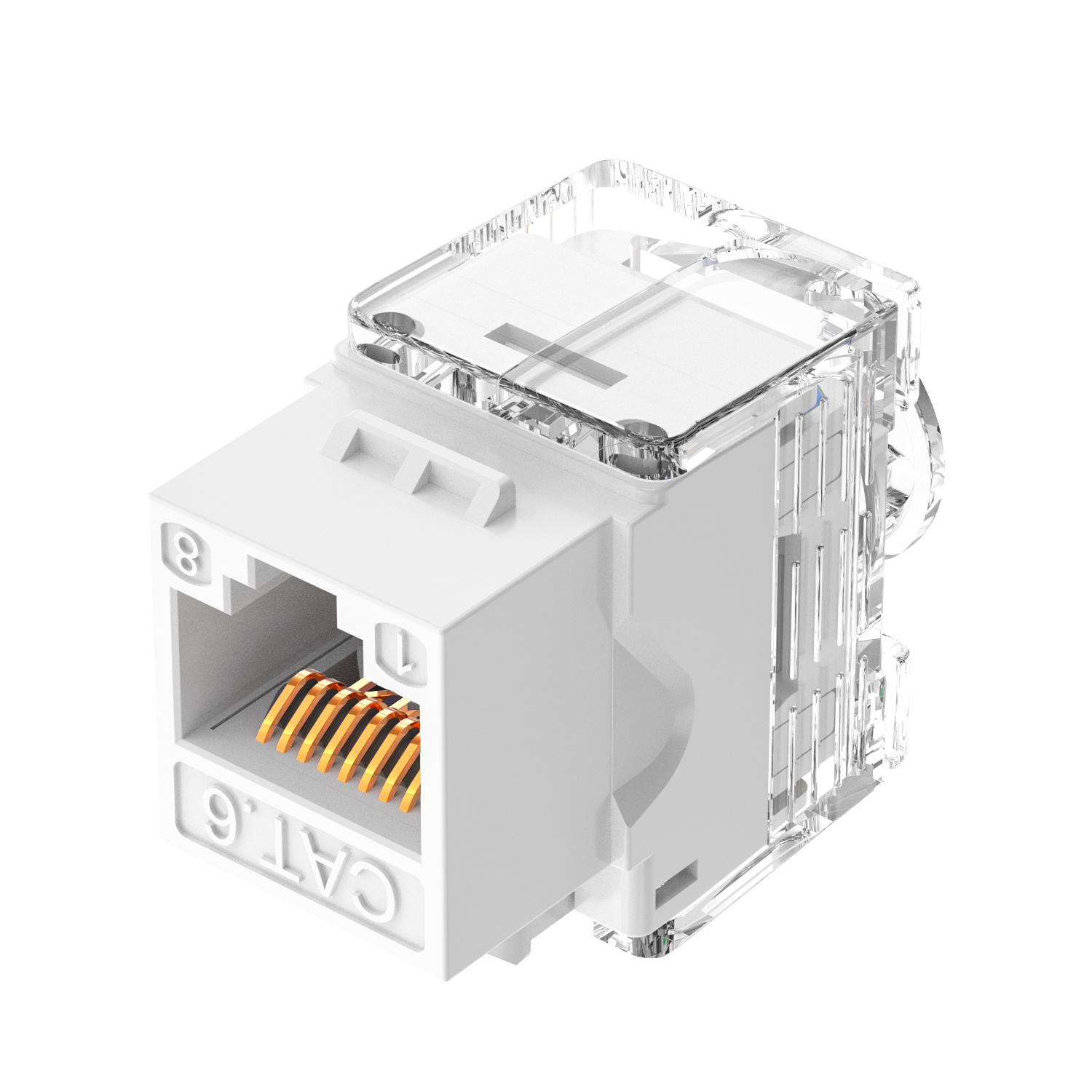

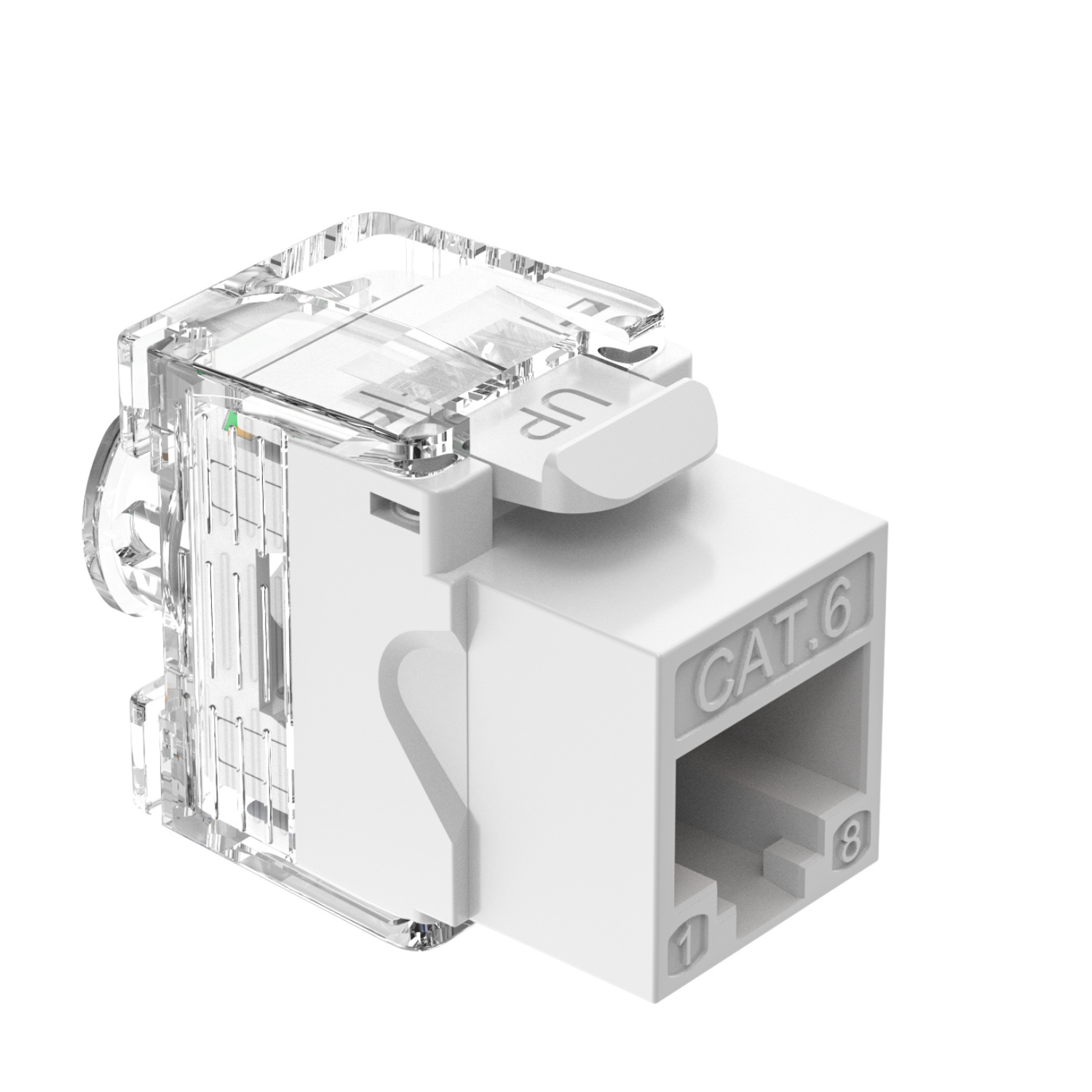

The 180-Degree Mini Toolless Keystone Jack is a high-quality Cat6 RJ45 Ethernet connector designed for fast, secure, and easy termination without the need for tools. Its compact 180° design ensures space-saving installation, making it ideal for patch panels, wall plates, and structured network cabling. Perfect for reliable data, voice, and high-speed network connections in offices, data centers, and home networks.
Specifications:
- Model Number: HKJ-802M
- Material: PC UL94V-0
- Port: RJ45
- Color: 3u "-50u"
- Used: Data center, work area, management room, equipment room, etc.
Technical characteristics:
- Plastic parts material: ComputerUL94V-0
- Standard 110 and LSA dual-purpose punching tools make the operation more convenient. The IDC clamp, designed with a 45-degree angle, ensures a reliable cable connection.
- According to ISO/IEC 11801 and TIA/EIA 568-B.2 Cat 6A standards, Gold-plated pins, IDC clips, and internal PCB match well and provide optimal performance
- The entire pin is nickel-plated, and the connecting pin is gold-plated to prevent oxidation and have a long service life.
- IDC clip: Tin-plated phosphorbronze and nickel-plated, 250 times more reliable.
Electrical characteristics:
- DC resistance: ≤ 300mΩ
- Contact resistance: ≤ 20mΩ
- Dielectric strength: 1000V(AC750V)1min
- Insulation resistance: ≥ 1000MΩ
Physical characteristics:
- Nickel-plated phosphor bronze, gold-plated connector pins

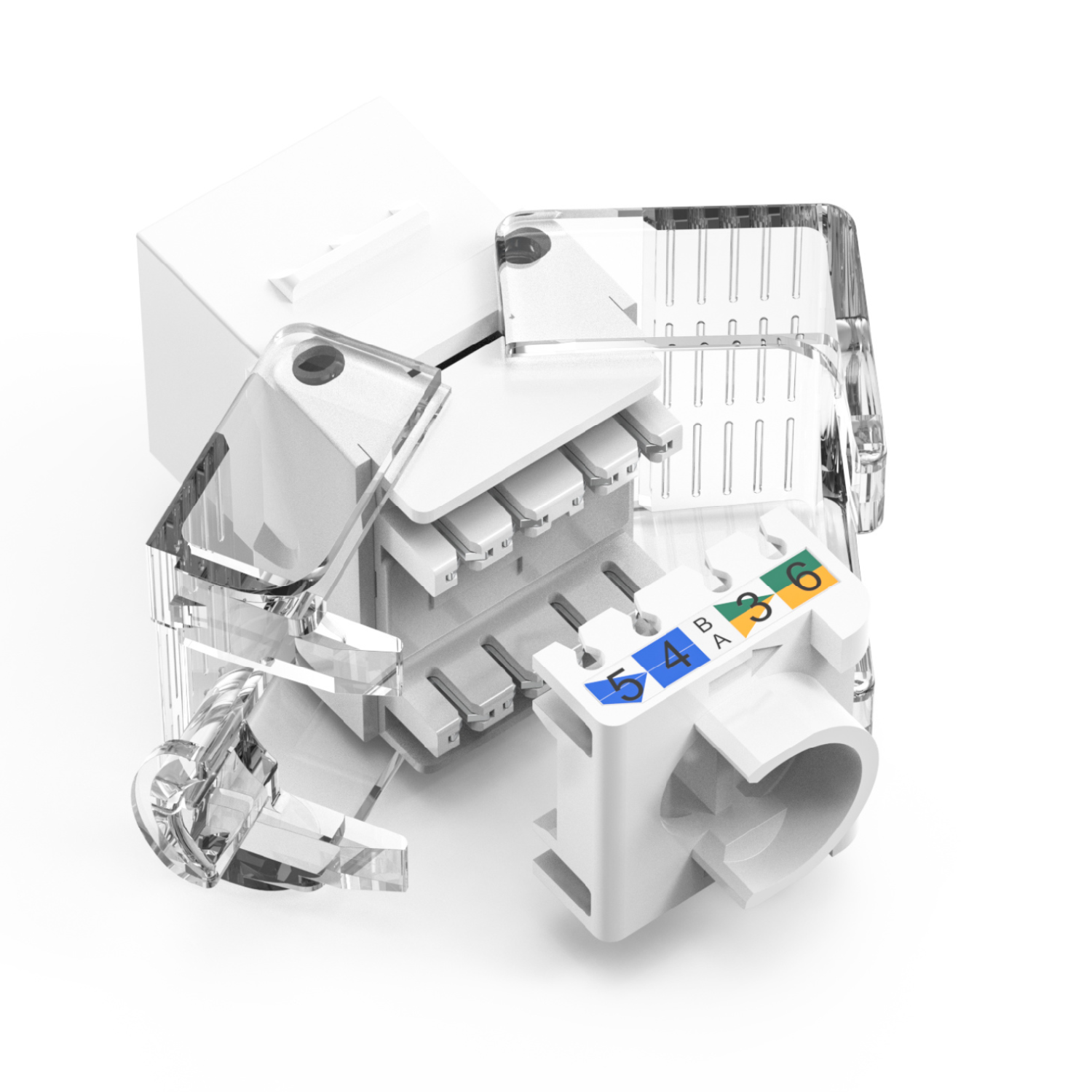

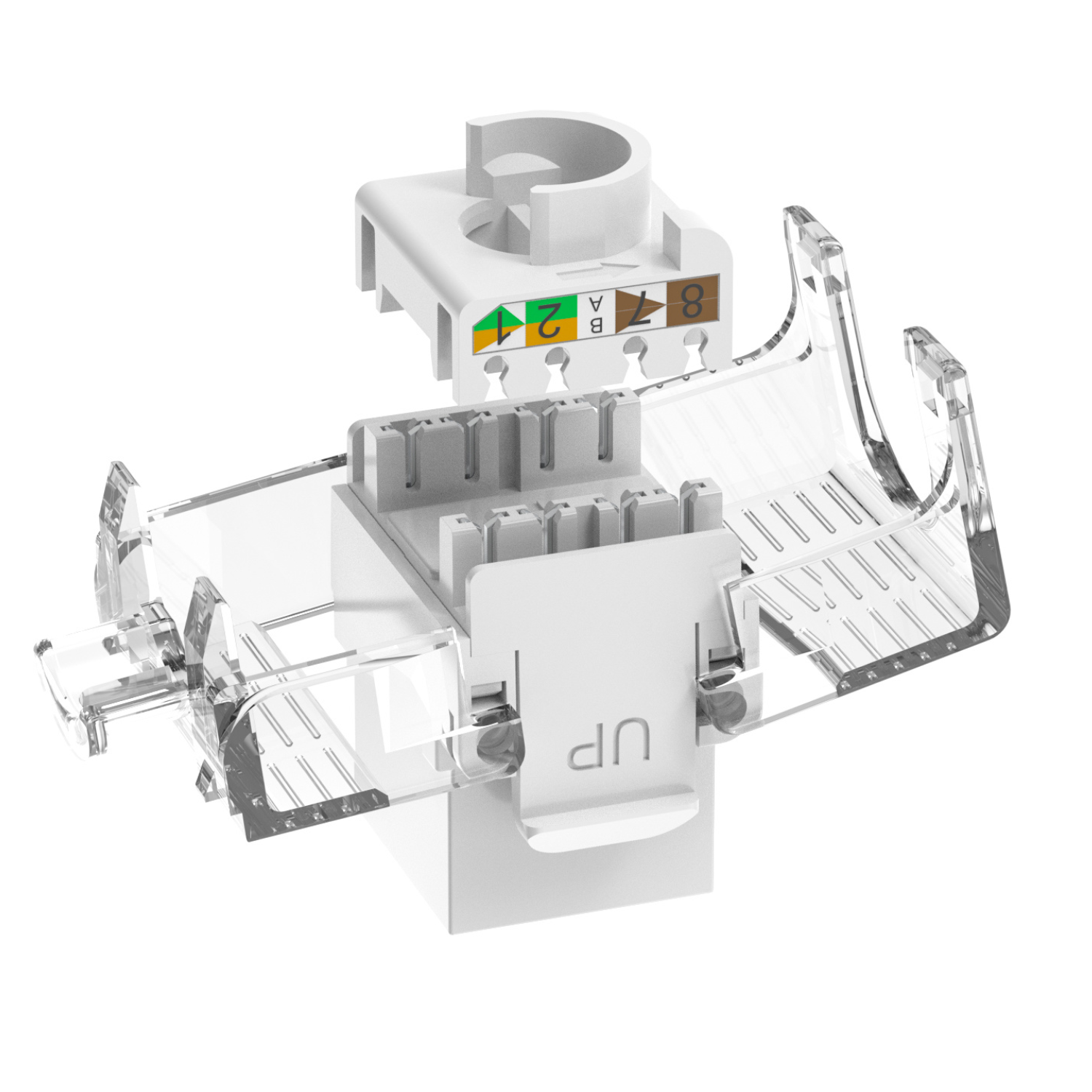

- IDC Clamp: Nickel-plated tin-plated phosphor bronze pins, suitable for 22-26awg cable
- Insertion duration: ≥ 750 times
- Punching duration: ≥ 250 times
- Jack housing plastic parts: UL94V-2, red, yellow, blue, green, black, and other colors available. Termination cap material UL94V-2. Working temperature: -25 ℃ ~ 60 ℃
Schematic:
Standard:
- International Organization for Standardization/IEC11801
- TIA/EIA-568B.2-1
- EN50173
- UL 94V-0
Applications:
- Network
- Structured cabling for transmitting data, voice, and video
- Applying for category 6a and lower levels
- Suitable for work areas, central rooms, management rooms, equipment rooms, and subsystem applications.
Package Included:

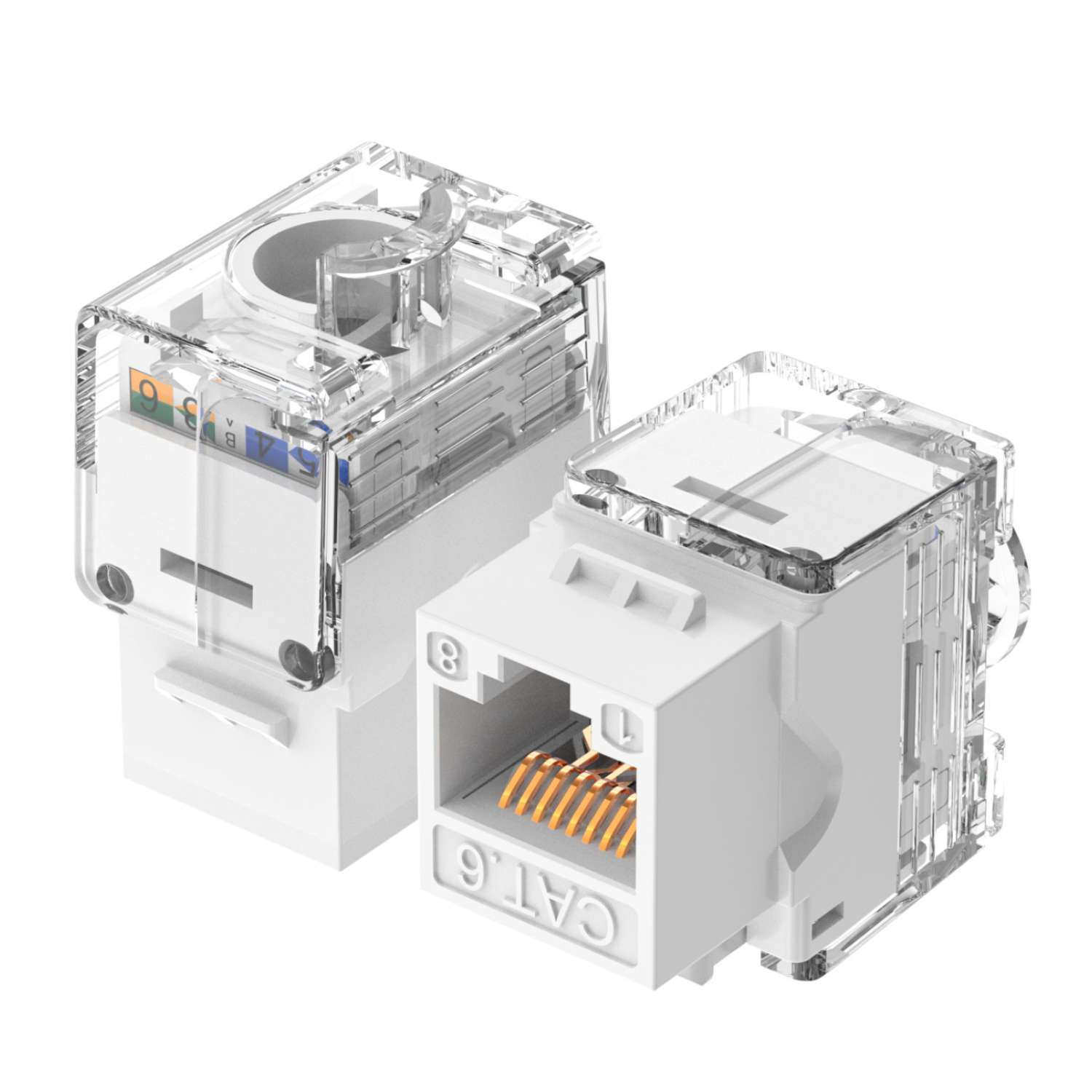

1 x Cat6 180° Mini Toolless Keystone Jack
