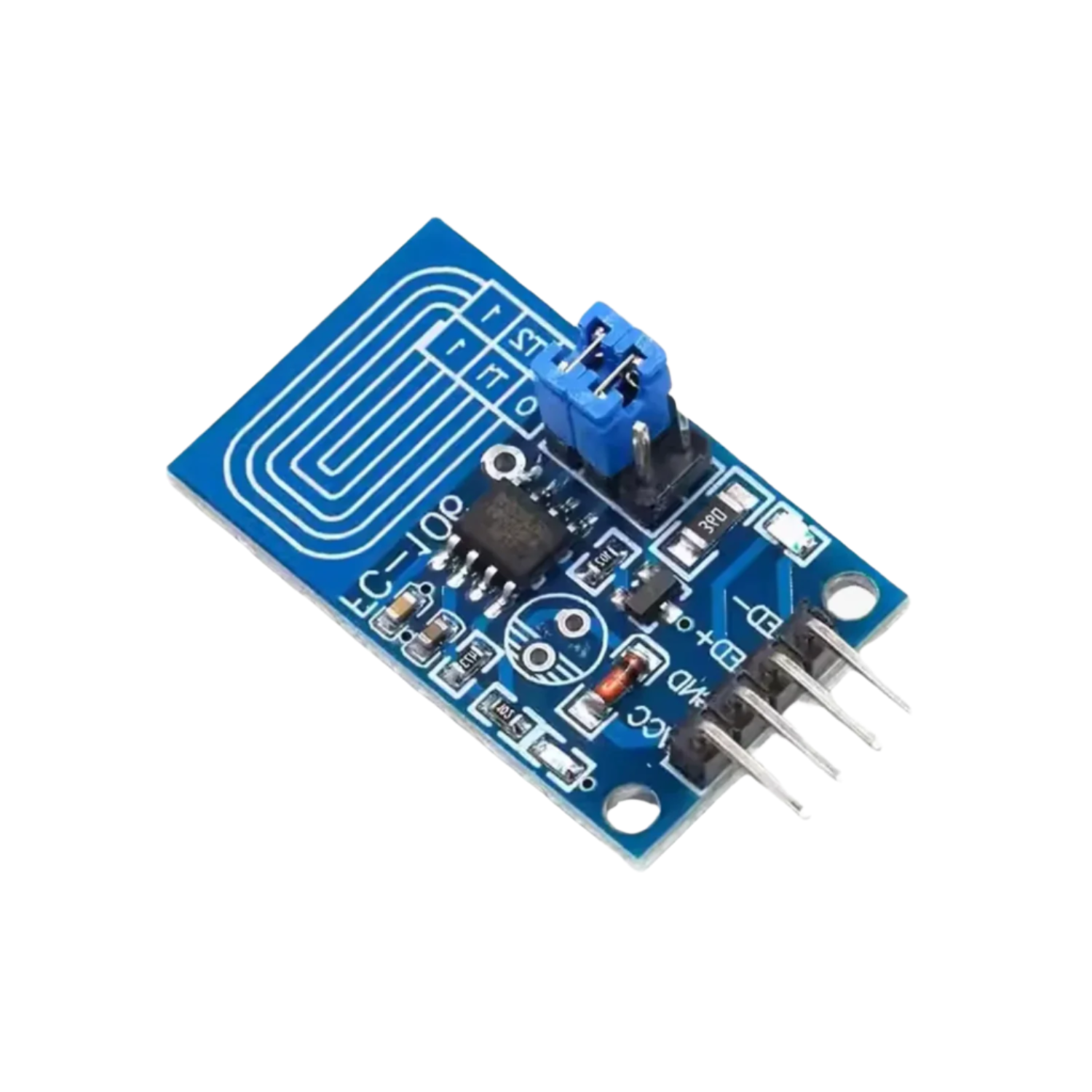

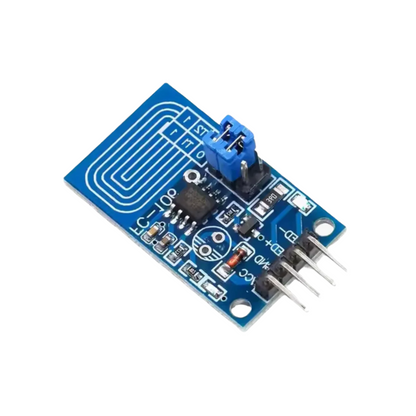

Capacitor Touch LED Dimmer Control Board Stepless PWM Board Constant Voltage Touch Dimmer For LEDs Smooth PWM Controller - RS4368
Capacitor Touch LED Dimmer Control Board Stepless PWM Board Constant Voltage Touch Dimmer For LEDs Smooth PWM Controller - RS4368
SKU:RS4368
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
Experience effortless control and gentle illumination with our Capacitor Touch Dimmer. This intuitive device functions as both a switch and a dimming control, complete with a convenient brightness memory feature for your LEDs. Enjoy a smooth transition as your lights softly illuminate upon activation and gradually dim when turned off, preventing harsh stimulation to your eyes. Adjust the lamp's brightness precisely to your desired level with incredible ease. For added safety and versatility, this dimmer can be operated by touch through various protective mediums like glass, acrylic, plastic, and ceramics.
Specifications:
- Operating Voltage (VDC): 2.4 ~ 4.5
- Aperture (mm): 16
Features:
- Adjustable Brightness & Easy Operation
- Versatile Touch Surface
- Cost-Effective & Simple Integration
- Anti-Interference Technology
- Flexible Installation
- Broad Application
- Capacitance Touch Functionality
- Non-Polar PWM Dimming
- Simple Wiring
Applications:
- It can control LED module
- light and so on. It is available for indoor LED
- lighting lamp
- DIY automotive lights dimming refit.
PCB board(VCC,GND) is power input:
- (LED+, LED-) is connected with the LED lamps of positive and negative level (fingerprint) touch area
- Copper skin area should be 2x3cm.
- T1=1, T2=1: Without brightness memory, suddenly light and off LED touch Stepless dimming function.
- T1=0, T2=1: Without brightness memory, gradually light and off LED touch Stepless dimming function.
- T1=1, T2=0: With brightness memory, gradually light and off LED touch Stepless dimming function.
- T1=0,T2=0:LED three sections touch dimmer function.
How to use:
- Click touch (touch duration time is less than 550ms) can control the lamp. Click once, the lamp lights; click again, the lamp off. The initial brightness of lights lit the fixed for the whole brightness of 90%.
- Press the touch at a long time (touch duration time is more than 550ms), you can achieve step-less dimming the lights. Press long time once, light levels gradually increase light levels when released after the release time parked in the corresponding brightness, long time if more than three seconds, the light levels to achieve maximum brightness does not change; again long press touch, light levels gradually decreased to stop when you release the light levels in the corresponding brightness release time, if a long time more than three seconds, the light levels after reaching the minimum brightness does not change.
Note:

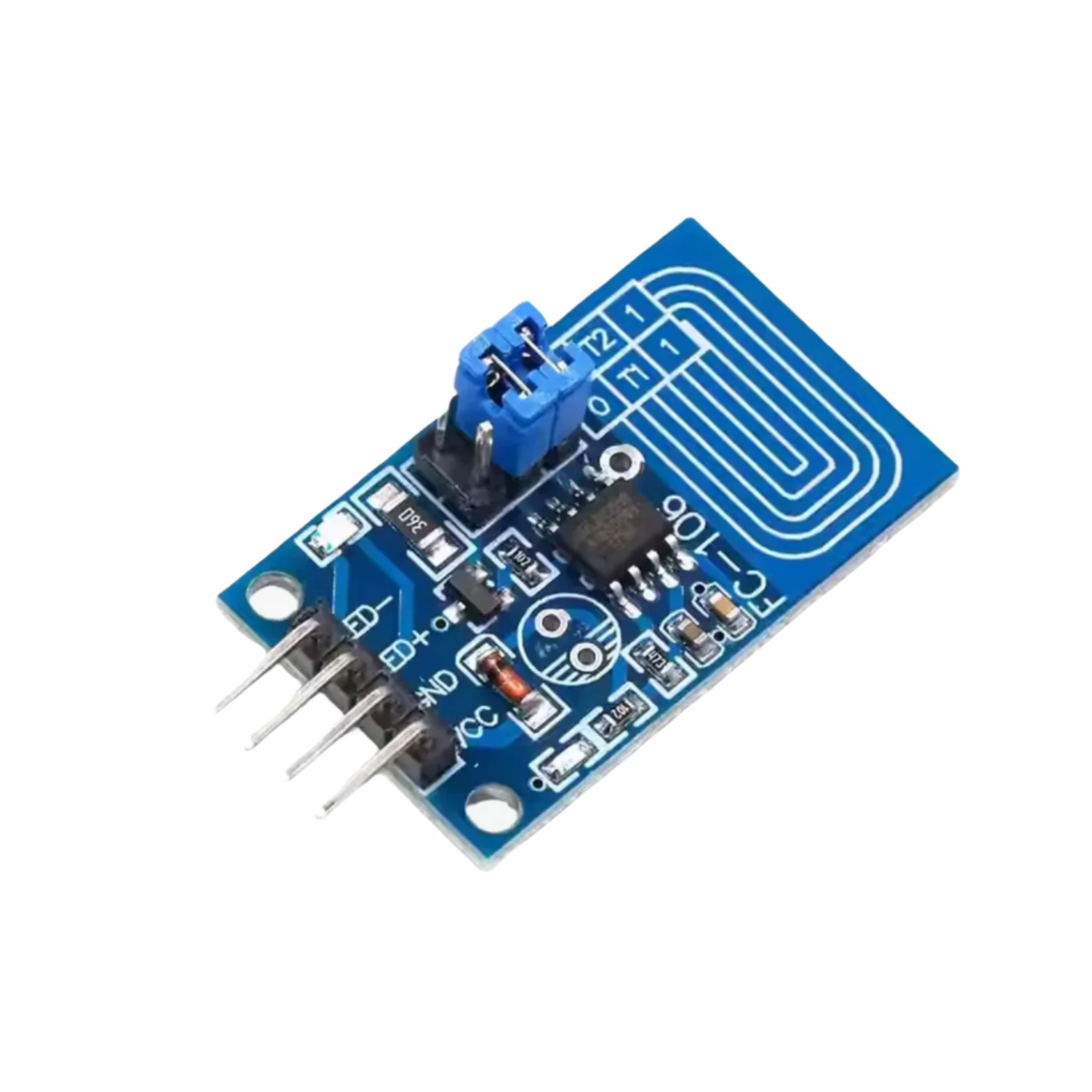

- This Product is available in two different variants (FC-106 and HW-206) with the same working, we will ship it randomly.
Package Included:
1 x Capacitor Touch Dimmer
