- Type - NPN
- Collector-Emitter Voltage: 50 V
- Collector-Base Voltage: 60 V
- Emitter-Base Voltage: 5 V
- Collector Current: 0.15 A
Description:

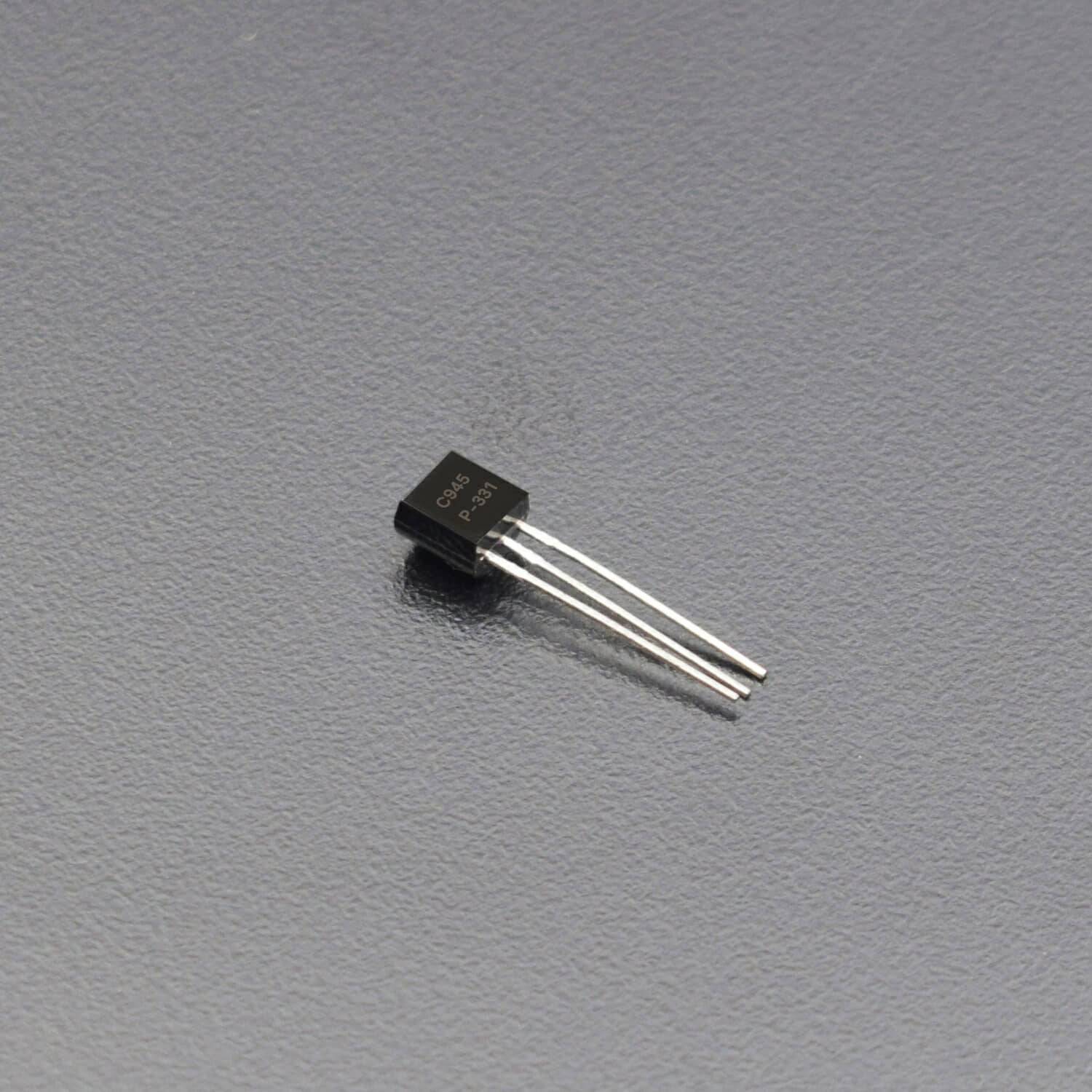

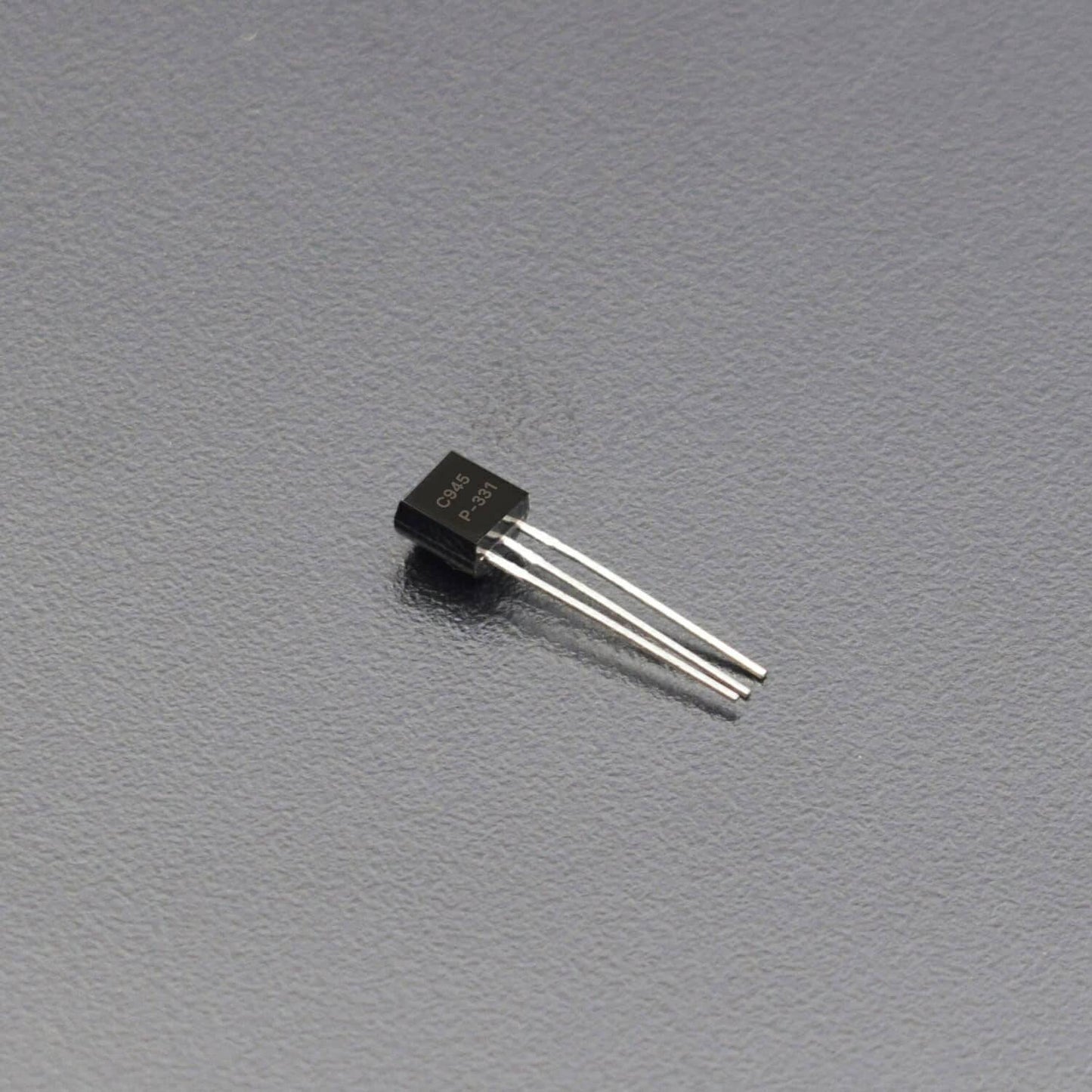

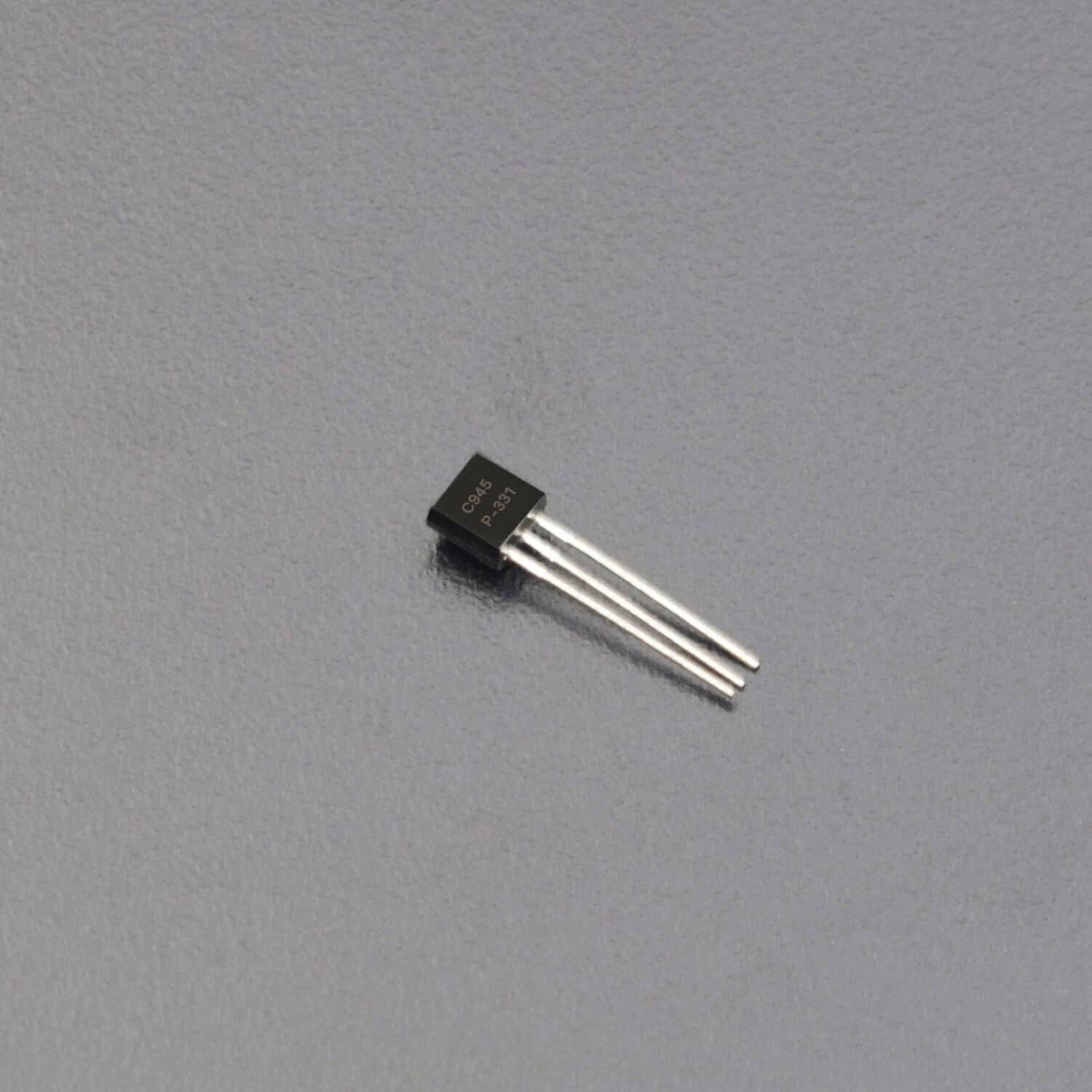

This is a NPN type C945 Bipolar Transistor. The C945 transistor might have a current gain anywhere between 70 to100. It is basically used in electronic components, and mechanical fields, and in science projects, and DIY.
Specification:
- Type - NPN
- Collector-Emitter Voltage: 50 V
- Collector-Base Voltage: 60 V
- Emitter-Base Voltage: 5 V
- Collector Current: 0.15 A
- Collector Dissipation - 0.4 W
- DC Current Gain (hfe) - 70 to 700
- Transition Frequency - 150 MHz
- Operating and Storage Junction Temperature Range -55 to +150 °C
Pin Description:

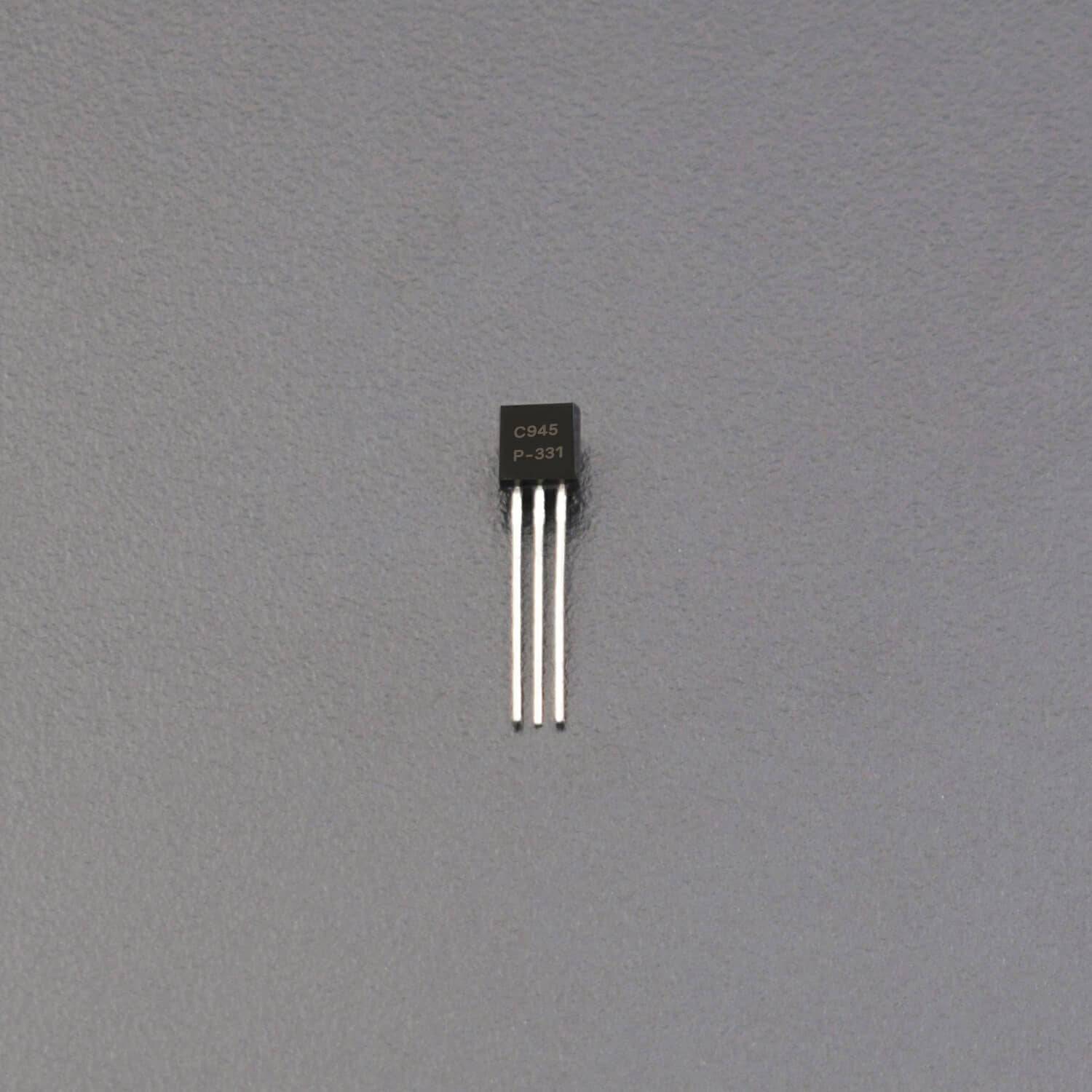

The C945 is manufactured in a plastic TO-92 case. When looking at the flat side with the leads pointed downward, the three leads emerging from the transistor are, from left to right, the emitter, collector, and base leads.
Here is an image showing the pin diagram of the this transistor.
Package Included:
1 x C945 Bipolar Transistor
