Description:

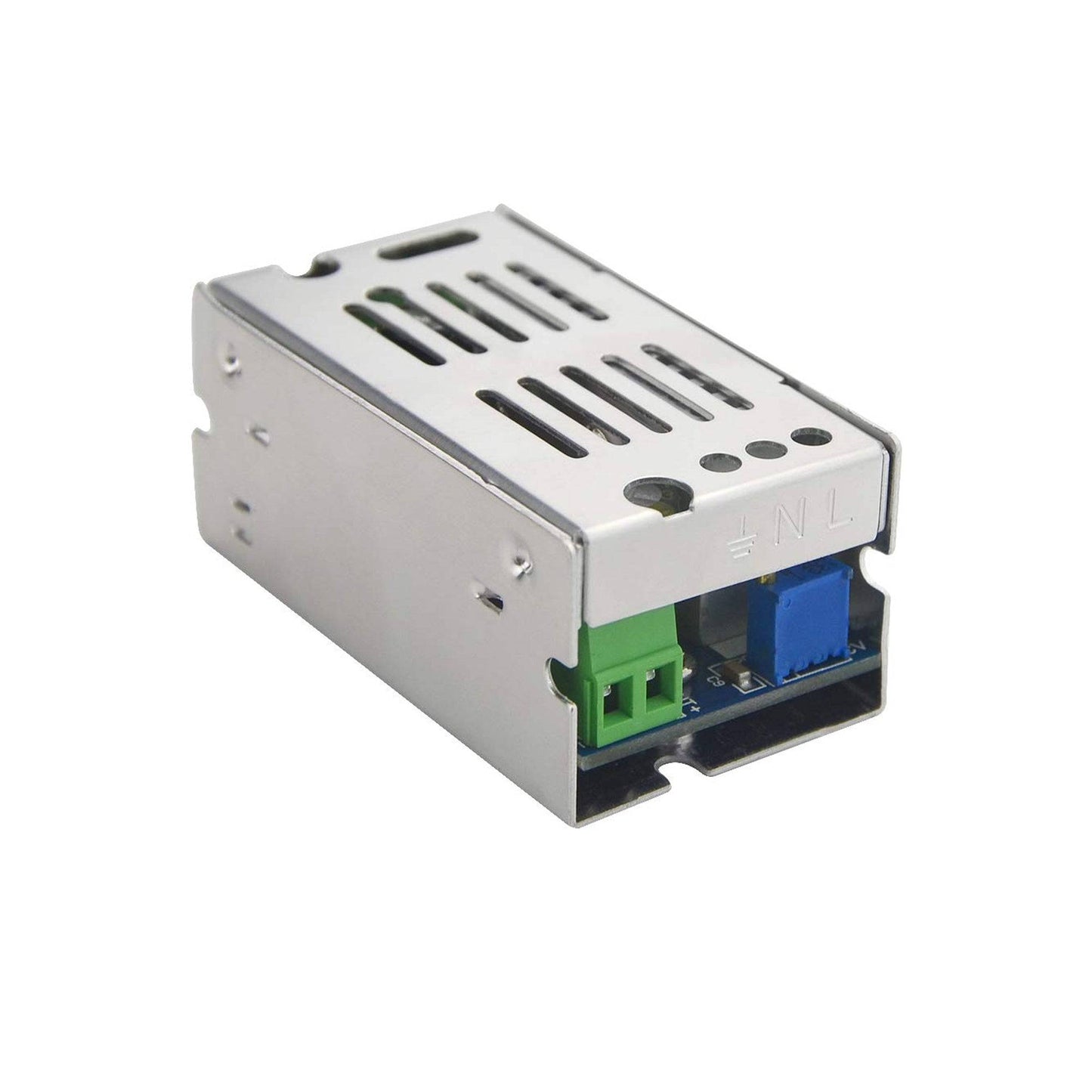

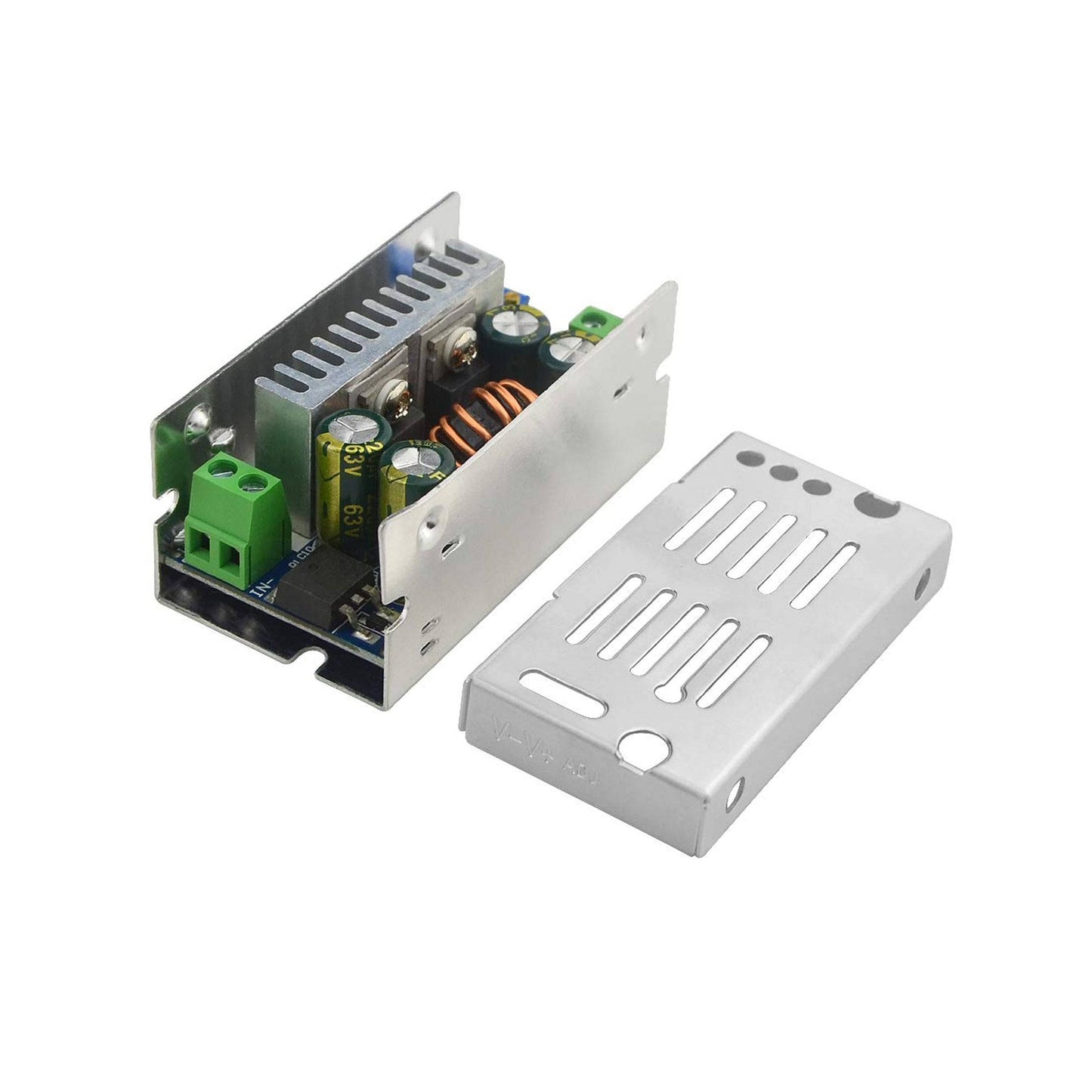

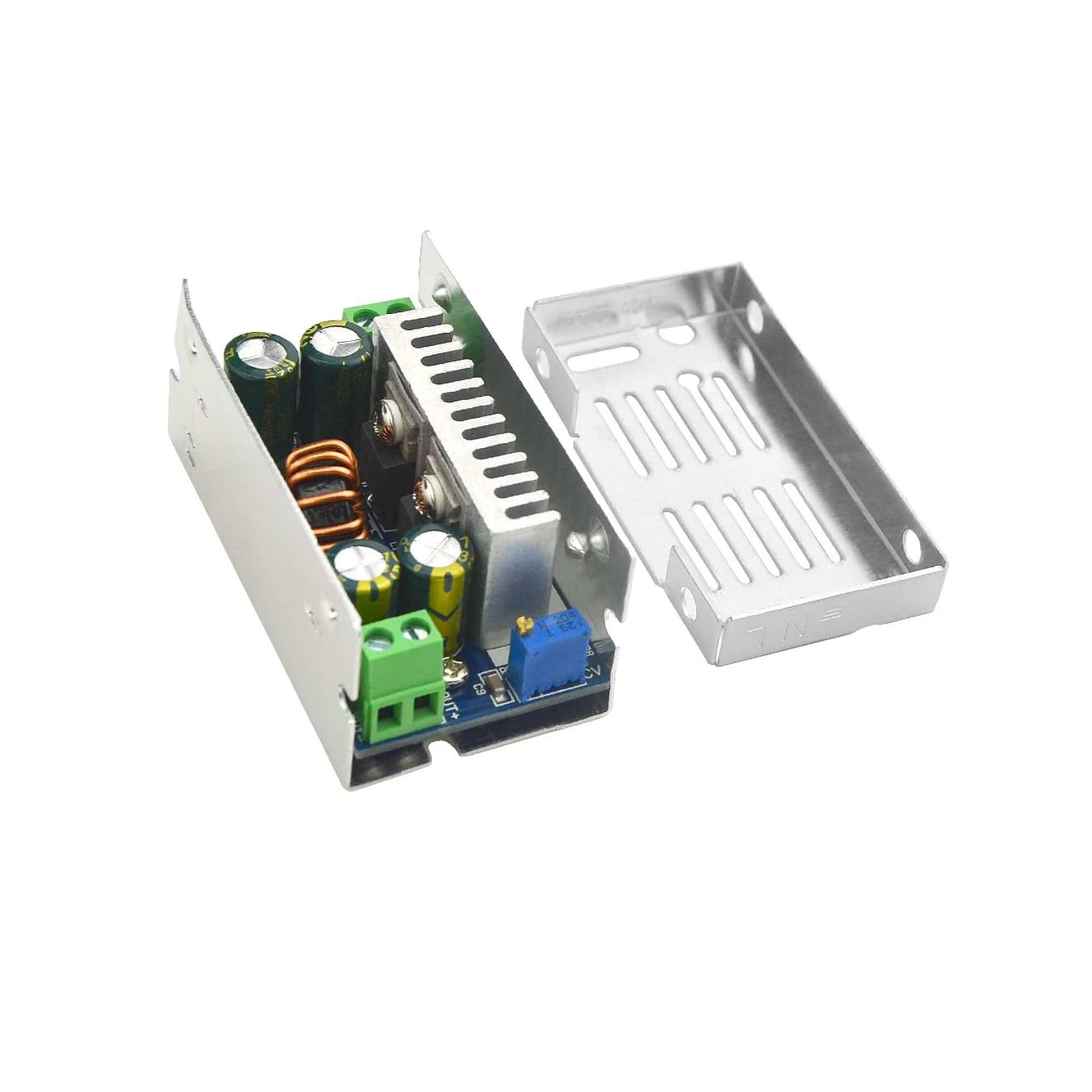

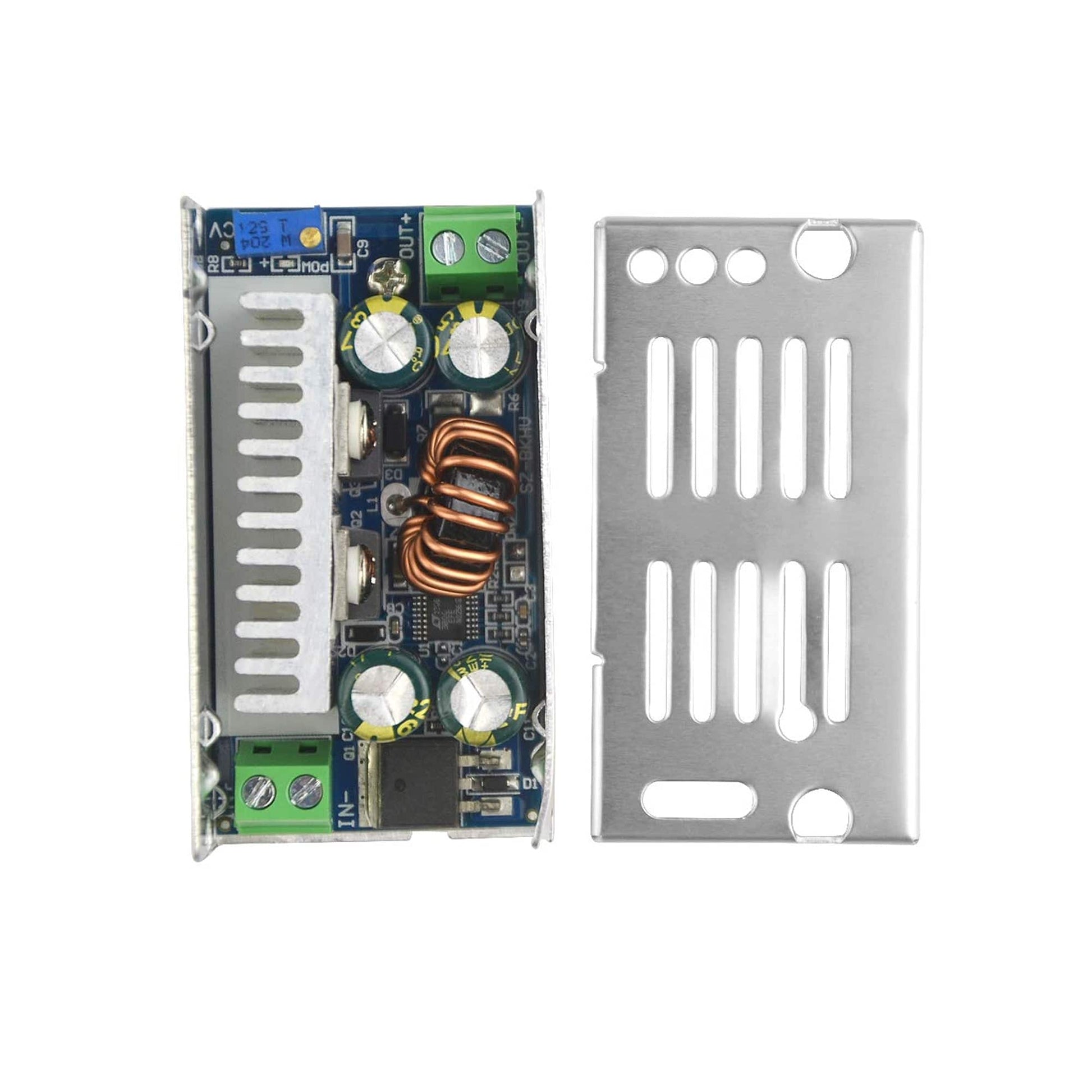

This is a Buck Converter Module 60V 48V Step-Down Adjustable Voltage Regulator Synchronous Rectifier Module. This Buck Converter Module adopts a highly customized radiator, a rational design. This Buck Converter Module has an integrated design of radiator and step-down panel, easy to use and install. This Buck Converter Module uses a 27mm Kool inductor toroid ring, 1mm double wire wound inductors, and a high-quality filter capacitor.
Specifications:
- Type: Non-isolated step-down module (BUCK)
- Input Voltage: 8-55V (limit 60V, please leave allowance)
- Output Voltage: 1-36V continuously adjustable (the default output 12V)
- Output Current: Normal 10A, MAX15A
- Output Power: natural cooling ventilated long-term power 100W
- Enhance heat dissipation to reach power up to 200W
- Operating Temperature: -10 to +85 degrees
- Operating Frequency: 180KHz
- Conversion Efficiency: up to 94%
- Overcurrent Protection: Yes (the output current exceeds (15A) current maximum short duration protection only)
- Reverse polarity protection: (reverse does not burn)
Features:
- 200W DC-DC high voltage power synchronous buck module
- 8-60V wide voltage input
- 1-36V step-less adjustable output
- The maximum peak output current 15A
- Perfect ultra-efficient circuit design up to 94% Low Ripple
Package Included:
1 x Buck Converter Module 60V 48V Step-Down Adjustable Voltage Regulator Synchronous Rectifier Module 15A
