Brushless Motor Driver 5V-12V DC Brushless Motor Driver Board Controller For Hard drive motor 3/4 wire - RS2757

Brushless Motor Driver 5V-12V DC Brushless Motor Driver Board Controller For Hard drive motor 3/4 wire - RS2757

RS2757

In stock

Rs. 439.00
Rs. 439.00
Sale Sold out
Shipping calculated at checkout.

Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.

For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

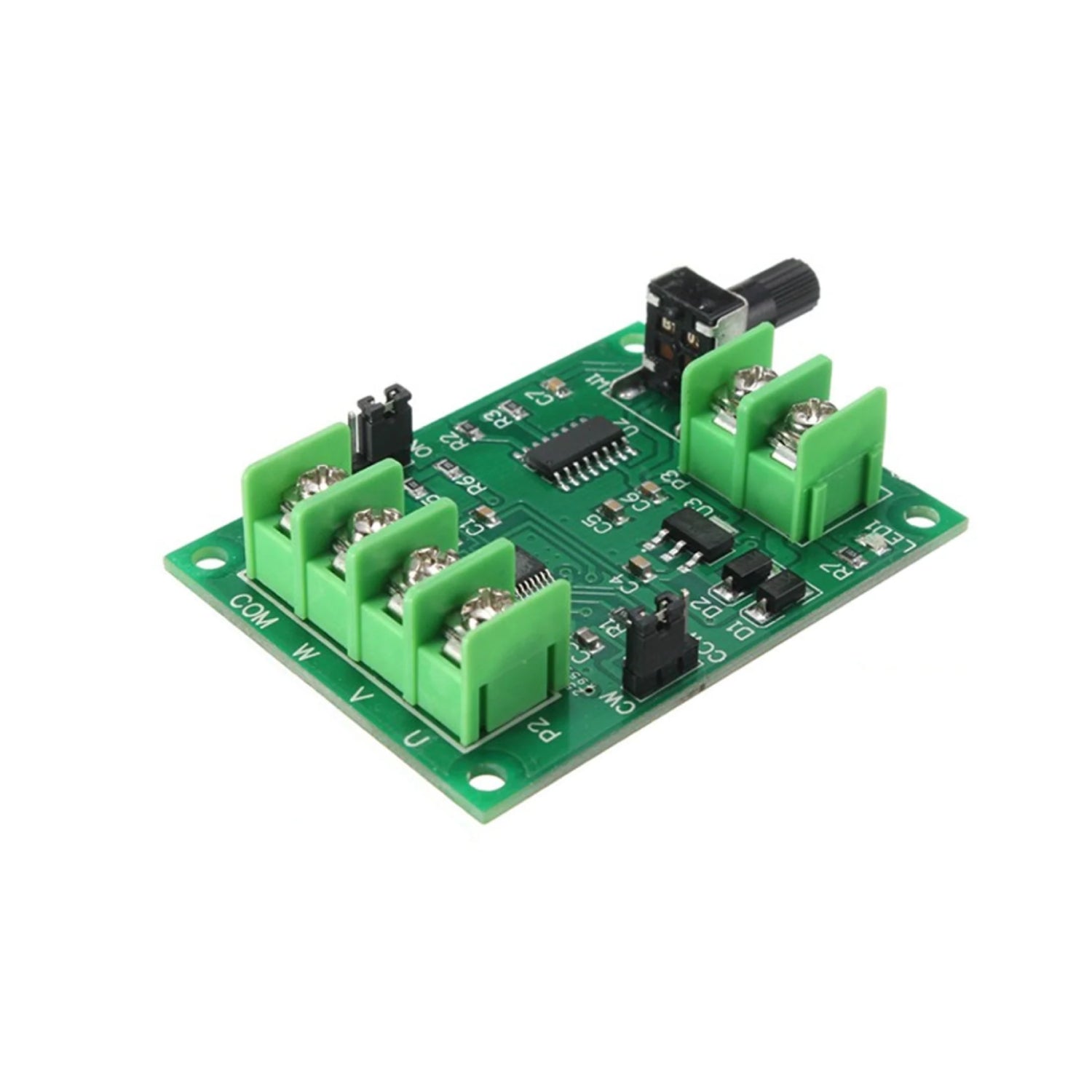

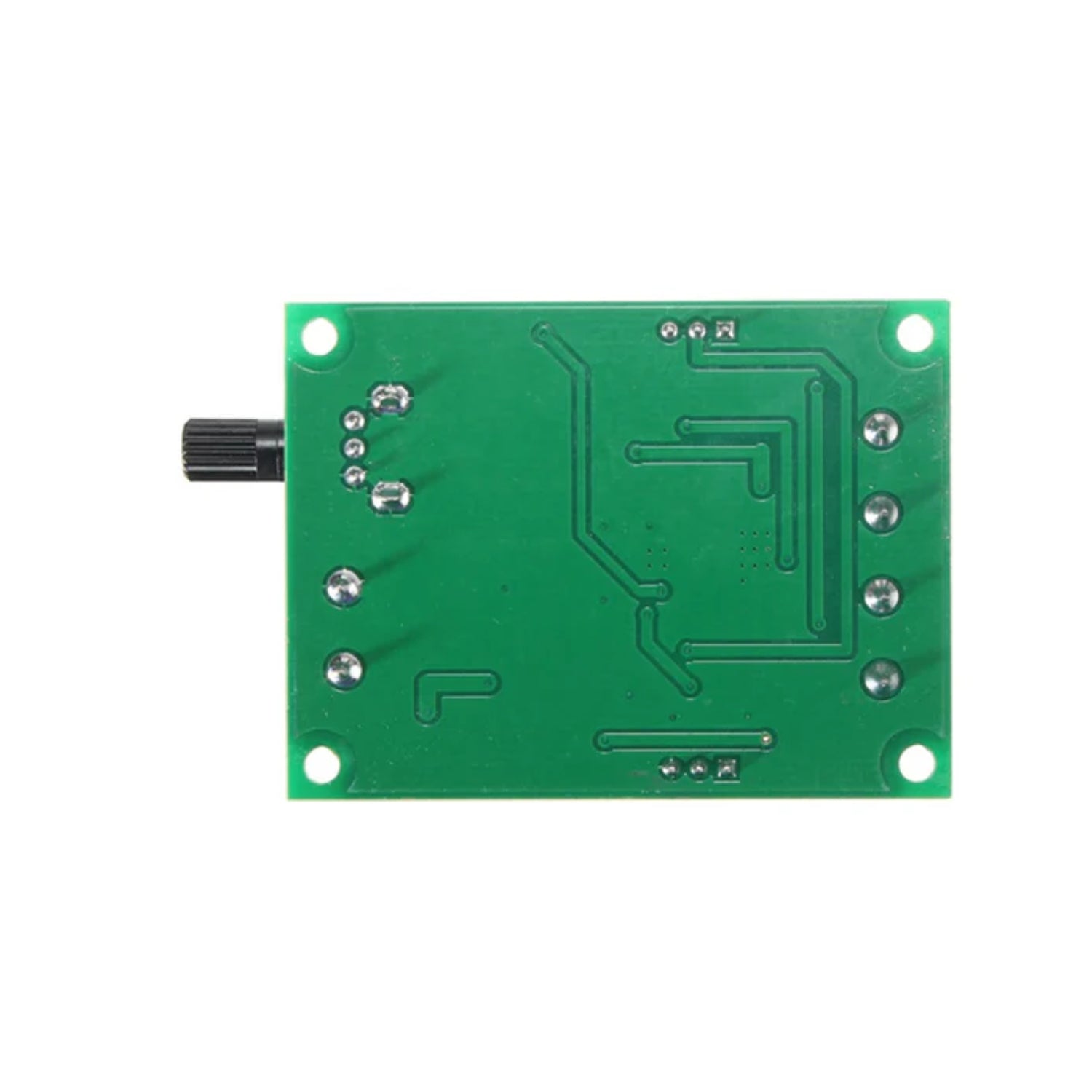

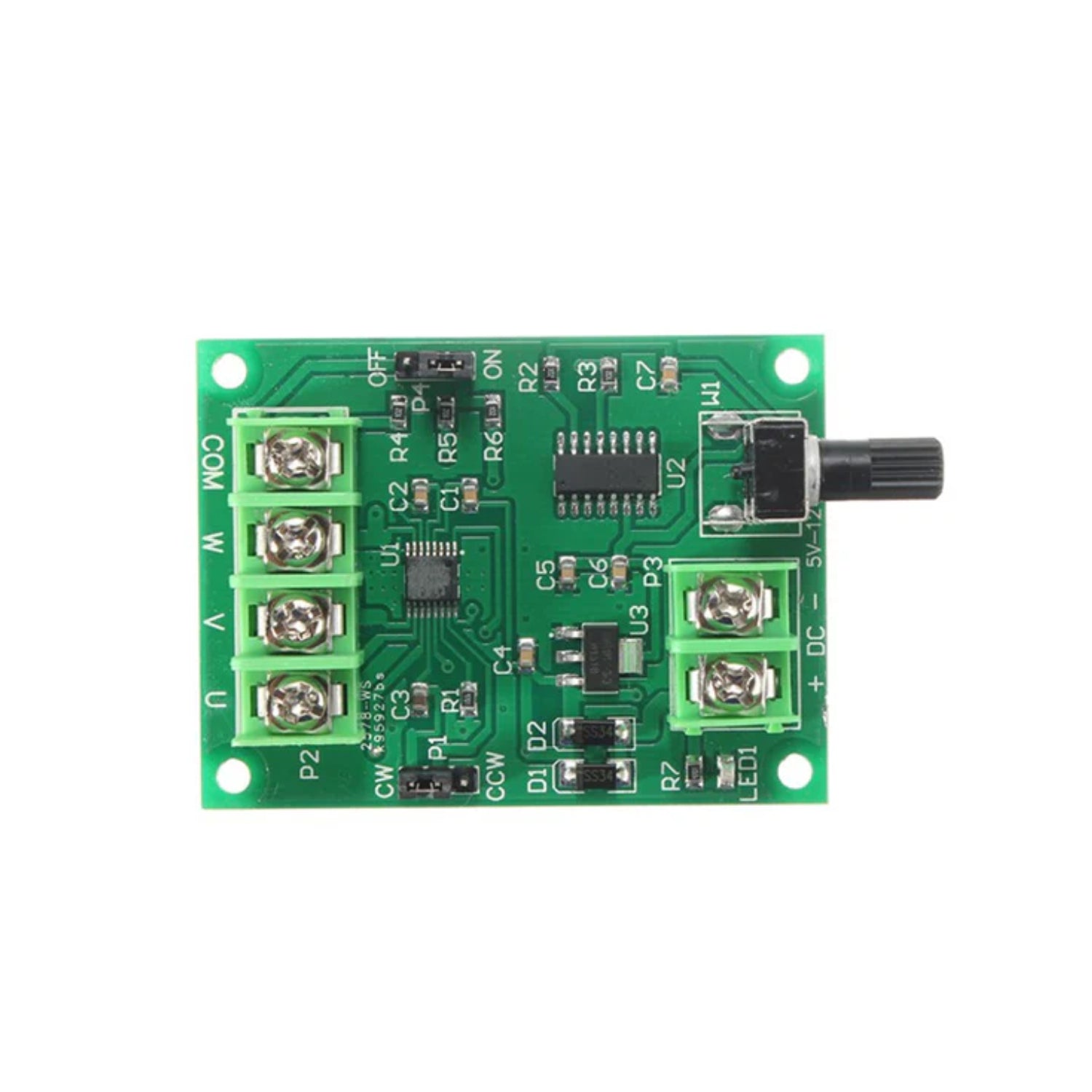

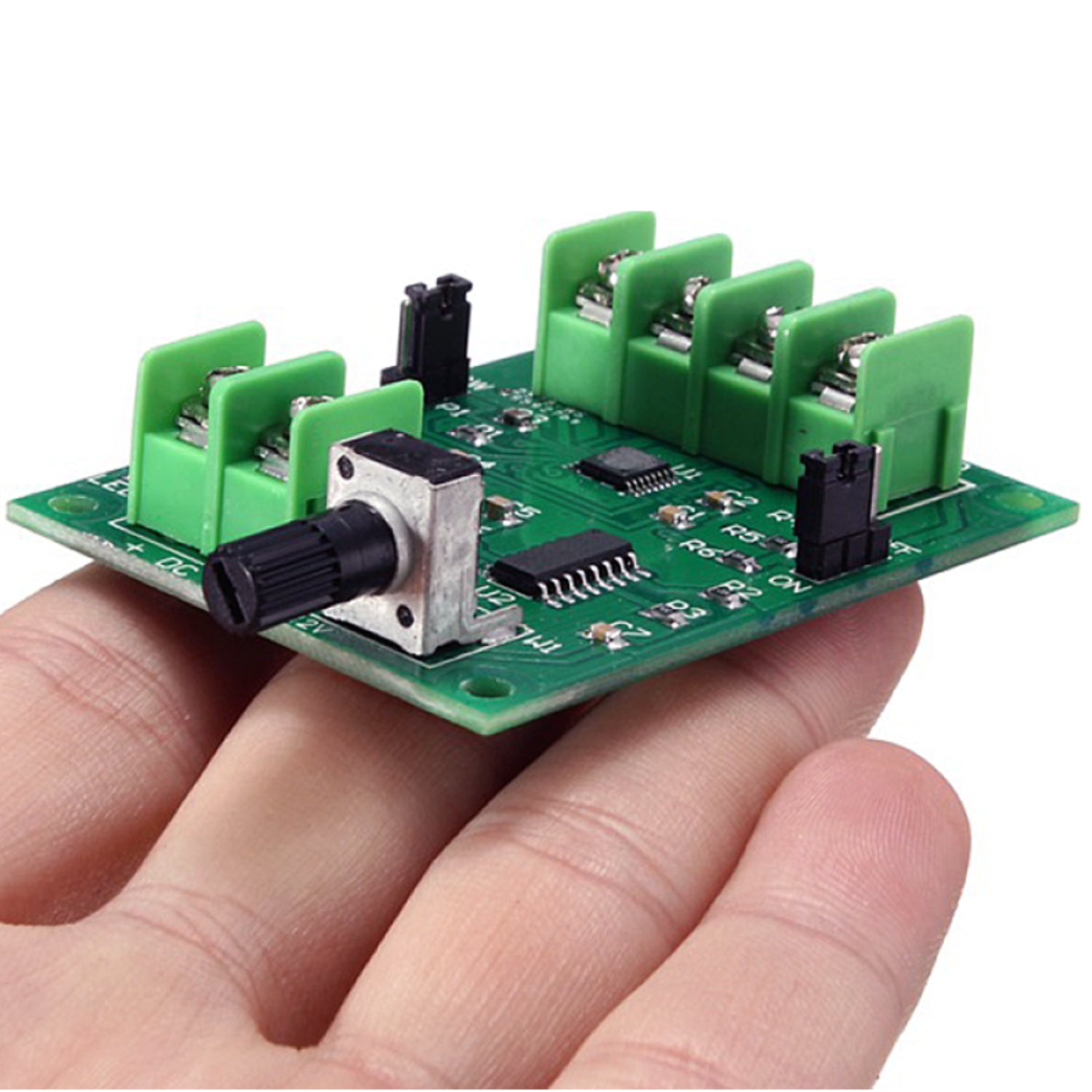

This is a Brushless Motor Driver 5V-12V DC Brushless Motor Driver Board Controller For Hard drive motor 3/4 wire. The driver board has voltage reverse connection protection, over-current protection, short circuit protection, simple wiring, and worry-free use. The hard disk motor can be rotated at a voltage of 7-12V. The higher the voltage, the faster the speed, which can reach about 10,000 revolutions.

Specifications:

  • Driver Voltage: DC 7-12V
  • Working Voltage: ≤1.2A
  • Speed Adjust: 0%-100%

How to Identify Common Port:

  • Measure the four terminals with the resistance x 1 of the meter.
  • One of the terminals and the other three terminals have the smallest and equal resistance, then this terminal is the COM terminal, Which is the common terminal.
  • The driver board automatically recognizes the 3-wire or 4-wire brushless motor, and the 4-wire brushless motor can also be disconnected from the COM line.

Package Included:

1 x Brushless Motor Driver 5V-12V DC Brushless Motor Driver Board Controller For Hard drive motor 3/4 wire
