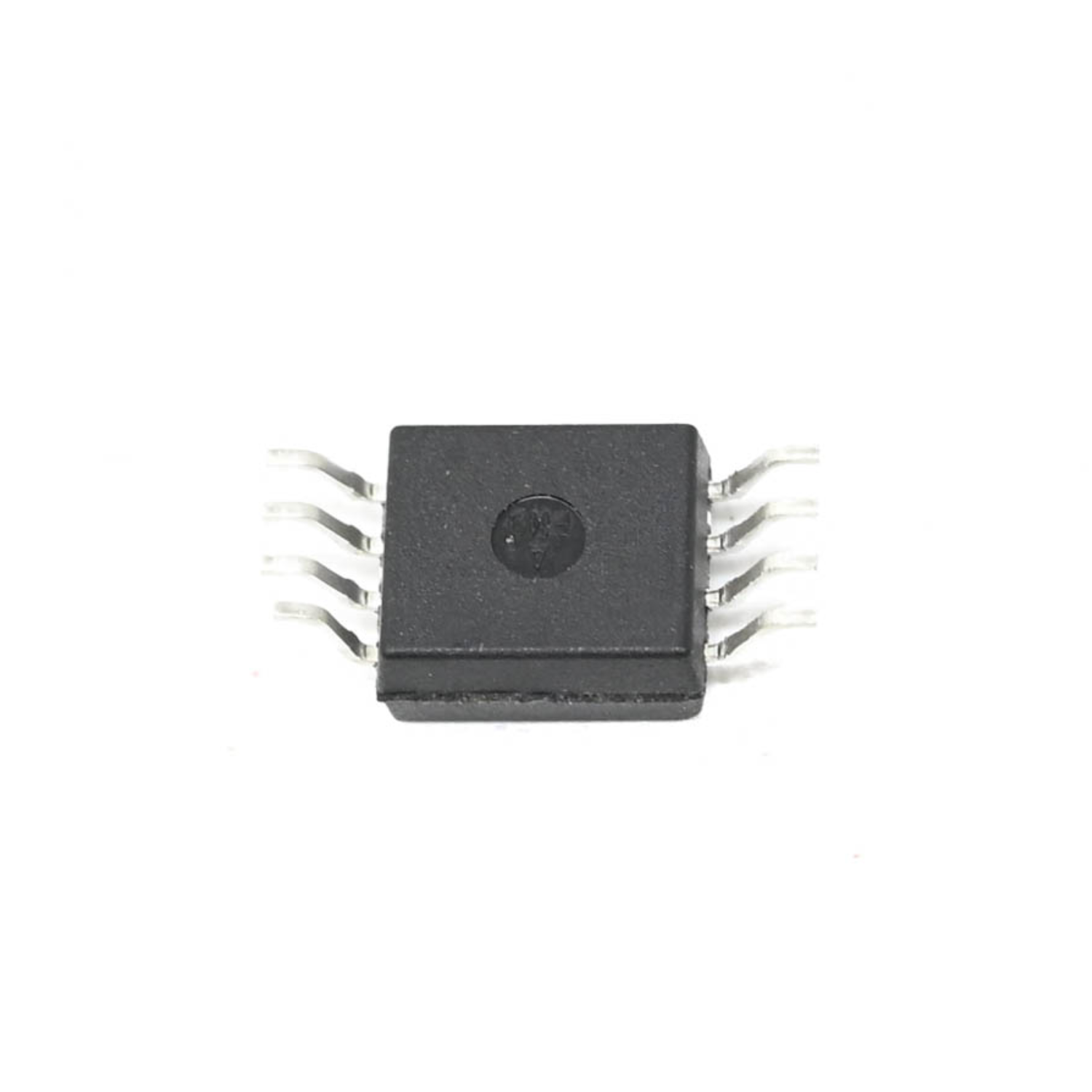

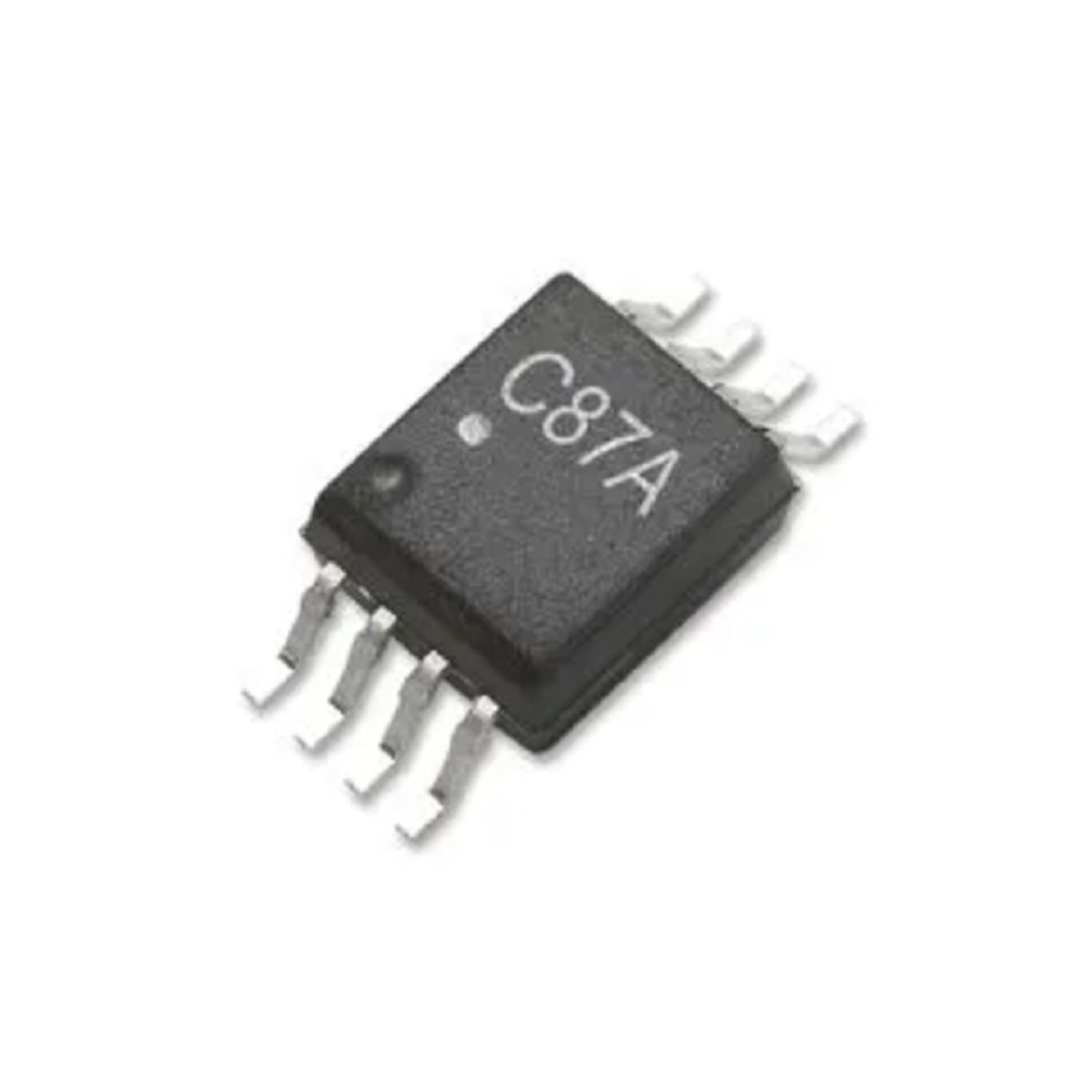

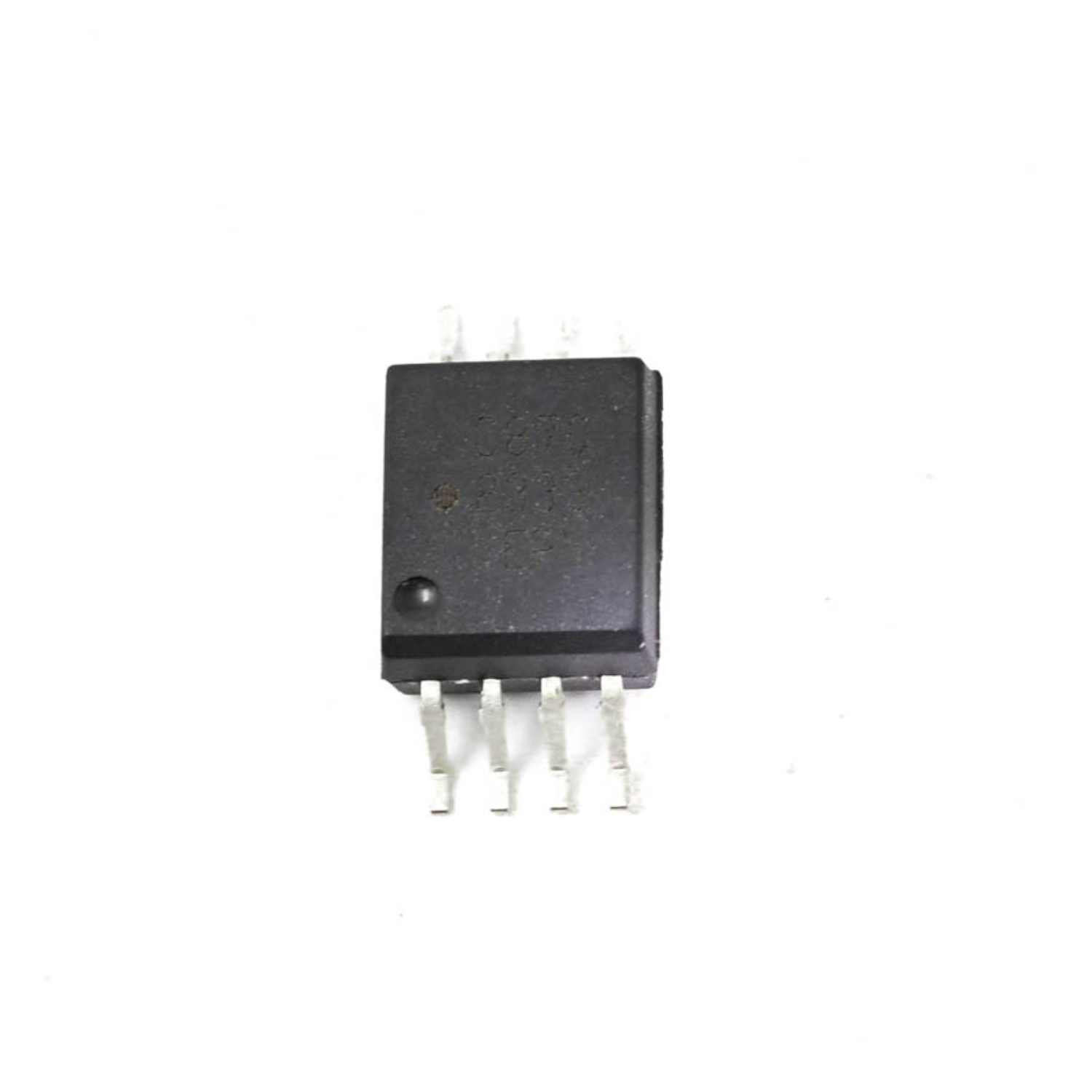

BROADCOM ACPL-C870-000E Optically Isolated Voltage Sensor 8-Pin 3V-5.5V Single Supply Voltage Sensor With 100 kHz Bandwidth
BROADCOM ACPL-C870-000E Optically Isolated Voltage Sensor 8-Pin 3V-5.5V Single Supply Voltage Sensor With 100 kHz Bandwidth
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95991 22209 or mail us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
The ACPL-C870-000E functions as an optical isolation amplifier, providing a safe and reliable way to measure voltages without a direct electrical connection between the sensing circuit and the measurement circuitry. This isolation is crucial for protecting sensitive components and personnel from high voltages and common-mode noise.
The sensor's 2V input range and high 1Gohm input impedance make it well-suited for isolated voltage sensing in electronic power converters. Typically, a resistive voltage divider is used to scale the DC link voltage down to a level compatible with the sensor's input range. The ACPL-C870-000E then generates a differential output voltage on the isolated side of the optical barrier, which is directly proportional to the input voltage. This output signal accurately represents the scaled DC link voltage.
Specifications:
- Model Type: Isolation Amplifier
- : 1
- : Optical
- : 5kV
- : 3V to 5.5V
- : 8 Pins
- : 100kHz
Features:
- Advanced sigma-delta (Σ-D) modulation technology
- Nominal input ranges from 0V to 2V
- Low gain drift of -35ppm/°C
- Offset voltage drift of 21mV/°C
- 0.1% (maximum) non-linearity
- Active high shutdown pin
- 100 KHz wide bandwidth
- Wide supply range from 3V to 5.5V for the output side
- IEC/EN/DIN EN 60747-5-5, UL 1577, CSA approved
- Operating temperature ranges from -40°C to 105°C
Package Included:
1 x BROADCOM ACPL-C870-000E Optically Isolated Voltage Sensor
