- Input voltage: 6.5-12 V (DC) or USB power supply
- Output voltage: 3.3V/5V can switch over
- Maximum output current: <700 ma
Description:

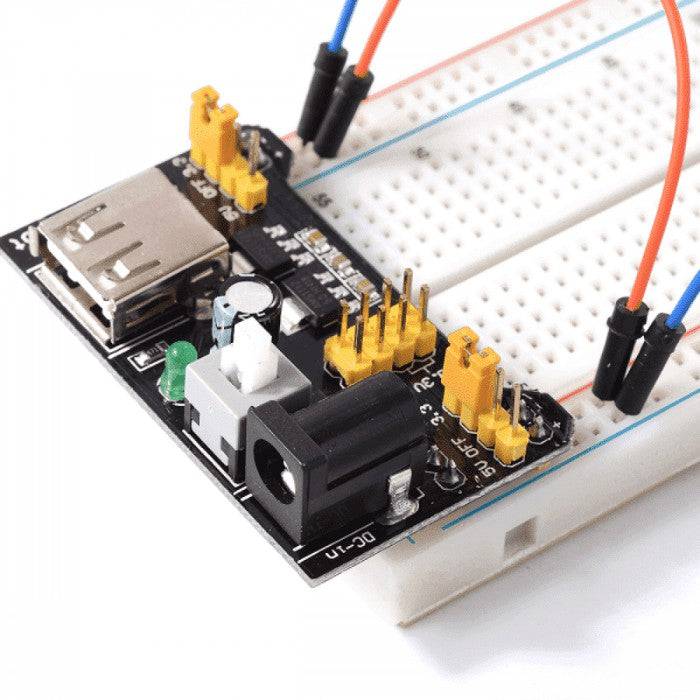

This is a plug-in power supply and the headers below the board simply plug-in to the breadboard. Once plugged in, the voltage rails to both sides on the breadboard then provide power. You then use the yellow jumpers to select the voltage levels required. This is a dual output 3.3 V, 5 V regulated board and you can have either voltage on either rail on the breadboard, which is very useful.
Specification:
- Locking ON / OFF Switch
- LED Power Indicator
- Input Voltage: 6.5 V to 12 V (DC)
- Output Voltage: 3.3 V / 5 V
- Maximum Output Current: 700 mA
- Power Rails 0 V, 3.3 V, 5 V on Breadboard
- Two Groups of Header Pins
Features:
- Fluctuation two road independent control
- Can switch over to 0 V,3.3 V,5 V
- On-board two groups of 3.3V, 5V DC output plug pin
- Convenient external lead use
Package Included:
1 x Breadboard Power Supply 3.3V & 5V For MB102 Bread Board Arduino Raspberry Pi (Black)
