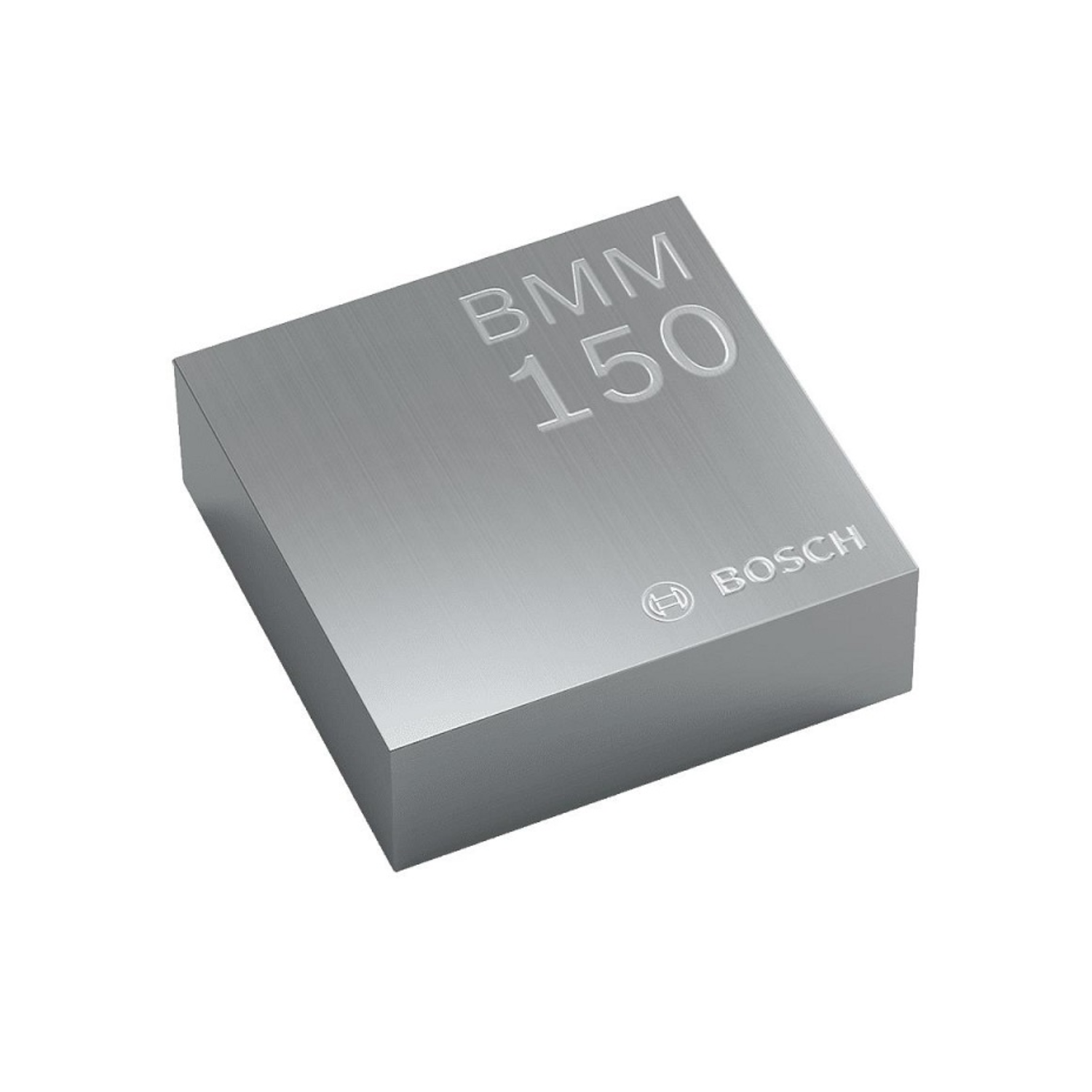

BOSCH BMM150 Hall Effect Sensor I²C Interface 10Hz Output Electronic Compass Solution For Magnetic Field Measurement
BOSCH BMM150 Hall Effect Sensor I²C Interface 10Hz Output Electronic Compass Solution For Magnetic Field Measurement
SKU:
In stock
Couldn't load pickup availability
- For Bulk Order Click Here
- Need Customer Support?
- Free Delivery Above 999/-
Note: In case you receive a damaged or faulty product, please return it in the original box with all foam and packaging. Returns will not be accepted if further damage occurs due to improper packing.
For refund/return/replacement, call us at +91 95995 94520 or email us at support@rees52.com
Delivery Time
Delivery Time
- Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.
- Delivery time if the order item is on Preorder Status is 15-20 working days.
COD (Cash on Delivery)
COD (Cash on Delivery)
- For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
Description:
This remarkably small three-axis magnetic field sensor, housed in a 1.56×1.56mm, 0.6mm high WLCSP, delivers high-precision magnetic field measurements. It provides flexible digital communication via both SPI and I²C interfaces and operates on a low voltage range of 1.2V to 3.6V. The sensor features a magnetic field detection range of (x, y) and (z), coupled with ultra-low power consumption of just 170µA at a 10Hz output data rate, thanks to its advanced power management capabilities. Being RoHS compliant, it's a perfect fit for demanding applications where size and power efficiency are critical.
Specifications:
- Model: BMM150
- Operating Supply Voltage: 3 V
- Package/Case: WJCSP-12
- Operating Supply Current: 170 uA
Features:
- Ultra-small footprint for integration in tight spaces.
- Supports both SPI (3/4-wire) and I²C communication.
- Operates efficiently from 1.2V to 3.6V.
- Detects magnetic fields up to ±1300µT (x, y) and ±2500µT (z).
- On-chip controller for streamlined signal handling.
- Minimal power usage with quick wake-up capability.
Package Included:
1 x BOSCH BMM150 hall effect sensor IC2,10HZ
