Description:

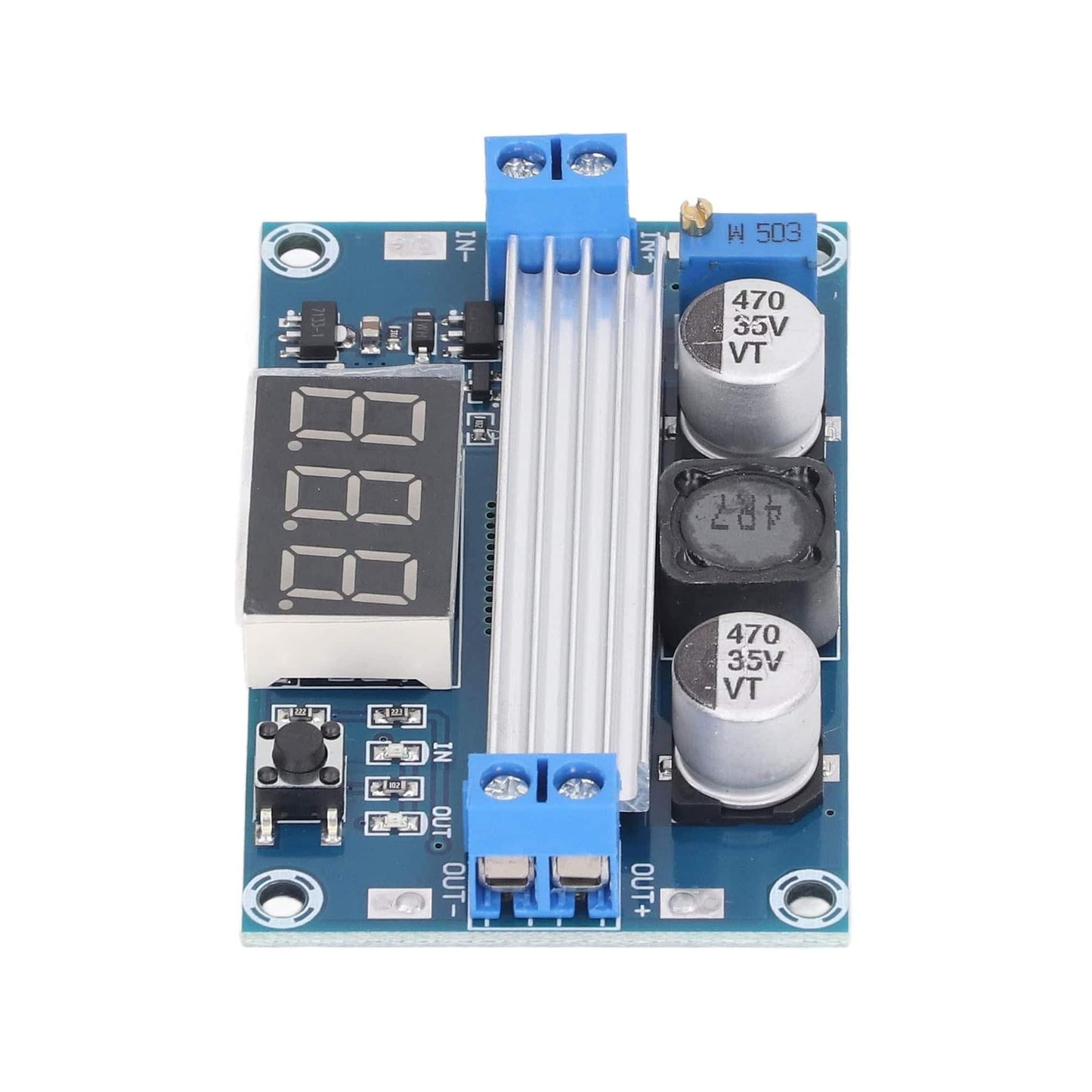

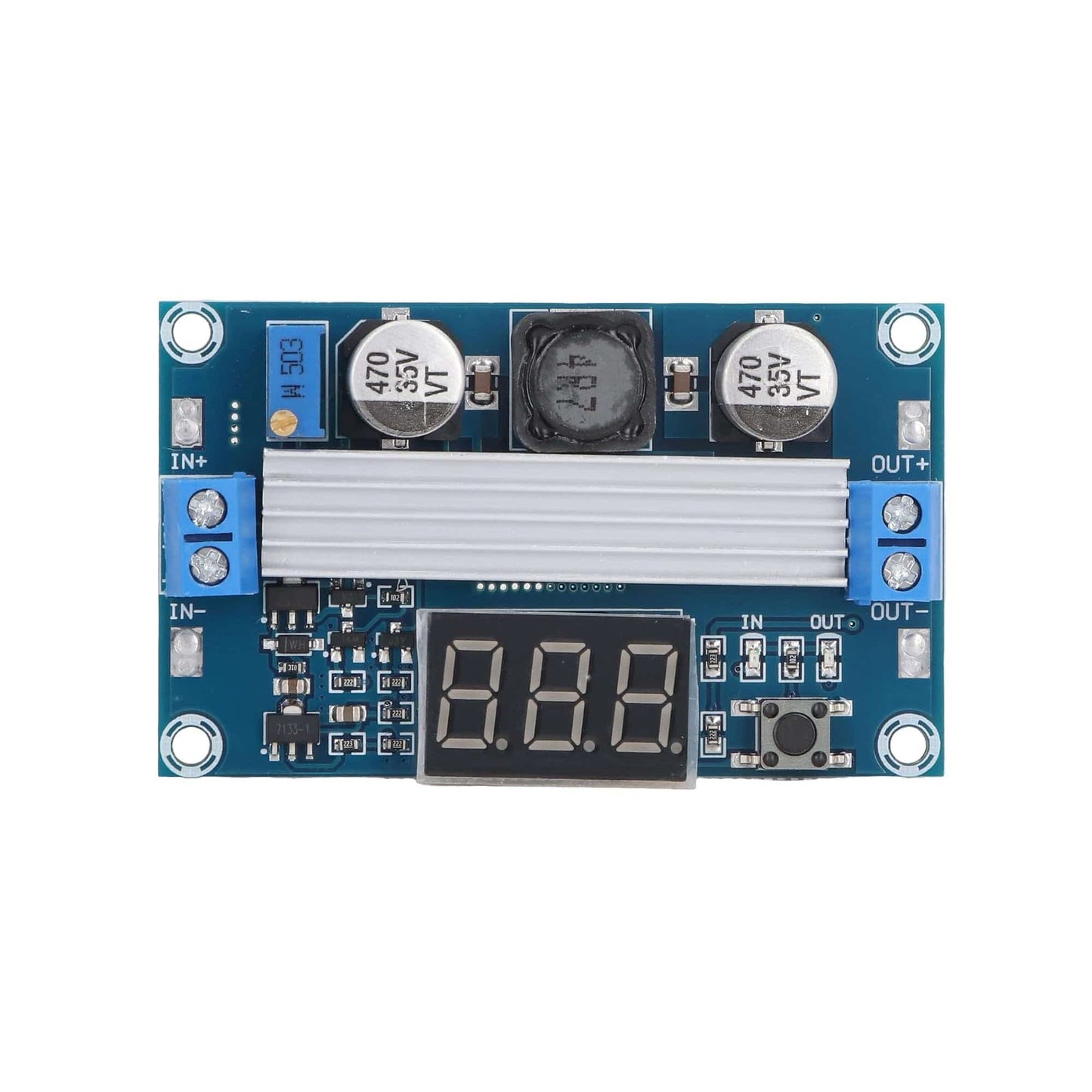

The automatic Boost Converter Module provides a stable power supply. Applicable to an unstable voltage source or voltage conversion. The display part adopts a more advanced microprocessor of the voltmeter. By using the on-resistance of power MOSFET, the current detection resistance is omitted, and the efficiency is improved to the maximum extent, up to 96.4%. Boost Converter Module has imported high power resistance MOS transistors, large package, high current, high-efficiency Schottky, ultra-wide, and thick PCB wiring, which are guaranteed high power, high efficiency, and low-temperature rise. High frequency, high capacity and low resistance (low ESR) aluminium electrolytic capacitors for long-life switching power supply make the output ripple lower.
Specifications:
- Input Voltage: 3 ~ 35V DC
- Input Current: 9A (max)
- Output Voltage: 3.5 ~ 35V DC (this board is the boost plate, the output voltage to> = input voltage)
- Output Current: 6A (max)
- Output Power: 75W, (when the input and output voltage is greater than 20V can reach 128W)
- Conversion Efficiency: 96.7% (highest)
- Output Ripple: 24mV (TYP)
- Onboard Voltage Meter Range: 4 ~ 40V, error + -0.1V
- Short Circuit pProtection: Yes (limit current 14A)
- Input Reverse Polarity Protection: no (if necessary, enter the string into the high current diode)

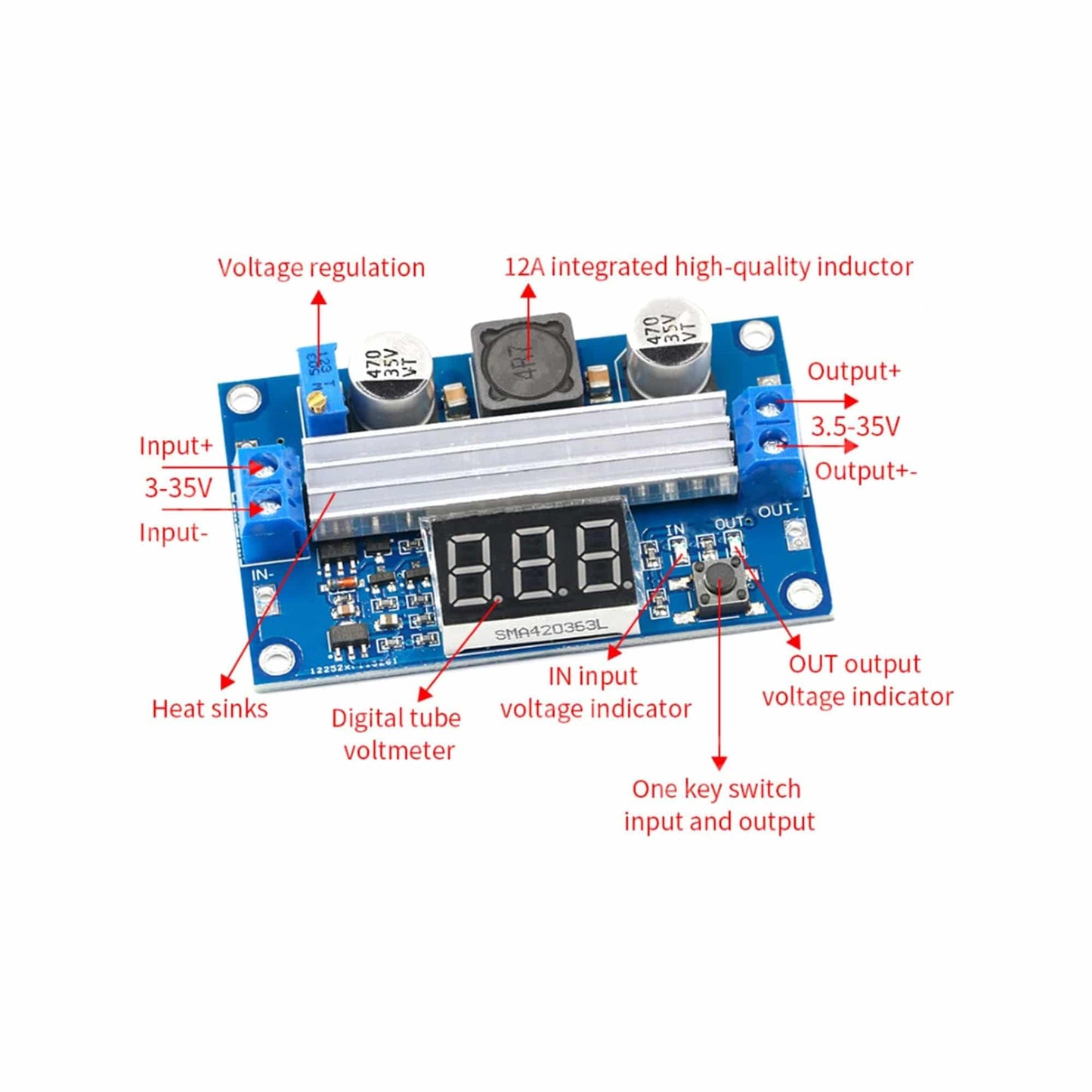

Features:
- Boost Converter Module has high power 100W
- Switch display output and input voltage
- Boost Converter Module has adjustable output voltage
- Real-time display voltage
- Boost Converter Module comes with an excellent heat sink
- Fixed mounting hole
- High-quality terminal block
Package Included:
1 x Boost Converter Module DC-DC High Power Adjustable Step-up Module 3.0-35V to 3.5-35V 100W with Digital Display Voltmeter
