- Impedance : 50ohm
- Frequency Range : 0~1 GHz for 75 ohm
- VSWR : Straight type 1.22/3GHz / R/A type 1.30/3GHz
- Dielectric Withstanding Voltage : 1500 V rms
- Working Voltage : 500 V rms
- Center Contact Resistance : 1.5 m (Milliohms max.)
- Outer Contact Resistance : 2.0 m (Milliohms max.)
- Insulation Resistance : 5 103 m (Milliohms min.)
Description :
These connectors are designed to terminate to industry-standard 50 ohm and 75-ohm cables with longer life, perfect designs and durable industry-grade Standards and finish.
Appliance: Antennas, Cable Assembly, Automotive, Radios, Video, Broadcast, Telecom, Satcom, Monitors, Recorders, Switchers, Base Stations, Medical Equipment, Instrumentation, CCTV, CATV, HDTV, etc.
Features:

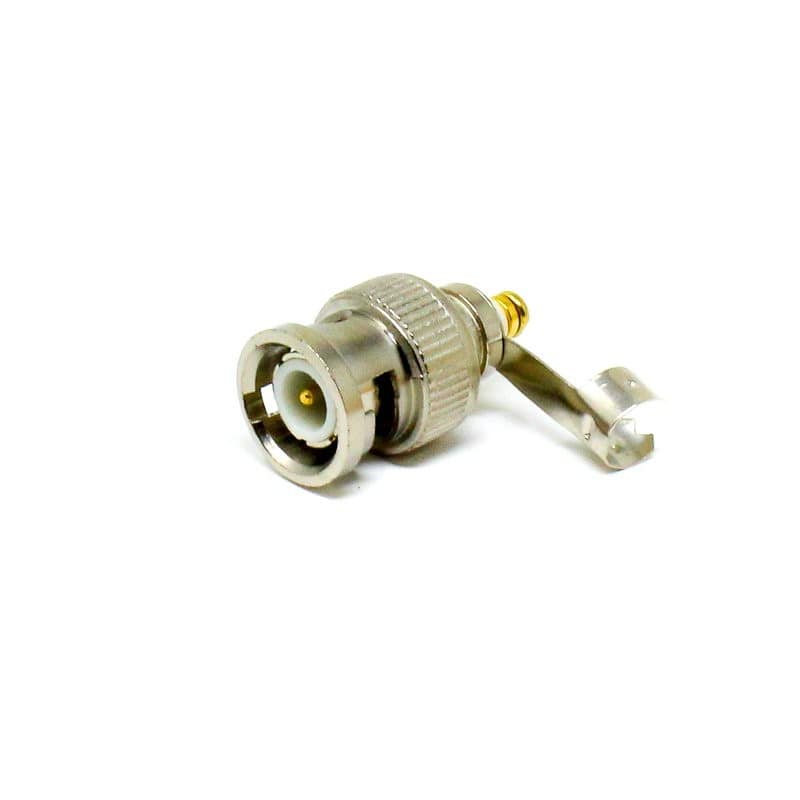

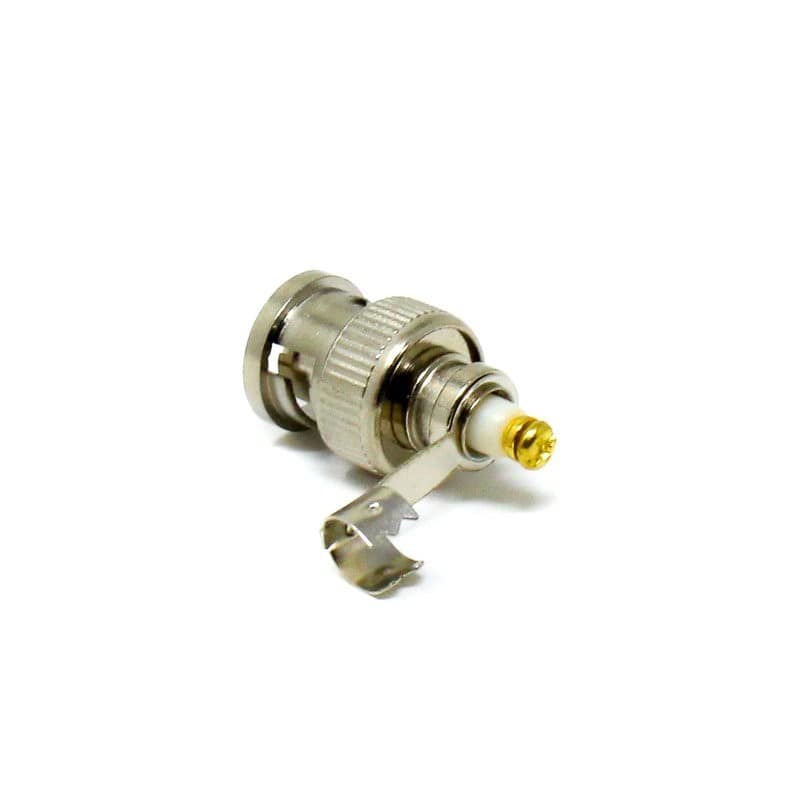

- BNC Connector,Straight/180, Male Plug, Solder Type 75ohm,brass plating nickel
- Compact Design for less installation space required.
- Easy quick connect and disconnect coupling.
Electrical Characteristic :
- Impedance : 50ohm
- Frequency Range : 0~1 GHz for 75 ohm
- VSWR : Straight type 1.22/3GHz / R/A type 1.30/3GHz
- Dielectric Withstanding Voltage : 1500 V rms
- Working Voltage : 500 V rms
- Center Contact Resistance : 1.5 m (Milliohms max.)
- Outer Contact Resistance : 2.0 m (Milliohms max.)
- Insulation Resistance : 5 103 m (Milliohms min.)
Mechanical Characteristic :
- Coupling: bayonet
- Contact Retention: 6 lbs min.
- Mating Durability: 500 cycles
Environmental Characteristic
- Environmental Characteristics: Teflon -55~+155 / POM -40~+60
- Coupling Nut Retention: 100 lbs. min.
- Vibration: MIL-STD-202 Meth. 204
- Corrosion Resistance: MIL-STD-202 Meth. 101

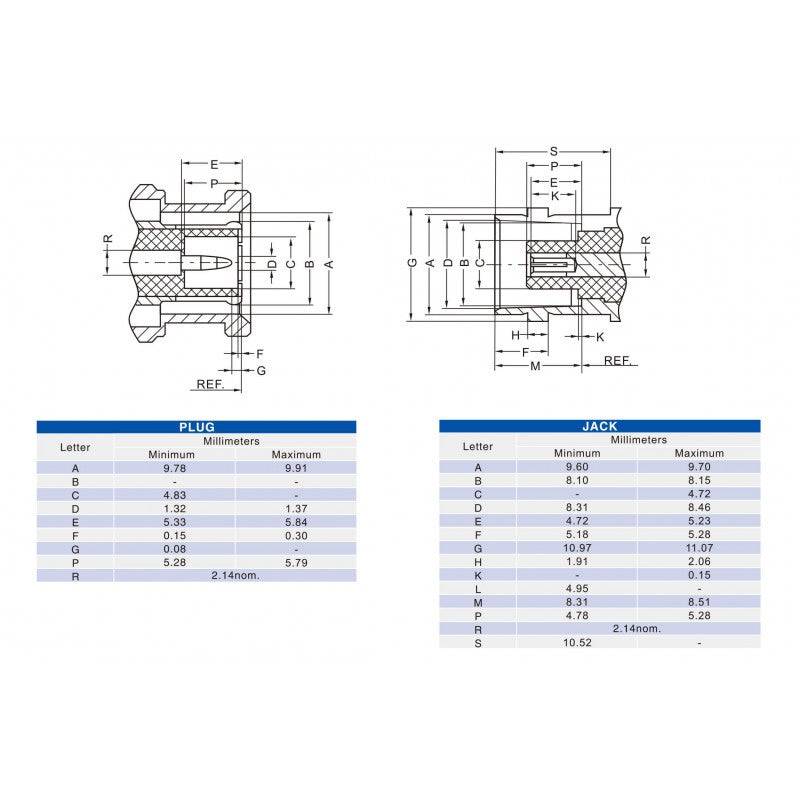

Specifications:
- Orientation : Straight
- Gender : Male
- Mounting Type : Cable
- Termination Style : Solder Type
- Mounting Feature : None
- Function : Other
- Polarity : Standard
- Body Material : Zinc Alloy
- Body Plating : Nickel Plating
- Impedance : 50/75 ohms
- Shield Termination : Solder
Package Included:

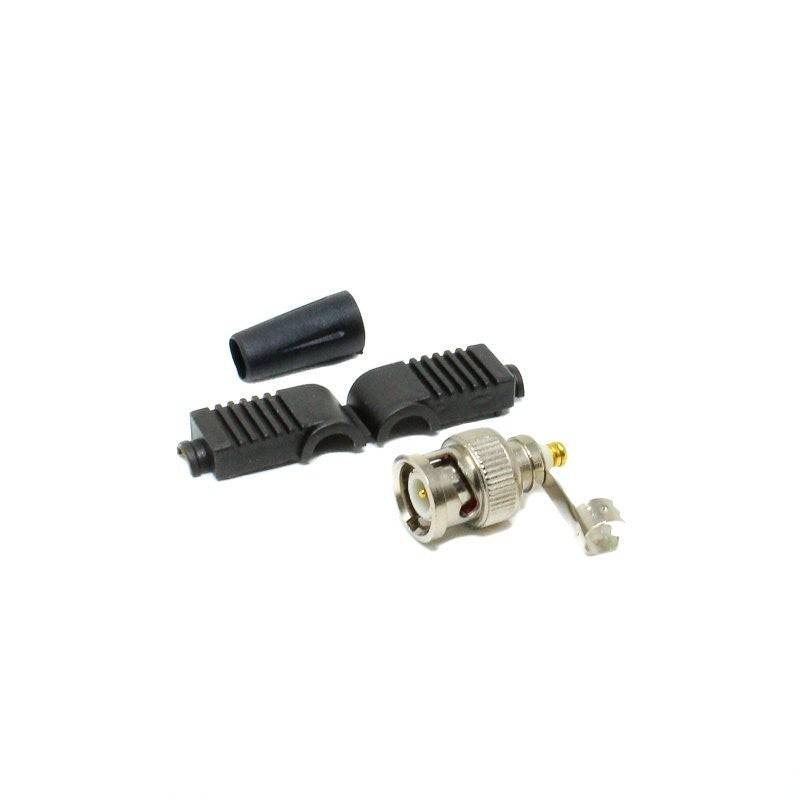

1 x BNC Connector For CCTV Male Type With Plastic
