Description:

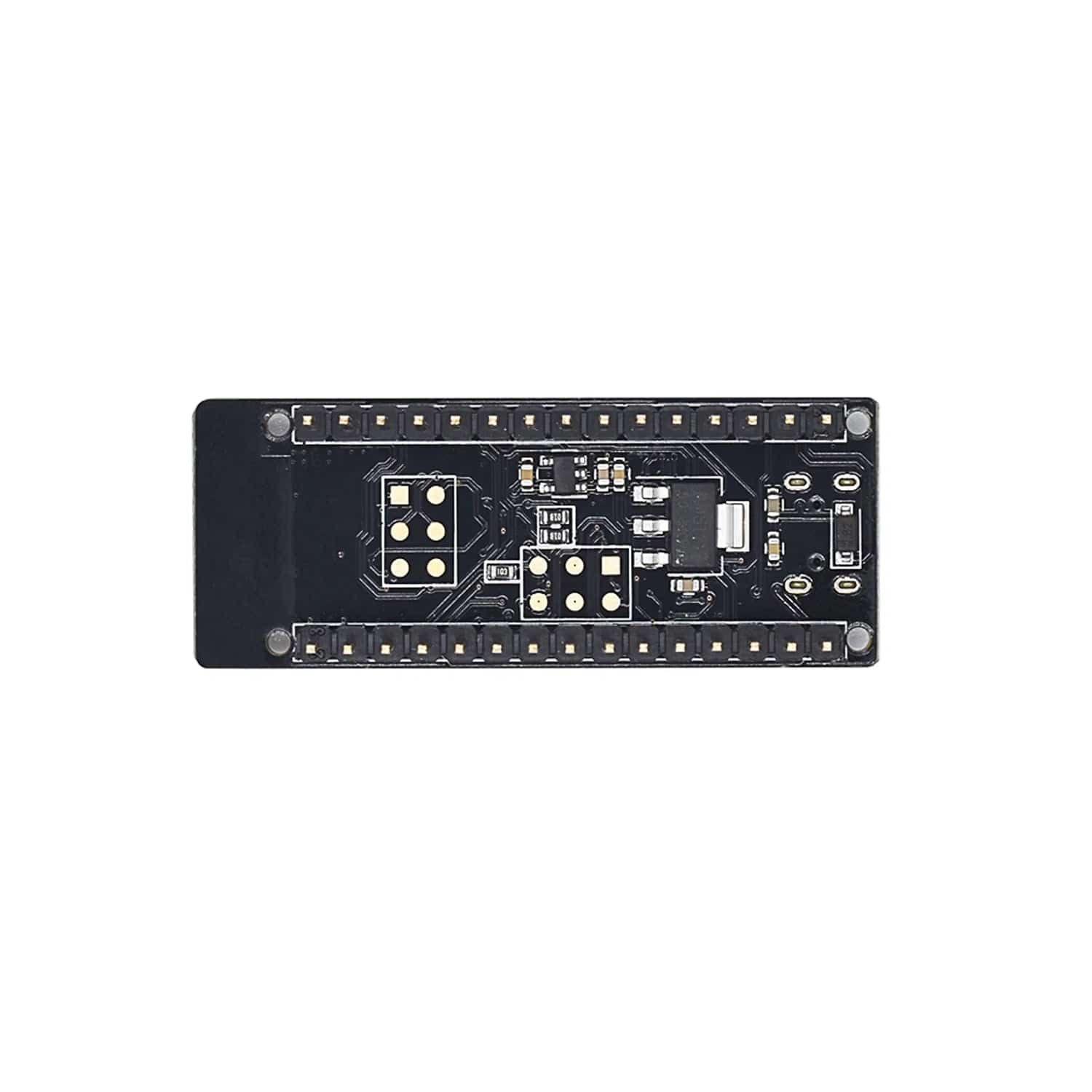

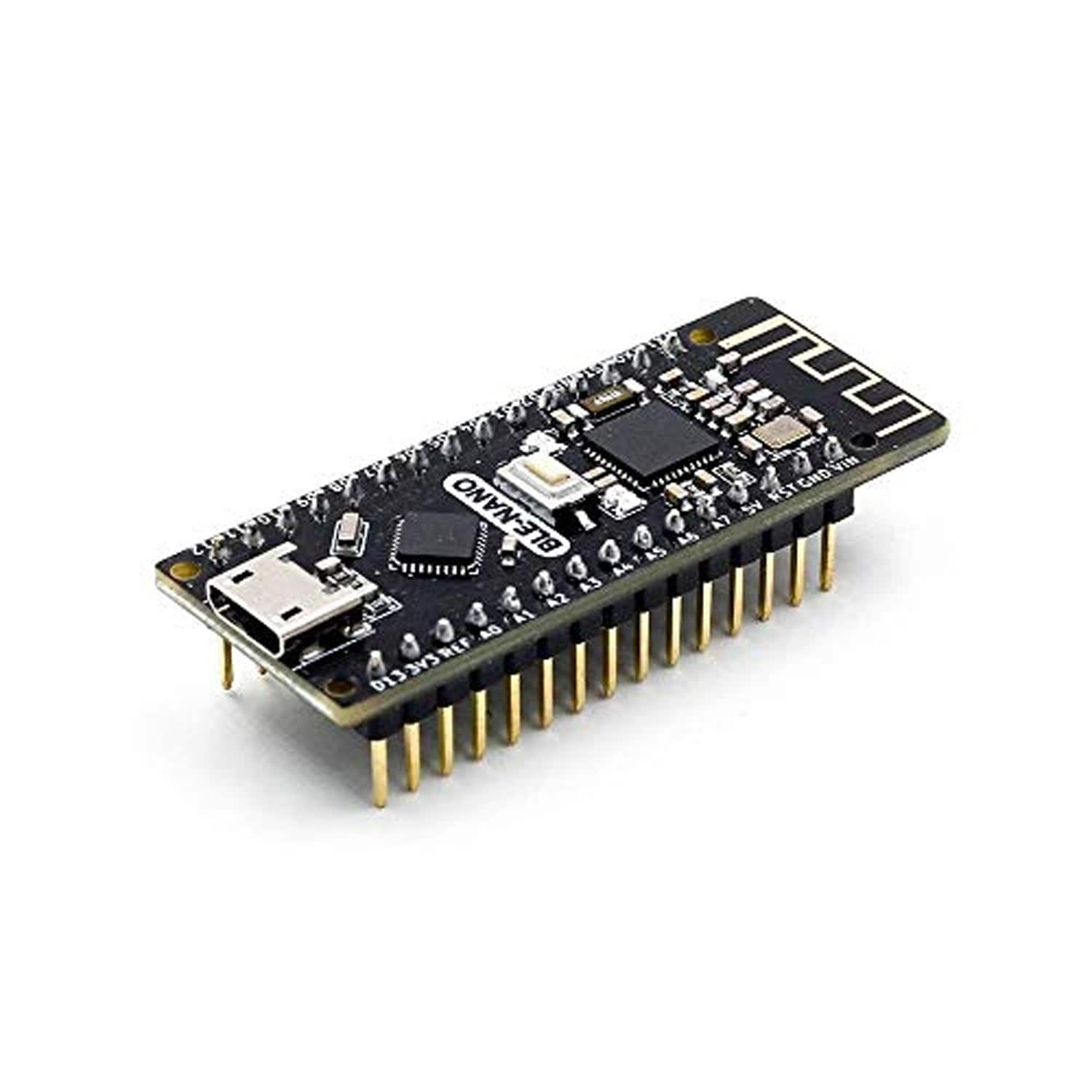

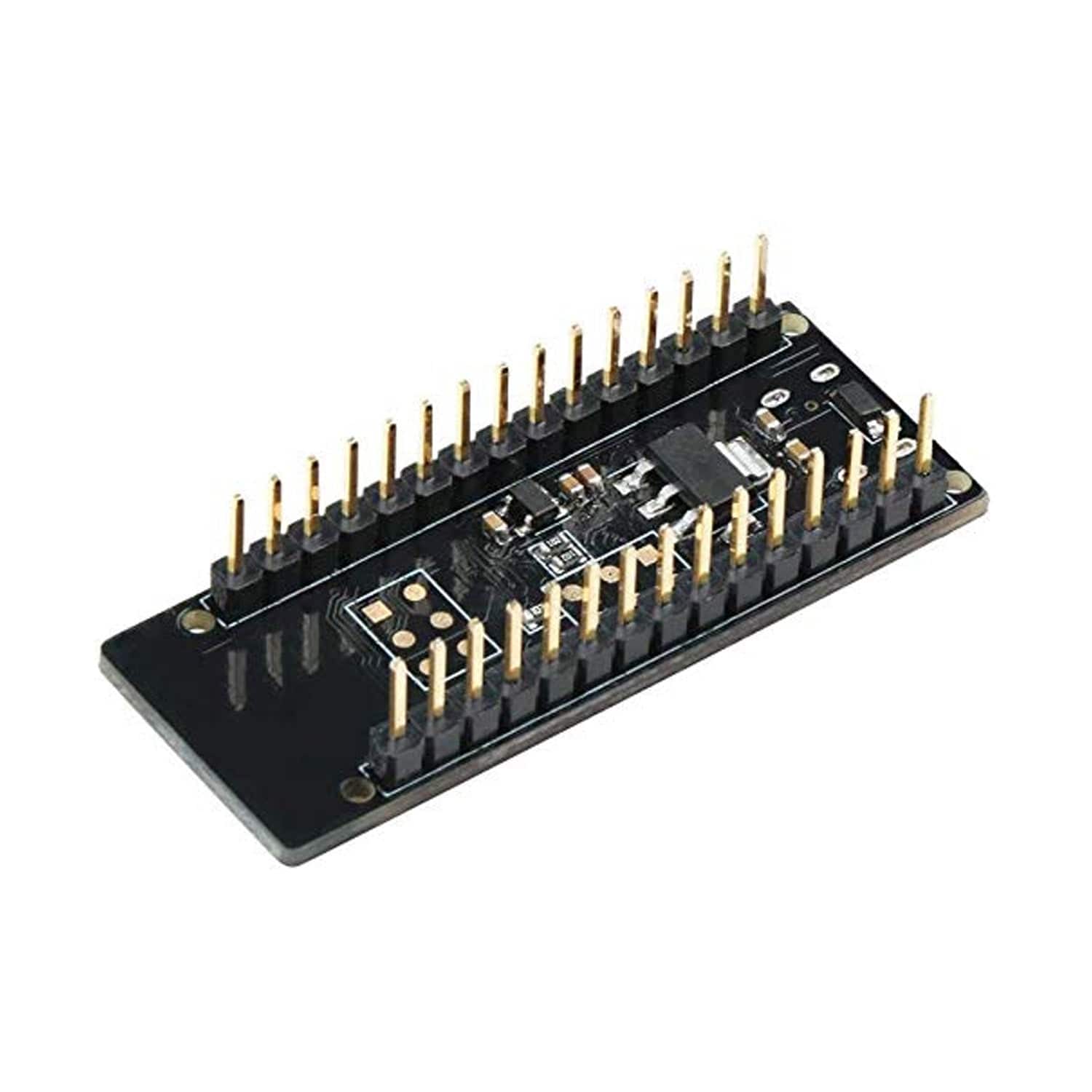

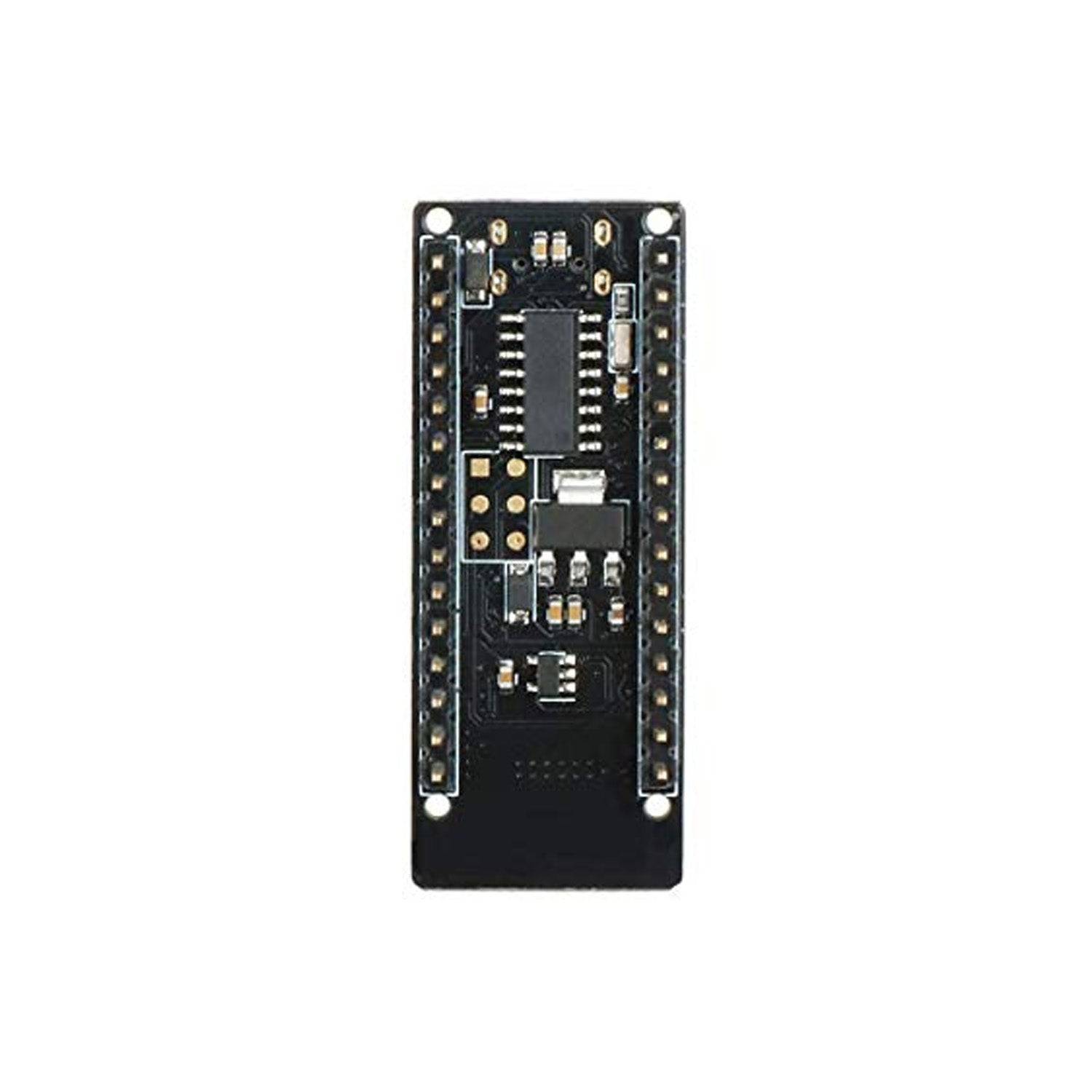

BLE Nano V3.0 Mirco USB Board is an Upgraded nano board for Arduino, The main chip is ATMEGA328P-MU QFN32, and the latest bootloader (Arduino IDE 1.8.8) was burned down. It is fully compatible with the common nanoboard. BLE Nano V3.0 Mirco USB Board is PIN-PIN with Arduino Nano V3.0 and shares the same. It has a super small volume design, is more convenient to use, the pin is fully compatible with Nano V3.0, and No Soldering is needed. The micro USB port is more convenient to use. The Bluetooth uses a TI CC2540 BLE (SOC) chip. Maximum support 1Mbps air data transfer rate, stable performance. Communication distance can be up to 50M in an open environment. BLE-Nano-Board integrates a CC2540 BLE module with Arduino nano v3.0 board, which is very convenient for Bluetooth wireless connect applications.
Specifications:
- BLE chip: TICC2540
- Working channel: 2.4G
- Transmission distance: open distance 50m
- Interface: Micro-USB
- Input voltage: Micro-USB power supply, Vin6~12V, 5V
- Microprocessor: ATmega328P-MU QFN32
- Bootloader: Latest arduino1.8.8
- Pin: two rows 2.54mm-15Pin
Features:
- BLE Nano supports Bluetooth host mode to automatically connect slaves.
- Support AT command to configure BLE.
- Support USB virtual serial port, hardware serial port, BLE three-way transparent transmission.
- Support master-slave switching.
- BLE Nano has high-quality materials and technology.
- BLE Nano is more convenient for application.
Package Included:
1 x BLE Nano V3.0 Mirco USB Board Integrate CC2540 BLE Wireless Module ATmega328P Micro-Controller Development Board
