Description:

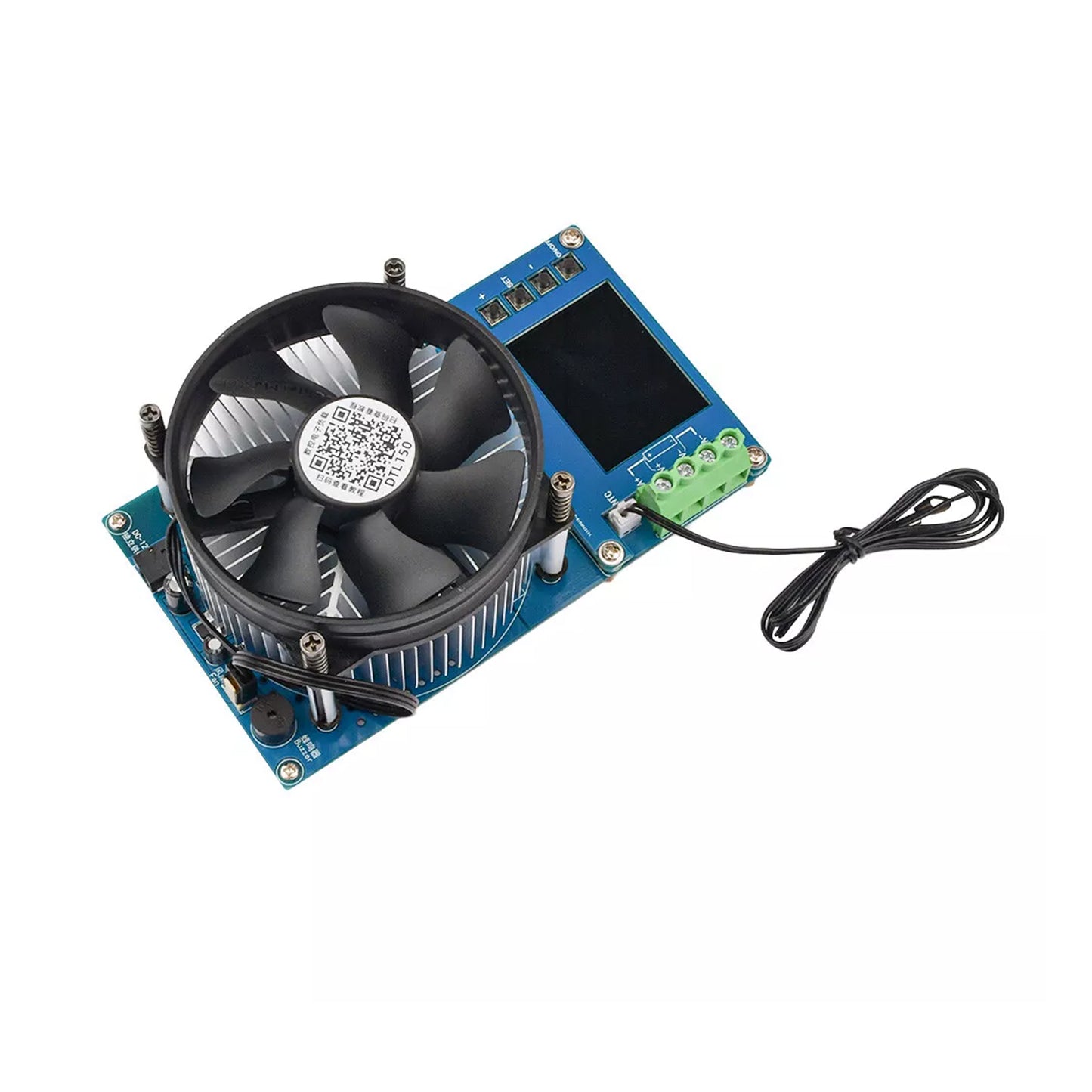

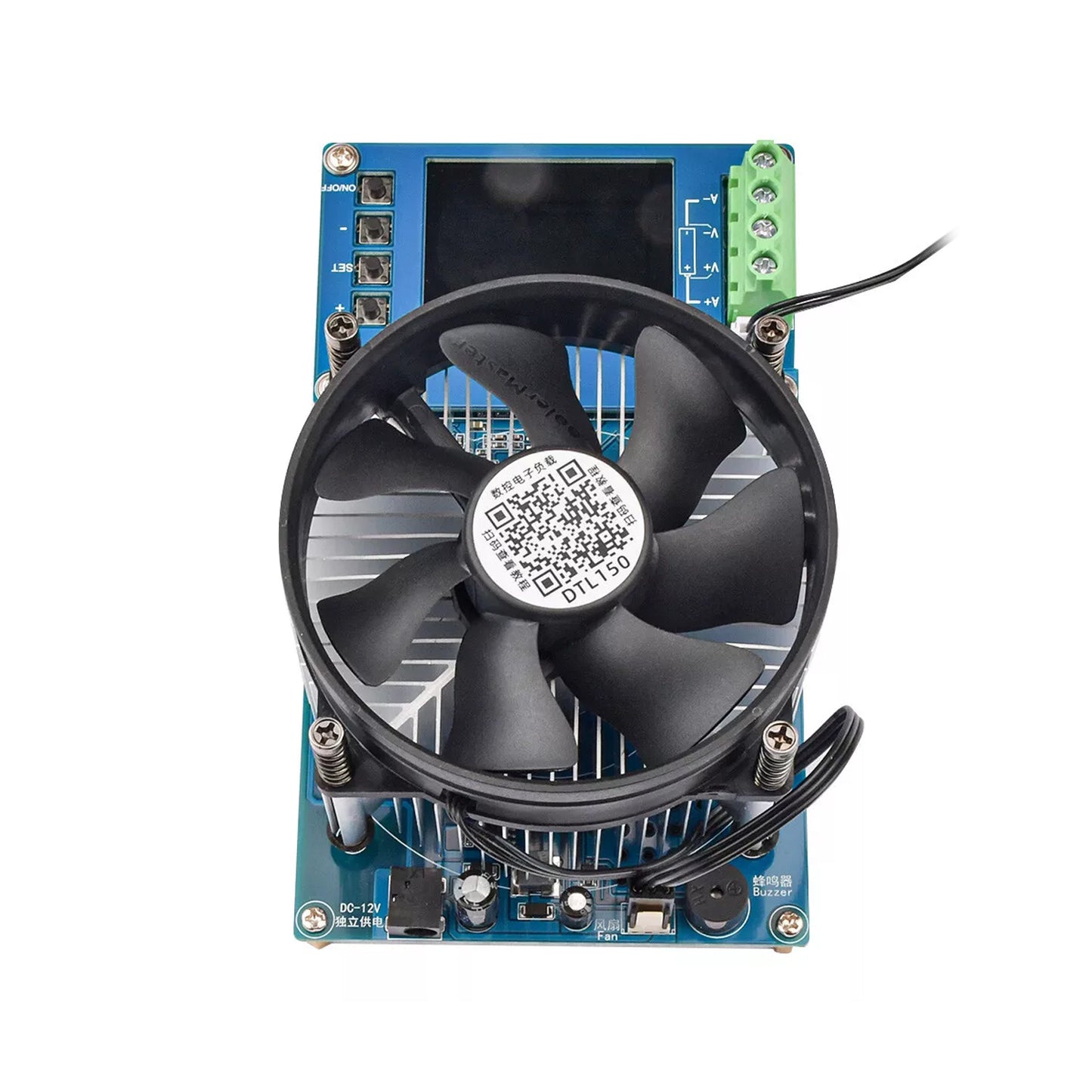

Black 2.4 Inch 150W DC Electronic Load Power Supply Meter DC Tester Electronic Load Lithium Battery Capacity Monitor Discharge Charge Power Meter Supply Checker
Specifications:
- Power Range: 0~999.999 Wh
- Impedance Range: 0~9999.999Ω
- Temperature Range: -50℃ ~120℃
- OVP-Voltage over-limit protection setting range: 0~150V, default 150V
- OCP-Current overrun protection setting range: 0~20A, default 20A
- OPP-power over limit over limit setting range: 0~150W default 150W
- Low Voltage Stop Range: 0~150V
- Measurement Rate: about 0.5 times/sec
- Refresh Time: >500ms/time
- Running Time Accumulation Function: >0.05A start to record accumulated time
- Screen Standby Time: Always on or 0~99 seconds
- Fan Control Threshold: Temperature>40℃, the fan is automatically turned on.
- Fan Cooling Power: ≤150W
- Set Over-limit Alarm Mode: Interface alarm and buzzer alarm
Features:
- Protection against overvoltage, overcurrent, overvoltage, overheating and reverse connection below 100V.
- Supports timed shutdown and specified voltage shutdown.
- Four-wire wiring system for more accurate capacitance measurement.
- Active heat dissipation at load current above 3A or core temperature ≥40℃ to start the fan.
Package Included:

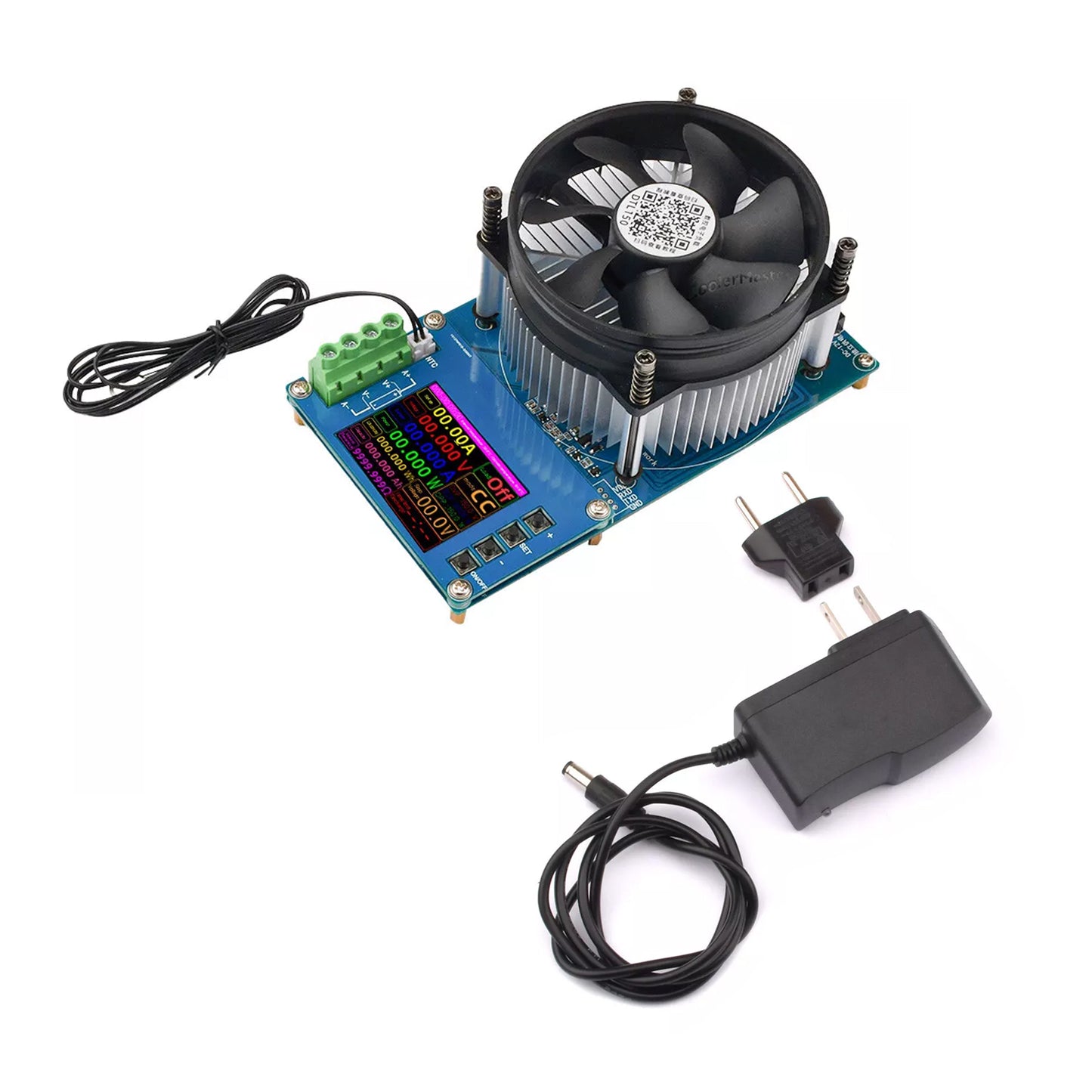

1 x Black 2.4" 150W DC Load Battery Tester 150W DC Electronic Load Meter Portable Battery Tester High-Power 150W DC Load Battery Tester with Black 2.4 Inch Display
