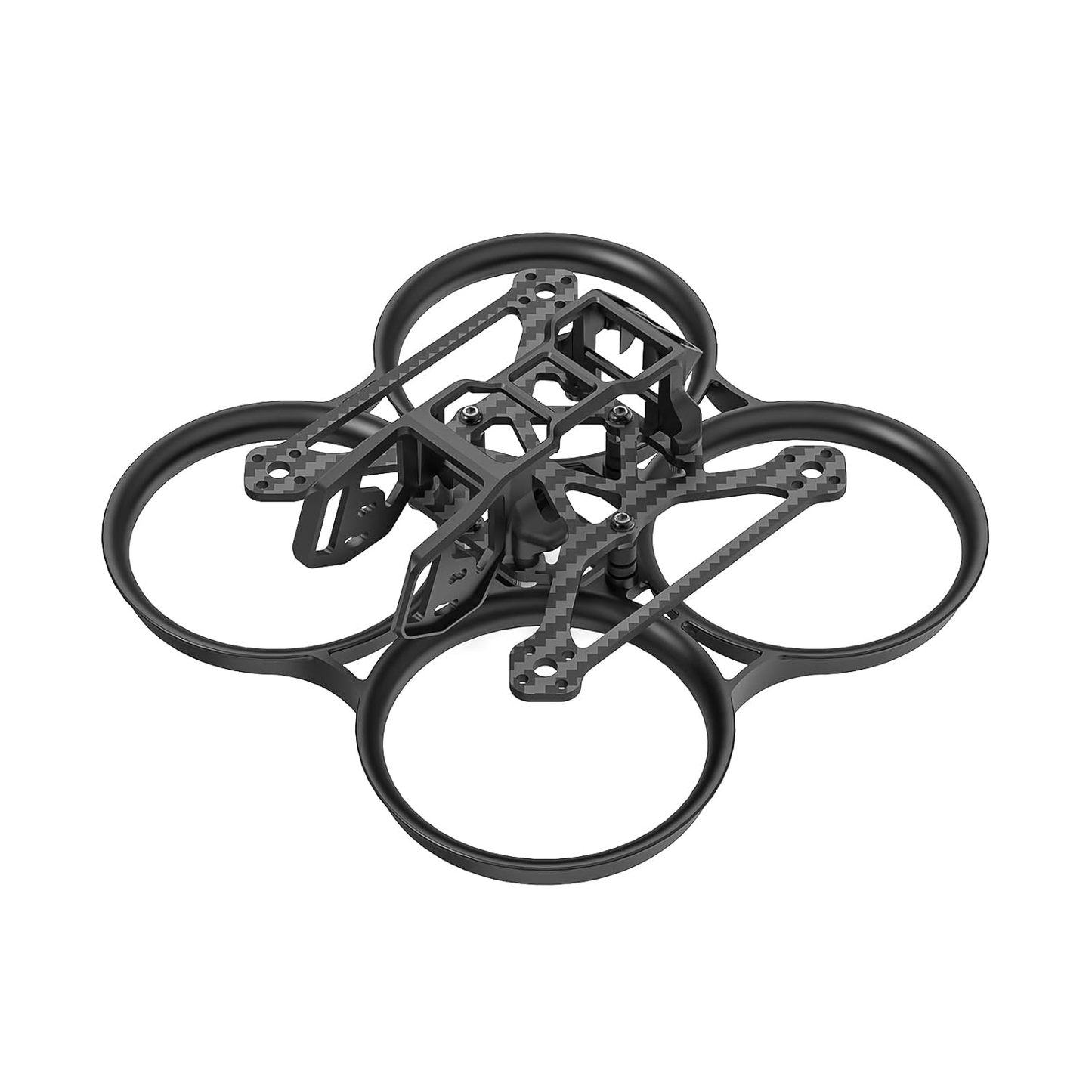

BETAFPV Pavo20 Brushless Whoop Frame DJI O4 Pro Air Unit Frame & O4 Air Unit Bracket

Description:

The Pavo20 Pro Brushless Whoop Frame is tailored for the 2.2″Pavo20 Pro cinewhoop, now with expanded compatibility to support the DJI O3 Air Unit, Caddx Vista, RunCam Link, and the latest DJI O4 Air Unit Pro—paired seamlessly with the O4 Pro Bracket for enhanced stability and versatility. Designed with a 93.7mm wheelbase and constructed from crash-proof PA12 thickened whoop ducts, this frame combines durability with aerodynamic efficiency, delivering an 8-11% thrust boost. Perfectly paired with a robust 3S propulsion system, it generates unparalleled power for freestyle and cinematic flights. The frame also features dual camera fixed holes for DJI O3 and O4 Pro wide-angle shooting and the classic rubber damper design, ensuring buttery-smooth, HD footage every time.

Specifications:

• Item: Pavo20 Pro Brushless Whoop Frame
• Wheelbase: 93.7mm
• Material: PA12/PP

• Top Plate Thickness: 2mm

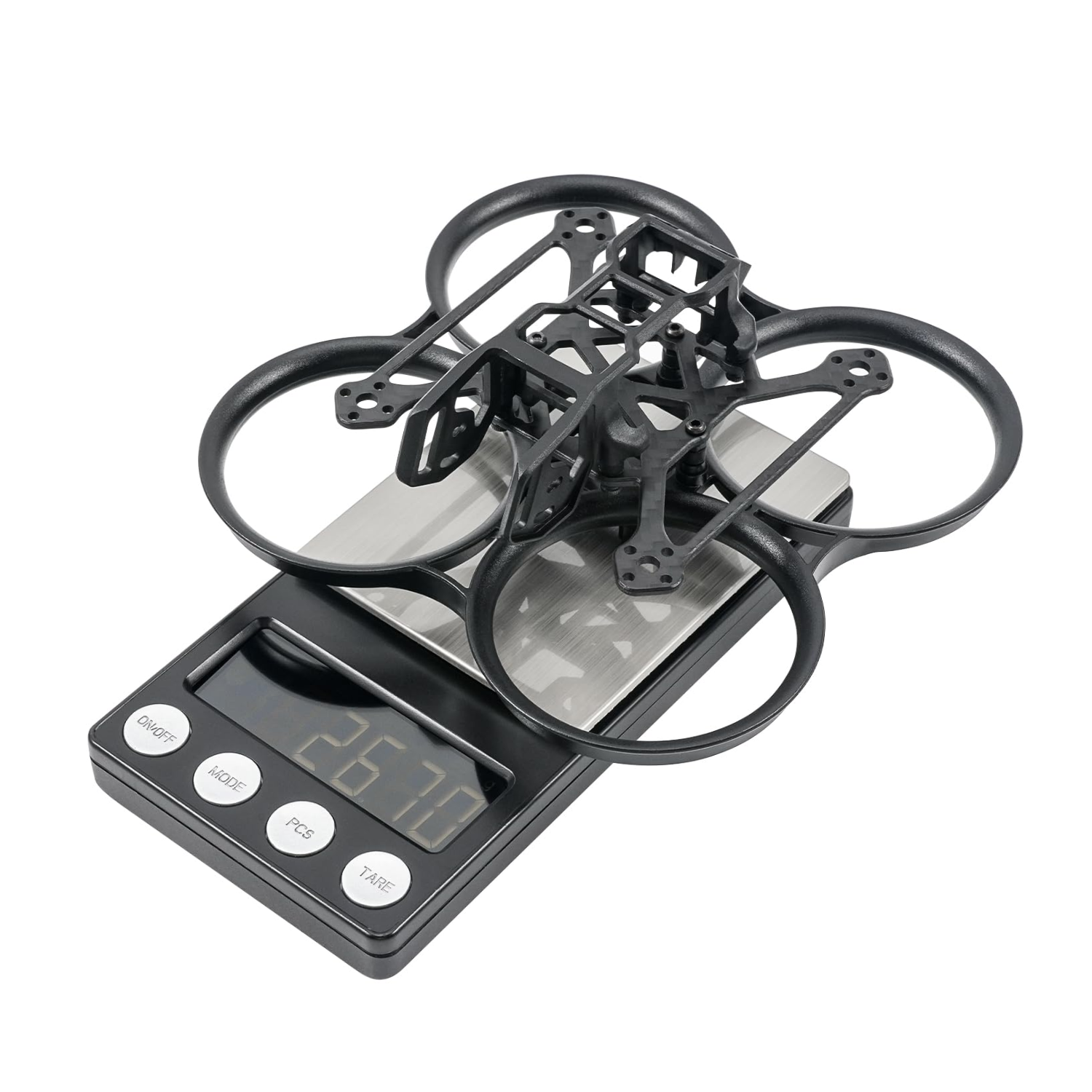

• Frame Weight: 33.3g (With O4 Air Unit Bracket), 35.7g (With O4 Air Unit Pro Bracket)
• Whoop Duct Weight: 17.8g

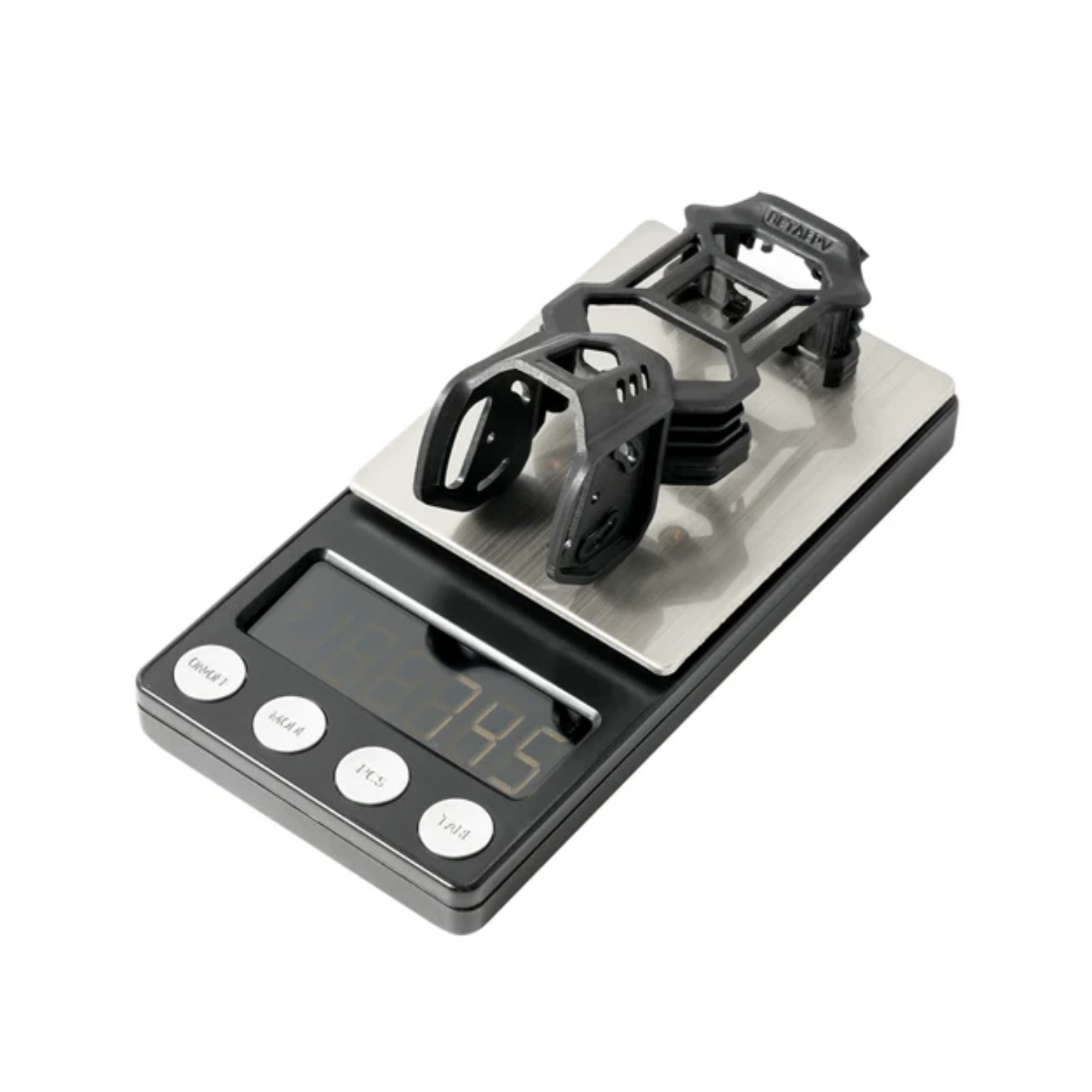

• Bracket Weight: 4.6g (O4 Air Unit Bracket), 7.2g (O4 Air Unit Pro Bracket)
• Color: Black/Transparent Grey/Blue

• Camera Mounting Spacing: 19mm/20mm
• FC Mounting Hole Size: 26×26mm
• Motor Mounting Hole Size: 4-M2-φ9mm
• Battery Slot Width: 20mm
• Camera Filter: Supported

Features:

• Ultra-Durable PA12 Thickened Whoop Duct: Crash-proof construction with a reinforced cross-section design for superior strength and blast.
• Aerodynamic Thrust Boost: Engineered airflow dynamics deliver an 8–11% thrust increase compared to ductless designs. Paired with LAVA 1104 Motors for explosive power, achieving up to 6'40'' flight time.

• Upgraded Camera Lens Protection: Dual camera fixing holes for DJI O4 Pro/O3 wide-angle shooting flexibility. Reinforced cam side panel guards against impacts and angle deviation, even after aggressive flights.

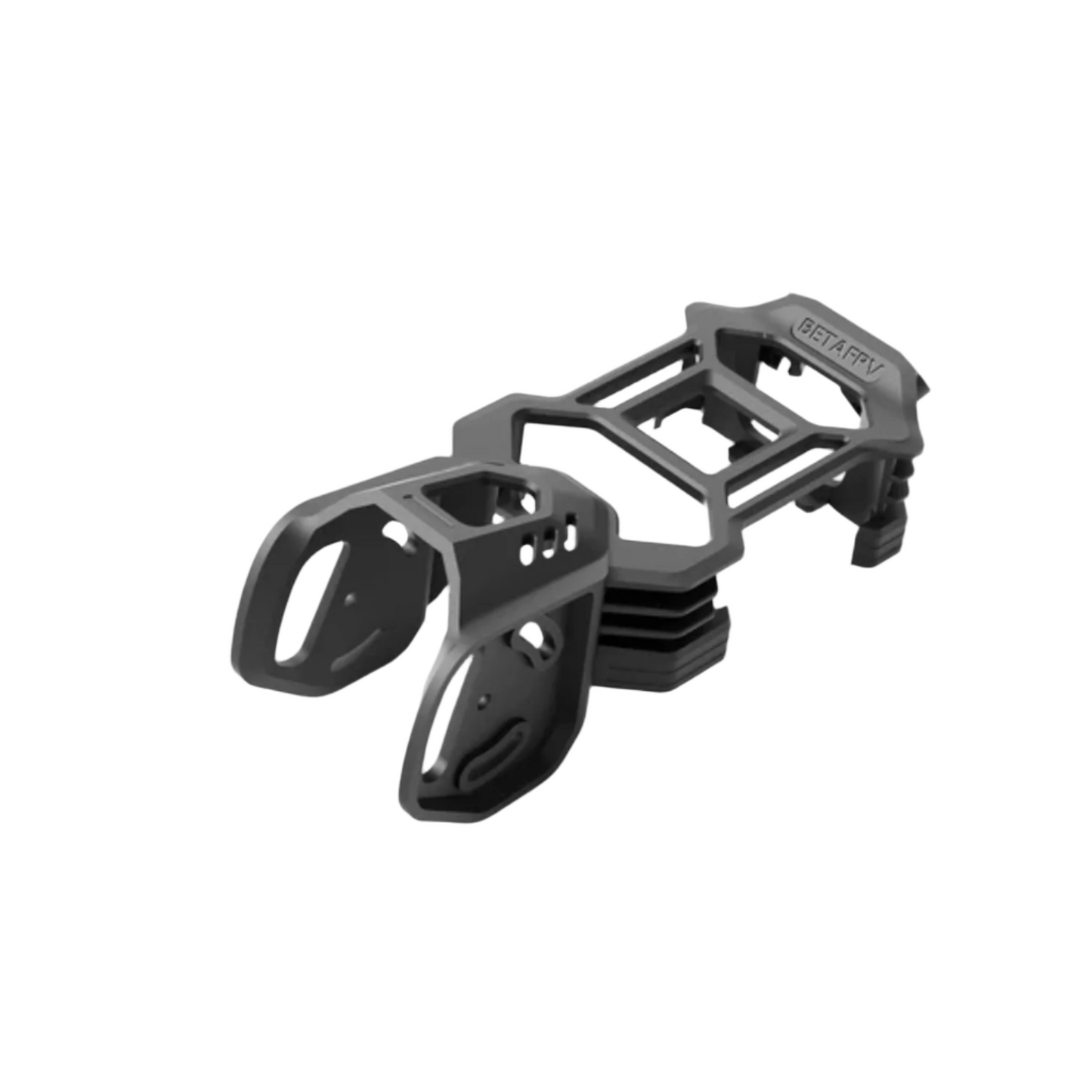

• New O4 Air Unit Pro Bracket: It retains all O3 Bracket features while adding dual fixing holes for optimized camera rotation (0-40° tilt) and 30° angled antenna mounts for a stronger signal in a reinforced design.
• Hassle-Free HD VTX Mounting System: Integrated injection-molded bracket for hassle-free setup with just 8 screws—no tedious screw adjustments needed. Contoured antenna holder ensures secure, clean cable routing and maximum signal integrity.

• Pavo Series Rubber Damper Design: Proprietary vibration-damping system guarantees buttery-smooth, jitter-free HD footage in all flight modes.

• Versatile Battery Mounting System: Open-ended strap slot + side-limitation slots for a rock-solid battery grip. Accommodates a wide range of battery sizes while preventing shifts during hard maneuvers.

Package Included:

• 1 * Pavo20 Pro Top Plate

• 1 * Pavo20 Whoop Duct

• 1 * O4 Air Unit Pro Bracket

• 1 * 130mm Battery Strap

• 2 * Battery Anti-Slip Mat

• 8 * M2 Nut

• 10 * Rubber Damper

• 6 * M2*10 Screws

• 6 * M2*4 Screws

• 4 * M2*14 Screws
