Description:

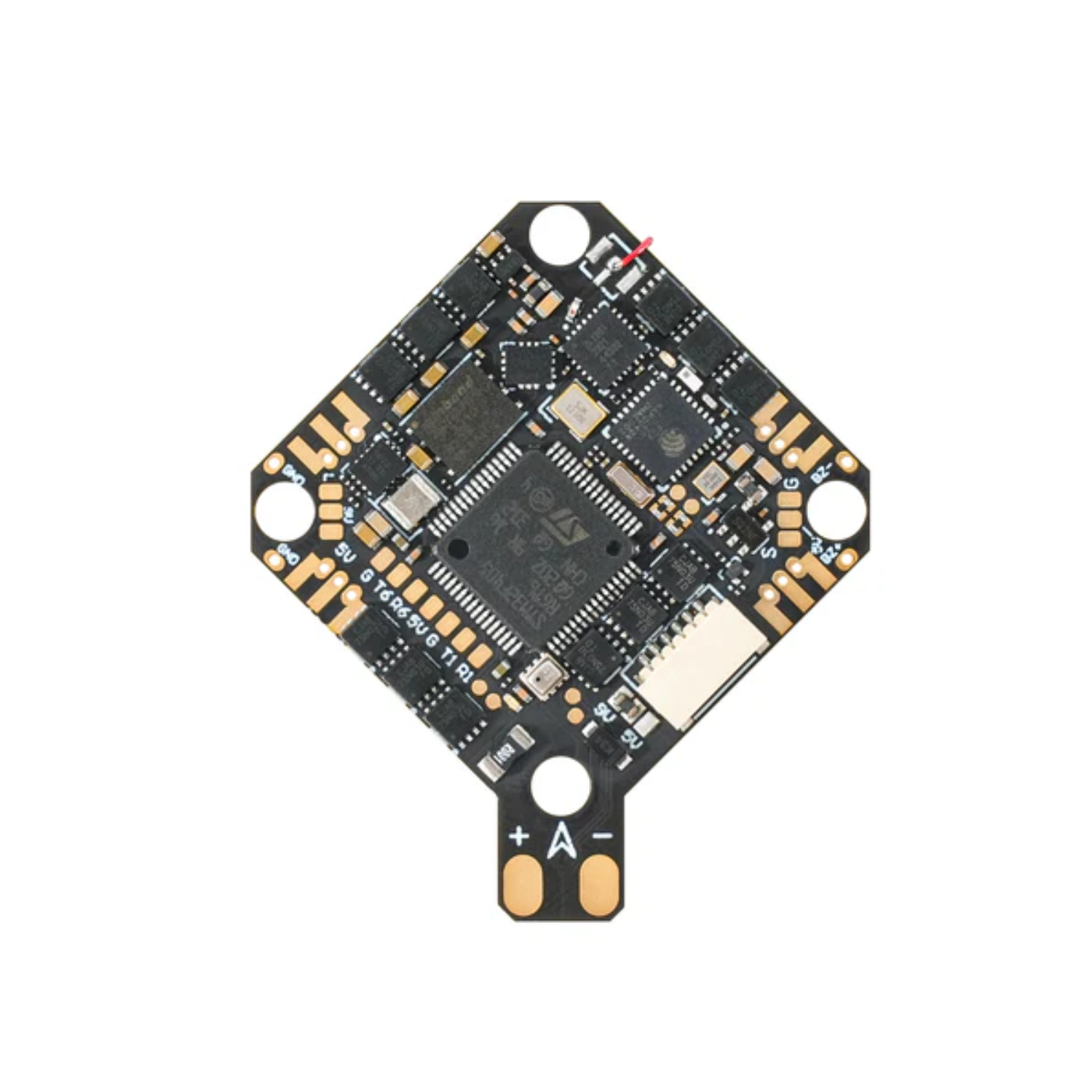

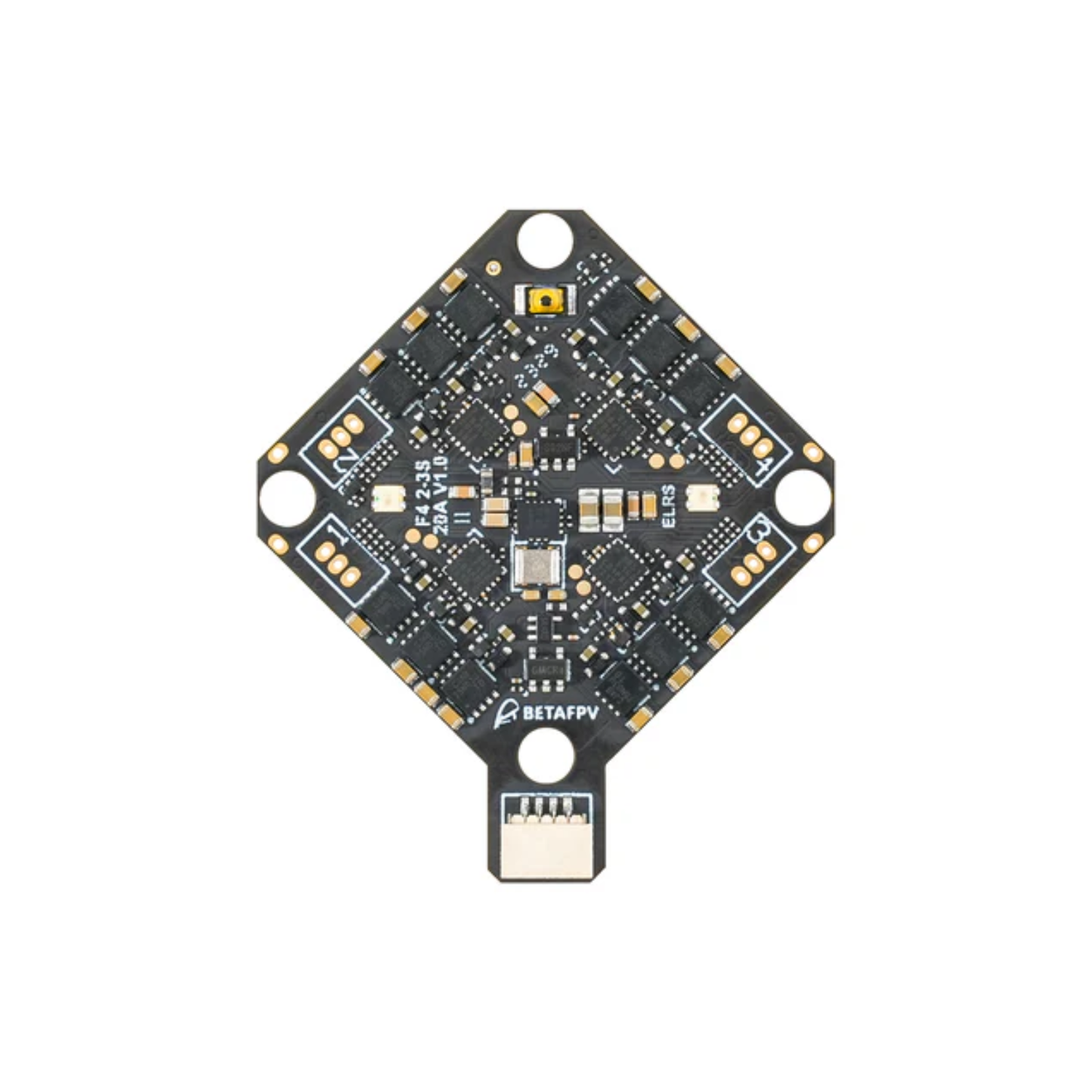

F4 2-3S 20A AIO FC V1 is specifically designed for HD VTX systems, delivering a smooth and enhanced FPV flight experience using 2 3S batteries. It features a dual BEC power solution, providing stable 9V@2A output for the DJI O3 Air Unit and 5V@3A for external peripherals, ensuring reliable power delivery during demanding flights.

Equipped with a 20A all-in-one ESC, this flight controller supports agile handling and improved flight dynamics. Dedicated connectors for DJI O3 HD VTX and an onboard USB port allow for quick installation, easy configuration, and convenient maintenance.

Specifications:

  • Mounting Hole Size:26mm x 26mm
  • CPU: STM32F405RGT6 (168MHz)
  • Six-Axis: ICM42688P (SPI connection)
  • RX: Serial ELRS 2.4G Receiver
  • RX firmware version: BETAFPV AIO 2400 RX ELRS V3.3.0
  • Antenna: Enameled wire
  • Blackbox Memory: 16MB
  • Sensor: Barometer (BMP280/DSP310),  Voltage & Current
  • 5V BEC: 5V 3A@8V supply
  • 9V BEC: 9V 2A@8V supply
  • USB Port: SH1.0 4-Pin
  • Built-in ESC with 20A continuous and peak 25A current
  • ESC input voltage: 2-3S
  • FC firmware version: Betaflight_4.4.1_BETAFPVF405
  • ESC firmware: C_X_70_48_V0.19.2.hex for BB51 Bluejay hardware
  • Signal support: D-shot300, D-shot600

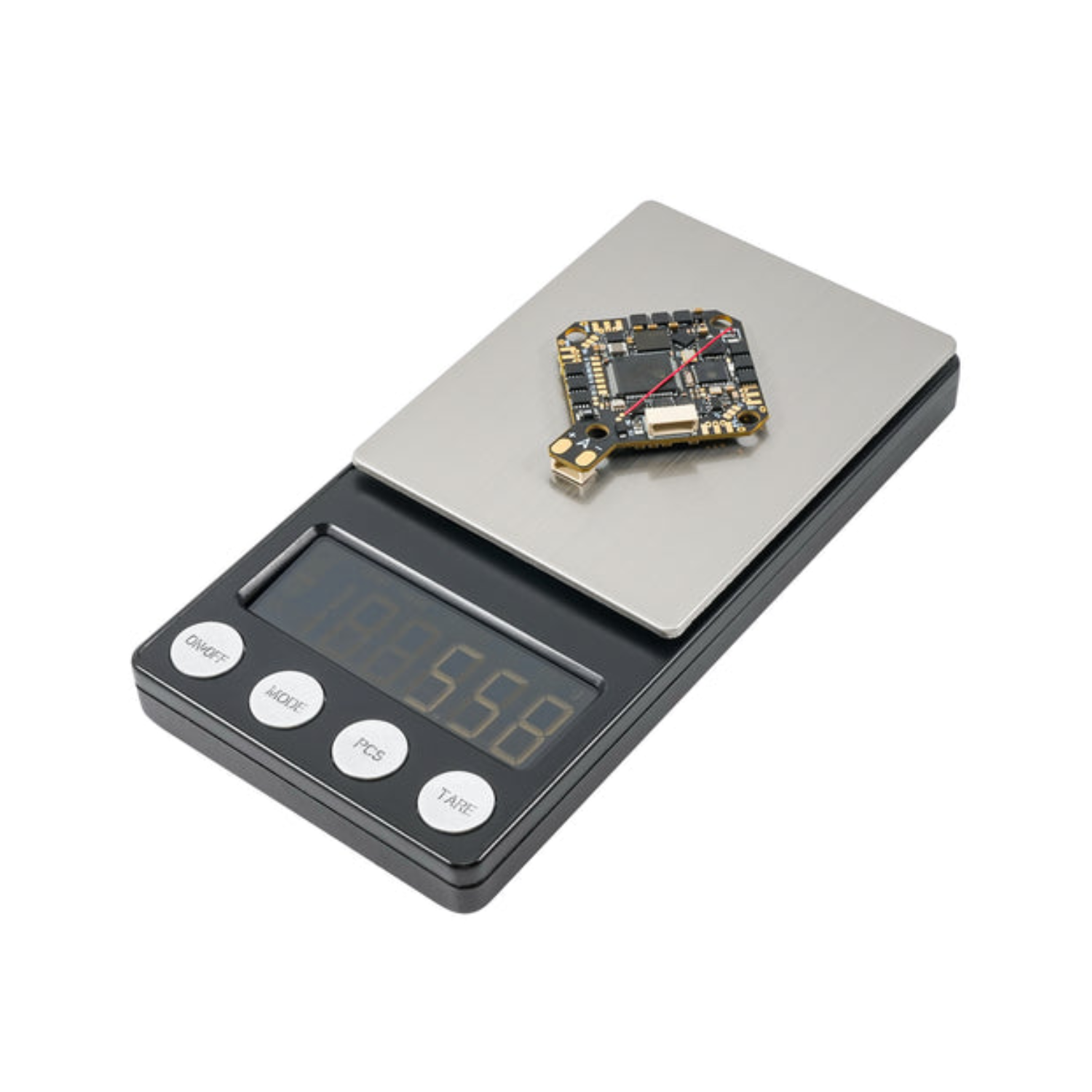

  • Weight: 5.58g (without motor connectors and power cable),5.92g (with motor connectors)

Features:

  • Designed for HD VTX, it features a dual 9V@2A for the DJI O3 and a 5V@3A for the external device BEC solution to prevent screen blackout on the DJI O3 due to low voltage during throttle increase.
  • It includes a new DJI O3 6-pin PMU for easy installation without soldering, reducing assembly complexity. Newbie-friendly.
  • The power range of 2-3S provides increased thrust and improved control with a 20A ESC featuring a single NMOS for continuous current capability.
  • The upgraded onboard receiver allows selective power cutoff for saving power and offers additional UART TX3 and RX3 ports for connecting the external device.
  • Redesigned solder pad layout ensures larger, more secure pads for easy and reliable soldering, while the relocated USB port at the rear facilitates computer tuning.
  • It features an STM32F405RGT6 chip, integrates a Serial ELRS 2.4G receiver, a 16M black box, a barometer, a current meter, reserve 3 complete serial ports, and a standard SBUS, supports GPS, HD VTX, external receiver, and other equipment.

Package Included:

1 x BetaFPV F4 2-3S 20A AIO Flight Controller
