BetaFPV ExpressLRS Recovery Dongle USB Flasher For ExpressLRS Receiver and Transmitter Firmware Update

BetaFPV ExpressLRS Recovery Dongle USB Flasher For ExpressLRS Receiver and Transmitter Firmware Update

In stock

Rs. 799.00
Rs. 799.00
Sale Sold out
Shipping calculated at checkout.

For refund/return/replacement, call us at +91 95995 94520 , +91 95991 22209 or mail us at support@rees52.com

Delivery Time

  • Delivery time with the Express Shipping option is 2-3 working days, and with the Standard Shipping option is 5-6 working days. It varies based on location, reliant on courier services.

  • Delivery time if the order item is on Preorder Status is 15-20 working days.

COD (Cash on Delivery)

  • For COD you have to pay extra charges of Rs 350/- before the shipment. (We will share the company QR Code, UPI ID or Account details for the same)
View full details

Description:

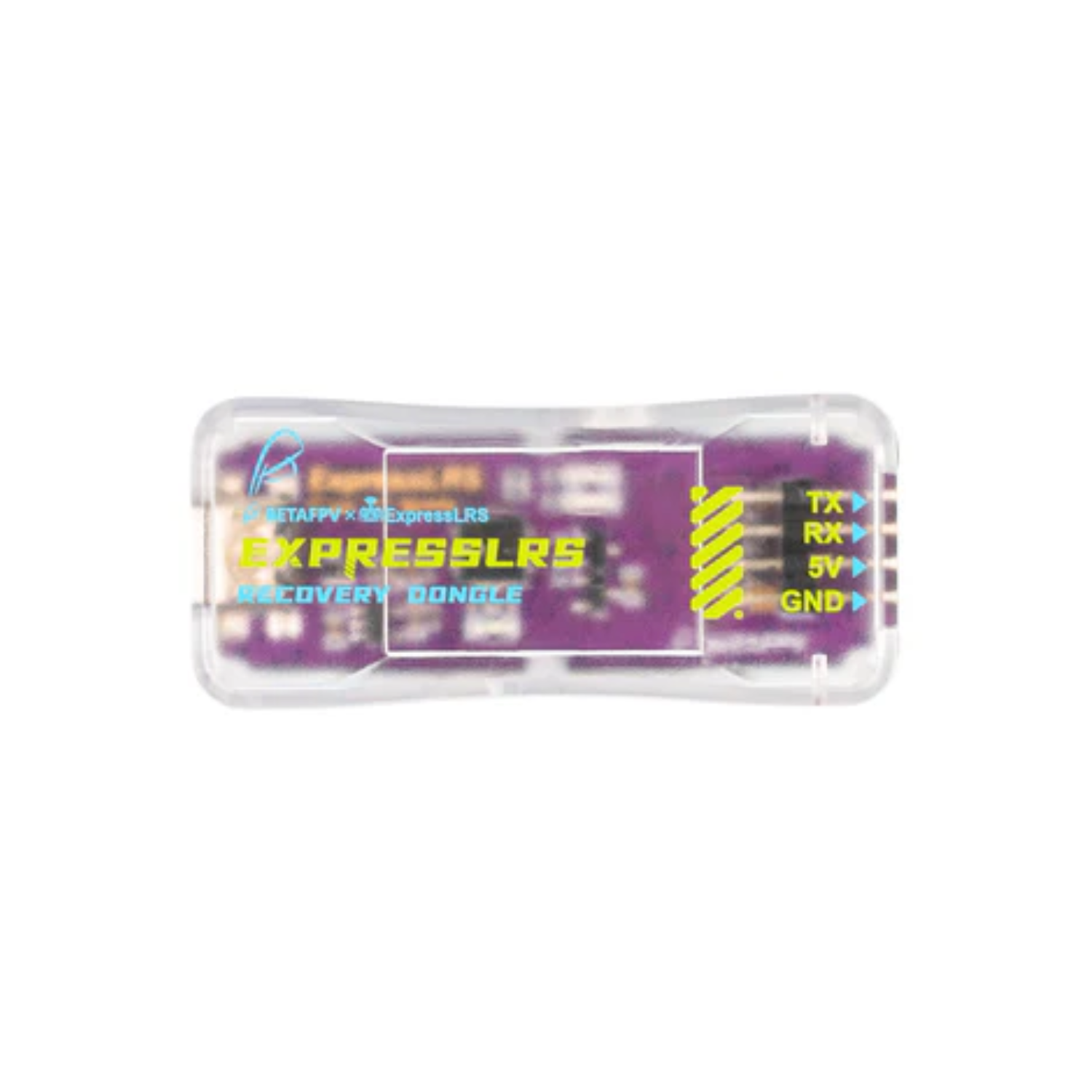

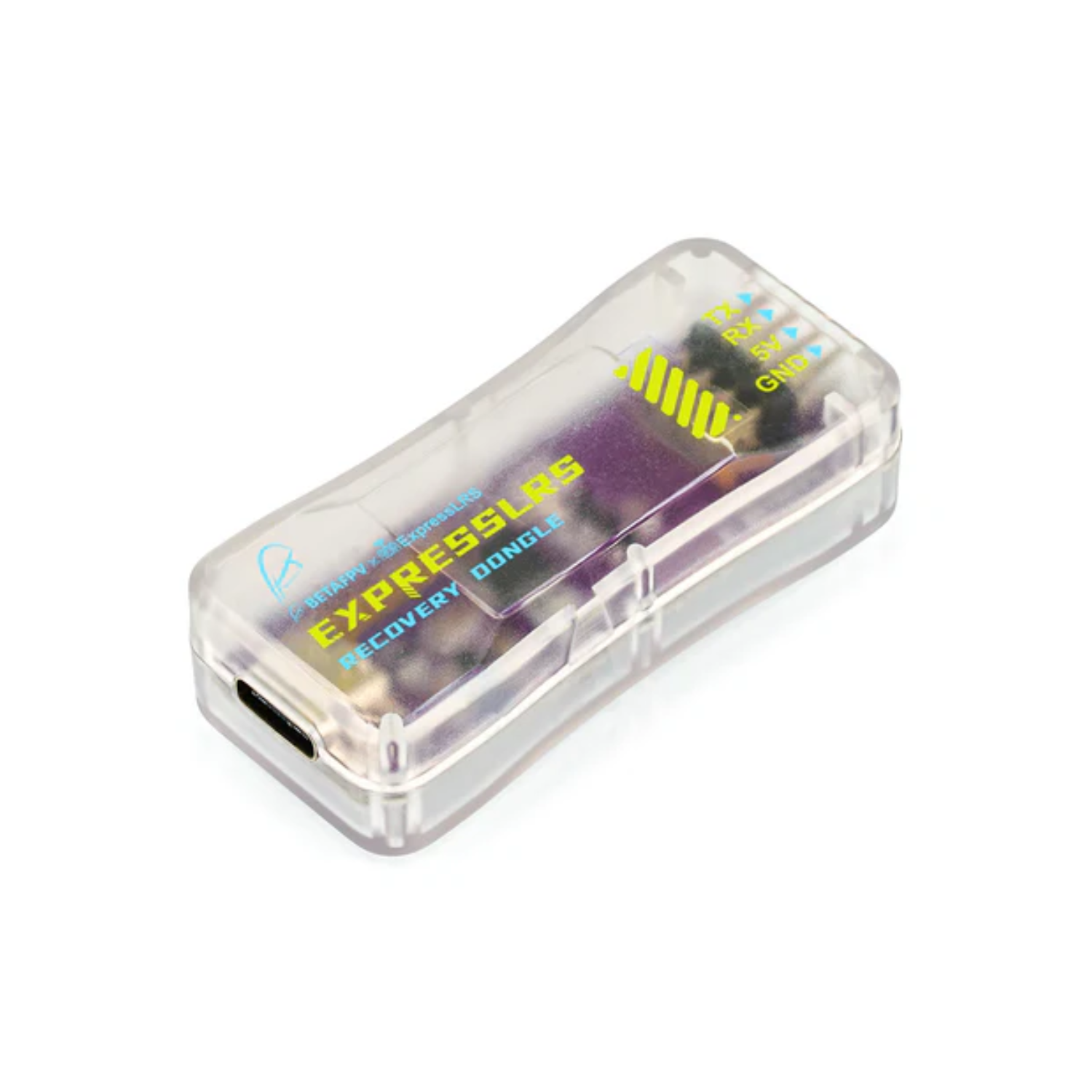

ExpressLRS Recovery Dongle is an FTDI USB to TTL module based on the CP2102 bridge controller, which is applied to the firmware upgrade for the ESP32 ESP8XX chip. The ExpressLRS Recovery Dongle is compatible with many ELRS receivers in the market, such as the ELRS Lite Receiver, ELRS Nano Receiver, ELRS Micro Receiver, and FPV goggles backpack. It will be a good choice to unbrick the ELRS receiver when it fails to update or flash firmware via UART.

Specifications:

  • USB Interface: Type-C USB male connector
  • Operating Voltage: 5V.
  • Logic Voltage: 5V.
  • 3.3V power supply output current: 400mA
  • Pins output method: 2*4P-2.54mm pin header
  • Serial baud rate: Up to 921600bps.
  • Support USB1.1, USB2.0
  • USB to Serial chip (CP2102) supports XP, win7 / win8 32bits, 64bits, win10 / 11 32bits, 64bits, Linux, MAC

Features:

  • Unbrick and recover the ELRS receiver when having a failed update, such as the missing bootloader.
  • Soldering Free! It features spring probe pins for more convenient use. Connecting it with the ELRS receiver does not require soldering.
  • ExpressLRS Recovery Dongle FTDI USB to TTL module is covered by the case and is more durable and portable compared with the naked board version on the market.
  • Support many computer systems in the market, like Windows, MAC, and Linux. This module uses a Type-C USB port for connecting the computer.

Package Included:

1 x BetaFPV ExpressLRS Recovery Dongle
